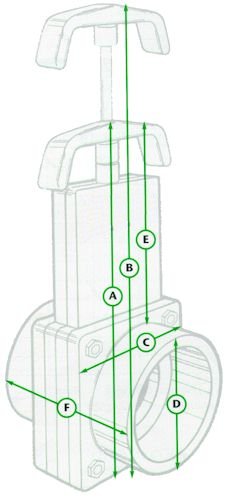

| Size |
A |
B |
C |
D |
E |
F |
PSI |
| 1 1/2" |
6 1/2" |
8 5/8" |
2 7/8" |
2 3/8" |
3 15/16" |
3 3/8" |
45 |
| 2" |
7 1/2" |
10 1/4" |
3 1/4" |
2 3/4" |
4 1/2" |
3 1/2" |
40 |
| 3" |
9 1/4" |
13" |
4 3/8" |
3 15/16" |
5 3/16" |
4 1/2" |
30 |
| 4" |
13 1/4" |
18" |
6 5/8" |
5" |
7 7/16" |
5 3/16" |
20 |
| 6" |
22 3/8" |
31 1/8" |
11" |
7 1/4" |
13 1/4" |
11 1/8" |
10 |
| 8" |
22 3/8" |
31 1/8" |
11" |
9 5/16" |
12 3/16" |
13 3/4" |
10 |
| 10" |
35" |
48 1/2" |
18" |
11 1/2" |
16 15/16" |
13 1/8" |
10 |
| 12" |
35" |
48 1/2" |
18" |
13 1/2" |
18" |
15 1/8" |
10 |
|
ABS
| Size |
A |
B |
C |
D |
E |
F |
| 1 1/2" |
6 1/2" |
8 5/8" |
2 7/8" |
2 3/8" |
3 15/16" |
2 7/8" |
| 2" |
7 1/2" |
10 1/4" |
3 1/4" |
2 3/4" |
4 1/2" |
3 1/8" |
| 3" |
9 1/4" |
13" |
4 3/8" |
3 15/16" |
5 3/16" |
4 1/2" |
|
Socket Depth
| |
1 1/2" |
2" |
3" |
4" |
6" |
8" |
10" |
12" |
| ABS |
.7" |
.75" |
1.6" |
- |
- |
- |
- |
- |
| PVC |
9 1/4" |
1.25" |
1.6" |
1.8" |
4.375" |
5.67" |
5" |
6" |
|
to order these slice gates valves
