| Model 4110ADA & 4110ADAR Deck Mounted Sinks |
Model 4110ADA shown with 5054LF Bubbler and 5452LF Pantry Faucet sold separately |
These deckmounted sinks feature:
- White acid-resisting enameled iron 24" x 16" x 6-1/2" sink
- Perfect for school classrooms
- Sink mounts water tight to deck top with furnished stainless steel mounting rim
- Cross-slotted holes in receptor and vandal-resistant pins, installed on faucets, prevents turning of fixtures
- Includes chrome plated sink strainer with grid and 1-1/2" O.D. tailpiece
- Traps and supplies sold separately
- Standard hole pattern in receptor is right side toward front for bubbler and left side rear for faucet
- Model 4110ADA, when installed at the proper mounting height with Haws recommended faucets and bubblers (sold separately - click here), will meet current barrier free guidelines
|
| Model 4210 Deck Mounted Sinks |
Model 4210 shown with 5530LF Pantry Faucet and 5054LF Bubbler sold separately |
These deckmounted sinks feature:
- Stainless steel 25" x 17" x 5" deep, 18 gauge, # 4 satin finish, Type 302 self-rimming sink
- Perfect for school classrooms
- Special pin holes in sink and vandal-resistant pins, installed on faucets, prevents turning of fixtures
- Faucets and bubblers sold separately (click here)
- Standard hole pattern in sink is right side toward front for bubbler and left side rear for faucet
- Sink installs water tight to counter top and has sound deadening under seal
- Includes chrome plated waste strainer with grid and 1-1/2" O.D. tailpiece
- When installed at the proper mounting height with Haws recommended faucets and bubblers (sold separately - click here), will meet current barrier free guidelines (ADA Compliant)
- Traps and supplies sold separately
|
| Model 4230 Deck Mounted Sinks |
Model 4210ADA shown with 5530LF Pantry Faucet and 5054LF Bubbler sold separately |
These deckmounted sinks feature:
- Stainless steel 31" x 19" x 5" deep, 18 gauge, # 4 satin finish, Type 302 self-rimming sink
- Perfect for school classrooms
- Special pin holes in sink and vandal-resistant pins, installed on faucets, prevents turning of fixtures
- Standard hole pattern in sink is right side toward front for bubbler and left side rear for faucet
- Sink installs water tight to counter top and has sound deadening under seal
- Includes chrome plated waste strainer with grid and 1-1/2" O.D. tailpiece
- Traps and supplies sold separately
- When installed at the proper mounting height with Haws recommended faucets and bubblers (sold separately - click here), will meet current barrier free guidelines (ADA Compliant)
|
Recommended Bubbler & Faucets
(for the deck mounted sinks above)
| Model 5054LF Bubbler - Lead Free |
 |
This bubbler features:
- Polished, chrome-plated lever handle bubbler valve
- Self-contained with integral stream flow regulation
- Integral, chrome-plated brass basin shank
- 1/2" O.D. slip joint supply, shielded bubbler provide an ant-squirt, angled, sanitary drinking stream
- Meets current lead-free legislation
- When installed properly, this drinking faucet meets the requirements of the Americans with Disabilities Act
- Requires less than 5 pounds push to operate
- Vandal-resistant pins prevent turning of fixtures
- Design for deck or sink mounting
- Dimensions: bottom of flange to bubbler orifice, 2"; shank diameter 13/16"
|

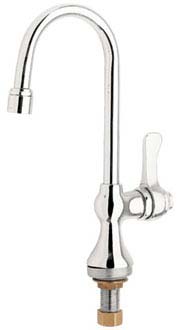

| Model 5452LF Deck Mounted Faucet |
This pantry faucet features:
- Polished chrome-plated brass 3/8" gooseneck pipe locked to body
- Includes self-closing lever handle valve with renewable seat; integral basin shank; 1/2" O.D. slip joint supply
- Meets current lead-free legislation
- Equipped with a vandal-resistant aerator
- Pin in base prevents turning of fixture
- Dimensions: center supply to center spout outlet, 4-1/2"; bottom of flange to extreme top of faucet, 10-9/16"; bottom of flange to spout outlet, 6"; flange diameter, 2"; shank diameter, 13/16"
|
 |
| Model 5510LF Deck Mounted Faucet |
This pantry faucet features:
- Polished chrome-plated brass 3/8" gooseneck pipe locked to body
- Includes lever handle valve, compression-type valve with renewable seat and 1/2" O.D. slip joint supply
- Meets current lead-free legislation
- Equipped with a vandal-resistant aerator
- Pin prevents turning of fixture
- Dimensions: center supply to center spout outlet, 4-1/2"; bottom of flange to extreme top of faucet, 9-3/4"; bottom of flange to spout outlet, 5-3/8"; flange diameter, 2"
|
 |
| Model 5530LF Deck Mounted Faucet |
This pantry faucet features:
- Polished chrome-plated brass, gooseneck hot and cold pantry faucet
- Provides a convenient tap water service for deck-mounted receptors
- Includes 3/8" gooseneck pipe, two lever-handle compression type valves with renewable seats, integral basin shank; and two 1/2" slip joint supplies
- Also equipped with 2.5 gpm flow control and vandal-resistant aerator
- Pin prevents turning of fixture
- Meets current lead-free legislation
- Dimensions: center supply to center spout outlet, 4"; bottom of flange to extreme top of faucet, 10"; bottom of flange to spout outlet, 6-3/8"; flange diameter, 2"; maximum deck thickness, 1-1/2"; center to center of inlets, 4"
|
 |
