Sloan's name is synonymous with dependable performance, and we at PlumbingSupply.com are proud to offer a huge selection of Sloan products, including this solidly built line of sensor operated flushometers. With money saving features such as automatic operation and reduced maintenance and operating costs, you can't go wrong with a Sloan flushometer. Interested in additional Sloan products? Click here.

Royal Optima Exposed, Electronic, Sensor Activated Urinal Flushometers - Designed for top spud urinals

model #180-ES-S

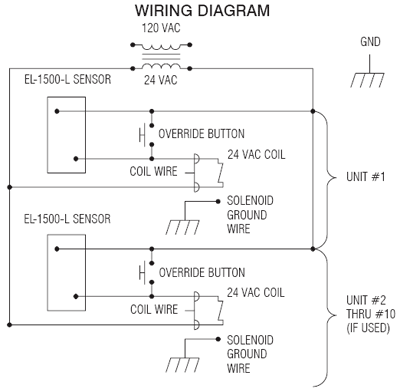

Features: Sensor operated urinal flushometer for top spud urinals Synthetic rubber diaphragm with dual filtered fixed bypass for extra durability Self-adaptive infrared sensor with indicator light Courtesy flush override button Non-hold-open integral solenoid operation Chrome plated wall cover plates with vandal resistant screws Free spinning vandal resistant stop cap High back pressure vacuum breaker flush connection One-piece bottom hex coupling nut, spud coupling, & flange for top spud Sweat solder adapter High copper, low zinc brass castings for dezincification resistance Fixed metering bypass with no external volume adjustment to ensure water conservation Permex™ rubber diaphragm, stop seat, & vacuum breaker for chloramine resistance ASSE 1037, ANSI/ASME A112.19.6 compliance Typical Sloan Optima flushometer installation wiring diagram Requires EL-154 transformer (available directly below)

Model #	Description	Price & Quantity
180-1.0-ES-S	Exposed, sensor activated flushometer for 1-1/4" top spud - dimensions - 1.0 GPF	$450.07
180-1.5-ES-S	Exposed, sensor activated flushometer for 1-1/4" top spud - dimensions - 1.5 GPF	$450.02

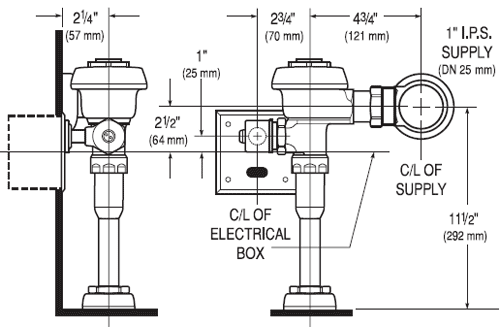

180-ES-S	Exposed, sensor activated flushometer for 1-1/4" top spud - dimensions - 3.5 GPF	$450.64
186-0.5-ES-S	Exposed, sensor activated flushometer for 3/4" top spud - dimensions - 0.5 GPF	$452.61
186-1.0-ES-S	Exposed, sensor activated flushometer for 3/4" top spud - dimensions - 1.0 GPF	$449.00

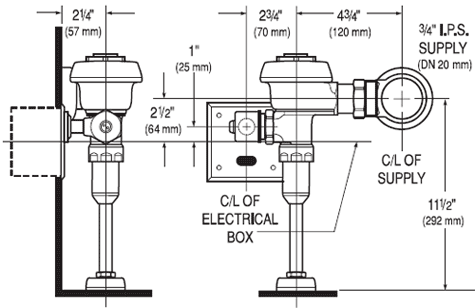

186-ES-S	Exposed, sensor activated flushometer for 3/4" top spud - dimensions - 1.5 GPF	$449.79

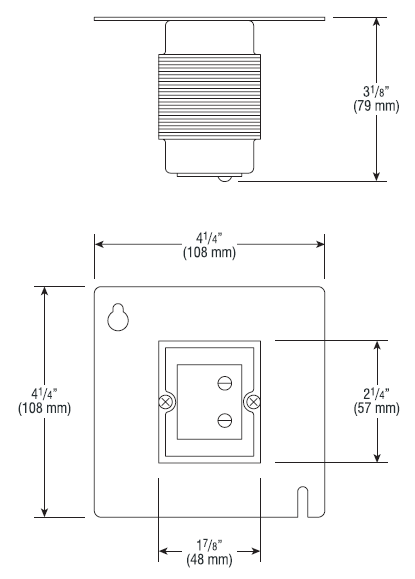

EL-154	120 VAC transformer - for up to 10 flushometers within 50ft. - dimensions - 50VA  • EL-154 Transformer requires a 2 gang electrical box	$34.95

- Or -

G2 Optima Plus Exposed, Battery Powered, Sensor Activated Urinal Flushometers - Designed for top spud urinals

model #8180

Features: Sensor operated urinal flushometer for top spud urinals Includes four (4) size AA batteries (factory installed) Chrome plated flushometer for either left or right hand supply Infrared sensor with multiple sensing fields for high & low target detection Synthetic rubber diaphragm with dual filtered fixed bypass for extra durability Self-adaptive infrared sensor with indicator light Courtesy flush override button Non-hold-open integral solenoid operation Free spinning vandal resistant stop cap High back pressure vacuum breaker flush connection One-piece bottom hex coupling nut, spud coupling, & flange for top spud Sweat solder adapter "Low battery" indicator LED High copper, low zinc brass castings for dezincification resistance Fixed metering bypass with no external volume adjustment to ensure water conservation Permex™ rubber diaphragm, stop seat, & vacuum breaker for chloramine resistance ASSE 1037, ANSI/ASME A112.19.6 compliance

Model #	Description	Price & Quantity

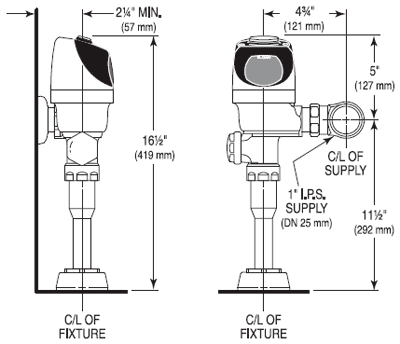

8180-1.0	Exposed, battery operated flushometer for 1-1/4" top spud - dimensions - 1.0 GPF	$423.46
8180-1.5	Exposed, battery operated flushometer for 1-1/4" top spud - dimensions - 1.5 GPF	$420.66
8180	Exposed, battery operated flushometer for 1-1/4" top spud - dimensions - 3.5 GPF	$421.35
8186-0.25	Exposed, battery operated flushometer for 3/4" top spud - dimensions - 0.25 GPF	$423.36
8186-0.5	Exposed, battery operated flushometer for 3/4" top spud - dimensions - 0.5 GPF	$425.85
8186-1.0	Exposed, battery operated flushometer for 3/4" top spud - dimensions - 1.0 GPF	$421.24

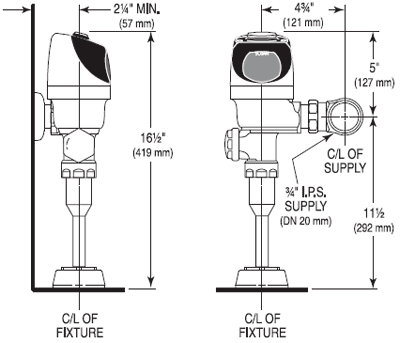

8186	Exposed, battery operated flushometer for 3/4" top spud - dimensions - 1.5 GPF	$424.10

- Or -

Royal Optima Smooth Exposed, Battery Powered, Sensor Activated Urinal Flushometers - Designed for top spud urinals

model #180

Features: Sensor operated urinal flushometer for top spud urinals Includes four (4) size C batteries (factory installed) Infrared sensor with automatic range adjustment Synthetic rubber diaphragm with dual filtered fixed bypass for extra durability Mechanical manual override flush handle Self-adaptive infrared sensor with indicator light Non-hold-open integral solenoid operation Free spinning vandal resistant stop cap High back pressure vacuum breaker flush connection One-piece bottom hex coupling nut, spud coupling, & flange for top spud Sweat solder adapter "Low battery" indicator LED "User in view" indicator LED High copper, low zinc brass castings for dezincification resistance Fixed metering bypass with no external volume adjustment to ensure water conservation Permex™ rubber diaphragm, stop seat, & vacuum breaker for chloramine resistance ASSE 1037, ANSI/ASME A112.19.6 compliance

Model #	Description	Price & Quantity
180-1.0	Exposed, battery operated flushometer for 1-1/4" top spud - dimensions - 1.0 GPF	$345.04
180	Exposed, battery operated flushometer for 1-1/4" top spud - dimensions - 3.5 GPF	$343.67
186-0.5	Exposed, battery operated flushometer for 3/4" top spud - dimensions - 0.5 GPF	$343.11
186-1.0	Exposed, battery operated flushometer for 3/4" top spud - dimensions - 1.0 GPF	$342.38
186	Exposed, battery operated flushometer for 3/4" top spud - dimensions - 1.5 GPF	$343.50

- Or -

"What is Permex™?" Permex™ is a patented rubber compound that is formulated to withstand the deteriorating effects of ammonia and chloramine which are often used in water treatment facilities and cleaners. "How long do the batteries last and are they hard to replace?" Per Sloan Valve Co. these batteries should last approximately 3 years @ 4,000 flushes a month. To replace the batteries simply pop off the lens window to access the old batteries, and replace them with new ones.
