PVC expansion couplings

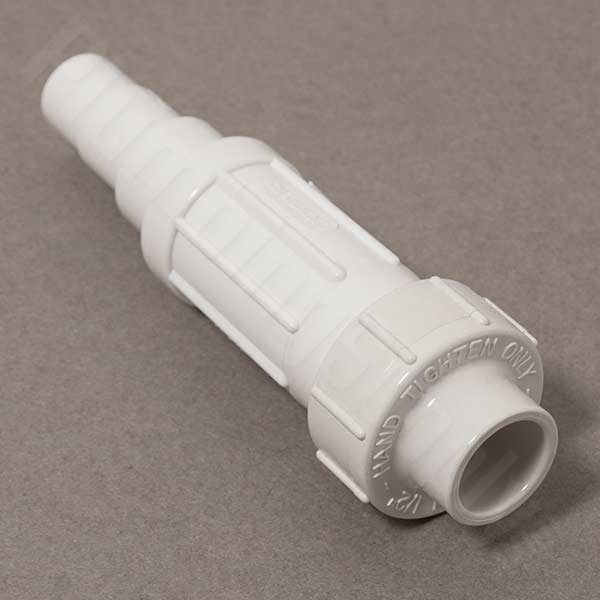

When you need to repair PVC pipe that's in a hard to reach place or it is difficult to replace the whole pipe, we've got what you need. PVC expansion couplings are a unique, quick-repair for a leaking PVC pipe, and are simple to install. Need more fittings? PlumbingSupply.com^® is your source for a huge selection of PVC fittings, other fittings, and more!

Expansion Couplings (IPS Sized) Solvent Style (Hub x Spigot) -- Note: 3" and 4" are non-union
Model	Size	Minimum Length	Maximum Length	Price & Quantity
#PCQF050	1/2"	6-1/2"	8-3/4"	$4.58
#PCQF075	3/4"	7-1/2"	9-3/4"	$4.59
#PCQF100	1"	8-3/4"	11-1/4"	$5.78
#PCQF125	1-1/4"	9-3/4"	12-1/2"	$9.19
#PCQF150	1-1/2"	10-3/4"	13-3/4"	$11.00
#PCQF200	2"	11-1/4"	14-1/4"	$14.34
#PCQF300	3"	15-1/4"	21"	$30.27
#PCQF400	4"	16-3/4"	22-3/4"	$55.47

- Or -

PVC Couplings (IPS Sized)

Slip x Slip

Size	Price & Quantity
1/2"	$0.16
3/4"	$0.20
1"	$0.38
1-1/4" (short style)	$0.60

Size	Price & Quantity
1-1/2" (short style)	$0.64
2" (short style)	$0.99
3"	$3.07
4"	$4.34

- Or -

Frequently Asked Questions

Q. "What is a PVC expansion coupling?"
A. A PVC expansion coupling is a repair coupling for PVC pipe. If there is a leak in the pipe, the section of pipe with the leak can be cut out of the line. The expansion coupling is glued onto one exposed end of the pipe, and then expanded by pulling on the telescoping end; then, it's attached to the other exposed end of the PVC pipe with a standard PVC coupling.

Q. "How do I glue PVC fittings and valves to the pipe?"
A. Most PVC manufacturers recommend that the installer follow the instructions for the cement and primer that is being used. Their instructions are usually found on the label of the container.
