Full Flow Push Connect Fittings

by ProBite™ Mfg.

Save time and energy with a quick push connect fitting from PlumbingSupply.com! No glue, no solder, and no specialized tools needed - best of all, they are not permanent like glue fittings, so they can be repositioned with minimal effort. Try these and many other fittings for the best fit.

Connection system

Push Connect Fitting Features & Benefits

Push connect fittings and valves are full flow (no inserts)
Connection is heat free which reduces the risk of fire hazards
No damage is done to pipe ends when installing and removing
Fittings can be repositioned - simply use the disconnect tool, remove the fitting and place it where desired
Fittings are designed to operate at temperatures ranging from 0° to 250°F
No glues, solder, crimping, clamps or special tools needed

Fast, trouble-free installation of Copper, CPVC or PEX tubing
Removable
Re-usable
Push connect
Installs in seconds
These push connect fittings require no special skills to install!

Common Applications for Push Connect Fittings
Oil-free compressed air Vacuum systems Chilled water Hot water Car wash applications Inert gases Potable water	Fluid transfer Permanent or temporary plumbing service Water treatment systems In-wall applications (no access panel) Below ground plumbing Hydronic heating In-plant cooling systems

Push Fit Contractor Starter Kit
Sizes are CTS (copper tube size) unless noted. Click here for an explanation of terms.

	Includes 2 Each:	Includes 1 Each:
	Straight Coupling - 1/2" x 1/2"	Push Connect TEE - 1/2" x 1/2"
	Straight Coupling - 3/4" x 3/4"	Push Connect TEE - 3/4" x 3/4"
	Reducing Coupling - 3/4" x 1/2"	End Stop - 1/2" x 1/2"
	Straight Female Adapter - 1/2" x 1/2" FNPT	End Stop - 3/4" x 3/4"
	Straight Female Adapter - 3/4" x 3/4" FNPT	Disconnect Tool - 1/2"
	Straight Male Adapter - 1/2" x 1/2" MNPT	Hi-Flo Stiffener - 3/4"
	Straight Male Adapter - 3/4" x 3/4" MNPT	Deburring/Reamer Tool
	Elbow - 1/2" x 1/2"
	Elbow - 3/4" x 3/4"

ProBite^™ Fittings Contractor Starter Kit - $234.23

- Or -

Push Fit Irrigation Kit
Sizes are CTS (copper tube size) unless noted. Click here for an explanation of terms.

	Includes 2 Each:	Includes 1 Each:
	Straight Coupling - 3/4" x 3/4"	Straight Female Adapter - 3/4" x 3/4" FNPT
	Straight Coupling - 1" x 1"	Straight Female Adapter - 1" x 1" FNPT
	Straight Male Adapter - 3/4" x 3/4"	TEE - 3/4" x 3/4"
	Straight Male Adapter - 1" x 1"	End Stop - 3/4" x 3/4"
	Elbow - 3/4" x 3/4"	End Stop - 1" x 1"
	Elbow - 1" x 1"	Hi-Flo Stiffener - 3/4"
		Disconnect Tool - 1"
		Deburring/reamer tool

ProBite^™ Fittings Irrigation Kit - $245.36

- Or -

Click here for an explanation of plumbing-related terms

Full Flow Push To Connect Couplings

Image	Description	Size	Price & Quantity
	Push Connect Straight Coupling The push connect straight couplings allow for quick and easy installation with no glues, solder or flux. Simply clean the pipe and push to connect for a solid quick connection coupling that works on Copper, CPVC or PEX tubing.	3/8" CTS x 3/8" CTS	$6.14
		1/2" CTS x 1/2" CTS Lead Free	$5.76
		3/4" CTS x 3/4" CTS	$7.20
		1" CTS x 1" CTS Lead Free	$12.72

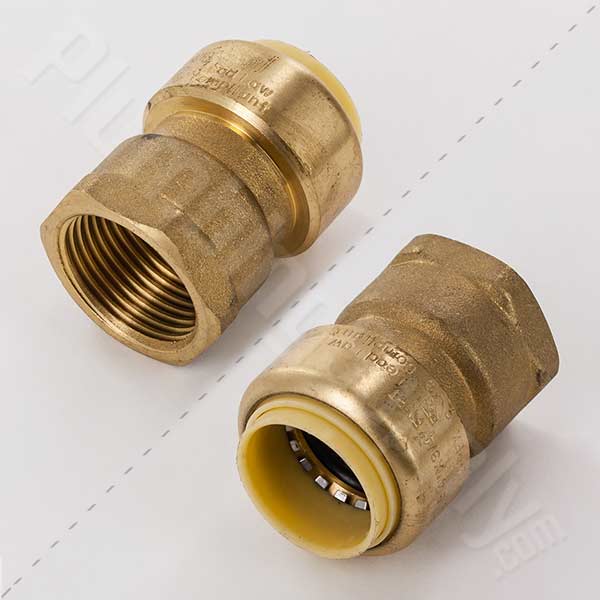

	Push Connect Straight Female Adapter The push connect adapter is great for a quick, solid connection that lasts. It works on Copper, CPVC or PEX tubing.	3/8" CTS x 3/8" FNPT	$5.83
		1/2" CTS x 1/2" FNPT	$5.66
		3/4" CTS x 3/4" FNPT	$6.11
		1/2" CTS x 3/4" FNPT	$6.32
		1" CTS x 1" FNPT	$10.43
	Push Connect Straight Male Adapter Use on Copper, CPVC or PEX tubing. No tools are necessary to connect the push adapter fitting and a standard wrench will allow you to install the male thread in seconds. These adapters are versatile and work great in a variety of plumbing applications: hot water, chilled water, potable water, fluid transfer and many more.	3/8" CTS x 3/8" MNPT	$5.26
		1/2" CTS x 1/2" MNPT	$4.77
		3/4" CTS x 3/4" MNPT	$6.35
		1/2" CTS x 3/4" MNPT	$6.08
		1" CTS x 1" MNPT Lead Free	$9.92

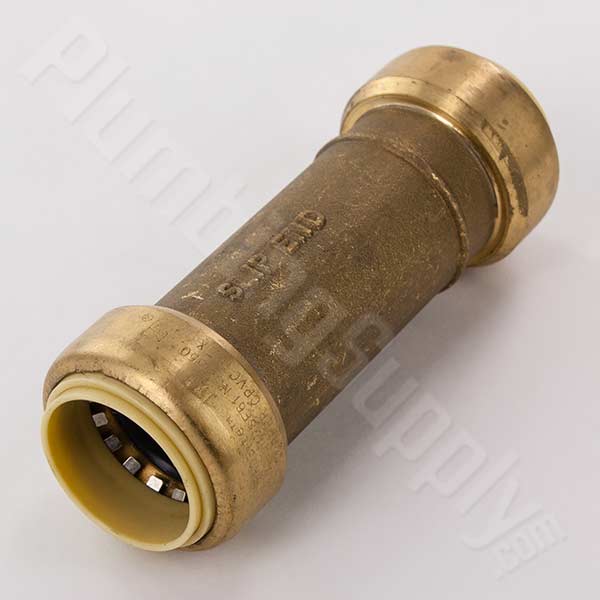

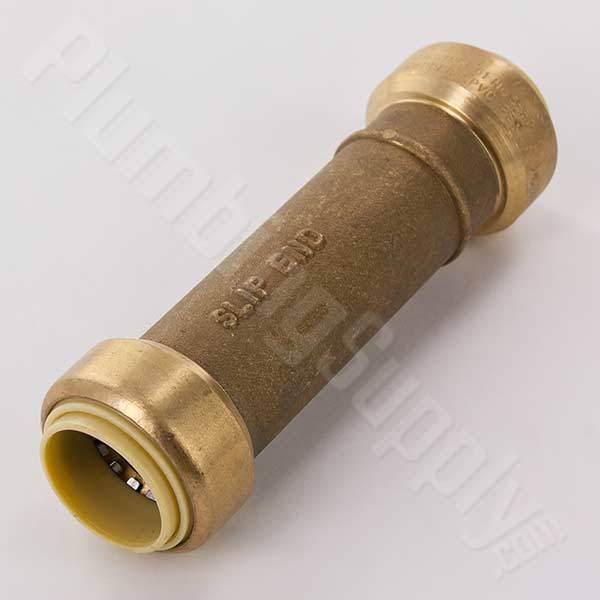

	Slip Coupling (no stop) The push connect slip couplings are designed to simplify plumbing and installation. Users can connect pipe in seconds using the push-fit technology. Only one end of the coupling has a stop, allowing the other end to slide freely over the end of a pipe. The fitting can be released with a disconnect tool and slid back onto the other end of the pipe for successful leak repair.	1/2" CTS x 1/2" CTS	$13.69
		3/4" CTS x 3/4" CTS	$16.47
		1" CTS x 1" CTS	$24.35

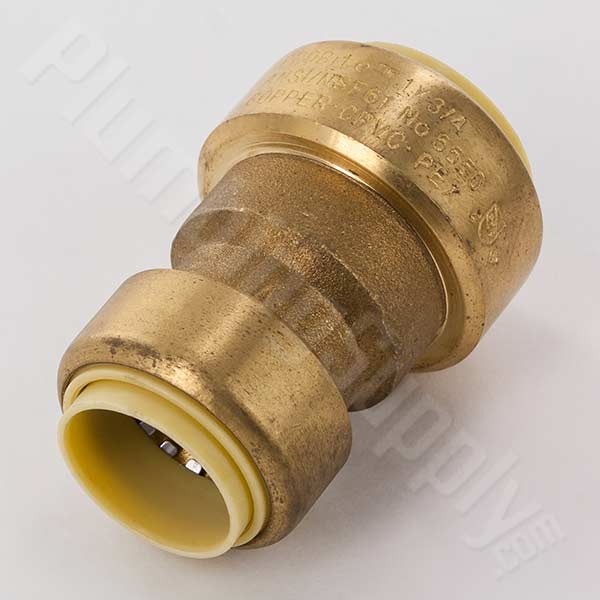

	Push Connect Reducing Coupling The push connect reducing coupling allows an easy way to reduce a variety of pipe and tubing materials: Copper, CPVC or PEX tubing in any combination. The quick push connect technology allows for fast, easy removal and re-installation.	3/8" CTS x 1/2" CTS	$6.51
		3/4" CTS x 1/2" CTS	$7.27
		1" CTS x 3/4" CTS	$14.18

- Or -

to plumbing terms explained

Full Flow Push To Connect Elbows

Image	Description	Size	Price & Quantity
	Push Connect Elbow Elbows can be used on a variety of pipe and tubing materials: Copper, CPVC or PEX tubing. They are very easy to use and connect pipes in seconds.	3/8" CTS x 3/8" CTS	$7.55
		1/2" CTS x 1/2" CTS Lead Free	$6.50
		3/4" CTS x 3/4" CTS	$9.10
		1" CTS x 1" CTS	$15.86
		3/4" CTS x 1/2" CTS (reducing)	$9.10
	Push Connect Elbow Drop Ear The 90° drop ear push connect elbows can be used on a variety of pipe and tubing materials. With an instant push-fit connection for ease of use, you can securely connect Copper, CPVC or PEX tubing in any combination.	3/8" CTS x 3/8" FNPT Lead Free	$8.49
		1/2" CTS x 1/2" FNPT Lead Free	$7.48

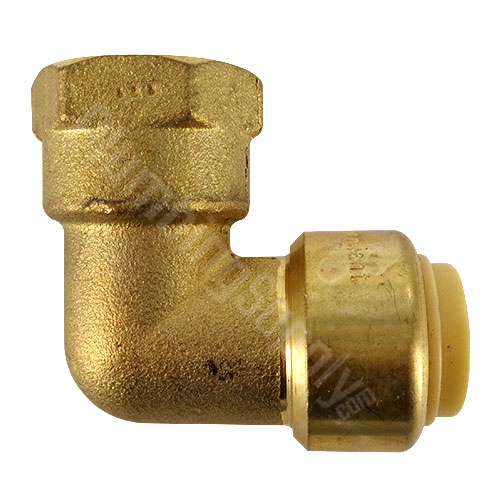

	Push Connect 90° Elbow FNPT The FNPT push to connect elbows are used in a variety of applications using Copper, CPVC or PEX tubing for potable water, heating, cooling, treated water, condensers and much more.	3/8" CTS x 3/8" CTS	$7.25
		1/2" CTS x 1/2" CTS	$6.43

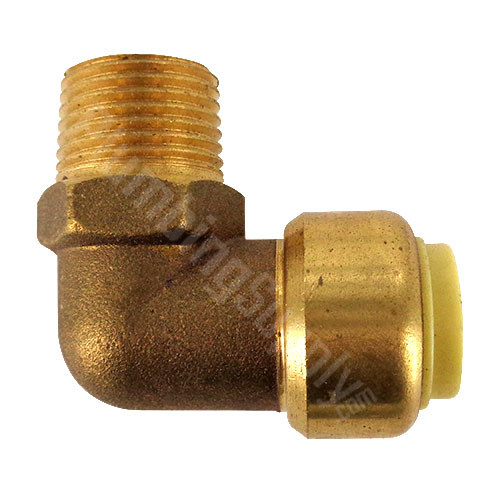

	Push Connect 90° Elbow MNPT The MNPT quick connect elbows are used in a variety of applications using Copper, CPVC or PEX tubing for potable water, heating, cooling, treated water, condensers, and much more.	3/8" CTS x 3/8" CTS	$7.13
		1/2" CTS x 1/2" CTS	$6.26

- Or -

Full Flow Push To Connect Tee's

Image	Description	Size (CTS)	Price & Quantity

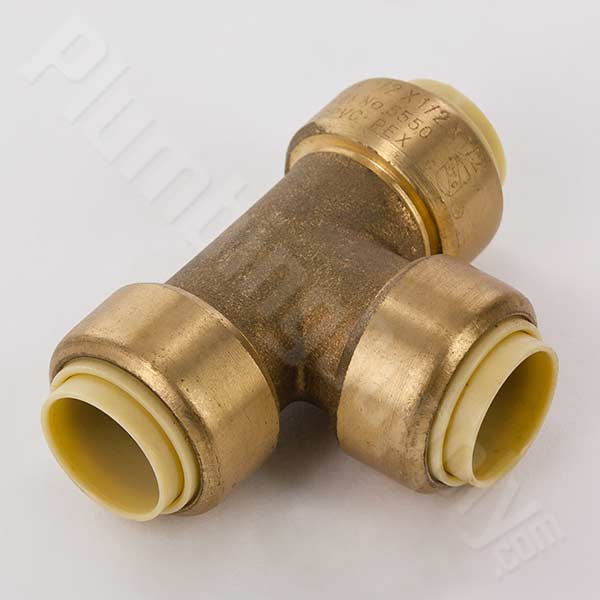

	Push Connect TEE The removable push connect TEE's work on Copper, CPVC or PEX tubing. Use it as a removable or permanent push connect TEE. They are great for residential and commercial applications.	3/8" x 3/8"	$10.74
		1/2" x 1/2"	$9.21
		3/4" x 3/4"	$12.26
		1" x 1"	$20.41
	Push Connect Reducing TEE The push connect reducing TEE allows for an easy way to connect and reduce pipe. While connecting to Copper, CPVC or PEX tubing in any combination, the push-fit technology eliminates the extra work of having to solder or use messy glues.	3/4" x 1/2" x 1/2"	$11.67
		3/4" x 1/2" x 3/4"	$12.12
		1" x 1" x 3/4"	$18.90
		3/4" x 3/4" x 1/2"	$10.97

- Or -

to plumbing terms explained

Full Flow Push To Connect End Stop

Image	Description	Size (CTS)	Price & Quantity
	Push Connect End Stop The removable push connect end stop is often used in central heating systems. Our push end stop is great for pressure testing or for any application where water may need to be interrupted or stopped for any reason. They are great for quick connection and easy removal so you can continue flow or allow another extension. They are also great for direct or indirect cold water systems, unvented and vented hot water systems and sealed central heating systems.	3/8" x 3/8"	$4.27
		1/2" x 1/2"	$4.39
		3/4" x 3/4"	$5.72
		1" x 1"	$9.68

- Or -

Full Flow Push To Connect Ball Valves
Click here for an explanation of plumbing-related terms

Image	Description	Size	Price & Quantity
	Integrated Full Port Push Connect Ball Valve The push connect ball valves have no restrictions and offer full flow throughout. They have complete shut off capability with no leaks. Used for Copper, CPVC or PEX tubing and are perfect for manufacturing, municipal, residential and commercial shut off applications.	1/2" CTS x 1/2" CTS	$13.71
		3/4" CTS x 3/4" CTS	$20.47
		1" CTS x 1" CTS	$31.99
	1/4 Turn Push Connect Angle Ball Valve The push connect quarter turn angle ball valve allows you to quickly connect Copper, CPVC or PEX tubing in seconds. The 1/2" x 3/8" quick connect angle stop valve allows connection for a variety of plumbing applications and is great for connecting toilets and sinks without the hassle of soldering, crimping or gluing. See many flexible supplies by clicking here.	1/2" CTS x 3/8" OD	$8.77
	1/4 Turn Push Connect Straight Ball Valve The quarter turn straight push connect ball valve allows you to quickly connect Copper, CPVC or PEX tubing in seconds. The 1/2" x 3/8" quick connect straight stop valve allows for connection for a variety of plumbing applications (residential or commercial) with no soldering and no hassle! See many flexible supplies by clicking here.	1/2" CTS x 3/8" OD	$8.88

- Or -

Accessories for Push Connect Fittings

Image	Description	Size (CTS)	Price & Quantity

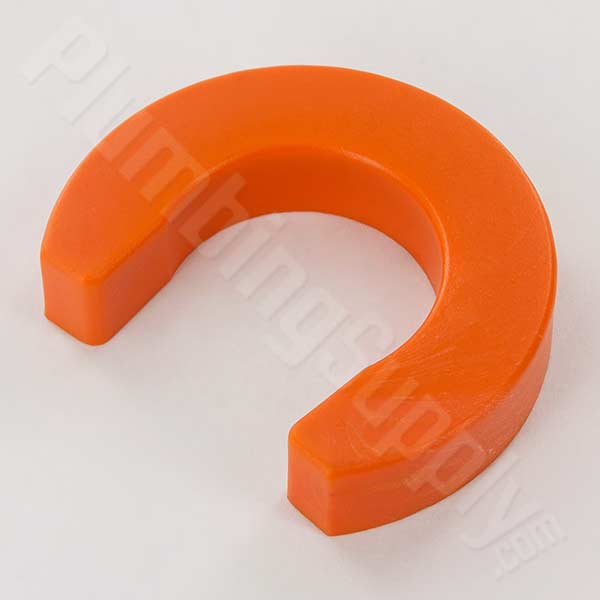

	Disconnect Tool The ProBite^™ disconnect tool is used for quick and easy fitting removal in all plumbing applications. It is available in all standard fitting sizes to ensure a quick and proper fitting removal every time.	3/8"	$0.78
		1/2"	$0.77
		3/4"	$0.99
		1"	$1.42

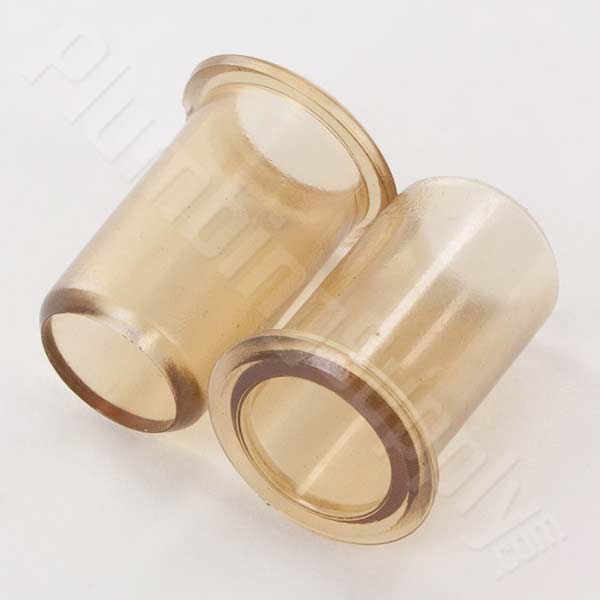

	Hi-Flo Stiffener (2ea per bag) The ProBite^™ Hi-Flow Stiffener makes PEX plumbing easy. When added to plumbing fittings, it allows you to create a secure PEX connection in seconds.	1/2"	$0.87
		3/4"	$1.07
		1"	$1.55

- Or -

Plumbing Terms
CTS	Copper Tube Size
PEX	Polyethylene Plastic Material
CPVC	Chlorinated Poly Vinyl Chloride
NPT	National Pipe Thread
FNPT	Female National Pipe Thread
MNPT	Male National Pipe Thread
OD	Threads that fit compression fittings

Size Explanation
3/8 CTS	3/8" copper tube size (nominal inside diameter), 1/2" outside diameter
1/2 CTS	5/8" copper tube size (nominal inside diameter), 5/8" outside diameter
3/4 CTS	3/4" copper tube size (nominal inside diameter), 7/8" outside diameter
1 CTS	1" copper tube size (nominal inside diameter), 1-1/8" outside diameter
