Simple, straightforward and low shipping rates for these non-submersible pumps.



Non-Submersible Pumps

by PerformancePro


Ponds and fountains add beauty, charm and value to your home, and PlumbingSupply.com has the best selection of pond pumps and other pond products on the Internet. Click here for a link to our pond product index page.

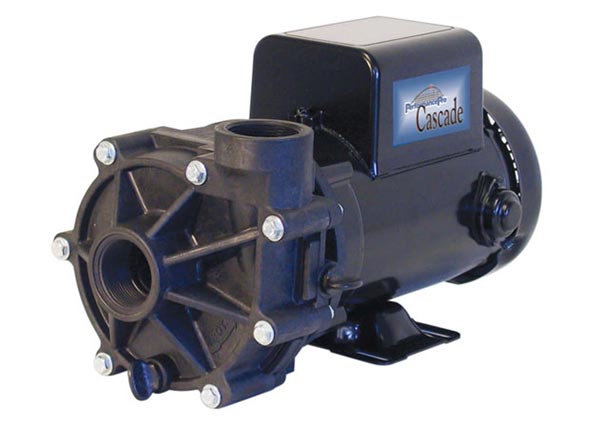

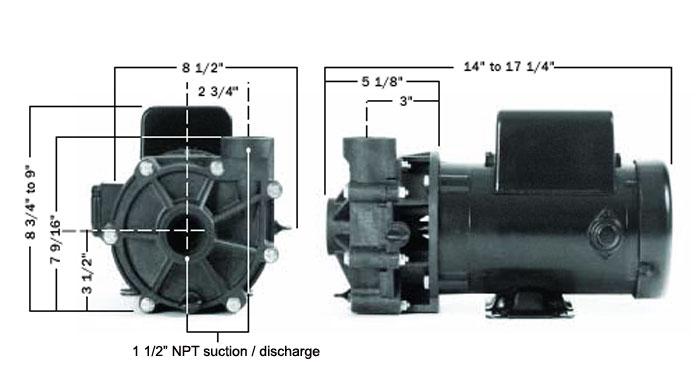

Energy Saving PerformancePro Cascade Pond Pumps:

Made In USA image

These are high efficiency, industrial grade pumps, ideal for your pond, water feature, or general transfer and re-circulation needs. Cascade pumps produce excellent flow rates at sufficient pressure to really get the job done. The industrial grade Noryl housings are built for long term use. A strainer pot may be attached to facilitate priming and to strain the inflow.

These Cascade pond pumps features:
  • Money saving high efficiency
  • Long life, corrosion resistant, 316 stainless steel shaft seals
  • Impeller interchangeability allows you to easily change your pump's performance
  • Top-of-the-line U.S. motors
  • All 1725 rpm units are "TEFC" (totally enclosed, fan cooled) for excellent protection and long term reliability.
  • TEFC MOTORS: This motor is probably the most commonly used motor in ordinary industrial environments. It costs only a few dollars more than the open motor, yet offers good protection against common hazards. The motor is constructed with a small fan on the rear shaft of the motor, usually covered by a housing. This fan draws air over the motor fins, removing excess heat and cooling the motor. The enclosure is "Totally Enclosed". This ordinarily means that the motor is dust tight, and has a moderate water seal as well.
  • ODP MOTORS: An ODP enclosure on a motor means "Open, Drip Proof". ODP motors are relatively inexpensive motors used in normal applications. The construction of an ODP motor consists of a sheet metal enclosure with vent stamped to allow good air flow. The vents are designed in such a way that water dripping on the motor will not normally flow into the motor. A fan is mounted on the motor's rear shaft to pull air through the motor to keep the motor cool.
  • Both pump ends and motors are designed for quiet operation
  • Safety first—out of pond pumps help protect both you and your fish from annoying and potentially dangerous oil or electrical leaks
  • Pumps come ready for hardwire installation (cord w/plug available separately)
  • 3 years manufacturer's limited warranty

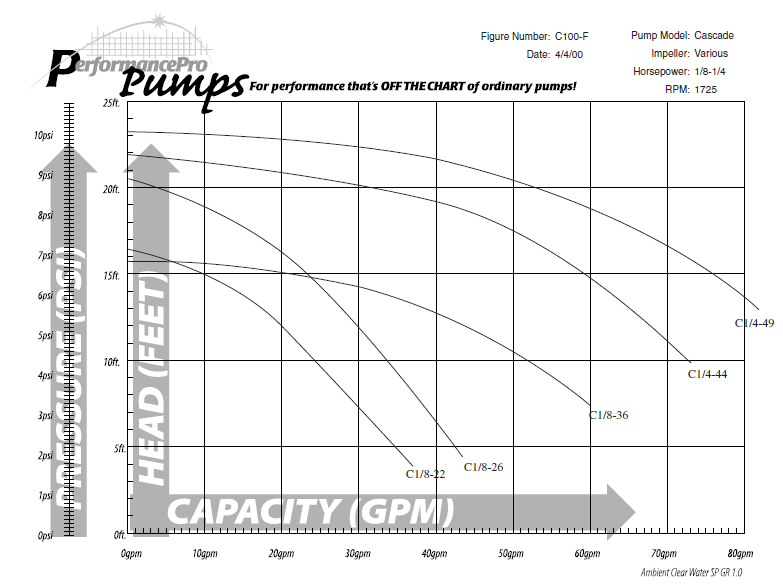

Cascade Low 1725 RPM - 115/230volt
These pumps use a TEFC motor
Model # HP Max Watts Max Head Mid Point Flow Max Flow Select Item(s)
C 1/8 22 1/8 120 16ft 1100gph @ 13' 2200gph @ 4' Add to quote -->
C 1/8 26 1/8 159 20ft 1300gph @ 16' 2600gph @ 4' Add to quote -->
C 1/8 36 1/8 186 16ft 1800gph @ 14' 3600gph @ 7' Add to quote -->
C 1/4 44 1/4 289 22ft 2200gph @ 19' 4400gph @ 10' Add to quote -->
C 1/4 49 1/4 367 23ft 2400gph @ 21' 4900gph @ 13' Add to quote -->

We cannot show pricing on the web for these items.
To request a price quote, select the items you are interested in by clicking
the box in the "Select Item(s)" column next to the product.
Click the button below to add items to your quote list.

- Or -Click here to view items that you would like to have quoted

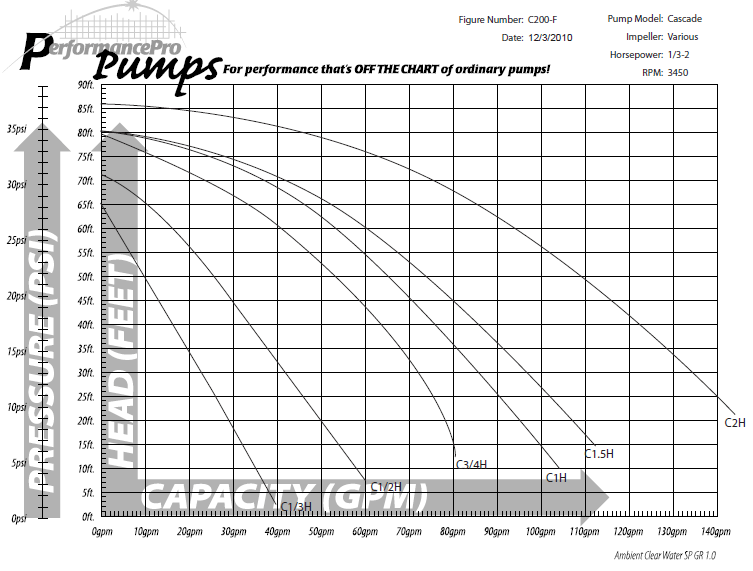

Cascade High 3450 RPM - 115/230volt
Model # HP Motor Type Amps @ 230v Max Head Mid Point Flow Max Flow Select Item(s)
C 1/3 1/3 ODP 3.6 56ft 1200gph @ 28' 2370gph @ 3' Add to quote -->
C 1/2 1/2 ODP 4.4 71ft 1800gph @ 44' 3500gph @ 7' Add to quote -->
C 1/2E 1/2 TEFC 4.4 71ft 1800gph @ 44' 3500gph @ 7' Add to quote -->
C 3/4 3/4 ODP 5.9 79ft 2400gph @ 60' 4800gph @ 12' Add to quote -->
C 3/4E 3/4 TEFC 5.9 79ft 2400gph @ 60' 4800gph @ 12' Add to quote -->
C 1 1 ODP 8.1 80ft 3200gph @ 65' 6400gph @ 20' Add to quote -->
C 1E 1 TEFC 8.1 80ft 3200gph @ 65' 6400gph @ 20' Add to quote -->
C 1-1/2 1-1/2 ODP 6.6 80ft 3600gph @ 64' 7200gph @ 26' Add to quote -->
C 2 2 ODP 13.5 86ft 4500gph @ 75' 8800gph @ 37' Add to quote -->

We cannot show pricing on the web for these items.
To request a price quote, select the items you are interested in by clicking
the box in the "Select Item(s)" column next to the product.
Click the button below to add items to your quote list.

- Or -Click here to view items that you would like to have quoted

Options

Option Description Select Item(s)
Saltwater kit Includes PVC shaft sleeve & stainless hardware Add to quote -->
S.S. hardware Stainless steel hardware Add to quote -->
Cord & Plug 8' long 115 volt power cord installed up to 1/3 hp Add to quote -->
Cord & Plug 8' long 115 volt power cord installed up to 1 hp Add to quote -->

We cannot show pricing on the web for these items.
To request a price quote, select the items you are interested in by clicking
the box in the "Select Item(s)" column next to the product.
Click the button below to add items to your quote list.

- Or -Click here to view items that you would like to have quoted


Pot Strainer

Pot Strainer - helps protect your Sequence pump
Pot strainer shown with pump (not included).

To help you protect your PerformancePro Cascade pump investment, we'd like to encourage that you use a pot style strainer. This has 1 1/2" Mips outlet (it fits right into the Cascade model pump inlet) and 1 1/2" Fips inlet (just like the pump).

Description Select Item(s)
1-1/2" Mips x 1-1/2" Fips In-line style pot strainer with basket (mfr by Hayward) Add to quote -->

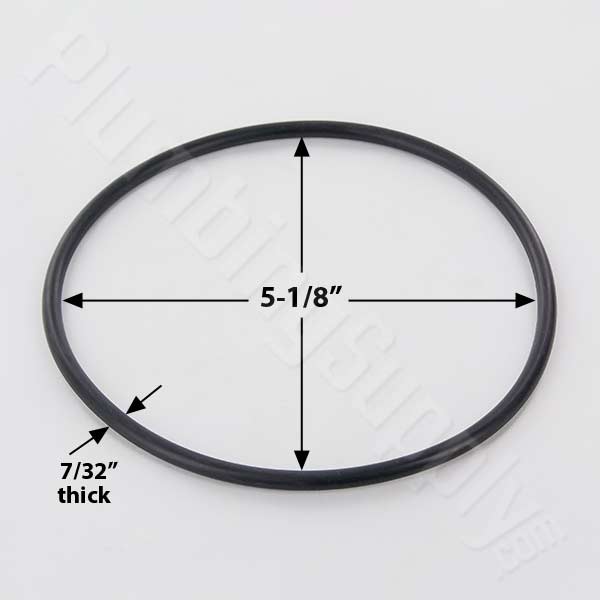

O-Ring** replacement for this pot strainer Add to quote -->

**We recommend using Super Lube on these O-rings

We cannot show pricing on the web for these items.
To request a price quote, select the items you are interested in by clicking
the box in the "Select Item(s)" column next to the product.
Click the button below to add items to your quote list.

- Or -Click here to view items that you would like to have quoted

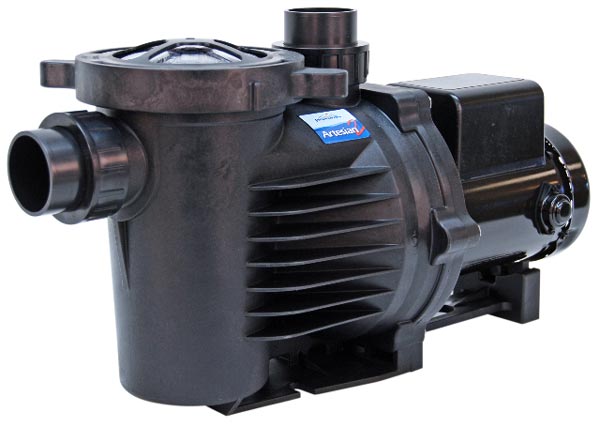

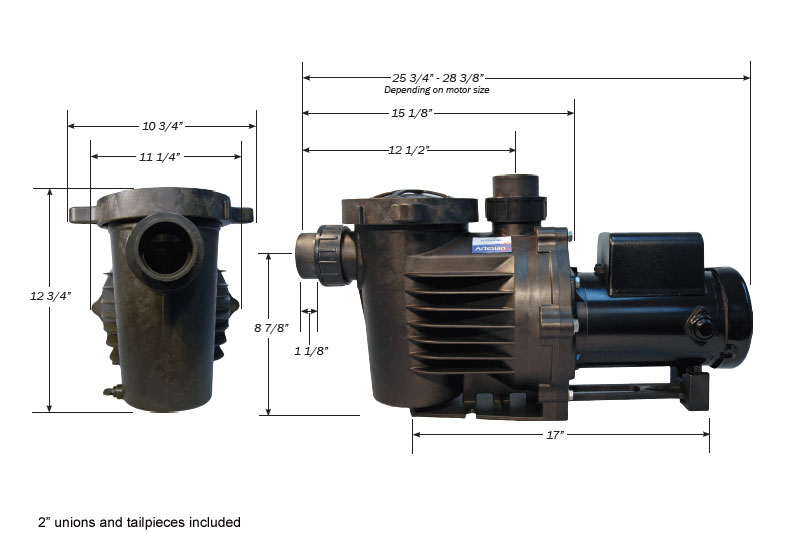

Energy Saving PerformancePro Artesian - Pond Pumps:

The Artesian combines high efficiency and reliability with the convenience of self-priming. Molded of corrosion-resistant polypropylene. Artesian pumps are ideal for applications in which the pump is positioned above the water level. An easy-open lid provides ready access to the integral pot strainer's large basket.

These Artesian pond pumps features:
  • Money saving high efficiency pump and motor units
  • Long life, corrosion resistant, 316 stainless steel shaft seals
  • Impeller interchangeability allows you to easily change your pump's performance
  • Top-of-the-line U.S. motors
  • All 1725 rpm units are "TEFC" (totally enclosed, fan cooled) for excellent protection and long term reliability.
  • TEFC MOTORS: This motor is probably the most commonly used motor in ordinary industrial environments. It costs only a few dollars more than the open motor, yet offers good protection against common hazards. The motor is constructed with a small fan on the rear shaft of the motor, usually covered by a housing. This fan draws air over the motor fins, removing excess heat and cooling the motor. The enclosure is "Totally Enclosed". This ordinarily means that the motor is dust tight, and has a moderate water seal as well.
  • ODP MOTORS: An ODP enclosure on a motor means "Open, Drip Proof". ODP motors are relatively inexpensive motors used in normal applications. The construction of an ODP motor consists of a sheet metal enclosure with vent stamped to allow good air flow. The vents are designed in such a way that water dripping on the motor will not normally flow into the motor. A fan is mounted on the motor's rear shaft to pull air through the motor to keep the motor cool.
  • Both pump ends and motors are designed for quiet operation
  • Safety first—out of pond pumps help protect both you and your fish from annoying and potentially dangerous oil or electrical leaks
  • Pumps come ready for hardwire installation (cord w/plug available separately)
  • 3 years manufacturer's limited warranty

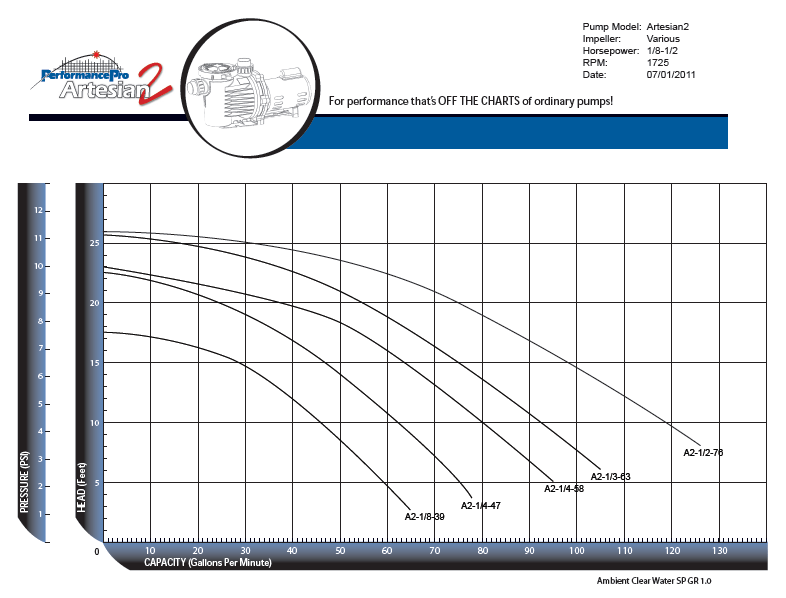

Artesian Low 1725 RPM - 115/230v
These pumps use a TEFC motor.
Model # HP Max Watts Max Head Mid Point Flow Max Flow Select Item(s)
A 1/8 30 1/8 152 17ft 1500gph @ 14' 3000gph @ 4' Add to quote -->
A 1/8 35 1/8 187 18ft 1800gph @ 15' 3500gph @ 6' Add to quote -->
A 1/4 40 1/4 266 22ft 2000gph @ 18' 3900gph @ 7' Add to quote -->
A 1/4 49 1/4 316 21ft 2400gph @ 19' 4900gph @ 9' Add to quote -->
A 1/3 56 1/3 428 26ft 2800gph @ 22' 5600gph @ 13' Add to quote -->
A 1/2 75 1/2 625 26ft 3600gph @ 23' 7560gph @ 12' Add to quote -->

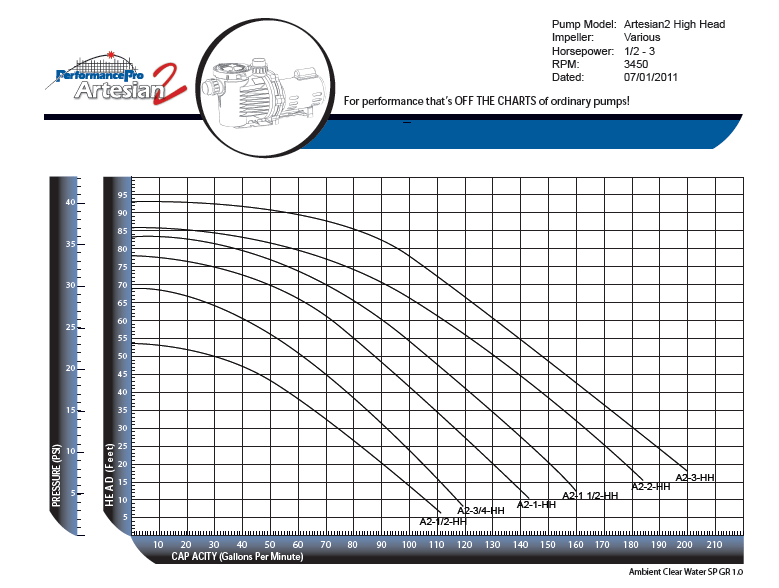

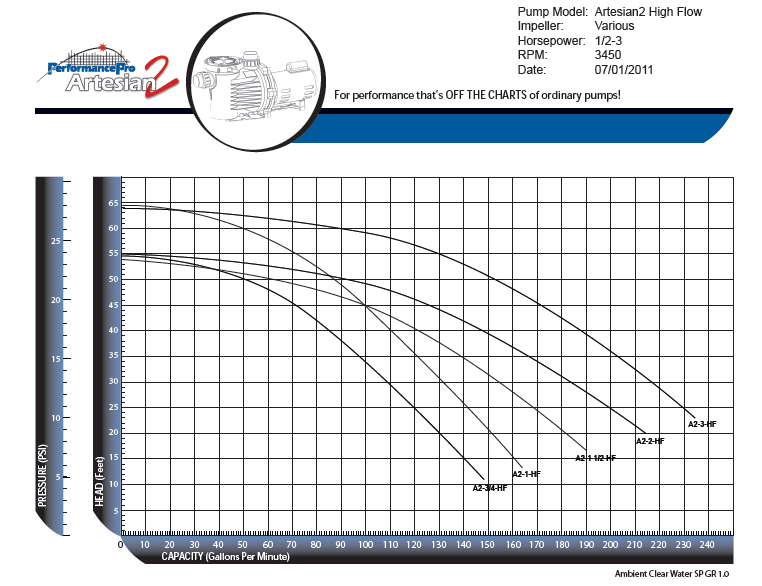

Artesian High 3450 RPM - 115/230v
These pumps use a OPD motor
Model # HP Amps @ 230v Max Head Mid Point Flow Max Flow Select Item(s)
A 1/2 1/2 5.4 67ft 2900gph @ 50' 5880gph @ 8' Add to quote -->
A 3/4 3/4 5.6 79ft 3200gph @ 62' 6500gph @ 11' Add to quote -->
A 1 1 7.4 89ft 3700gph @ 70' 7400gph @ 13' Add to quote -->

We cannot show pricing on the web for these items.
To request a price quote, select the items you are interested in by clicking
the box in the "Select Item(s)" column next to the product.
Click the button below to add items to your quote list.

- Or -Click here to view items that you would like to have quoted

Artesian High 3450 RPM - 230v only
These pumps use a OPD motor
Model # HP Amps @ 230v Max Head Mid Point Flow Max Flow Select Item(s)
A 1-1/2 1-1/2 8.5 87ft 4400gph @ 73' 8700gph @ 18' Add to quote -->
A 2 2 9.5 89ft 4600gph @ 76' 9300gph @ 19' Add to quote -->
A 3 3 13.6 103ft 5400gph @ 82' 10700gph @ 26' Add to quote -->

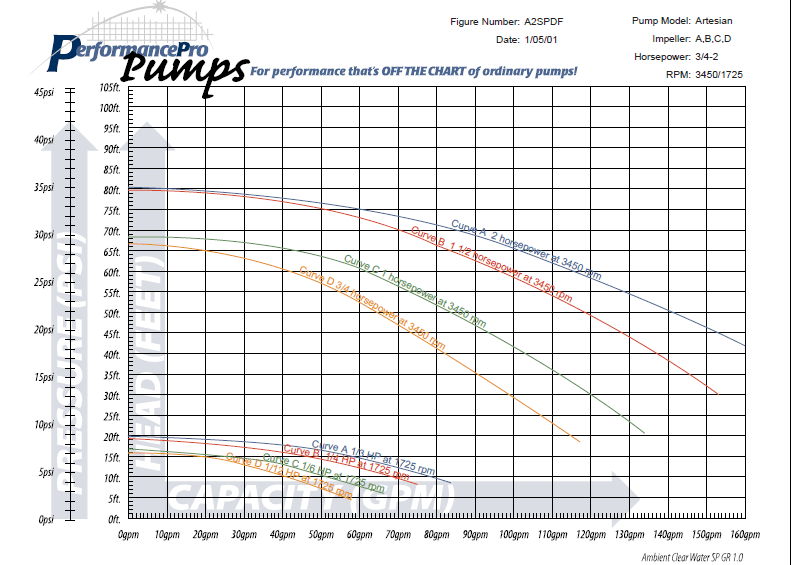

Artesian 2-Speed 3450/1725 RPM - 60Hz
These pumps use a OPD motor
Model # HP Voltage Watts Max Head Mid Point Flow Max Flow Select Item(s)
A2 3/4 3/4 - 1-1/2 115 318 67ft
16ft
3600gph @ 52'
1800gph @ 13ft
7026gph @ 18'
3492gph @ 5ft
Add to quote -->
A2 1 1-1/6 230 356 68ft
17ft
3900gph @ 58'
1800gph @ 14ft
8064gph @ 20'
3990gph @ 6ft
Add to quote -->
A2 1-1/2 1-1/2 - 1/4 230 413 80ft
19ft
4800gph @ 67'
2400gph @ 16ft
9186gph @ 30'
4530gph @ 8ft
Add to quote -->
A2 2 2-1/3 230 480 80ft
20ft
4800gph @ 72'
2400gph @ 17ft
10260gph @ 35'
5028gph @ 8ft
Add to quote -->

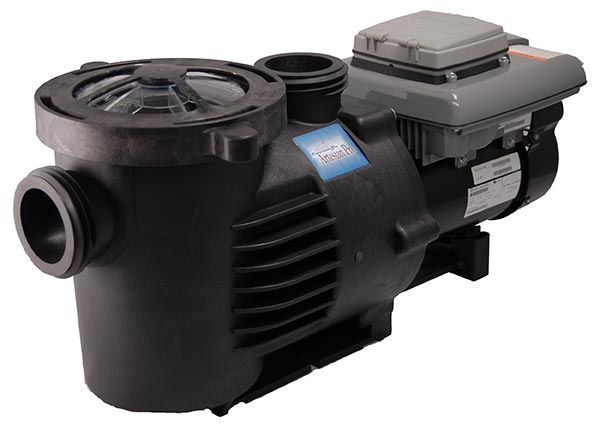

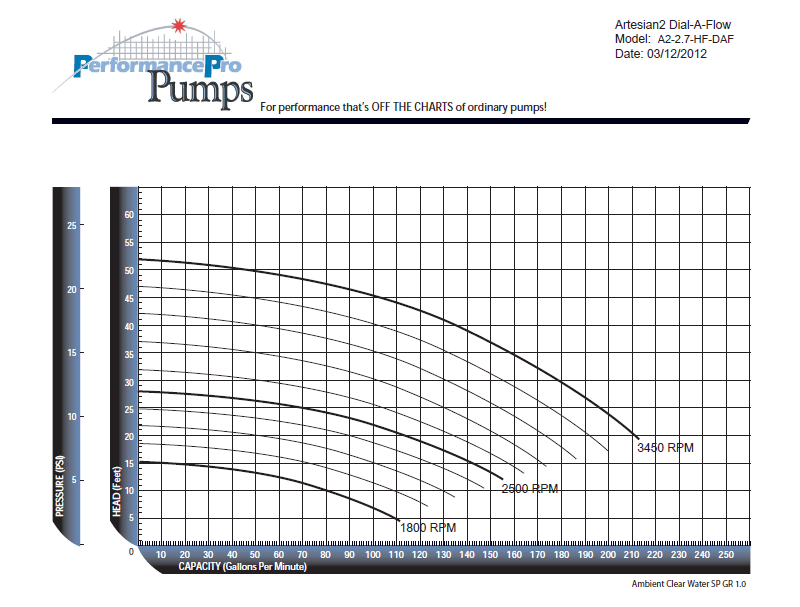

Artesian Dial-A-Flow
Model # HP Voltage RPM Max Head Max Flow Select Item(s)
A3-230 0 - 3hp 230v Variable - 2940 rpm max 63ft 210gpm @ 31'ft Add to quote -->

We cannot show pricing on the web for these items.
To request a price quote, select the items you are interested in by clicking
the box in the "Select Item(s)" column next to the product.
Click the button below to add items to your quote list.

- Or -Click here to view items that you would like to have quoted

Options

Option Description Select Item(s)
Saltwater kit Includes PVC shaft sleeve & 316 stainless steel seal Add to quote -->
Cord & Plug 8' long 115 volt power cord installed Add to quote -->
Saltwater kit for Dial-A-Flow Series Includes PVC shaft sleeve Add to quote -->
Shaft sleeve for Dial-A-Flow Series Includes PVC shaft sleeve Add to quote -->

We cannot show pricing on the web for these items.
To request a price quote, select the items you are interested in by clicking
the box in the "Select Item(s)" column next to the product.
Click the button below to add items to your quote list.

- Or -Click here to view items that you would like to have quoted

to Pond links and information

Frequently Asked Questions

Q. "What is the difference between the ODP and TEFC motors?"
A. The following information is a summary of the two different types of motors offered with Performance Pro Pumps:

ODP MOTORS: An ODP enclosure on a motor means "Open, Drip Proof". ODP motors are relatively inexpensive motors used in normal applications. The construction of an ODP motor consists of a sheet metal enclosure with vent stamped to allow good air flow. The vents are designed in such a way that water dripping on the motor will not normally flow into the motor. A fan is mounted on the motor's rear shaft to pull air through the motor to keep the motor cool.

TEFC MOTORS: A TEFC enclosure on a motor means "Totally Enclosed, Fan Cooled". This motor is probably the most commonly used motor in ordinary industrial environments. It costs only a few dollars more than the open motor, yet offers good protection against common hazards. The motor is constructed with a small fan on the rear shaft of the motor, usually covered by a housing. This fan draws air over the motor fins, removing excess heat and cooling the motor. The enclosure is "Totally Enclosed". This ordinarily means that the motor is dust tight, and has a moderate water seal as well.

Q. "What is 'max head'?"
A. Max head is the maximum height the pump can pump vertically. If you need to pump higher than that, we recommend that you purchase a bigger pump.
