Simple, straightforward and low shipping rates for these exposed, manually operated flushometers.



Exposed Urinal Flushometers


For the best selection of manual exposed urinal flushometers, Sloan has it. Sloan Flushometers come in many types and models, and there's one for every urinal. We here at PlumbingSupply.com® are pleased to offer one of the industry's finest - Sloan - bringing over 100 years of dependable products to you! Looking for other Sloan products? Click here.

Exposed Urinal Flushometers - Royal II® Series
- Designed for top spud urinals
picture of Royal II 180 Flushometer This urinal flushometer features:
  • Permex molded rubber diaphragm, handle packing, stop seat, & vacuum breaker provides chloramine corrosion resistance
  • Dual filtered diaphragm reduces debris from entering the flushometer and ensures maximum performance in demanding environments
  • 1" IPS screwdriver straight stop
  • Sleek cover, handle socket, & flanges for an attractive look
  • Vandal resistant free-spinning stop cap
  • Spud coupling & flange for top spuds
  • One piece bottom hex coupling nut
  • Sweat solder adapter & cast set screw wall flange
  • High copper, low zinc brass casting for dezincification resistance
  • Non-hold open handle to ensure maximum water conservation
  • ASSE 1037, ANSI/ASME 112.19.6, & military spec V-29193 compliant
Model Type Description Price & Quantity
↓ 0.5 GPF low water consumption exposed urinal flushometers

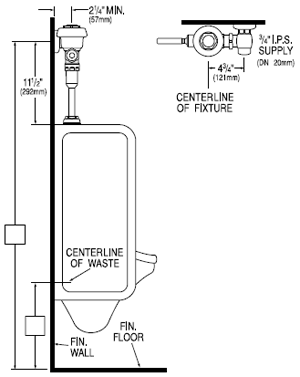

186-0.5 3/4" top spud 0.5 GPF exposed flushometer for urinal
- 11-1/2" tailpiece - Click here for detailed dimensions
$190.49
↓ 1.0 GPF low water consumption exposed urinal flushometers
180-1 1-1/4" top spud 1.0 GPF exposed flushometer for urinal
- 11-1/2" tailpiece - Click here for detailed dimensions
$191.58
186-1 3/4" top spud 1.0 GPF exposed flushometer for urinal
- 11-1/2" tailpiece - Click here for detailed dimensions
$192.26
↓ 1.5 GPF low water consumption exposed urinal flushometers
180-1.5 1-1/4" top spud 1.5 GPF exposed flushometer for urinal
- 11-1/2" tailpiece - Click here for detailed dimensions
$191.40
186 3/4" top spud 1.5 GPF exposed flushometer for urinal
- 11-1/2" tailpiece - Click here for detailed dimensions
$191.15
↓ 3.5 GPF exposed urinal flushometers
180 1-1/4" top spud 3.5 GPF exposed flushometer for urinal
- 11-1/2" tailpiece - Click here for detailed dimensions
$193.83

- Or -
View Button



Exposed Urinal Flushometers - Royal® Series
- Designed for top spud urinals
picture of Royal 180 Flushometer This urinal flushometer features:
  • Permex molded rubber diaphragm, handle packing, stop seat, & vacuum breaker provides chloramine corrosion resistance
  • Dual filtered diaphragm reduces debris from entering the flushometer and ensures maximum performance in demanding environments
  • 1" IPS screwdriver straight stop
  • Chrome plated
  • Vandal resistant free-spinning stop cap
  • Spud coupling & flange for top spuds
  • One piece bottom hex coupling nut
  • Sweat solder adapter & cast set screw wall flange
  • High copper, low zinc brass casting for dezincification resistance
  • Non-hold open handle to ensure maximum water conservation
  • ASSE 1037, ANSI/ASME 112.19.6, & military spec V-29193 compliant
Model Type Description Price & Quantity
↓ 0.5 super low water consumption GPF exposed urinal flushometers
186-0.5 3/4" top spud 0.5 GPF exposed flushometer for urinal
- 11-1/2" tailpiece - Click here for detailed dimensions
$149.45
186-0.5-SG 3/4" top spud 0.5 GPF exposed flushometer for urinal
- Saniguard antimicrobial coated handle
- 11-1/2" tailpiece - Click here for detailed dimensions
$180.23
↓ 1.0 low water consumption GPF exposed urinal flushometers
180-1 1-1/4" top spud 1.0 GPF exposed flushometer for urinal
- 11-1/2" tailpiece - Click here for detailed dimensions
$150.36
180-1-SG 1-1/4" top spud 1.0 GPF exposed flushometer for urinal
- Saniguard antimicrobial coated handle
- 11-1/2" tailpiece - Click here for detailed dimensions
$179.58
186-1 3/4" top spud 1.0 GPF exposed flushometer for urinal
- 11-1/2" tailpiece - Click here for detailed dimensions
$152.50
186-1-H 3/4" top spud 1.0 GPF exposed flushometer for urinal
- handle on front of valve
- 11-1/2" tailpiece - Click here for detailed dimensions
$164.46
186-1-HL3 3/4" top spud 1.0 GPF exposed flushometer for urinal
- 3" metal oscillating push button on front of valve
- 11-1/2" tailpiece - Click here for detailed dimensions
$164.46
186-1-SG 3/4" top spud 1.0 GPF exposed flushometer for urinal
- Saniguard antimicrobial coated handle
- 11-1/2" tailpiece - Click here for detailed dimensions
$164.46
↓ 1.5 low water consumption GPF exposed urinal flushometers
180-1.5 1-1/4" top spud 1.5 GPF exposed flushometer for urinal
- 11-1/2" tailpiece - Click here for detailed dimensions
$152.18
180-1.5-SG 1-1/4" top spud 1.5 GPF exposed flushometer for urinal
- Saniguard antimicrobial coated handle
- 11-1/2" tailpiece - Click here for detailed dimensions
$181.85
186 3/4" top spud 1.5 GPF exposed flushometer for urinal
- 11-1/2" tailpiece - Click here for detailed dimensions
$152.58
186-H 3/4" top spud 1.5 GPF exposed flushometer for urinal
- handle on front of valve
- 11-1/2" tailpiece - Click here for detailed dimensions
$161.96
186-SG 3/4" top spud 1.5 GPF exposed flushometer for urinal
- Saniguard antimicrobial coated handle
- 11-1/2" tailpiece - Click here for detailed dimensions
$180.43
186-U 1-1/4" top spud 1.5 GPF exposed flushometer for urinal
- 1-1/4" flush connection & spud coupling
- 11-1/2" tailpiece - Click here for detailed dimensions
$151.56
↓ 3.5 GPF exposed urinal flushometers
180 1-1/4" top spud 3.5 GPF exposed flushometer for urinal
- 11-1/2" tailpiece - Click here for detailed dimensions
$150.42
180-H 1-1/4" top spud 3.5 GPF exposed flushometer for urinal
- handle on front of valve
- 11-1/2" tailpiece - Click here for detailed dimensions
$163.19
180-SG 1-1/4" top spud 3.5 GPF exposed flushometer for urinal
- Saniguard antimicrobial coated handle
- 11-1/2" tailpiece - Click here for detailed dimensions
$181.52
180-T 1-1/2" top spud 3.5 GPF exposed flushometer for urinal
- 1-1/2" flush connection
- 11-1/2" tailpiece - Click here for detailed dimensions
$149.95

- Or -
View Button



Exposed Urinal Flushometers - Continental® Series
- Designed for top spud urinals
picture of Continental 180 Flushometer This urinal flushometer features:
  • Permex molded rubber diaphragm, handle packing, stop seat, & vacuum breaker provides chloramine corrosion resistance
  • 1" IPS screwdriver straight stop
  • Elegant continental style cover an attractive look
  • Vandal resistant free-spinning stop cap
  • Spud coupling & flange for top spuds
  • One piece bottom hex coupling nut
  • Sweat solder adapter & cast set screw wall flange
  • High copper, low zinc brass casting for dezincification resistance
  • Non-hold open handle to ensure maximum water conservation
  • ASSE 1037, ANSI/ASME 112.19.6, & military spec V-29193 compliant
Model Type Description Price & Quantity
↓ 0.5 GPF low water consumption exposed urinal flushometers
186-0.5 3/4" top spud 0.5 GPF exposed flushometer for urinal
- 11-1/2" tailpiece - Click here for detailed dimensions
$182.67
↓ 1.0 GPF low water consumption exposed urinal flushometers
180-1 1-1/4" top spud 1.0 GPF exposed flushometer for urinal
- 11-1/2" tailpiece - Click here for detailed dimensions
$184.64
186-1 3/4" top spud 1.0 GPF exposed flushometer for urinal
- 11-1/2" tailpiece - Click here for detailed dimensions
$182.56
↓ 1.5 GPF low water consumption exposed urinal flushometers
180-1.5 1-1/4" top spud 1.5 GPF exposed flushometer for urinal
- 11-1/2" tailpiece - Click here for detailed dimensions
$182.39
186 3/4" top spud 1.5 GPF exposed flushometer for urinal
- 11-1/2" tailpiece - Click here for detailed dimensions
$180.93
186-YC-YA 3/4" top spud 1.5 GPF exposed flushometer for urinal
- nickel silver handle
- 11-1/2" tailpiece - Click here for detailed dimensions
$180.93
↓ 3.5 GPF exposed urinal flushometers
180 1-1/4" top spud 3.5 GPF exposed flushometer for urinal
- 11-1/2" tailpiece - Click here for detailed dimensions
$183.05

- Or -
View Button



Exposed Urinal Flushometers - Regal® Series
- Designed for top spud urinals

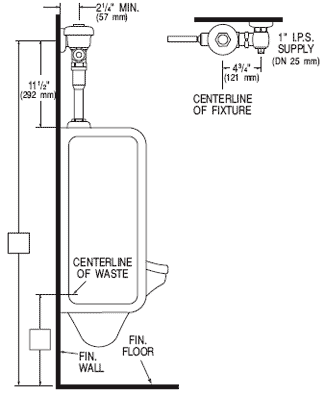

picture of Regal 180 Flushometer This urinal flushometer features:
  • Permex molded rubber diaphragm, handle packing, stop seat, & vacuum breaker provides chloramine corrosion resistance
  • 1" IPS screwdriver straight stop
  • Chrome plated
  • Spud coupling & flange for top spuds
  • One piece bottom hex coupling nut
  • High copper, low zinc brass casting for dezincification resistance
  • Non-hold open handle to ensure maximum water conservation

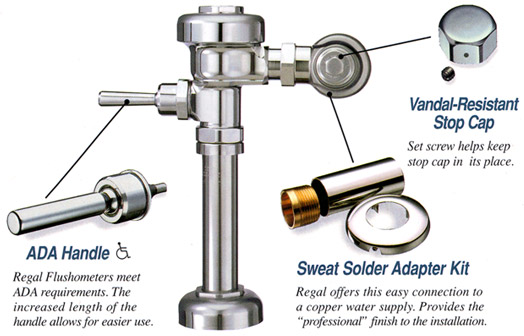

  • Optional XL packages available - includes ADA handle, vandal resistant stop cap, and sweat solder adapter kit
  • ASSE 1037, ANSI/ASME 112.19.6, & military spec V-29193 compliant
Model Type Description Price & Quantity
↓ 0.5 GPF super low water consumption exposed urinal flushometers
180-0.5 1-1/4" top spud 0.5 GPF exposed flushometer for urinal
- 11-1/2" tailpiece - Click here for detailed dimensions
$125.57
180-0.5-XL 1-1/4" top spud 0.5 GPF exposed flushometer for urinal
- includes deluxe XL package
- 11-1/2" tailpiece - Click here for detailed dimensions
$130.19
186-0.5 3/4" top spud 0.5 GPF exposed flushometer for urinal
- 11-1/2" tailpiece - Click here for detailed dimensions
$127.26
186-0.5-XL 3/4" top spud 0.5 GPF exposed flushometer for urinal
- includes deluxe XL package
- 11-1/2" tailpiece - Click here for detailed dimensions
$128.74
↓ 1.0 GPF low water consumption exposed urinal flushometers
180-1 1-1/4" top spud 1.0 GPF exposed flushometer for urinal
- 11-1/2" tailpiece - Click here for detailed dimensions
$125.59
180-1-YB 1-1/4" top spud 1.0 GPF exposed flushometer for urinal
- sweat solder adapter kit & stamped flange
- 11-1/2" tailpiece - Click here for detailed dimensions
$127.98
180-1-XL 1-1/4" top spud 1.0 GPF exposed flushometer for urinal
- includes deluxe XL package
- 11-1/2" tailpiece - Click here for detailed dimensions
$128.68
186-1 3/4" top spud 1.0 GPF exposed flushometer for urinal
- 11-1/2" tailpiece - Click here for detailed dimensions
$125.78
186-1-XL 3/4" top spud 1.0 GPF exposed flushometer for urinal
- includes deluxe XL package
- 11-1/2" tailpiece - Click here for detailed dimensions
$128.77
↓ 1.5 GPF low water consumption exposed urinal flushometers
180-1.5 1-1/4" top spud 1.5 GPF exposed flushometer for urinal
- 11-1/2" tailpiece - Click here for detailed dimensions
$126.23
180-1.5-YB 1-1/4" top spud 1.5 GPF exposed flushometer for urinal
- sweat solder adapter kit & stamped flange
- 11-1/2" tailpiece - Click here for detailed dimensions
$128.51
180-1.5-XL 1-1/4" top spud 1.5 GPF exposed flushometer for urinal
- includes deluxe XL package
- 11-1/2" tailpiece - Click here for detailed dimensions
$128.29
186 3/4" top spud 1.5 GPF exposed flushometer for urinal
- 11-1/2" tailpiece - Click here for detailed dimensions
$126.26
186-XL 3/4" top spud 1.5 GPF exposed flushometer for urinal
- includes deluxe XL package
- 11-1/2" tailpiece - Click here for detailed dimensions
$129.96
↓ 3.5 GPF exposed urinal flushometers
180 1-1/4" top spud 3.5 GPF exposed flushometer for urinal
- 11-1/2" tailpiece - Click here for detailed dimensions
$126.13
180-YB 1-1/4" top spud 3.5 GPF exposed flushometer for urinal
- sweat solder adapter kit & stamped flange
- 11-1/2" tailpiece - Click here for detailed dimensions
$127.68
180-XL 1-1/4" top spud 3.5 GPF exposed flushometer for urinal
- includes deluxe XL package
- 11-1/2" tailpiece - Click here for detailed dimensions
$128.27

- Or -
View Button



Exposed Urinal Flushometers - Crown® Series
- Designed for top spud urinals
picture of Crown 2 180 Flushometer
Model #180 Crown II
These toilet flushometers feature:
  • Optional polished brass cover & handle accent ring
  • Fixed volume piston with filtered o-ring bypass
  • Non-hold open handle to ensure consistent water saving flushes
  • Contoured cover, handle socket, & flanges give it an attractive look
  • 1" IPS screwdriver angle stop
  • Vandal resistant stop cap
  • One-piece bottom hex coupling nut
  • Spud coupling, wall and spud flanges for top spud urinals
  • High copper, low zinc brass casting for dezincification resistance
  • No external volume adjustment to ensure maximum water conservation
  • Low flow models available help keep water costs down
  • Stylish chrome finish
  • Chloramine resistant handle packing, stop seat, & vacuum breaker
  • ASSE 1037, ANSI/ASME 112.19.6, & military spec V-29193 compliant
Model Type Description Price & Quantity
with polished brass
cover/handle accent rings
Price & Quantity
without polished brass
cover/handle accent rings
↓ 0.5 GPF super low consumption exposed urinal flushometers
186-0.5 3/4" top spud 0.5 GPF flushometer for urinal
- 11-1/2" tailpiece - click here for dimensions
-- $150.48
↓ 1.0 GPF low consumption exposed urinal flushometers
180-1 1-1/4" top spud 1.0 GPF flushometer for urinal

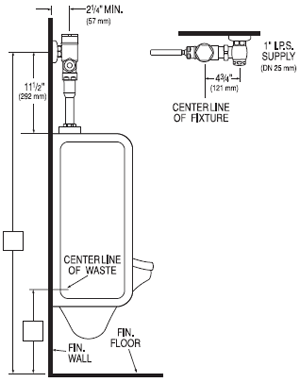

- 11-1/2" tailpiece - click here for dimensions
$208.36 $150.49
186-1 3/4" top spud 1.0 GPF flushometer for urinal

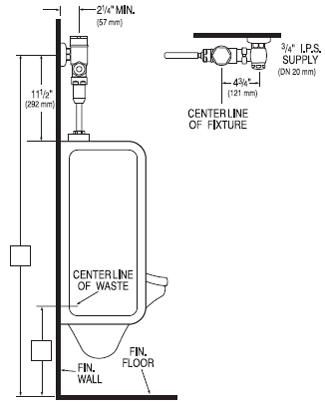

- 11-1/2" tailpiece - click here for dimensions
$209.15 $149.73

- Or -
View Button



Exposed Urinal Flushometers - Gem•2® Series
- Designed for top spud urinals
picture of Gem 2 180 Flushometer
Model #180 shown
These toilet flushometers feature:
  • Fixed volume piston with filtered o-ring bypass
  • Non-hold open handle to ensure consistent water saving flushes
  • Contoured cover, handle socket, & flanges give it an attractive look
  • 1" IPS screwdriver angle stop
  • Vandal resistant stop cap
  • One-piece bottom hex coupling nut
  • Spud coupling, wall and spud flanges for top spud urinals
  • High copper, low zinc brass casting for dezincification resistance
  • No external volume adjustment to ensure maximum water conservation
  • Low flow models available help keep water costs down
  • Stylish chrome finish
  • Chloramine resistant handle packing, stop seat, & vacuum breaker
  • ASSE 1037, ANSI/ASME 112.19.6, & military spec V-29193 compliant
Model Type Description Price & Quantity
↓ 1.0 GPF low water consumption exposed urinal flushometers
180-1 1-1/4" top spud 1.0 GPF exposed flushometer for urinal

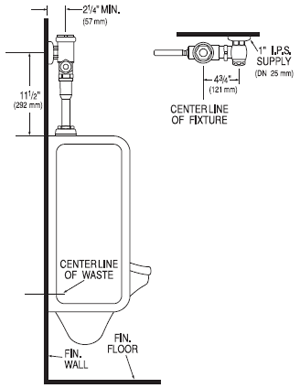

- 11-1/2" tailpiece - Click here for detailed dimensions
$143.35
180-1-YB 1-1/4" top spud 1.0 GPF exposed flushometer for urinal
- sweat solder adapter kit & stamped flange
- 11-1/2" tailpiece - Click here for detailed dimensions
$151.16
186-1 3/4" top spud 1.0 GPF exposed flushometer for urinal

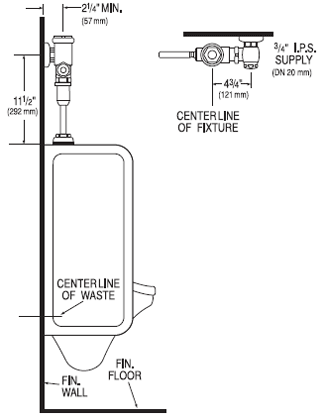

- 11-1/2" tailpiece - Click here for detailed dimensions
$142.60
186-1-1 3/4" top spud 1.0 GPF exposed flushometer for urinal
- 1" stop
- 11-1/2" tailpiece - Click here for detailed dimensions
$144.65
186-1-YB 3/4" top spud 1.0 GPF exposed flushometer for urinal
- sweat solder adapter kit & stamped flange
- 11-1/2" tailpiece - Click here for detailed dimensions
$151.20
186-1-YB-YC 3/4" top spud 1.0 GPF exposed flushometer for urinal
- cast wall flange & set screw
- sweat solder adapter kit & stamped flange
- 11-1/2" tailpiece - Click here for detailed dimensions
$151.34
↓ 1.5 GPF low water consumption exposed urinal flushometers
180-1.5 1-1/4" top spud 1.5 GPF exposed flushometer for urinal
- 11-1/2" tailpiece - Click here for detailed dimensions
$144.00
180-1.5-YB 1-1/4" top spud 1.5 GPF exposed flushometer for urinal
- sweat solder adapter kit & stamped flange
- 11-1/2" tailpiece - Click here for detailed dimensions
$149.76
186 3/4" top spud 1.5 GPF exposed flushometer for urinal
- 11-1/2" tailpiece - Click here for detailed dimensions
$145.13
186-YB 3/4" top spud 1.5 GPF exposed flushometer for urinal
- sweat solder adapter kit & stamped flange
- 11-1/2" tailpiece - Click here for detailed dimensions
$150.31
186-YB-YC 3/4" top spud 1.5 GPF exposed flushometer for urinal
- cast wall flange & set screw
- sweat solder adapter kit & stamped flange
- 11-1/2" tailpiece - Click here for detailed dimensions
$152.24
↓ 3.5 GPF exposed urinal flushometers
180 1-1/4" top spud 3.5 GPF exposed flushometer for urinal
- 11-1/2" tailpiece - Click here for detailed dimensions
$144.78
180-XYV 1-1/4" top spud 3.5 GPF exposed flushometer for urinal
- less vacuum breaker
- 11-1/2" tailpiece - Click here for detailed dimensions
$139.30
180-YB 1-1/4" top spud 3.5 GPF exposed flushometer for urinal
- sweat solder adapter kit & stamped flange
- 11-1/2" tailpiece - Click here for detailed dimensions
$151.13

- Or -
View Button



Sloan Dolphin® Flushometer Valves

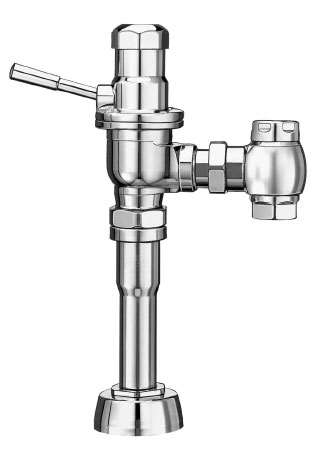

picture of Dolphin flushometer
click here for larger image
These urinal flushometers feature:
  • Specifically engineered for salt water and severe water conditions
  • Adjustable tailpiece
  • Factory set at 1.0 gpf (for 40 psi)
  • Valve adjustment Range: 0.25 gpf to 12.0 gpf
  • Locking vandal resistant stop cap
  • 1" IPS screwdriver angle stop
  • Spud coupling and flange for 1-1/4" top spud
  • High copper, low zinc brass casting for dezincification resistance
  • Chloramine resistant handle packing, stop seat & vacuum breaker
  • ASSE 1037 compliant

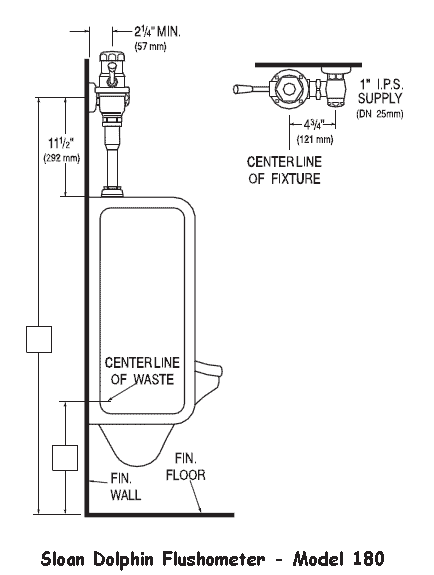

  • Click for dimensions
Description Price & Quanity
Dolphin® Exposed Urinal Flushometer $332.59
- Or -
View Button



Sloan Dolphin® Flushometer Valves

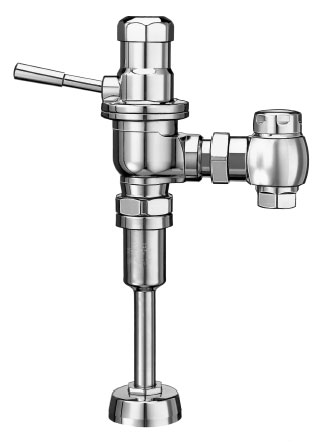

picture of Dolphin flushometer
Dolphin 186-1.0 Series
These urinal flushometers feature:
  • Specifically engineered for salt water and severe water conditions
  • Non-hold open metal lever handle to ensure consistent water saving flushes
  • Adjustable tailpiece
  • Factory set at 1.0 gpf (for 40 psi)
  • Valve adjustment Range: 0.25 gpf to 12.0 gpf
  • Locking vandal resistant stop cap
  • 3/4" IPS screwdriver angle stop
  • Vacuum Breaker Flush Connection
  • Spud coupling and flange for 3/4" top spud
  • No external volume adjustment to ensure maximum water conservation
  • High copper, low zinc brass casting for dezincification resistance
  • Chloramine resistant handle packing, stop seat & vacuum breaker
  • ASSE 1037 compliant

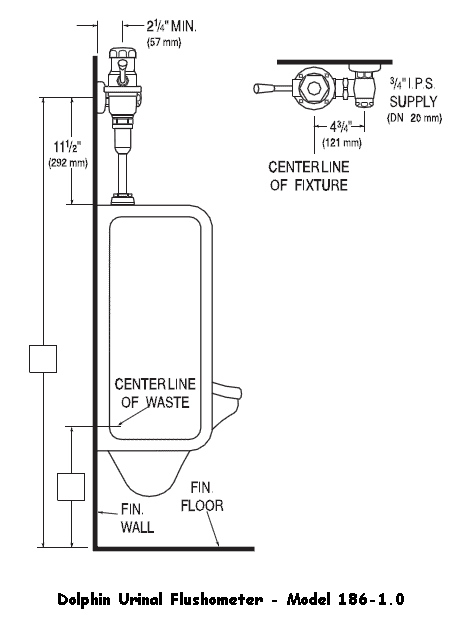

  • Click for dimensions
Model Description Price & Quanity
186-1.0 Dolphin® Exposed Urinal Flushometer - Adjustable Tailpiece $328.45
186-1.0-GJ Dolphin® Exposed Urinal Flushometer - Ground Joint Tailpiece $343.74
186-1.0-XYV Dolphin® Exposed Urinal Flushometer - Adjustable Tailpiece - Less Vacuum Breaker $323.87
186-1.0-GJ-XYV Dolphin® Exposed Urinal Flushometer - Ground Joint Tailpiece - Less Vacuum Breaker $339.79
- Or -
View Button



Sloan Dolphin® Flushometer Valves - Type II Class A
picture of Dolphin shock proof flushometer
click here for larger image
These shock proof urinal flushometers feature:
  • Shock proof and specifically engineered for salt water and severe water conditions
  • Meets U.S. Navy Bureau of Ships Specifications MIL-V-0015020F & V-29193
  • Non-hold open metal lever handle to ensure consistent water saving flushes
  • Adjustable tailpiece
  • Factory set at 1.0 gpf (for 40 psi)
  • Valve adjustment Range: 0.25 gpf to 12.0 gpf
  • Locking vandal resistant stop cap
  • 3/4" IPS screwdriver angle stop with 1/2" inlet adapter
  • Vacuum Breaker Flush Connection
  • 3/4" scored outlet with 1/2" offset
  • No external volume adjustment to ensure maximum water conservation
  • High copper, low zinc brass casting for dezincification resistance
  • Chloramine resistant handle packing, stop seat & vacuum breaker
  • ASSE 1037 compliant

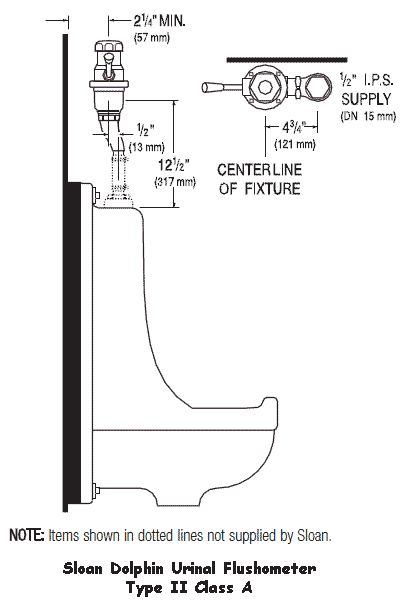

  • Click for dimensions
Description Price & Quanity
Dolphin® Shock Proof Exposed Urinal Flushometer $385.29
Dolphin® Shock Proof Exposed Urinal Flushometer w/ Sil Braze Inlet Adapter $440.58
- Or -
View Button



Sloan Dolphin® Flushometer Valves - Type II Class B

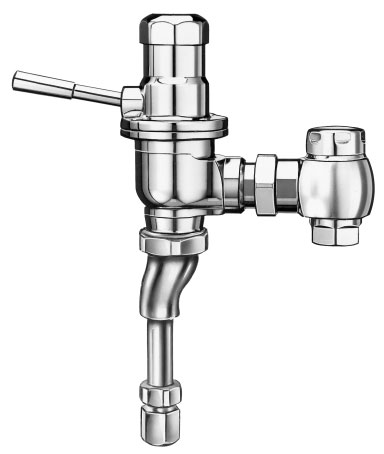

picture of Dolphin flushometer
click here for larger image
This urinal flushometer features:
  • Designed for rigid installations and specifically engineered for salt water and severe water conditions
  • Meets U.S. Navy Bureau of Ships Specifications MIL-V-0015020F & V-29193
  • Non-hold open metal lever handle to ensure consistent water saving flushes
  • Ground joint tailpiece
  • Factory set at 1.0 gpf (for 40 psi)
  • Valve adjustment Range: 0.25 gpf to 12.0 gpf
  • Locking vandal resistant stop cap
  • 3/4" IPS screwdriver angle stop with 1/2" inlet adapter
  • Vacuum Breaker Flush Connection
  • 3/4" scored outlet with 1/2" offset
  • No external volume adjustment to ensure maximum water conservation
  • High copper, low zinc brass casting for dezincification resistance
  • Chloramine resistant handle packing, stop seat & vacuum breaker
  • ASSE 1037 compliant
  • Click for dimensions
Description Price & Quanity
Dolphin® Exposed Urinal Flushometer For Rigid Installations $413.16
- Or -
View Button
Frequently Asked Questions

Q. "What is Permex?"
A. Permex is a patented rubber compound that is formulated to withstand the deteriorating effects of ammonia and chloramine which are often used in water treatment facilities and cleaners.

Q. "What is Chloramine?"
A. Chloramine is commonly used in low concentrations as a disinfectant in municipal water systems as an alternative to chlorination.

Q. "What is a Saniguard antimicrobial coated handle?"
A. Antimicrobial coatings protect against a broad array of potentially harmful bacteria, fungi, yeast, mold, and mildew. The antimicrobial coating can withstand salt spray, water soak, high humidity, corrosion, and still protect effectively even with light scratches and abrasions.



return to top ↑

We hope that we have helped you on this page with manually operated flushometers,
and thank you for helping to make PlumbingSupply.com® the most famous Internet plumbing supplier.


Fun, inspirational quote of the day:
A word to the wise ain't necessary - it's the stupid ones that need the advice.
- Bill Cosby



Is there something else that you are looking for?

Enter search terms:

OR - find plumbing supplies starting with: A B C D E F G H I J K L M N O P Q R S T U V W X Y Z



Easy payment methods


Copyright© 1995-2013 PlumbingSupply.com. All Rights Reserved.
