Simple, straightforward and low shipping rates for these toilet repair parts.


Memoirs Toilet Repair Parts

By Kohler

Replace old or worn out parts with new components and make your Memoirs toilet work like new! With many parts to choose from - such as fill valves, flappers, and gaskets - you're sure to find just what you need right here on PlumbingSupply.com®. If you're looking for more Kohler parts, click here.

Memoirs toilet Kohler Toilet
Memoirs K-3439

Order replacement parts for the Memoirs toilet below

Kohler Toilet Replacement Parts
The Memoirs - Model #K3439
Memoirs toilet repair parts

Item # Part # Description Price & Quantity
#1 1060196 Fill Valve - replaced by *GP1138930
- Includes color coded flow restrictors
$21.95
#2 1057940 Top Assembly - fits fill valves #1060196 and #GP1138930 $5.24
#3 52156 Refill Tube $1.95
#4 51261 Refill Tube Clip $2.79
#5 1042831 Flush Valve - Includes: flapper (85160), washer (53154), gasket (51487), friction ring (50752), lock nut (50751)
- Includes tank gasket (51487) - gasket bolt kit sold separately below (#13)
$15.33
#6 GP85160 Flapper (replaces 1006958) $9.95
#7 53154 Rubber Washer - replaced by GP1145626 $3.34
#8 51487 Tank To Bowl Gasket Complete With Bolt Kit - includes: gasket (1), washers (3), 5/16" bolts (3) and nuts (3) $12.85
#9 50752 Friction Ring For Flush Valve $1.33
#10 50751 Lock Nut $3.97
#11 85086 Trip Lever - Chrome $27.05
Trip Lever - Brush Nickel $69.66
Trip Lever - Oil Rubbed Bronze $42.72
#12 1013092 Bolt Caps - White - click here for more color options $4.99
#13 30419 Tank To Bowl BOLT KIT - Includes #'s 14, 15 and 16 $9.67
#14 51624 Brass Bolt - sold only in 30419 kit - see item 13 --
#15 32572 Washer - sold only in 30419 kit - see item 13 --
#16 51533 Brass Nut - sold only in 30419 kit - see item 13 --
#17 83451 Top Assembly - fits old style fill valve #85300 - replaced by Fluidmaster #350 $4.99
GP1083167 *Replacement Class 5 Fill Valve $19.91

*If your existing fill valve stem is GRAY with a small insert, use GP1138930.
If your existing fill valve stem is BLACK with a large insert, use GP1083167. View this fill valve comparison to help you choose


- Or -
View Button

Not sure which model toilet you have? Try looking under the toilet tank lid or inside of the toilet tank.



Kohler Toilet Replacement Parts
The Memoirs - Model # K3453
Memoirs toilet repair parts

Please note: This toilet was offered in two versions - one with a 2" flush valve assembly and one with a 3" flush valve assembly.
Please measure your existing flush valve or flapper to be sure you are ordering the correct size flush valve or flapper for your toilet.

Item # Part # Description Price & Quantity
#1 *GP1138930 Fill Valve - Includes: top assembly (1057940), shank washer (85307), locknut assembly (1057941), washer (42398), supply nut (42397), color coded flow restrictors for 2" and 3" models $21.95
#2 1057940 Top Assembly $5.24
#3 87998 Flush Valve Assembly for 2" Model - Includes: flapper (85655) and gasket (83996) $19.84
#4 85655 Flapper - Replaced by #2012BP $11.19
#5 83996 Gasket $5.29
#6 1039861 Flush Valve Assembly for 3" Model - Includes: flapper (1039444) and gasket (83996) $17.60
#7 1039444 Class 5 Flapper Assembly $8.99
#8 1039863 Trip Lever - Chrome $10.09
#9 51261 Refill Tube Clip $2.79
#10 1013092 Bolt Caps - White - click here for more color options $4.99
#11 83996 Flush Valve Gasket $5.29
GP1083167 *Replacement Class 5 Fill Valve $19.91

*If your existing fill valve stem is GRAY with a small insert, use GP1138930.
If your existing fill valve stem is BLACK with a large insert, use GP1083167. View this fill valve comparison to help you choose


- Or -
View Button



Kohler Toilet Replacement Parts
The Memoirs - Model #'s K3509, K3511, K3515, K3526
Kohler Memoirs K-3509, K3511, K3515, K3526 toilet repair parts diagram

Item # Part # Description Price & Quantity
#1 *GP1083167 Class 5 Fill Valve - includes: top assembly (1057940), shank gasket (85307), shank nut (1057941), washer (42398), supply nut (42397) $19.91
#2 1057940 Top Assembly $5.24
#3 1080961 Canister Style Flush Valve - includes: washer (1070291), flat seal (1059291), seal (1097686), tank plate (1014065), nut (1107005), gasket (1018165-F) $19.36
#4 1070291 Flush Valve Washer $2.49

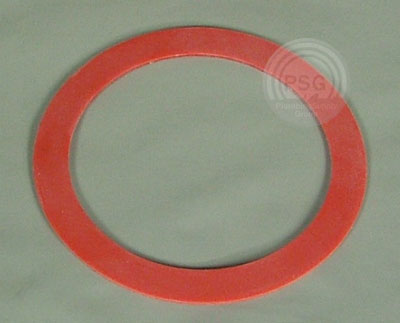

#5 1059291 Flat Seal $7.19
#6 1097686 Flush Valve Seal/Gasket $3.19
#7 1014065 Tank Plate $5.97
#8 1107006 Flush Valve Nut $2.29
#9 1018165-F Tank Gasket $3.49
#10 1024390 Tank to Bowl Bolt Kit $5.31
#11 1060218 Flush Valve - includes: flapper (1016546), seal (1016219), nut (1014580), gasket (1018165-A) $19.65
#12 1016546 Flapper - replaced by 1078441 $12.99
3010BP "Will Fit" Replacement Flapper
Proudly made in the USA USA flag button
$10.99
#13 1016219 Flat Seal - Replaced by 1097686 $3.19
#14 1014580 Flush Valve Nut - Replaced by 1107006 $2.29
#15 85086 Trip Lever - Chrome - Includes: nut (78132) $27.05
Trip Lever - Brush Nickel - Includes: nut (78132) $69.66
Trip Lever - Oil Rubbed Bronze - Includes: nut (78132) $42.72
#16 1013092 Bolt Caps - White - click here for more color options $4.99
GP1138930 *Replacement Fill Valve $21.95

*If your existing fill valve stem is GRAY with a small insert, use GP1138930.
If your existing fill valve stem is BLACK with a large insert, use GP1083167. View this fill valve comparison to help you choose


- Or -
View Button



Kohler Toilet Replacement Parts
The Memoirs - Model #'s K4454, K4464
Memoirs toilet repair parts

Item # Part # Description Price & Quantity
#1 1060196 Fill Valve - replaced by *GP1138930 $21.95
#2 1057940 Top Assembly $5.24
#3 1042831 Flush Valve Assembly - Includes: - flapper (85160), washer (53154), tank gasket (51487), washer (50752), nut (50751)
- Includes tank gasket (51487) - gasket bolt kit sold separately below (#11)
$15.33
#4 GP85160 Flapper - replaces 1006958 $9.95
#5 53154 Rubber Washer - replaced by GP1145626 $3.34
#6 51487 Tank To Bowl Gasket Complete With Bolt Kit - includes: gasket (1), washers (3), 5/16" bolts (3) and nuts (3) $12.85
#7 GP85160 Flapper - replaces 1006958 $9.95
#8 85086 Trip Lever - Chrome $27.05
Trip Lever - Brush Nickel $69.66
Trip Lever - Oil Rubbed Bronze $42.72
#9 1013092 Bolt Caps - White - click here for more color options $4.99
#10 51261 Refill Tube Clip $2.79
#11 30419 Tank To Bowl BOLT KIT - Includes: #'s 12, 13 & 14 $9.67
GP1083167 *Replacement Class 5 Fill Valve $19.91

*If your existing fill valve stem is GRAY with a small insert, use GP1138930.
If your existing fill valve stem is BLACK with a large insert, use GP1083167. View this fill valve comparison to help you choose


- Or -
View Button

Not sure which model toilet you have? Try looking under the toilet tank lid or inside of the toilet tank.



Kohler Toilet Replacement Parts
The Memoirs - Model # K4491
Kohler Memoirs K-4491 toilet repair parts diagram

Item # Part # Description Price & Quantity
#1 *GP1083167 Class 5 Fill Valve - includes: top assembly (1057940), shank gasket (85307), shank nut (1057941), washer (42398), supply nut (42397) $19.91
#2 1057940 Top Assembly $5.24
#3 1024390 Tank to Bowl Bolt Kit $5.31
#4 1013092-0 Bolt Caps - White - click here for more color options $4.99
#5 1059291 Flat Seal $7.19
#6 1097686 Flush Valve Seal/Gasket $3.19
#7 1014065 Tank Plate $5.97
#8 1018165-F Tank Gasket $3.49
#9 85086 Trip Lever - Chrome - Includes: nut (78132) $27.05
Trip Lever - Brush Nickel - Includes: nut (78132) $69.66
Trip Lever - Oil Rubbed Bronze - Includes: nut (78132) $42.72
#10 1080961 Canister Style Flush Valve - includes: washer (1070291), flat seal (1059291), seal (1097686), tank plate (1014065), nut (1107005), gasket (1018165-F) $19.36
#11 83451 Top Assembly - replaced by Fluidmaster #350 $4.99
#12 1060218 Flush Valve - includes: flapper (1016546), seal (1016219), nut (1014580), gasket (1018165-A) $19.65
#13 1016546 Flapper - replaced by 1078441 $12.99
3010BP "Will Fit" Replacement Flapper
Proudly made in the USA USA flag button
$10.99
#14 1014580 Flush Valve Nut $2.29
#15 1018165-A Gasket $3.49
GP1138930 *Replacement Fill Valve $21.95

*If your existing fill valve stem is GRAY with a small insert, use GP1138930.
If your existing fill valve stem is BLACK with a large insert, use GP1083167. View this fill valve comparison to help you choose


- Or -
View Button

Kohler Toilet Replacement Parts by Series
For a visual Kohler toilet index click here

Frequently Asked Questions

Q. "There's a sticker inside my Memoirs toilet tank lid that says I should use a different flush valve. Do you offer any other parts? Which flush valve should I use?"
A. For certain years and models of the Kohler Memoirs toilet, a sticker that looks like this is on the inside of the tank lid with the replacement flush valve #1080691 - this is simply a typographical error. The correct number for the replacement canister flush valve is #1080961, which we currently offer above. The #1080961 canister flush valve is the one that should fit your toilet if the sticker on your tank lid matches what is shown here.

Q. "The GP1138930 comes with some colored inserts. What are those for?"
A. Since the Kohler GP1138930 is a replacement for a variety of fill valves, it comes with a selection of color coded flow restrictors. To select the correct insert, check your old fill valve (the one you're replacing) and use the same color restrictor on your new GP1138930 fill valve. See example of the four included restrictors.

Q. "What are the most commonly replaced toilet parts?"
A.This depends on several factors. Your toilet's trip lever, flapper, and fill valve are operated each time you use your toilet. You will find, however, that the flapper and fill valve are the parts most exposed to water and will be the first ones to wear out in most cases.

Q. "I installed a new fill valve and my new valve comes on (and then goes off) for a few seconds about once per hour?"
A. This could be caused by many things. This most commonly occurs with a Fluidmaster 400. This is a great valve but be sure to install the 1/4" tube per their instructions. Use the clip that comes with it and do not just stick it into the overflow tube or it will go on and off every so often by itself. If that isn't it, take some food coloring and place it in your tank. Wait a few hours and if some of the color has gone into the bowl then you probably need a new flapper.

Q. "Why does my toilet continue to run after flushing?"
A. If you find that the toilet continues to run after flushing, and you have discovered that by jiggling the handle it will stop, then the problem may be that the chain controlling the flapper is too long. When installing your flapper, you want the flapper chain's S-hook in the hole closest to the handle with very little slack in the chain itself. By doing so, when the toilet is flushed, the chain will fall behind the flapper where it won't snag and cause problems such as keeping the flapper from closing properly. Check to make sure that the flapper has enough clearance to close, i.e. not hitting the float ball when the water level drops. You also want to be certain the toilet's flush handle (aka tank lever) is installed securely so it can't rotate too high, hitting the tank's lid (or other parts) and sticking.

Q. "What's the best way to replace my toilet flapper?"
A. Generally, with most toilets: Turn off the water supply and flush the toilet. Reach in and unhook the ears of the flapper and unhook the chain from the trip lever. Install an identical flapper to the original that came from the factory. Do expect to get your hands dirty from the old flapper. Simply reinstall the new one in reverse order. Note that should you have very old brass pipes inside of your toilet, be careful not to be rough on them. They can easily break and end up leaking. After you have replaced your flapper, and the toilet tank bowl has refilled, the water fill valve should not leak (be going on and off in cycles). If it does, then we recommend putting some food coloring into your tank. This can help diagnose the problem. The colored water should not be going into the bowl (unless you flush the toilet of course). If the food color does go into the bowl, then possibly the flapper is not the correct one, the surface where the toilet flapper sits has eroded (feel below where the flapper touched the toilet and see if you can feel erosion/groove), or you may only need to add some slack to the chain.

Q. "How long 'should' the parts inside of my toilet last?"
A. That depends on a number of variables and which parts. Water quality is one of the major factors. If your water source is heavily chlorinated then many parts won't last long. Or if you have a lot of sand or grit or have a low pH or "aggressive" water source then parts simply won't last as long as the 'average' length of time. Also the quality of the parts matters. The replaceable parts such as flappers and washers/seals generally will last at least 4 to 5 years on "average." If you use a chemical bowl cleaner some flappers won't even last one year. However, some toilet bowl cleaners isolate cleanser from the internal workings of the toilet therefore, maximizing the life of your toilet parts. If your flapper has black "goo" on it then it is either due to age or quality of your water and if it feels soft then it's best to change it.
