Make your toilet work like new with replacement parts for your Kohler Gabrielle one-piece toilet, straight from your friends at PlumbingSupply.com! From flappers to trip levers, we have what you need. For many more Kohler parts and products, click here.

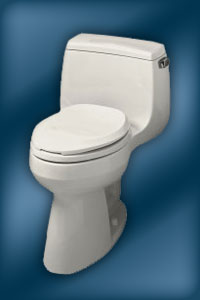

Gabrielle toilet Kohler Toilet
Gabrielle K-3322-RA

Order replacement parts for the Gabrielle toilet below

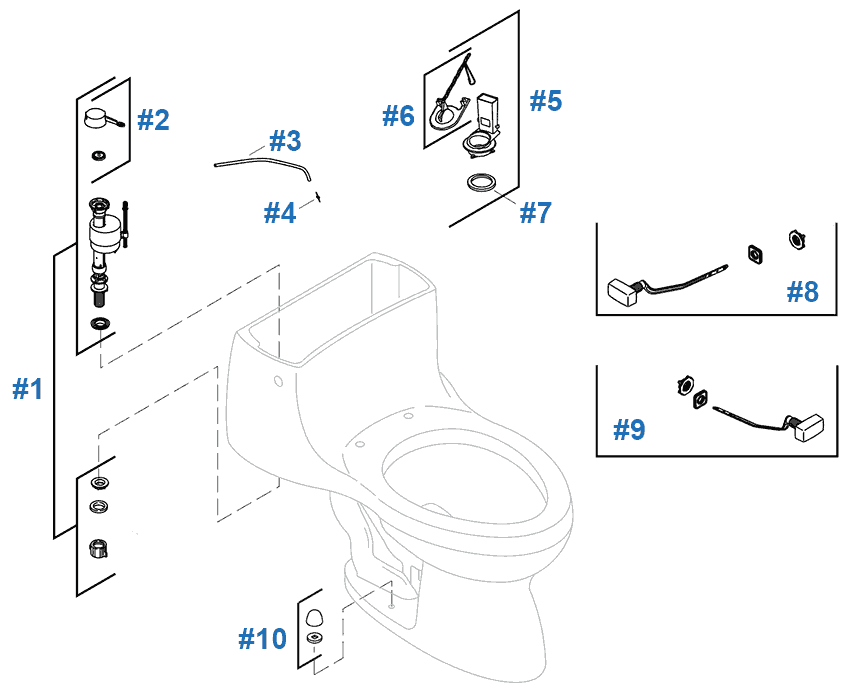

Kohler Toilet Replacement Parts
The Gabrielle - Model #K3322
Gabrielle toilet repair parts
Item # Part # Description Price & Quantity
#1 1025329 Left Hand Trip Lever - Chrome $9.75
#2 1025330 Right Hand Trip Lever - Chrome $10.43
#3 1057940 Top Assembly $4.47
#4 1059494 Fill Valve Assembly - Includes: top assembly (1057940), shank washer (85307), locknut assembly (1057941), washer (42398), supply nut (42397) $21.94
#5 52156 Refill Tube $1.95
#6 51261 Refill Tube Clip $2.79
#7 1048717 Flush Valve Assembly - Includes: gasket (83996), flapper (85655 replaced by #2012BP) $20.94
#8 83996 Gasket - available separately $4.49
#9 85655 Flapper - available separately (replaced by #2012BP) $11.19
#10 83451 Top Assembly $6.37
#11 1013092-0 Bolt Cap (2) - White - click here for more color options $4.99

- Or -View Button

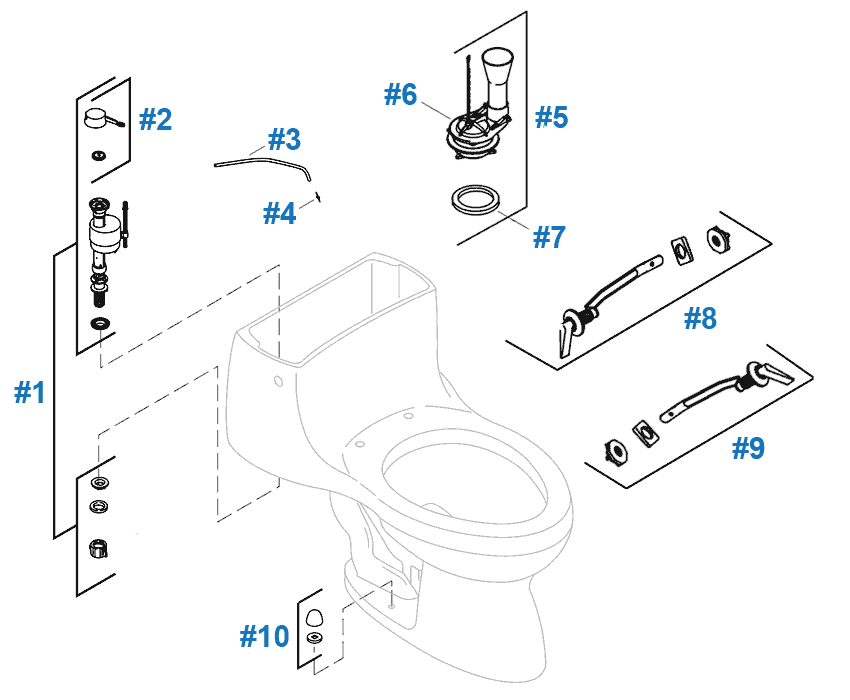

Kohler Toilet Replacement Parts
The Gabrielle (Whistling Straits design) - Model #'s K14257-WS, K14258WF, K14258WS
Gabrielle toilet repair parts
Item # Part # Description Price & Quantity
#1 1025329 Left Hand Trip Lever - Chrome $9.75
#2 1025330 Right Hand Trip Lever - Chrome $10.43
#3 1059494 Fill Valve Service Kit - Includes: top assembly (1057940), shank washer (85307), locknut assembly (1057941), washer (42398), supply nut (42397) $21.94
#4 1057940 Top Assembly $4.47
#5 1048717 Flush Valve Service Kit - Includes: Flapper (85655), gasket (83996) $20.94
#6 85655 Flapper (replaced by #2012BP) $11.19
#7 83996 Gasket $4.49
#8 1013092 Bolt Caps (2) - White - click here for more color options $4.99
#9 83451 Top Assembly $6.37
#10 51261 Refill Tube Clip $2.79

- Or -View Button


Kohler Toilet Replacement Parts by Series
For other Kohler products click here
repair parts for Alouette toilets   repair parts for Barrington toilets
repair parts for Bancroft toilets   repair parts for Cabernet toilets
repair parts for Cayuga toilets   repair parts for Champlain toilets
repair parts for Cimarron toilets   repair parts for Close Reach toilets
repair parts for Confidante toilets   repair parts for Couture toilets
repair parts for Devonshire toilets   repair parts for English Trellis toilets
repair parts for Fleur toilets   repair parts for Folio toilets
repair parts for Highline toilets   repair parts for Iron Works toilets
repair parts for Kathryn toilets   repair parts for Kelston toilets
repair parts for Leighton toilets   repair parts for Loon toilets
repair parts for Memoirs toilets   repair parts for Northline toilets
repair parts for Palarre toilets   repair parts for Peonies and Ivy toilets
repair parts for Pillow Talk toilets   repair parts for Pinoir toilets
repair parts for Persuade toilets   repair parts for Placid toilets
repair parts for Pompton toilets   repair parts for Portrait toilets
repair parts for Revival toilets   repair parts for Rialto toilets
repair parts for Rochelle toilets   repair parts for Rosario toilets
repair parts for San Martine toilets   repair parts for San Miguel toilets
repair parts for San Raphael toilets   repair parts for Santa Rosa toilets
repair parts for Serif toilets   repair parts for Vintage toilets
repair parts for Wellington toilets   repair parts for Wellworth toilets 3400's
repair parts for Wellworth toilets 4500's

frequently asked questions about toilet repair parts

"What are the most commonly replaced toilet parts?"
This depends on several factors. Your toilet's trip lever, flapper, and fill valve are operated each time you use your toilet. You will find, however, that the flapper and fill valve are the most exposed parts and will be the first ones to wear out in most cases.

questions about fill valves"I installed a new fill valve and my new valve comes on (and then goes off) for a few seconds about once per hour?"
answers about fill valves This could be caused by many things. This most commonly occurs with a Fluidmaster 400. This is a great valve but be sure to install the 1/4" tube per their instructions. Use the clip that comes with it and do not just stick it into the overflow tube or it will go on and off every so often by itself. If that isn't it, take some food coloring and place it in your tank. Wait a few hours and if some of the color has gone into the bowl then you probably need a new flapper.

information about running toilet"Why does my toilet continue to run after flushing?"
education and frequently asked questions about toilet running after flushing If you find that the toilet continues to run after flushing, and you have discovered that by jiggling the handle it will stop, then the problem may be that the chain controlling the flapper is too long. When installing your flapper, you want the flapper chain's S-hook in the hole closest to the handle with very little slack in the chain itself. By doing so, when the toilet is flushed, the chain will fall behind the flapper where it won't snag and cause problems such as keeping the flapper from closing properly. Check to make sure that the flapper has enough clearance to close, i.e. not hitting the float ball when the water level drops. You also want to be certain the toilet's flush handle (aka tank lever) is installed securely so it can't rotate too high, hitting the tank's lid (or other parts) and sticking.

information about toilet flappers"What's the best way to replace my toilet flapper?"
education and frequently asked questions about replacing toilet flappers Generally, with most toilets: Turn off the water supply and flush the toilet. Reach in and unhook the ears of the flapper and unhook the chain from the trip lever. Install an identical flapper to the original that came from the factory. Do expect to get your hands dirty from the old flapper. Simply reinstall the new one in reverse order. Note that should you have very old brass pipes inside of your toilet, be careful not to be rough on them. They can easily break and end up leaking. After you have replaced your flapper, and the toilet tank bowl has refilled, the water fill valve should not leak (be going on and off in cycles). If it does, then we recommend putting some food coloring into your tank. This can help diagnose the problem. The colored water should not be going into the bowl (unless you flush the toilet of course). If the food color does go into the bowl, then possibly the flapper is not the correct one, the surface where the toilet flapper sits has eroded (feel below where the flapper touched the toilet and see if you can feel erosion/groove), or you may only need to add some slack to the chain.

information about toilet parts"How long 'should' the parts inside of my toilet last?"
education and frequently asked questions about toilet parts That depends on a number of variables and which parts. Water quality is one of the major factors. If your water source is heavily chlorinated then many parts won't last long. Or if you have a lot of sand or grit or have a low pH or "aggressive" water source then parts simply won't last as long as the 'average' length of time. Also the quality of the parts matters. The replaceable parts such as flappers and washers/seals generally will last at least 4 to 5 years on "average." If you use a chemical bowl cleaner some flappers won't even last one year. However, some toilet bowl cleaners isolate cleanser from the internal workings of the toilet therefore, maximizing the life of your toilet parts. If your flapper has black "goo" on it then it is either due to age or quality of your water and if it feels soft then it's best to change it.
