Cimarron Toilet Repair Parts

By Kohler

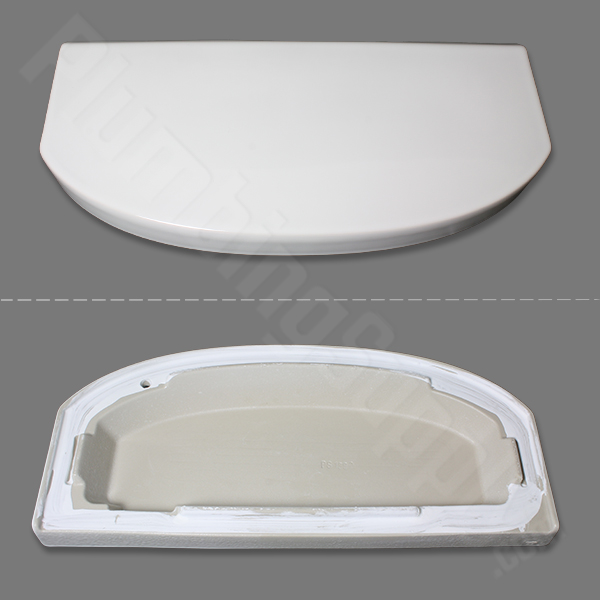

The Kohler Cimarron is one of their more popular models, and you can keep yours in top working order with repair and replacement parts from your source, PlumbingSupply.com®! Top assemblies, flat seals, tanks gaskets and more are just a few clicks away. Looking for more Kohler toilet parts? Click here.

Cimarron toilet Kohler Toilet

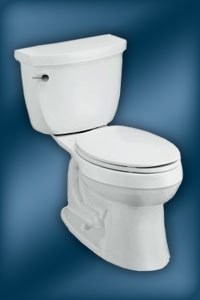

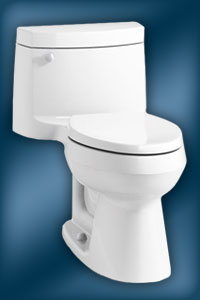

Cimarron K-3496

Order repair parts for the Cimarron toilet below

Kohler Toilet Replacement Parts

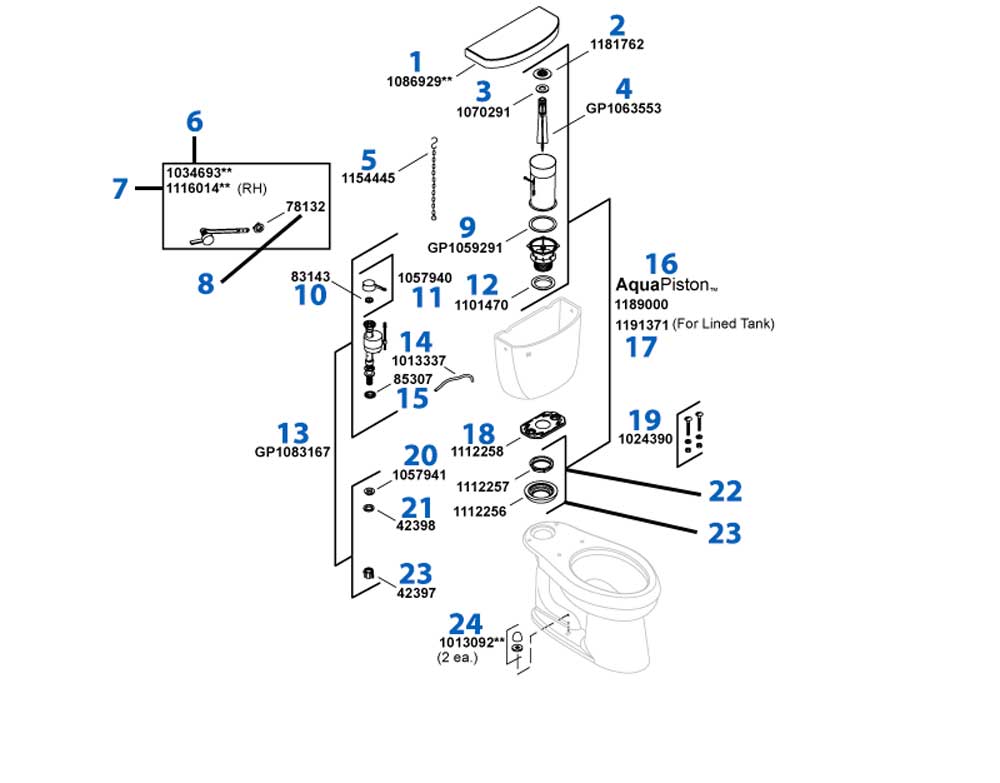

The Cimarron - Model #'s K4634, K3496, K3496-RA, K3496-T, K3496-TR, K3497, K3497-RA
Cimarron toilet repair parts

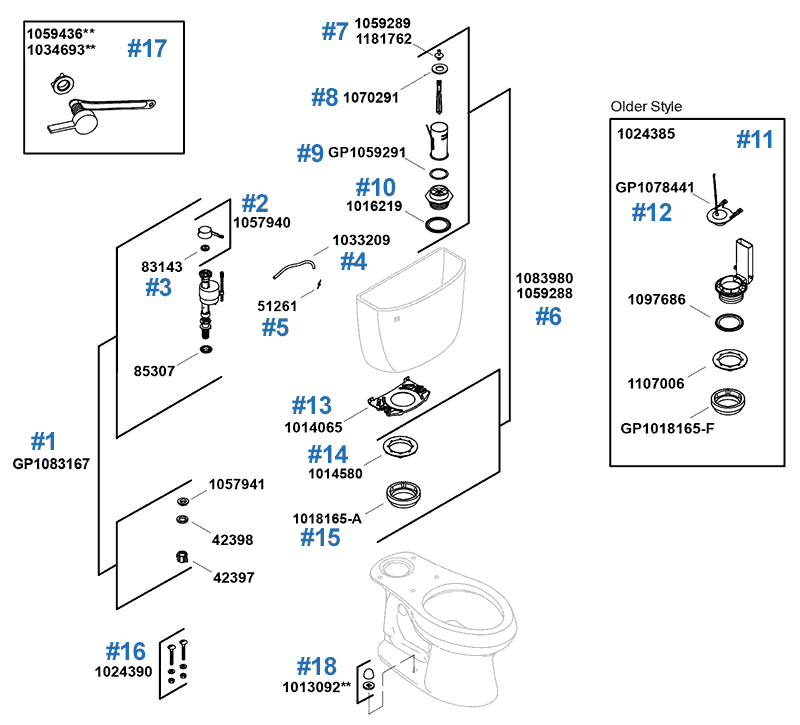

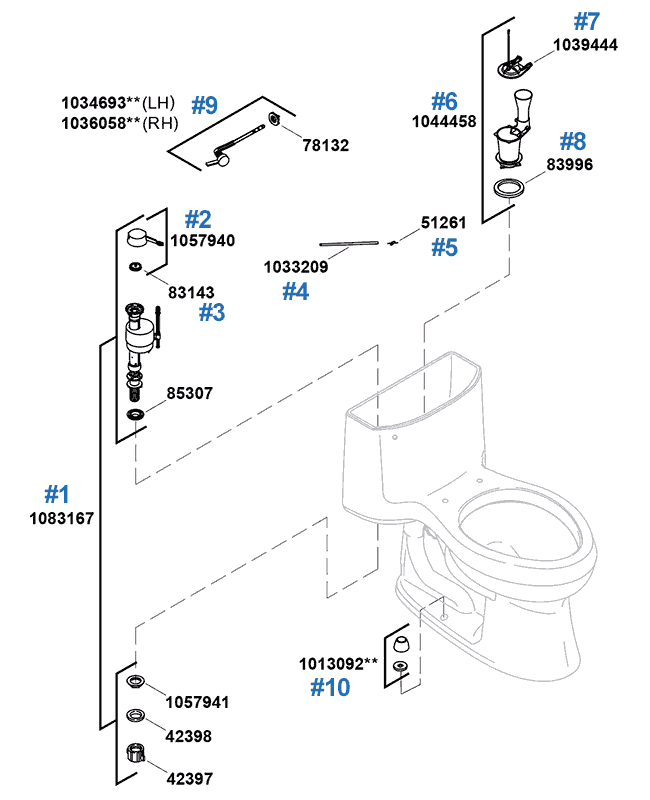

Item # Part # Description Price & Quantity
#1 1059495 Class 5 Fill Valve (replaced by *GP1083167)
Includes # 2
$19.91

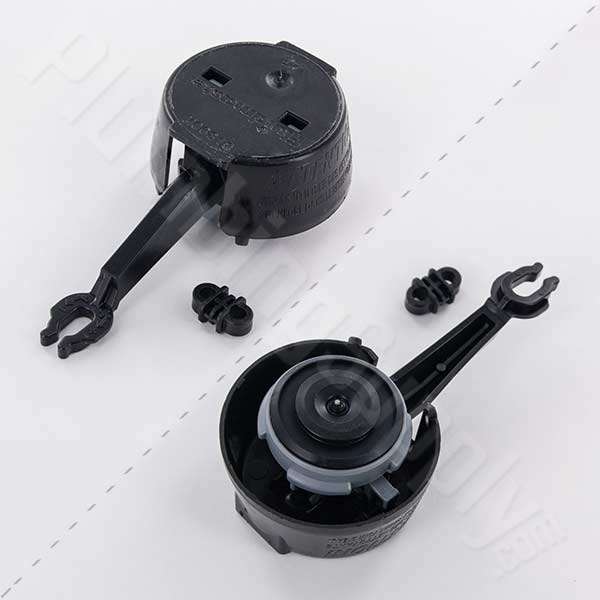

#2 1057940 Top Assembly - fits fill valve #1059495 and #GP1083167 $5.24
83451 Top Assembly for fill valve #1034694 - replaced by Fluidmaster #350 $4.99

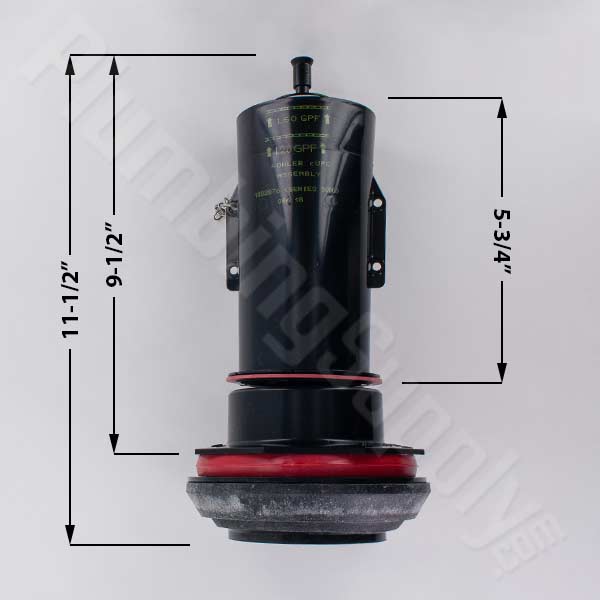

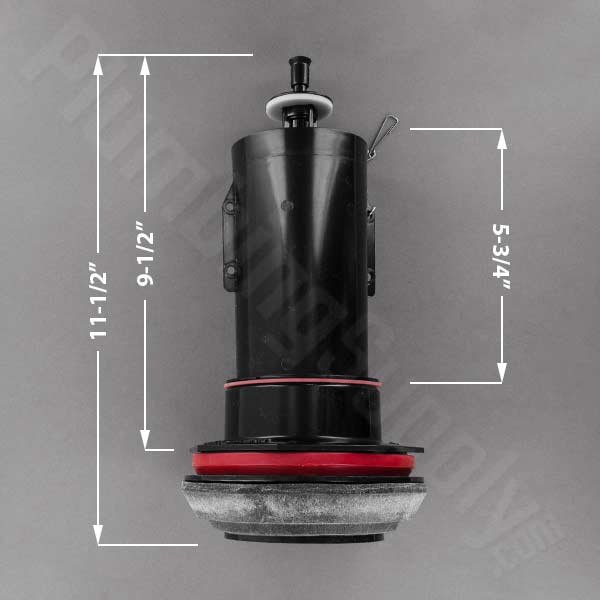

#3 1083980 Canister Valve Assembly - Includes: items 5, 6, 8, 9 $18.11

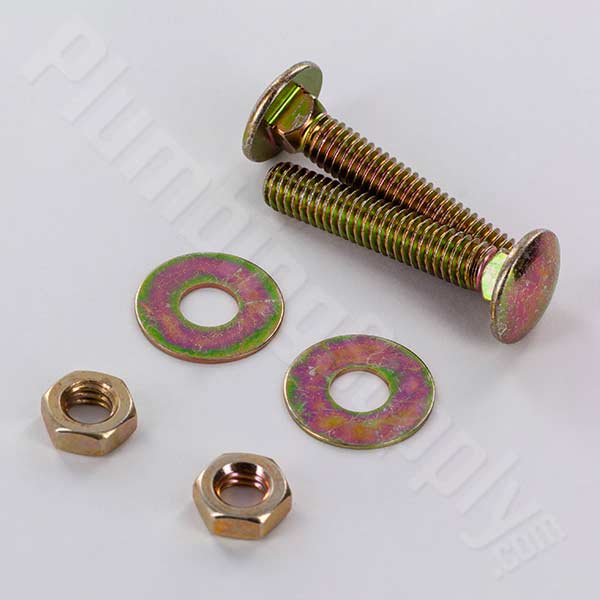

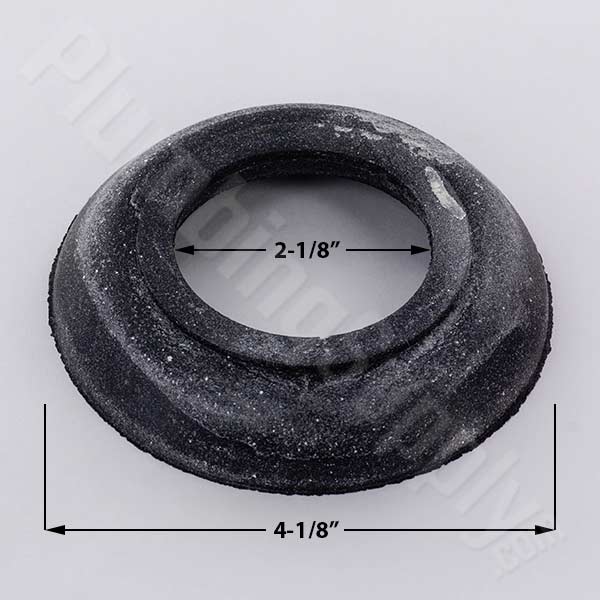

#4 1024390 Tank To Bowl Kit $5.31

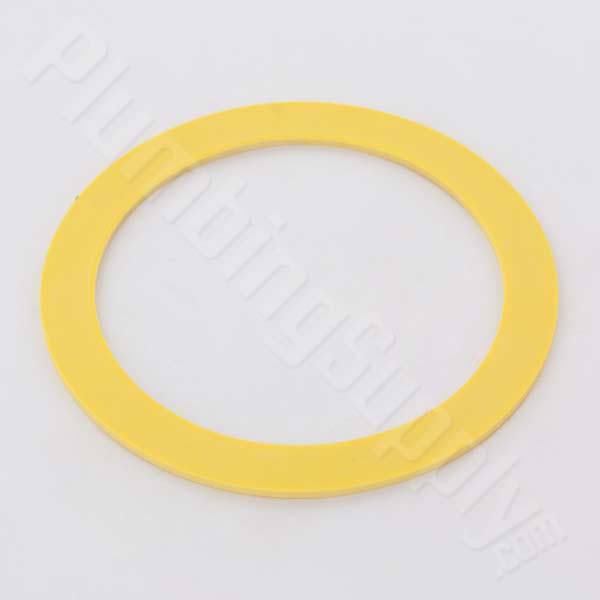

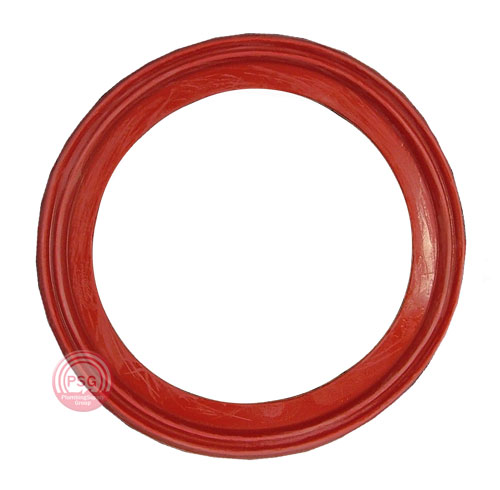

#5 GP1059291 Flat Seal $7.19

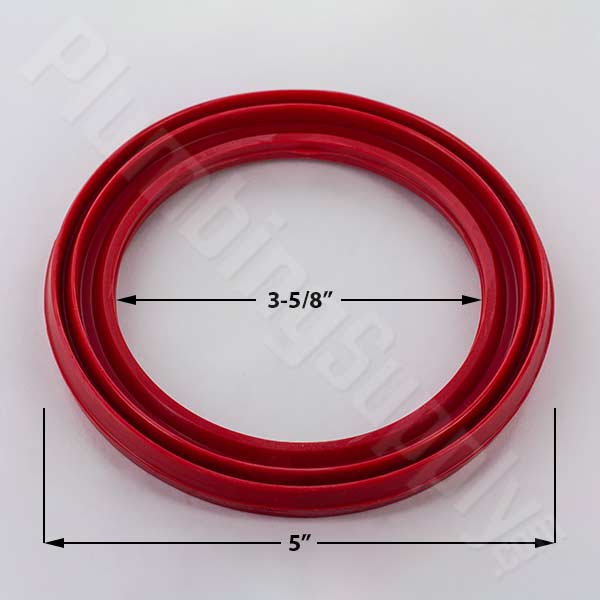

#6 1016219 Seal - has been replaced by flush valve gasket #1097686 $3.19

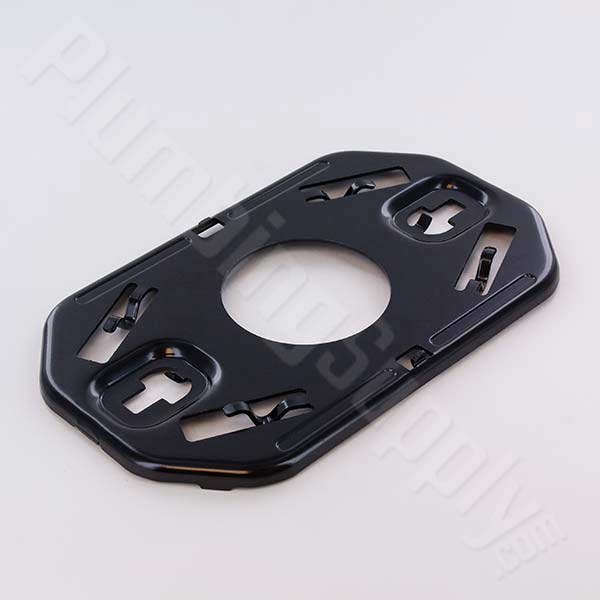

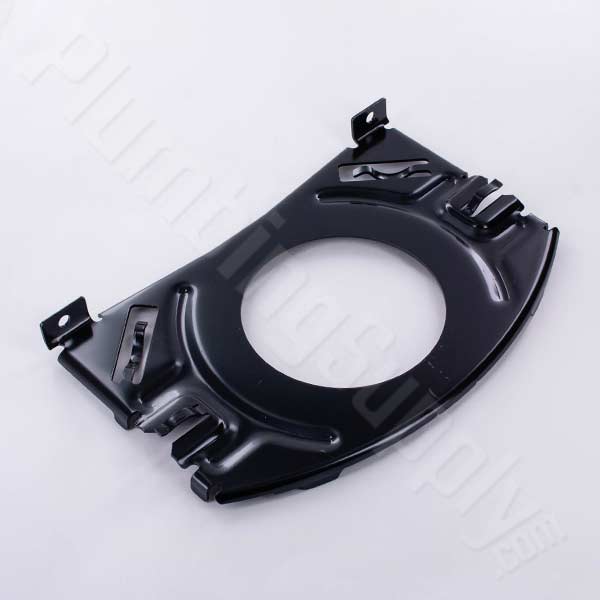

#7 1014065 Tank Plate $5.97

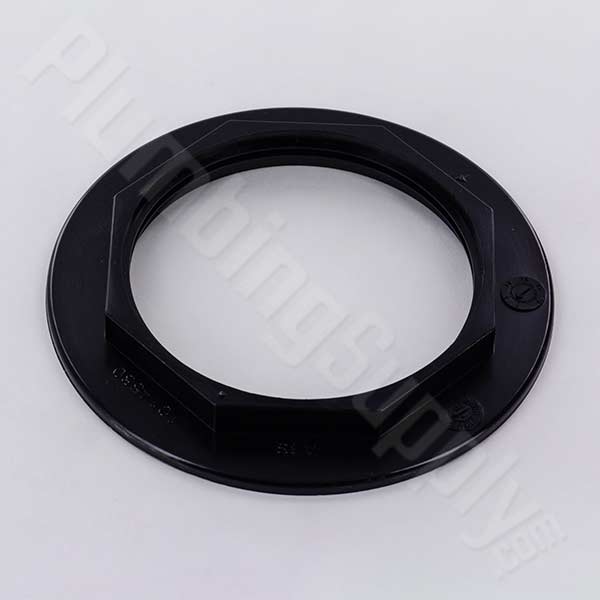

#8 1014580 Flush Valve Nut $2.29

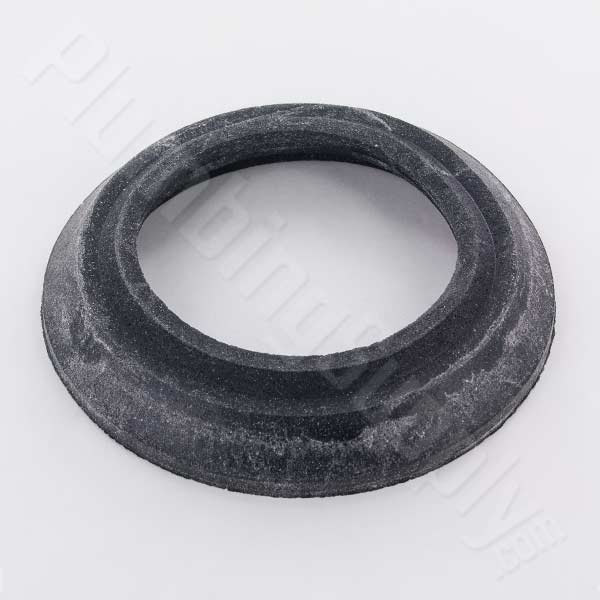

#9 1018165-F Tank Gasket - replaces #1018165-A $3.49
#10 1013092 Bolt Caps (2) - White
- click here for more color options
$4.99

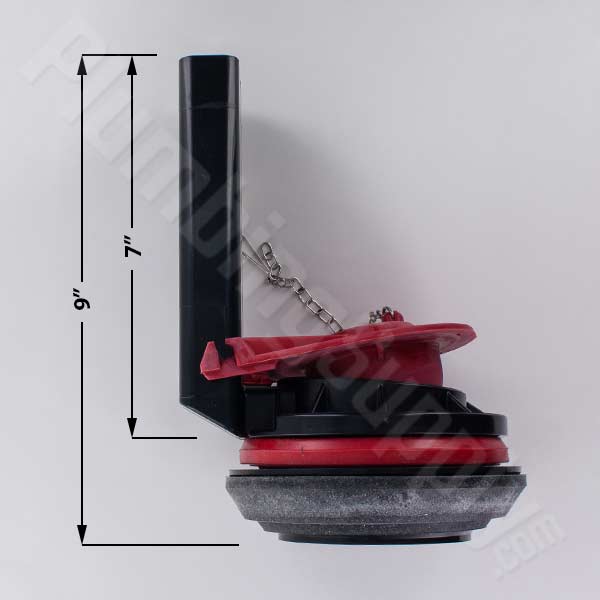

#11 1024385 Flush Valve Assembly - Includes: #'s 6, 8, 9, 12 $22.79
WW34 Flush Valve Removal/Installation Tool (not pictured above) $5.53

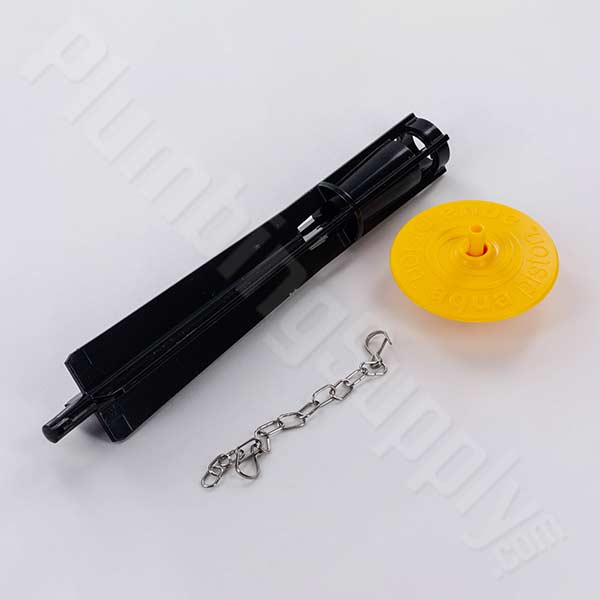

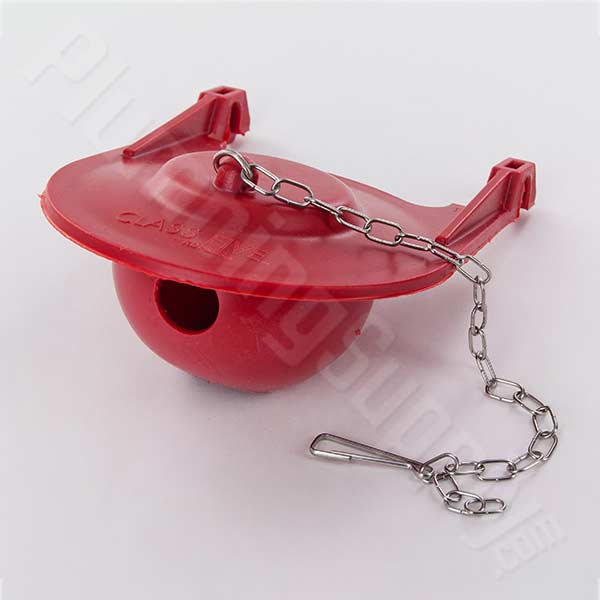

#12 1016546 Flapper - replaced by 1078441 $12.99

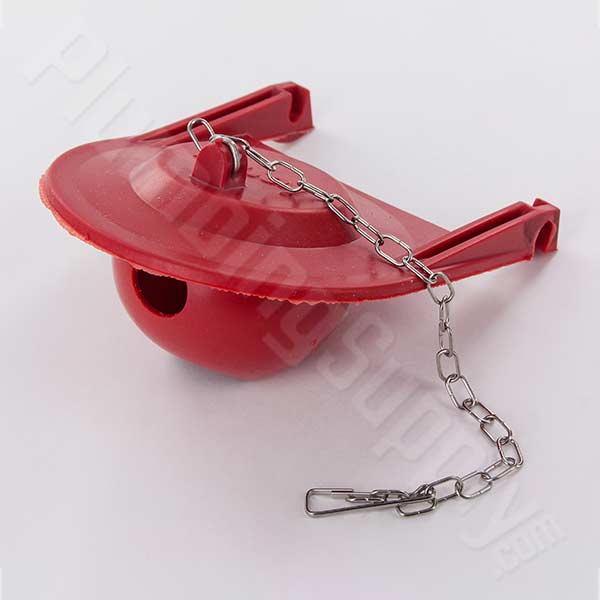

3010BP "Will Fit" Replacement Flapper
Proudly made in the USA USA flag button
$10.99

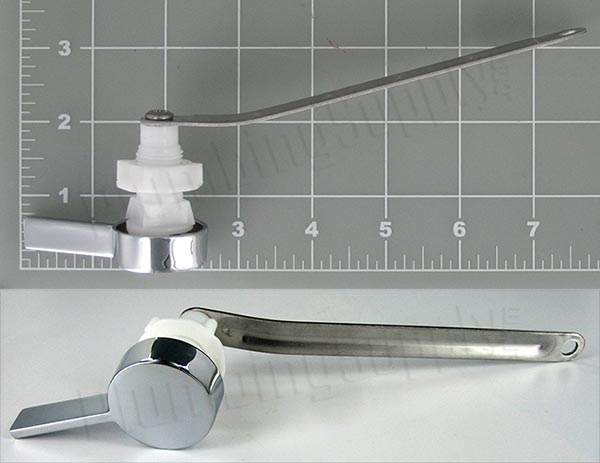

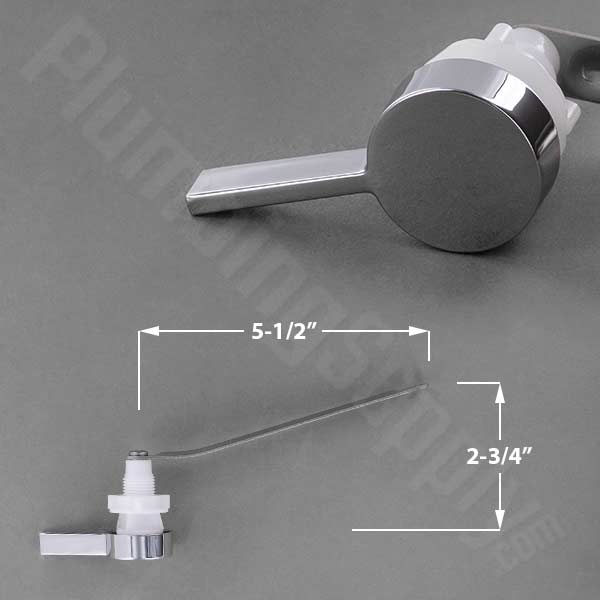

#13 1034693 Left Hand Trip Lever - Chrome $12.28
#14 51261 Refill Tube Clip $2.79
GP1138930 *Replacement Fill Valve $21.95

*If your existing fill valve stem is GRAY with a small insert, use GP1138930.
If your existing fill valve stem is BLACK with a large insert, use GP1083167. View this fill valve comparison to help you choose


- Or -
View Button

Not sure which model toilet you have? Try looking under the toilet tank lid or inside of the toilet tank.



Kohler Toilet Replacement Parts
The Cimarron - Model # K3489, K3489-RA

Cimarron toilet repair parts

Item # Part # Description Price & Quantity
#1 1044459 Fill Valve - Replaced by *GP1083167 - Includes top assembly $19.91
#2 1057940 Top Assembly - fits fill valve #GP1083167 $5.24
83451 Top Assembly - fits fill valve #1044459 - replaced by Fluidmaster #350 $4.99

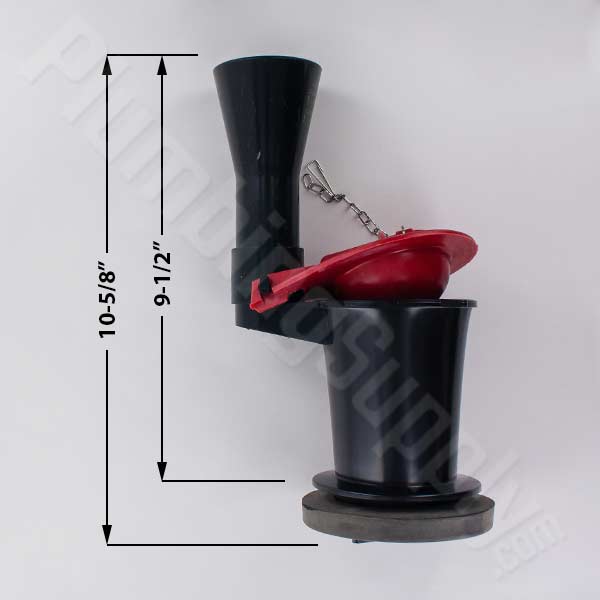

#3 1044458 Flush Valve - includes flapper and chain $17.98

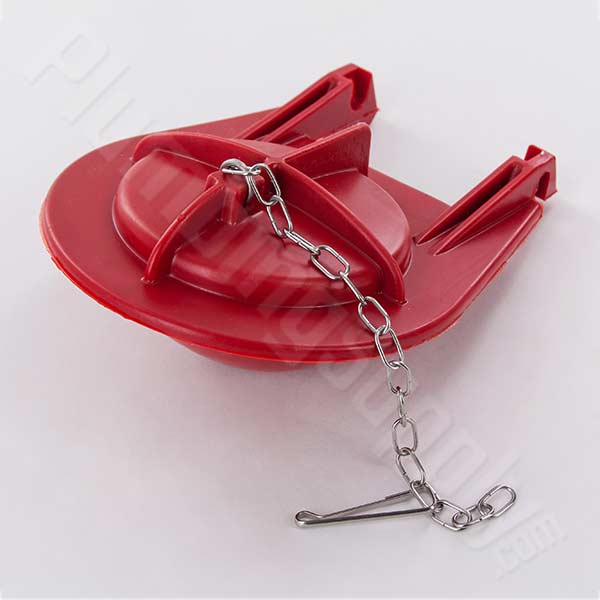

#4 1039444 Class 5 Flapper with Chain $8.99

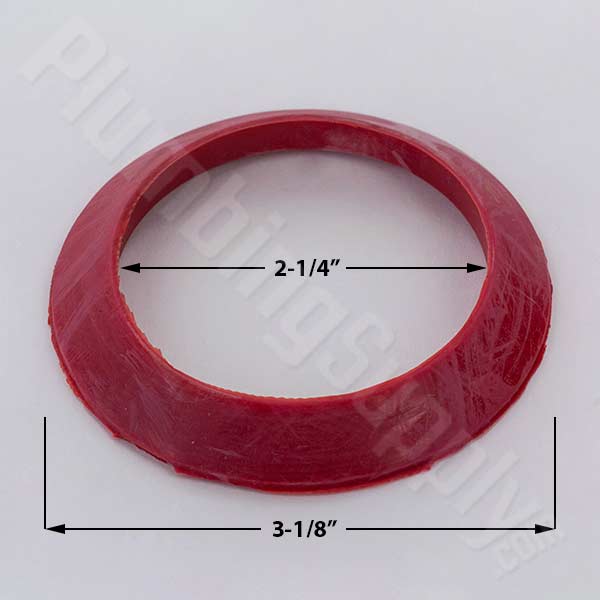

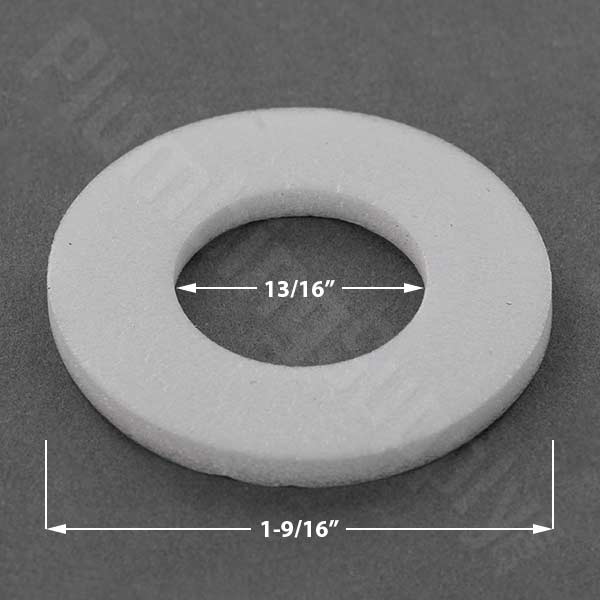

#5 83996 Flush Valve Gasket $5.29

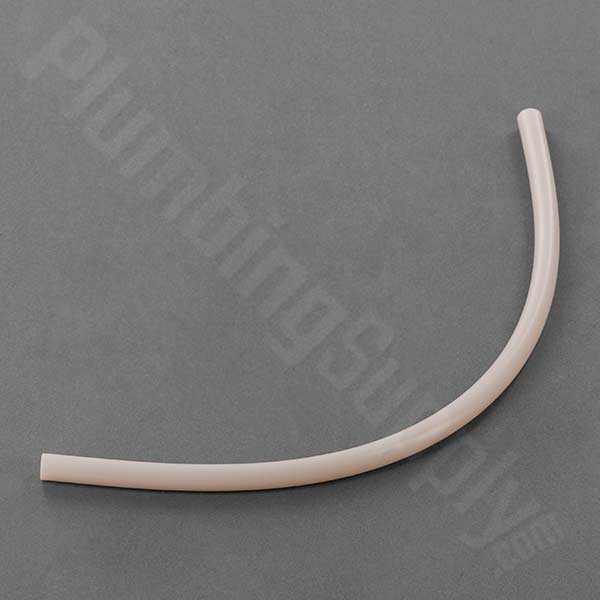

#6 1033209 Refill Tube $1.99
#7 51261 Refill Tube Clip $2.79
#8 1034693 Trip Lever - LEFT hand side - Chrome $12.28

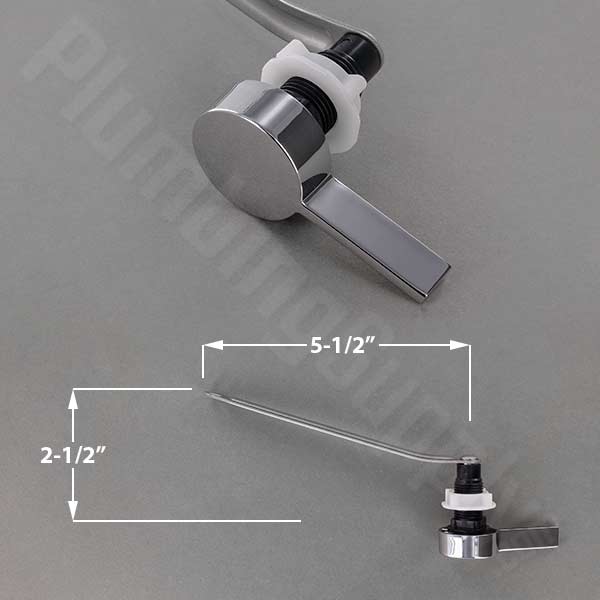

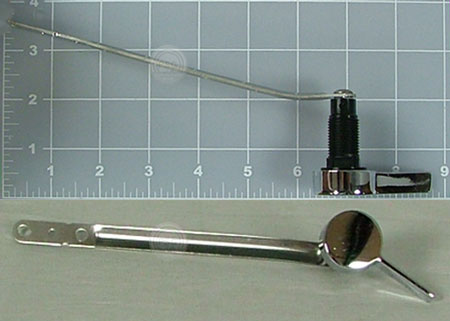

1036058 Trip Lever - RIGHT hand side - Chrome $11.87
#9 1013092 Bolt Caps (2) - White
- click here for more color options
$4.99
GP1138930 *Replacement Fill Valve $21.95

*If your existing fill valve stem is GRAY with a small insert, use GP1138930.
If your existing fill valve stem is BLACK with a large insert, use GP1083167. View this fill valve comparison to help you choose


- Or -
View Button
Kohler Toilet Replacement Parts
The Cimarron - Model #'s K3496-HE
Cimarron toilet repair parts

Item # Part # Description Price & Quantity
#1 *GP1083167 Class 5 Fill Valve $19.91
#2 1057940 Top Assembly - fits fill valve #GP1083167 $5.24
83451 Top Assembly for fill valve #1034694 - replaced by Fluidmaster #350 $4.99
#3 1059288 Flush Valve Service Kit $29.65

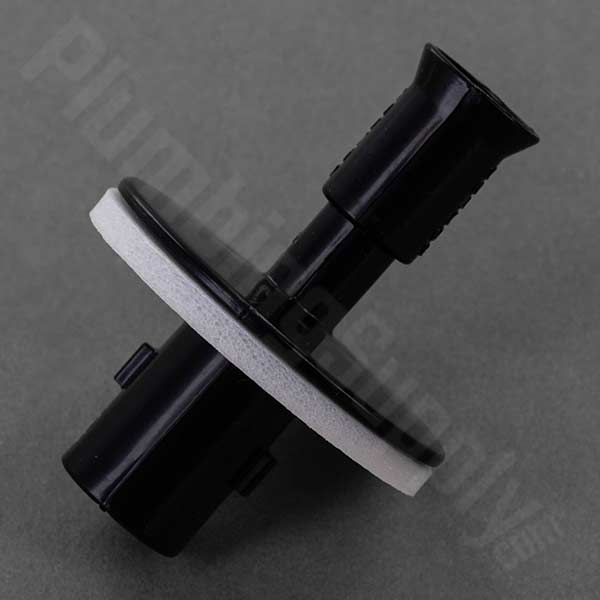

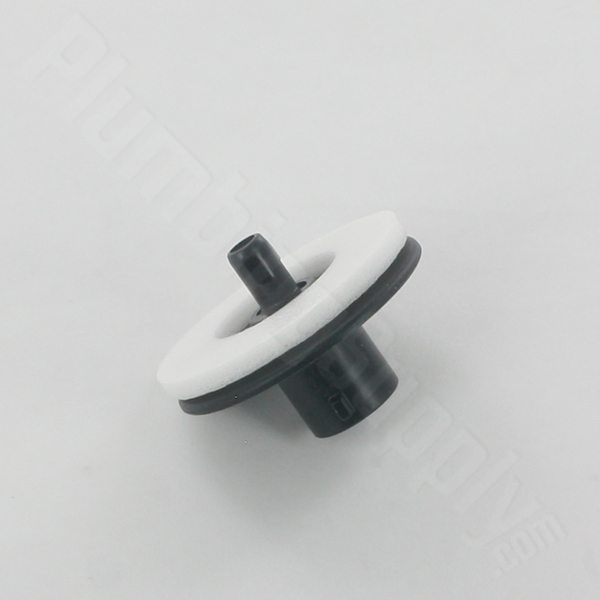

#4 1059289 Gasket and Stop Kit $8.65
#5 1016219 Seal - has been replaced by flush valve gasket #1097686 $3.19
#6 1014580 Flush Valve Nut $2.29
#7 1018165-F Tank Gasket - replaces #1018165-A $3.49
#8 1014065 Tank Plate $5.97
#9 1059436 Left Hand Trip Lever (replaced by 1034693) - Chrome $12.28
  1036058-CP Right Hand Trip Lever - Chrome $11.87
GP1138930 *Replacement Fill Valve $21.95

*If your existing fill valve stem is GRAY with a small insert, use GP1138930.
If your existing fill valve stem is BLACK with a large insert, use GP1083167. View this fill valve comparison to help you choose


- Or -
View Button

Not sure which model toilet you have? Try looking under the toilet tank lid or inside of the toilet tank.



Kohler Toilet Replacement Parts

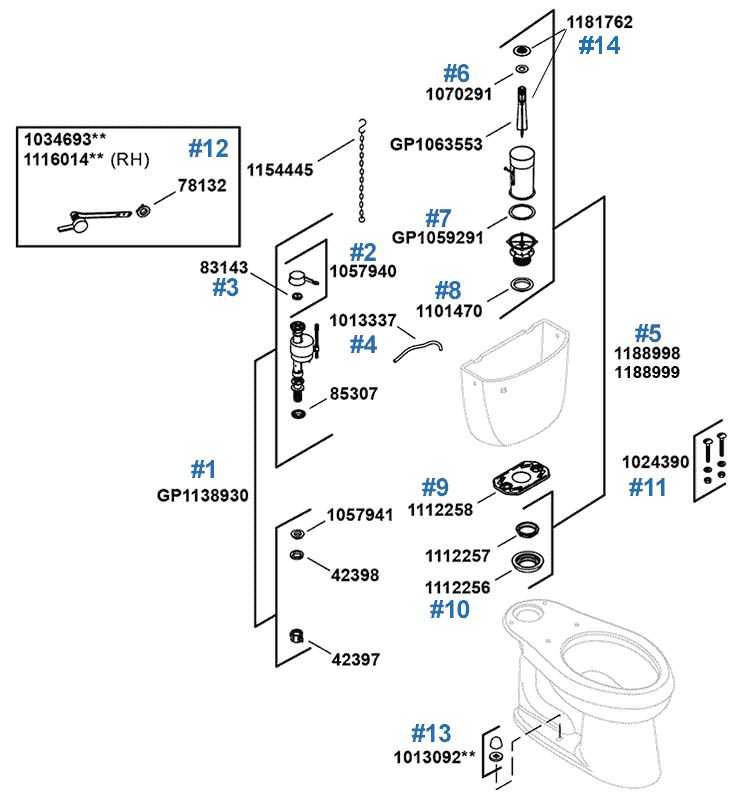

The Cimarron - Model #'s K3609, K3609-RA, K3609-T, K3609-TR, K3609-U, K3609-UR
Cimarron toilet repair parts

Item # Part # Description Price & Quantity
#1 1096383 Replaced by *GP1138930 - Fill Valve
- Includes color coded flow restrictors
$21.95

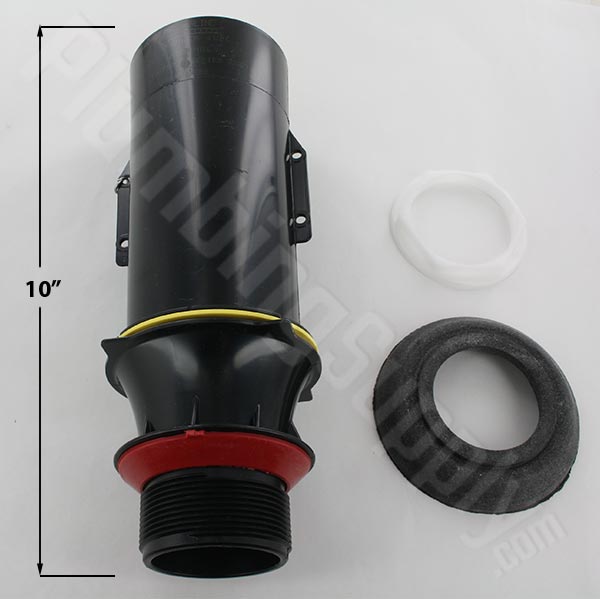

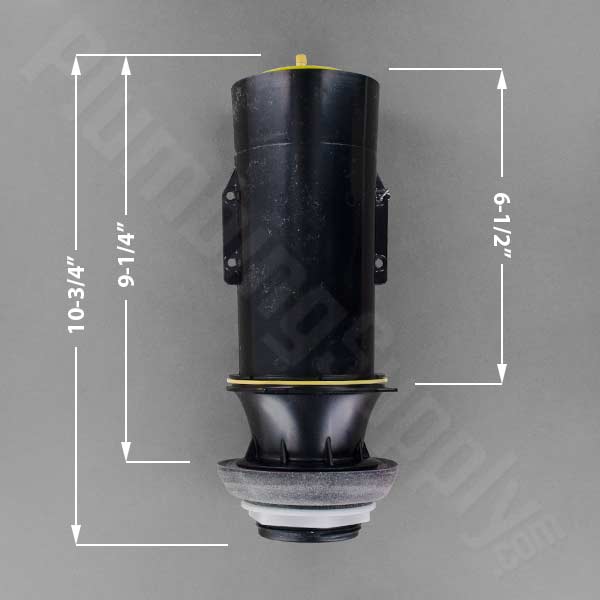

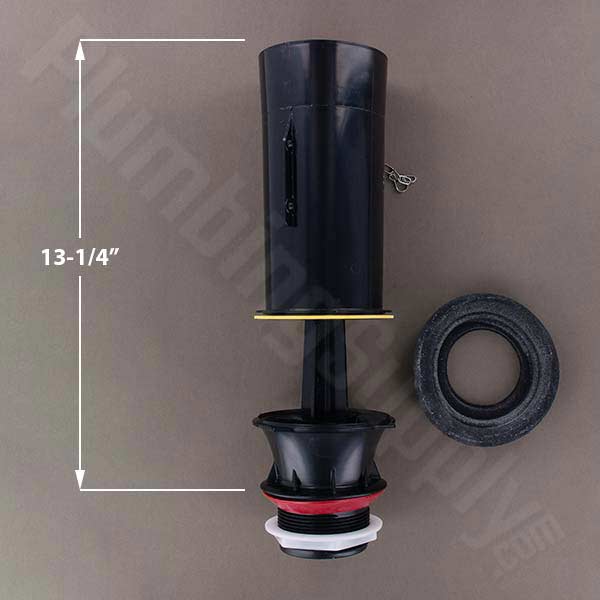

#2 1113629 Replaced by 11188999 - Flush Valve Service Kit - 11" overall height, 9-1/4" from toilet tank to top of valve, 6-1/2" canister $12.97
#3 1034693 Trip Lever - Chrome $12.28
GP1083167 *Replacement Class 5 Fill Valve $19.91

*If your existing fill valve stem is GRAY with a small insert, use GP1138930.
If your existing fill valve stem is BLACK with a large insert, use GP1083167. View this fill valve comparison to help you choose


- Or -
View Button

Kohler Toilet Replacement Parts by Series
For a visual Kohler toilet index click here

Frequently Asked Questions

Q. "The GP1138930 comes with some colored inserts. What are those for?"
A.Since the Kohler GP1138930 is a replacement for a variety of fill valves, it comes with a selection of color coded flow restrictors. To select the correct insert, check your old fill valve (the one you're replacing) and use the same color restrictor on your new GP1138930 fill valve. See example of the four included restrictors.

Q. "What are the most commonly replaced toilet parts?"
A.This depends on several factors. Your toilet's trip lever, flapper, and fill valve are operated each time you use your toilet. You will find, however, that the flapper and fill valve are the parts most exposed to water and will be the first ones to wear out in most cases.

Q. "I installed a new fill valve and my new valve comes on (and then goes off) for a few seconds about once per hour?"
A. This could be caused by many things. This most commonly occurs with a Fluidmaster 400. This is a great valve but be sure to install the 1/4" tube per their instructions. Use the clip that comes with it and do not just stick it into the overflow tube or it will go on and off every so often by itself. If that isn't it, take some food coloring and place it in your tank. Wait a few hours and if some of the color has gone into the bowl then you probably need a new flapper.

Q. "Why does my toilet continue to run after flushing?"
A. If you find that the toilet continues to run after flushing, and you have discovered that by jiggling the handle it will stop, then the problem may be that the chain controlling the flapper is too long. When installing your flapper, you want the flapper chain's S-hook in the hole closest to the handle with very little slack in the chain itself. By doing so, when the toilet is flushed, the chain will fall behind the flapper where it won't snag and cause problems such as keeping the flapper from closing properly. Check to make sure that the flapper has enough clearance to close, i.e. not hitting the float ball when the water level drops. You also want to be certain the toilet's flush handle (aka tank lever) is installed securely so it can't rotate too high, hitting the tank's lid (or other parts) and sticking.

Q. "What's the best way to replace my toilet flapper?"
A. Generally, with most toilets: Turn off the water supply and flush the toilet. Reach in and unhook the ears of the flapper and unhook the chain from the trip lever. Install an identical flapper to the original that came from the factory. Do expect to get your hands dirty from the old flapper. Simply reinstall the new one in reverse order. Note that should you have very old brass pipes inside of your toilet, be careful not to be rough on them. They can easily break and end up leaking. After you have replaced your flapper, and the toilet tank bowl has refilled, the water fill valve should not leak (be going on and off in cycles). If it does, then we recommend putting some food coloring into your tank. This can help diagnose the problem. The colored water should not be going into the bowl (unless you flush the toilet of course). If the food color does go into the bowl, then possibly the flapper is not the correct one, the surface where the toilet flapper sits has eroded (feel below where the flapper touched the toilet and see if you can feel erosion/groove), or you may only need to add some slack to the chain.

Q. "How long 'should' the parts inside of my toilet last?"
A. That depends on a number of variables and which parts. Water quality is one of the major factors. If your water source is heavily chlorinated then many parts won't last long. Or if you have a lot of sand or grit or have a low pH or "aggressive" water source then parts simply won't last as long as the 'average' length of time. Also the quality of the parts matters. The replaceable parts such as flappers and washers/seals generally will last at least 4 to 5 years on "average." If you use a chemical bowl cleaner some flappers won't even last one year. However, some toilet bowl cleaners isolate cleanser from the internal workings of the toilet therefore, maximizing the life of your toilet parts. If your flapper has black "goo" on it then it is either due to age or quality of your water and if it feels soft then it's best to change it.
