Simple, straightforward and low shipping rates for these toilet repair parts.


Barrington Toilet Repair Parts

By Kohler

Whether you need a flapper or a plunger assembly, repair parts for your Barrington toilet are right here at PlumbingSupply.com®! These and many other parts are here to help keep your classic toilet working at it's best. Looking for more Kohler toilet parts? Click here.

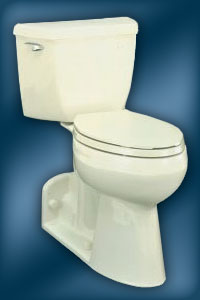

Barrinton toilet Kohler Toilet
Barrington K-3530

Order replacement parts for the Barrington toilet below

Kohler Toilet Replacement Parts
The Barrington Series - Model # K3530
Barrington repair parts by Kohler

Item Part # Description Price & Quantity
#1 1041244 Fill Valve (replaced by *GP1138930)
- Includes: - top assembly, lock nut, washer, supply nut, refill tube clip, and color coded flow restrictors
$21.95
#2a 30373 Repair Kit for Old 30653 - Replaced by 495-0188-00
- Includes Plunger Assembly #30197
$12.59
#2b 385 Cap Assembly for New 1041244 (GP1138930) $4.98
#3 30197 Plunger Assembly $7.25
#4 1001906 Flush Valve Assembly - replaced by 85406
Includes flapper and tank gasket (51487) - gasket bolt kit sold separately below (#9)
$24.79
SW-5 Flush Valve Removal/Installation Tool (not pictured above) $5.76

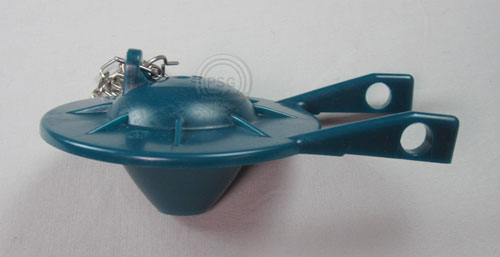

#5 87449 Flapper - replaced by GP87449 $7.89
#6 53154 Rubber Washer - replaced by GP1145626 $3.34
#7 51487 Tank To Bowl Gasket Complete With Bolt Kit - includes: gasket (1), washers (3), 5/16" bolts (3) and nuts (3) $12.85
#8 52048-0 Bolt Cap - White - click here for more color options $4.99
#9 30419 Tank To Bowl BOLT KIT - Includes: items 10, 11 and 12 $9.67
  30324-CP Left Hand Trip Lever - Chrome $14.23
  30324-VF Left Hand Trip Lever - Polished Brass $41.19
  30324-BN Left Hand Trip Lever - Brushed Nickel $59.51
GP1083167 *Replacement Class 5 Fill Valve $19.91

*If your existing fill valve stem is GRAY with a small insert, use GP1138930.
If your existing fill valve stem is BLACK with a large insert, use GP1083167. View this fill valve comparison to help you choose


- Or -
View Button

Not sure which model toilet you have? Try looking under the toilet tank lid or inside of the toilet tank.



Kohler Toilet Replacement Parts by Series
For a visual Kohler toilet index click here

Frequently Asked Questions

Q. "The GP1138930 comes with some colored inserts. What are those for?"
A.Since the Kohler GP1138930 is a replacement for a variety of fill valves, it comes with a selection of color coded flow restrictors. To select the correct insert, check your old fill valve (the one you're replacing) and use the same color restrictor on your new GP1138930 fill valve. See example of the four included restrictors.

Q. "What are the most commonly replaced toilet parts?"
A.This depends on several factors. Your toilet's trip lever, flapper, and fill valve are operated each time you use your toilet. You will find, however, that the flapper and fill valve are the parts most exposed to water and will be the first ones to wear out in most cases.

Q. "I installed a new fill valve and my new valve comes on (and then goes off) for a few seconds about once per hour?"
A. This could be caused by many things. This most commonly occurs with a Fluidmaster 400. This is a great valve but be sure to install the 1/4" tube per their instructions. Use the clip that comes with it and do not just stick it into the overflow tube or it will go on and off every so often by itself. If that isn't it, take some food coloring and place it in your tank. Wait a few hours and if some of the color has gone into the bowl then you probably need a new flapper.

Q. "Why does my toilet continue to run after flushing?"
A. If you find that the toilet continues to run after flushing, and you have discovered that by jiggling the handle it will stop, then the problem may be that the chain controlling the flapper is too long. When installing your flapper, you want the flapper chain's S-hook in the hole closest to the handle with very little slack in the chain itself. By doing so, when the toilet is flushed, the chain will fall behind the flapper where it won't snag and cause problems such as keeping the flapper from closing properly. Check to make sure that the flapper has enough clearance to close, i.e. not hitting the float ball when the water level drops. You also want to be certain the toilet's flush handle (aka tank lever) is installed securely so it can't rotate too high, hitting the tank's lid (or other parts) and sticking.

Q. "What's the best way to replace my toilet flapper?"
A. Generally, with most toilets: Turn off the water supply and flush the toilet. Reach in and unhook the ears of the flapper and unhook the chain from the trip lever. Install an identical flapper to the original that came from the factory. Do expect to get your hands dirty from the old flapper. Simply reinstall the new one in reverse order. Note that should you have very old brass pipes inside of your toilet, be careful not to be rough on them. They can easily break and end up leaking. After you have replaced your flapper, and the toilet tank bowl has refilled, the water fill valve should not leak (be going on and off in cycles). If it does, then we recommend putting some food coloring into your tank. This can help diagnose the problem. The colored water should not be going into the bowl (unless you flush the toilet of course). If the food color does go into the bowl, then possibly the flapper is not the correct one, the surface where the toilet flapper sits has eroded (feel below where the flapper touched the toilet and see if you can feel erosion/groove), or you may only need to add some slack to the chain.

Q. "How long 'should' the parts inside of my toilet last?"
A. That depends on a number of variables and which parts. Water quality is one of the major factors. If your water source is heavily chlorinated then many parts won't last long. Or if you have a lot of sand or grit or have a low pH or "aggressive" water source then parts simply won't last as long as the 'average' length of time. Also the quality of the parts matters. The replaceable parts such as flappers and washers/seals generally will last at least 4 to 5 years on "average." If you use a chemical bowl cleaner some flappers won't even last one year. However, some toilet bowl cleaners isolate cleanser from the internal workings of the toilet therefore, maximizing the life of your toilet parts. If your flapper has black "goo" on it then it is either due to age or quality of your water and if it feels soft then it's best to change it.

Q. "What does 'will fit' mean?"
A."Will Fit" is a term used to define an item that may or may not be made by the original manufacturer (OEM), but will function just like the original part.

Q. "What is the difference between "OEM" and "will-fit" parts? And what does OEM mean anyway?"
A. "OEM" stands for "Original Equipment Manufacturer". This refers to anything from the original manufacturer that is sold to a second company to use in production of that second company's product. In other words, many toilet manufacturers outsource for the internal working parts of the toilet, such as the fill valves, flush valves, or flappers. When this happens, they have the opportunity to use an existing part, or to spec something for the specific toilet. When the toilet manufacturer chooses to use an existing part, the manufacturer of the part can still sell that piece under their own name. If the toilet manufacturer chooses to spec something for the specific toilet, the part manufacturer can then only provide that part to the toilet manufacturer. What this means for you is that you can sometimes get the *exact same part* (by the original manufacturer of the OEM part), but under another name and at a better cost! So when your toilet's internal working parts need to be replaced, you may have the option to use either the "OEM" part number or use the "will-fit" part number to order what you need. Please note that only some "will-fit" items are manufactured by the OEM manufacturer. If this is essential to your repair, please feel free to contact us and we will be happy to check for you.



return to top ↑
