Hydrotek products are top quality, reliable, vandal resistant, and nearly maintenance free. Their faucets are manufactured to withstand frequent daily use and are built to last, plus these faucets are available in several styles, so you can't go wrong with a Hydrotek electronic, handsfree faucet from PlumbingSupply.com
® . Looking for more Hydrotek products? Click
here .

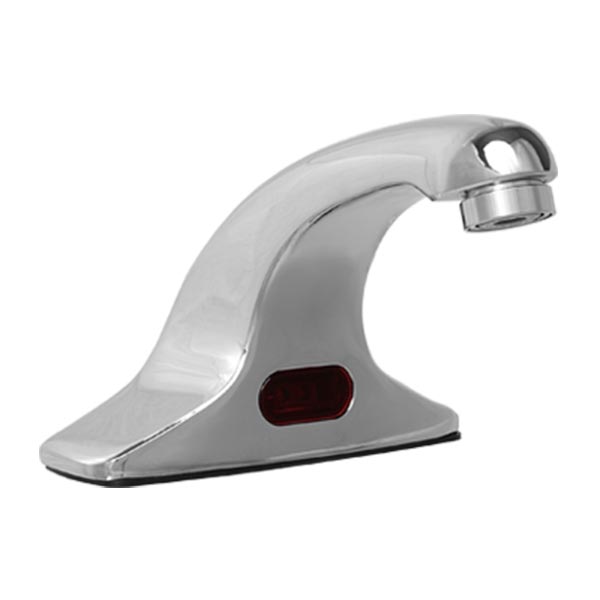

H-1000C/HB-1000C Automatic Faucets
These automatic faucets feature:
ACCU-SENSE adjustable sensor eyes
3-hole mount, non-mixing automatic faucet with 4" center set
3-point anchoring (optional 8" cover plate available, HC-006G )
Includes faucet/sensor assembly with 30 second time out feature
0.5 gpm vandal resistant aerator as standard, solenoid valve, in-line filter
3/8" copper supply tube
(4) AA alkaline batteries (with model #HB-1000C) or 12V DC plug-in adapter (with model #H-1000C)
Includes mounting hardware
ADA compliant, meets all barrier free codes
Easily installed in new or retrofit applications
Conserves water and energy
Solid metal construction
All parts are field-replaceable to insure quick and easy repair

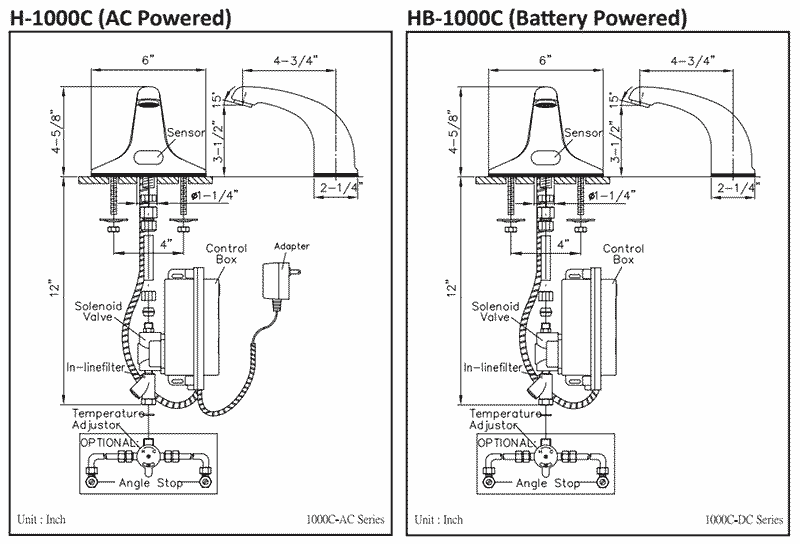

Dimensions: #H-1000C / #HB-1000C

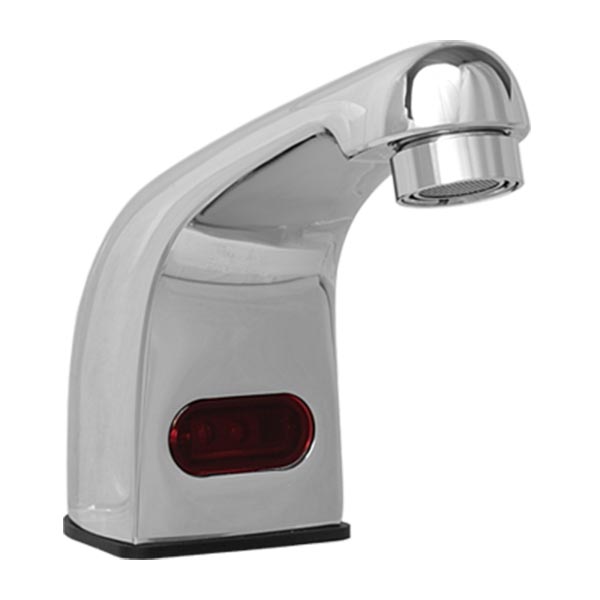

H-2603C/HB-2603C Automatic Faucets
These automatic faucets feature:
ACCU-SENSE adjustable sensor eyes
Single-hole deck mount, non-mixing automatic faucet with 4" center set
3-point anchoring (optional 4" & 8" cover plates available, HC-006E, HC-006F )
Includes faucet/sensor assembly with 30 second time out feature
1.5 gpm Laminar flow control, solenoid valve, in-line filter
3/8" copper supply tube
(4) AA alkaline batteries (with model #HB-2603C) or 12V DC plug-in adapter (with model #H-2603C)
Includes mounting hardware
ADA compliant, meets all barrier free codes
Easily installed in new or retrofit applications
Conserves water and energy
Solid metal construction
All parts are field-replaceable to insure quick and easy repair

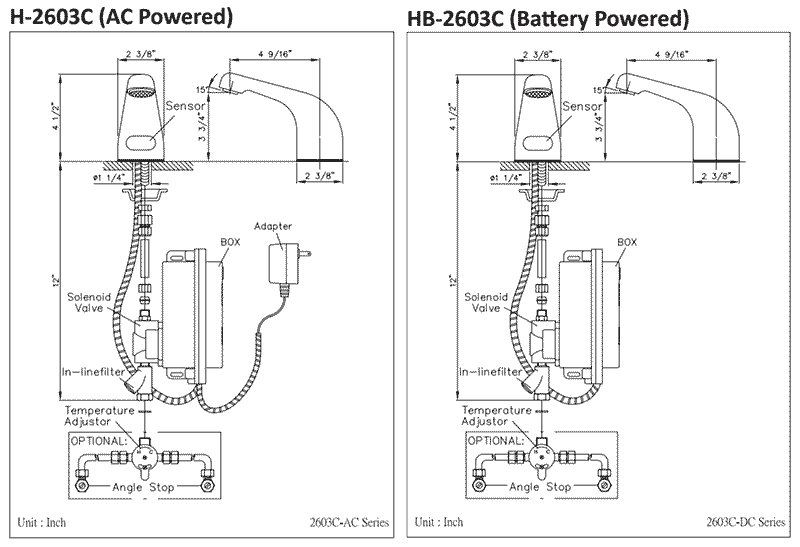

Dimensions: #H-2603C / #HB-2603C
H-3000C/HB-3000C Automatic Faucets
These automatic faucets feature:
ACCU-SENSE adjustable sensor eyes
Single-hole mount, mixing automatic faucet with built-in temperature control
Manual override (optional 4" & 8" cover plates available, HC-006H, HC-006J )
Includes faucet/sensor assembly with in-line filter/check valves with 3/8" compression adapters
2.0 gpm Laminar flow control, 2 braided S.S. supply lines
(4) AA alkaline batteries (with model #HB-3000C) or 12V DC plug-in adapter (with model #H-3000C)
Includes mounting hardware
ADA compliant, meets all barrier free codes
Easily installed in new or retrofit applications
Conserves water and energy
Solid metal construction
All parts are field-replaceable to insure quick and easy repair
Also available with wrist blade handles
Dimensions: #H-3000C / #HB-3000C

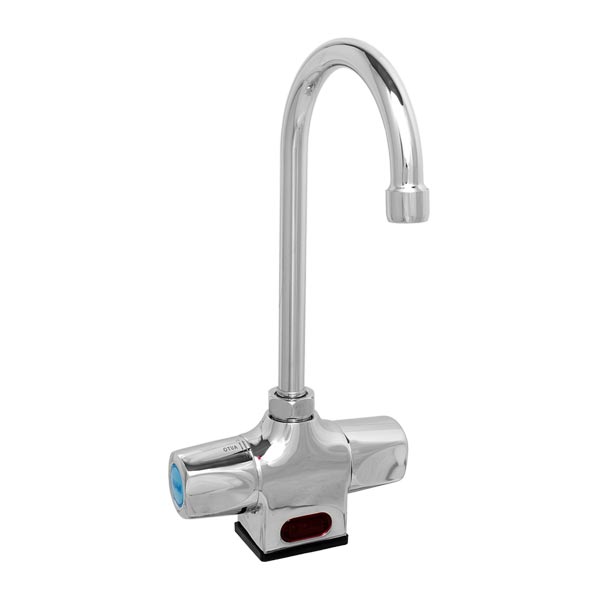

H-4000C/HB-4000C Automatic Faucets
These automatic faucets feature:
ACCU-SENSE adjustable sensor eyes
Single-hole deck mount, mixing automatic faucet with built-in control
Manual override (optional 4" & 8" cover plates available, HC-006H, HC-006J )
Includes faucet/sensor assembly with 30 second time out feature
6" gooseneck spout
2.0 gpm Laminar flow control, solenoid valve, in-line filter clean-out trap
3/8" copper supply tube
(4) AA alkaline batteries (with model #HB-4000C) or 12V DC plug-in adapter (with model #H-4000C)
Includes mounting hardware
ADA compliant, meets all barrier free codes
Easily installed in new or retrofit applications
Conserves water and energy
Solid metal construction
All parts are field-replaceable to insure quick and easy repair
Also available with wrist blade handles

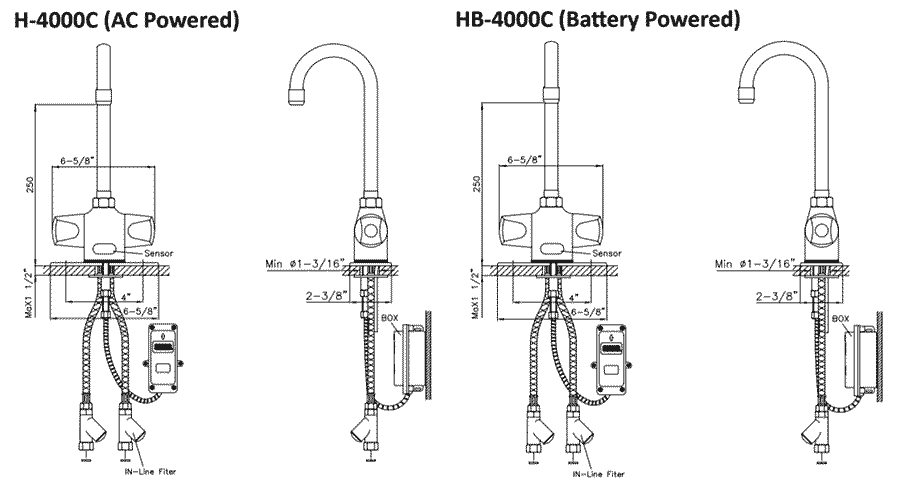

Dimensions: #H-4000C / #HB-4000C
H-6000C/HB-6000C Automatic Faucets
These automatic faucets feature:
ACCU-SENSE adjustable sensor eyes
Single-hole deck mount, non-mixing faucet
6" gooseneck spout (optional 4" & 8" cover plates available, HC-006E, HC-006F )
Includes faucet/sensor assembly with 30 second time out feature
2.0 gpm Laminar flow control, solenoid valve, in-line filter clean-out trap
3/8" copper supply tube
(4) AA alkaline batteries (with model #HB-6000C) or 12V DC plug-in adapter (with model #H-6000C)
Includes mounting hardware
ADA compliant, meets all barrier free codes
Easily installed in new or retrofit applications
Conserves water and energy
Solid metal construction
All parts are field-replaceable to insure quick and easy repair
Dimensions: #H-6000C / #HB-6000C

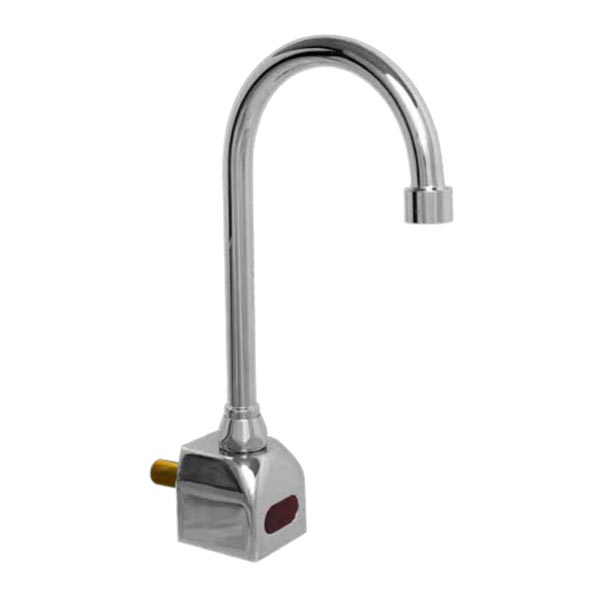

H-6700C/HB-6700C Automatic Faucets
These automatic faucets feature:
ACCU-SENSE adjustable sensor eyes
Single-hole wall mount, non-mixing faucet
6" gooseneck spout (optional 4" & 8" cover plates available, HC-006E, HC-006F )
Includes faucet/sensor assembly with 30 second time out feature
2.0 gpm Laminar flow control, solenoid valve, in-line filter clean-out trap
12" x 3/8" braided supply line
(4) AA alkaline batteries (with model #HB-6700C) or 12V DC plug-in adapter (with model #H-6700C)
Includes mounting hardware
ADA compliant, meets all barrier free codes
Easily installed in new or retrofit applications
Conserves water and energy
Solid metal construction
All parts are field-replaceable to insure quick and easy repair

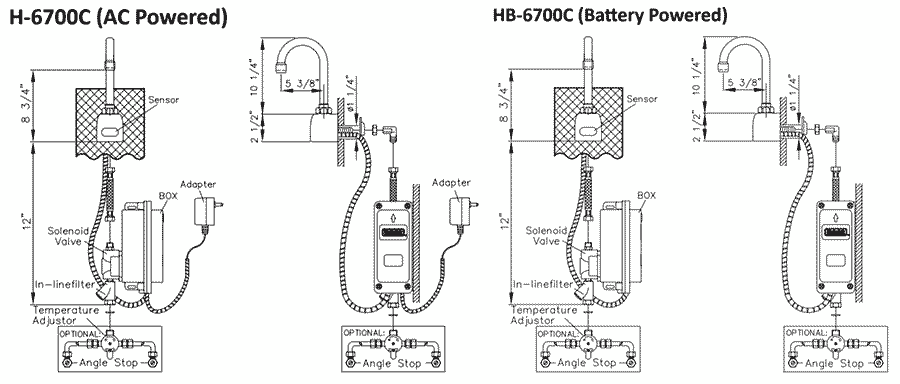

Dimensions: #H-6700C / #HB-6700C
H-9000C/HB-9000C Automatic Shower Faucets
These automatic shower faucets feature:
Stainless steel cover plate with field tested electronic sensor
Includes in-line filter with clean-out trap to reduce maintenance costs
Can be used with new or existing mixing valves (mixing valves are sold separately)
To help prevent scalding, an anti-scald thermostatic mixing valve is recommended
Adjustable sensor range for various requirements
Optional 30-second time-out feature to prevent continuous running
All parts are replaceable to insure quick and easy repair
Practical design with a minimum number of parts provides for easy trouble-free installation
No-touch system enhances hygiene in shower rooms of schools, gyms, club houses, parks and recreation areas, hospitals, nursing homes, factories and any place where that sanitation and water conservation are high priority
Patented electronics and slow closing solenoid valve provides reliable and smooth operation

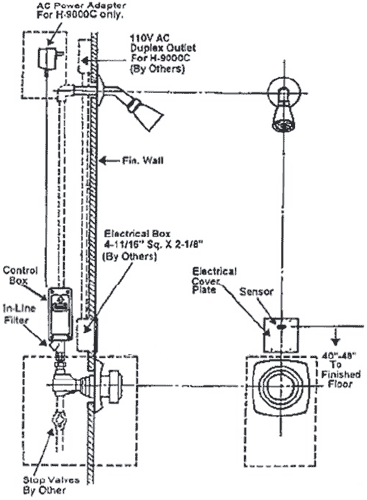

Click here for dimensions
to Sparco thermostatic valves -
to Symmons thermostatic mixing valves
Optional Faucet Accessories
Model # Description Price & Quantity
HC-001 Mechanical mixing/check valve, fits models # 1000C, 2603C, 6000C, 6700C $61.06
HC-006E 4" cover plate, fits model # 2603C, 6000C, 6700C $34.56
HC-006F 8" cover plate, fits model # 2603C, 6000C, 6700C $47.60
HC-006G 8" cover plate, fits model # 1000C $47.47
HC-006H 4" cover plate, fits model # 3000C, 4000C $34.63
HC-006J 8" cover plate, fits model # 3000C, 4000C $47.69
