Drop-In Stainless Steel Sinks

by Griffin

Superior quality sinks from Griffin may be the last you'll ever need. These high-grade, stainless steel kitchen sinks offer over 40 years of customer satisfaction in a product that is made to last. With styles ranging from a single bowl coved corner style to the triple bowl square corner design, we are sure to have the sink that meets your needs. We even offer unique four bowl drop-in sinks. Plus, don't forget to see Griffin's beautiful new residential styles.

NSF Listed Coved Corner Drop-In Sinks
	These rounded corner design drop-in sinks feature: These satin finished drop in sinks are great for converting existing counters to sink stations, or for using in new construction to be more space-efficient NSF approved for use as food equipment, so these are great for restaurants or professional kitchens Durable 16 gauge, type-304 construction Available in 1,2,3 and 4 compartment models with 12" sink depth True-Gauge bowl construction means the smooth-finished seams and corners are just as sturdy as the walls of the sink 3-1/2" basket drains included for each bowl Front and side rims are 1-1/2" wide and rear deck is 3" wide, as well as providing plenty of support for the sink Faucet holes are 1-1/8" diameter Coved compartment has 3/4" radius, both horizontal and vertical for ease of cleaning Unitized construction with stiffeners welded directly to sink bowls to ensure maximum rigidity Sink compartment(s) have noise reducing pads to deaden sound Manufacturer's limited lifetime warranty Sinks proudly made in the USA
Drop in sinks are a great idea for kitchens without a lot of extra floor space for a freestanding sink unit. Let your floor space do double duty as a cabinet below and drop in sink above with these great commercial kitchen sinks. Whether you need a single, double, triple, or quadruple bowl, these NSF approved sinks will meet your hand washing, food prep, and dishwashing needs.

We also offer square corner drop in sinks

Single Bowl Drop-in Sinks

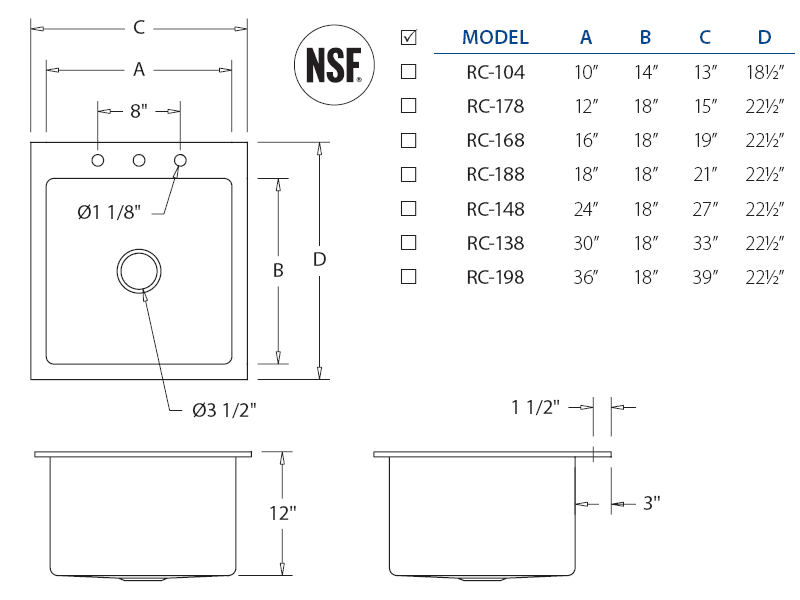

View dimensional drawing

Model	Bowl Depth	Bowl Size	Overall Dimensions	Price & Quantity
RC-104	12"	10" x 14"	13" x 18-1/2"	$699.98
RC-178	12"	12" x 18"	15" x 22-1/2"	$735.34
RC-168	12"	16" x 18"	19" x 22-1/2"	$775.15
RC-188	12"	18" x 18"	21" x 22-1/2"	$788.11
RC-148	12"	24" x 18"	27" x 22-1/2"	$825.86
RC-138	12"	30" x 18"	33" x 22-1/2"	$884.43
RC-198	12"	36" x 18"	39" x 22-1/2"	$1037.13
↓ Faucets for RC Series Sinks ↓

View quality faucets to fit these RC Series sinks

- Or -

Double Bowl Drop-in Sinks

Griffin double bowl coved corner design sink

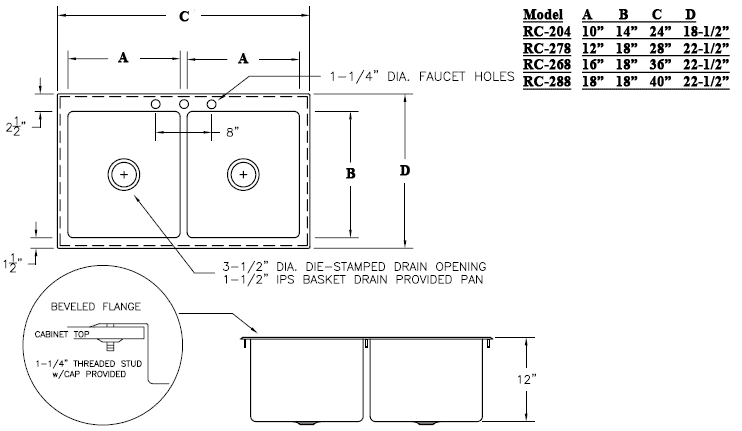

View dimensional drawing

Model	Bowl Depth	Bowl Size	Overall Dimensions	Price & Quantity
RC-204	12"	10" x 14"	24" x 18-1/2"	$950.92
RC-278	12"	12" x 18"	28" x 22-1/2"	$1005.31
RC-268	12"	16" x 18"	36" x 22-1/2"	$1075.12
RC-288	12"	18" x 18"	40" x 22-1/2"	$1108.13

We also offer durable faucets to fit these RC Series sinks

- Or -

Triple Bowl Drop-in Sinks

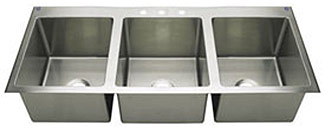

Griffin triple bowl coved corner design sink

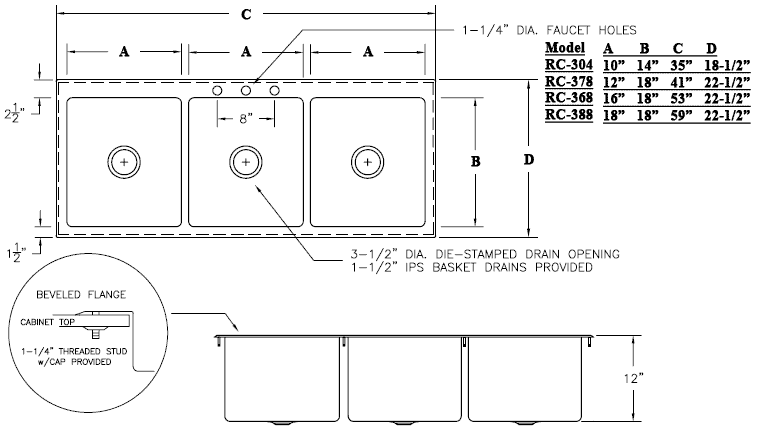

View dimensional drawing

Model	Bowl Depth	Bowl Size	Overall Dimensions	Price & Quantity
RC-304	12"	10" x 14"	35" x 18-1/2"	$1259.34
RC-378	12"	12" x 18"	41" x 22-1/2"	$1336.90
RC-368	12"	16" x 18"	53" x 22-1/2"	$1428.86
RC-388	12"	18" x 18"	59" x 22-1/2"	$1475.33

Need a quality faucet to fit these RC Series sinks?

- Or -

Four Bowl Drop-in Sinks

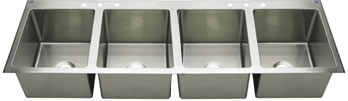

Griffin four bowl coved corner design sink

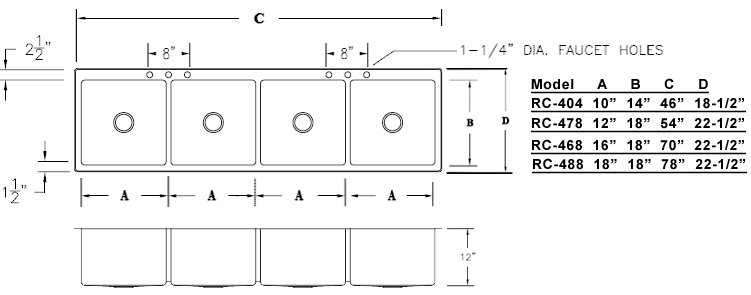

View dimensions diagram

Model	Bowl Depth	Bowl Size	Overall Dimensions	Price & Quantity
RC-404	12"	10" x 14"	46" x 18-1/2"	$1568.88
RC-478	12"	12" x 18"	54" x 22-1/2"	$1689.50
RC-468	12"	16" x 18"	70" x 22-1/2"	$2178.49
RC-488	12"	18" x 18"	78" x 22-1/2"	$2241.00

View durable faucets to fit these RC Series sinks

- Or -

Square Corner Drop-In Utility Sinks
	These squared corner design drop-in sinks feature: These square corner sinks give you the most space for your bowl size as the edges do not slope Unibody 16 gauge, type-304 construction for maximum durability Sink compartments are sound deadened with noise reducing pads All seams are welded and ground to a smooth finish Front and side rims are 1-1/2", while rear deck is 3" wide with 1-1/8" faucet holes designed to fit standard commercial deck mount faucets Available in 1,2,3 and 4 compartment models 3-1/2" basket drain included Manufacturer's limited lifetime warranty Sinks proudly made in the USA
These squared corner sinks are manufactured with the same attention to detail Griffin gives all of their stainless steel sinks. All corners are square, which gives you a bit more room at the bottom of the bowl than sinks with sloped edges and coved corners. Designed to handle some of the toughest commercial environments, these sinks are great for numerous applications where a utility sink is needed, but when NSF approval is not required, such as some kitchens, laundry rooms, industrial applications, or even (we've heard) in a photo lab!

Looking for coved corner, NSF approved, drop in sinks?

Single Bowl Drop-in Sinks

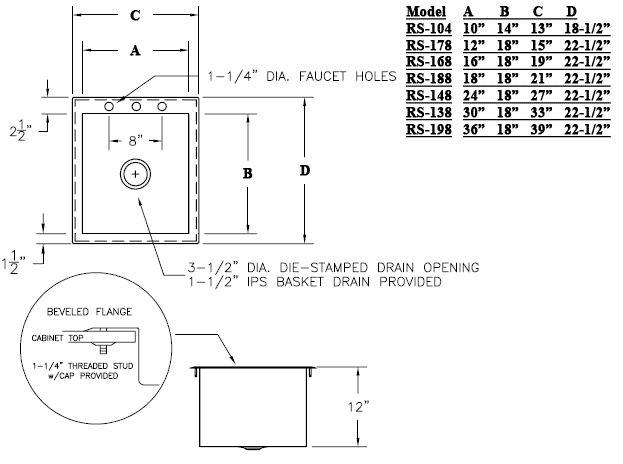

View dimensional drawing

Model	Bowl Depth	Bowl Size	Overall Dimensions	Price & Quantity
RS-104	12"	10" x 14"	13" x 18-1/2"	$581.69
RS-178	12"	12" x 18"	15" x 22-1/2"	$626.51
RS-168	12"	16" x 18"	19" x 22-1/2"	$681.11
RS-188	12"	18" x 18"	21" x 22-1/2"	$705.73
RS-148	12"	24" x 18"	27" x 22-1/2"	$769.31
RS-138	12"	30" x 18"	33" x 22-1/2"	$832.70
RS-198	12"	36" x 18"	39" x 22-1/2"	$907.10

We offer quality lead-free faucets to fit these RC Series sinks

- Or -

Double Bowl Drop-in Sinks

Griffin double bowl square corner design sink

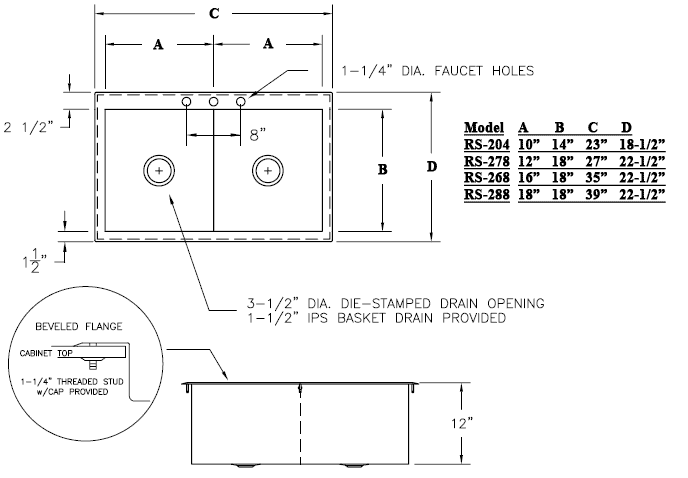

View dimensional drawing

Model	Bowl Depth	Bowl Size	Overall Dimensions	Price & Quantity
RS-204	12"	10" x 14"	23" x 18-1/2"	$782.95
RS-278	12"	12" x 18"	27" x 22-1/2"	$874.77
RS-268	12"	16" x 18"	35" x 22-1/2"	$1016.34
RS-288	12"	18" x 18"	39" x 22-1/2"	$1011.17

We offer durable faucets to fit these double bowl RC Series sinks

- Or -

Triple Bowl Drop-in Sinks

Griffin triple bowl square corner design sink

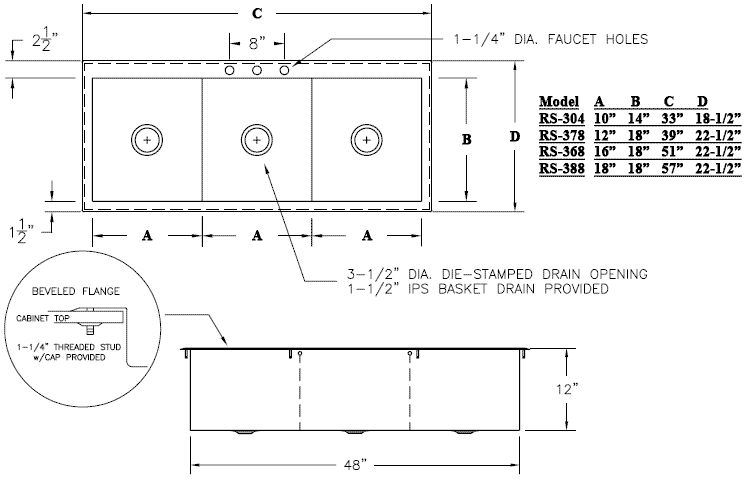

View dimensional drawing

Model	Bowl Depth	Bowl Size	Overall Dimensions	Price & Quantity
RS-304	12"	10" x 14"	33" x 18-1/2"	$1002.32
RS-378	12"	12" x 18"	39" x 22-1/2"	$1117.31
RS-368	12"	16" x 18"	51" x 22-1/2"	$1244.22
RS-388	12"	18" x 18"	57" x 22-1/2"	$1327.24

View quality faucets to fit these RC Series sinks

- Or -

Four Bowl Drop-in Sinks

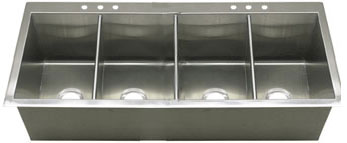

Griffin four bowl square corner design sink

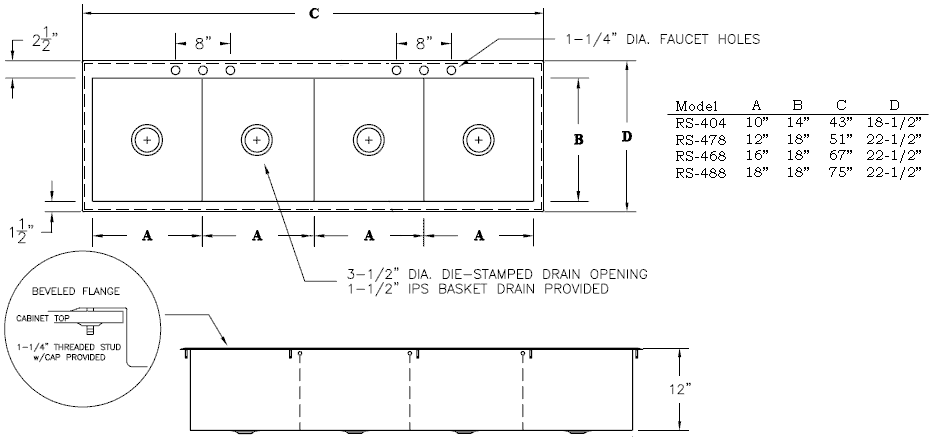

View dimensional drawing

Model	Bowl Depth	Bowl Size	Overall Dimensions	Price & Quantity
RS-404	12"	10" x 14"	43" x 18-1/2"	$1372.96
RS-478	12"	12" x 18"	51" x 22-1/2"	$1563.89
RS-468	12"	16" x 18"	67" x 22-1/2"	$1780.14
RS-488	12"	18" x 18"	75" x 22-1/2"	$1944.88

View the durable faucets that fit these RC Series sinks

- Or -

Faucets for RC and RS Series Commercial Drop-In Sinks

Features of these Commercial Faucets:

Commercial Heavy Duty Workboard Faucets
Lead Free
Deck Mounted
Forged brass body
Removable, replaceable seats
Chrome plated body escutcheon (10 1/2" x 2")
Fit 8" center to center hole drilling
1" shank length
1/2" NPT male threads

These T&S faucets are designed for years of quality service and heavy use. These workboard faucets have thick chrome plated finishes and are available with a gooseneck spout or with a swivel spout to meet your specific sink requirements. Wrist action handles are available with gooseneck spout models.

Model	Description	Price & Quantity

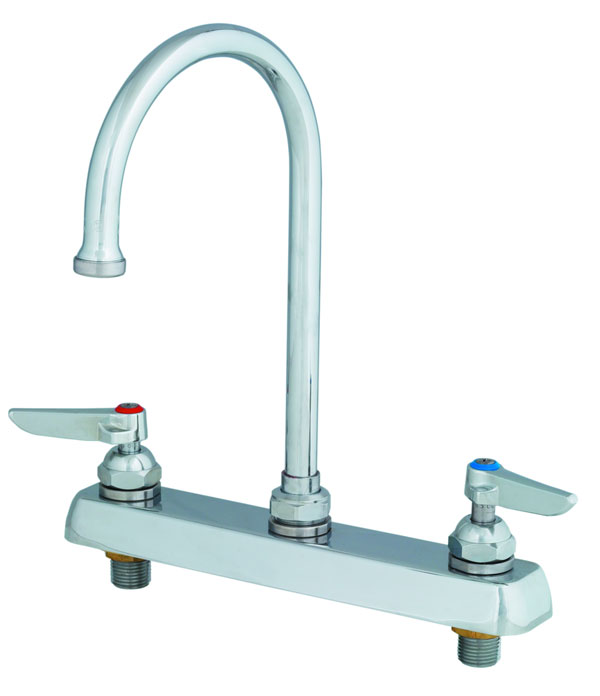

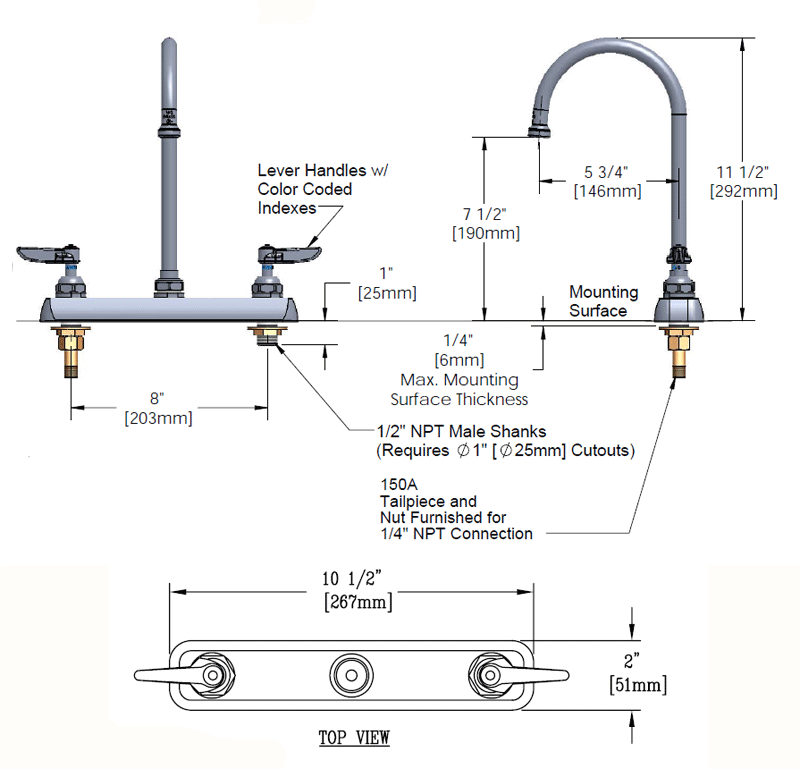

	T&S #B-1142 with Lever Handles (shown) Deck mount faucet w/5 3/4"" gooseneck swing spout view faucet specifications	$139.21

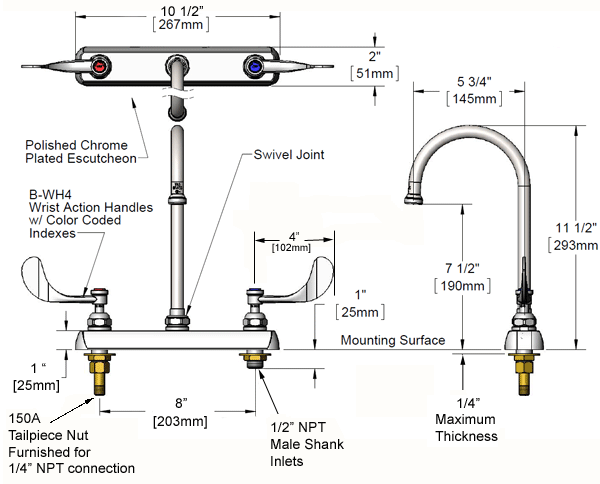

	T&S #B-1142-04 with Wrist Action Handles Deck mount faucet w/5 3/4"" gooseneck swing spout view faucet specifications	$163.34

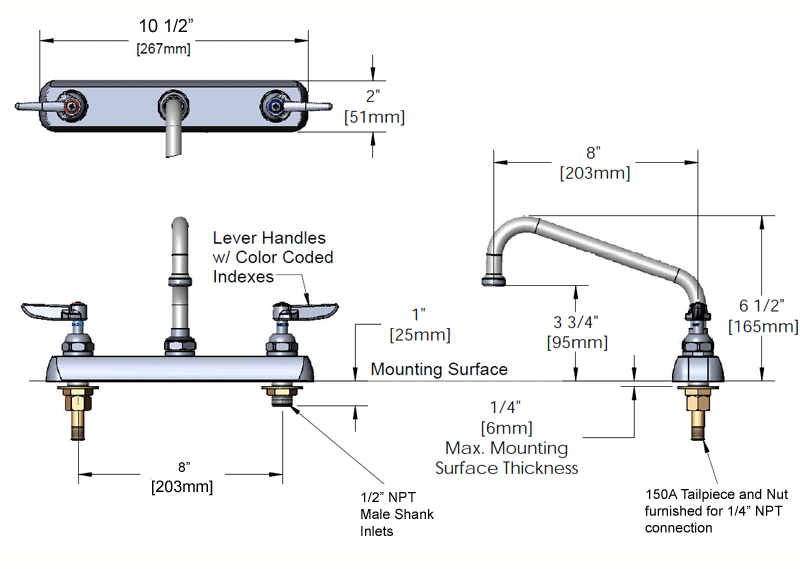

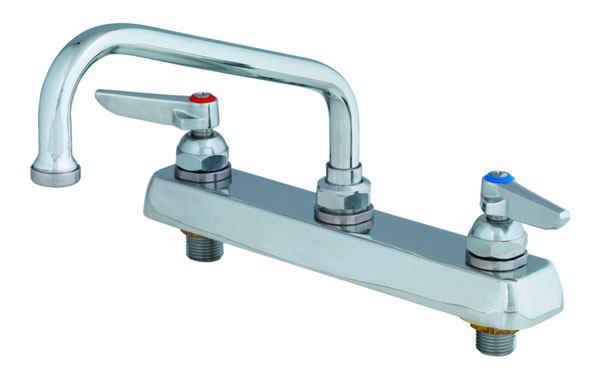

	T&S #B-1121 Deck mount faucet w /8" swing spout view faucet specifications	$122.37

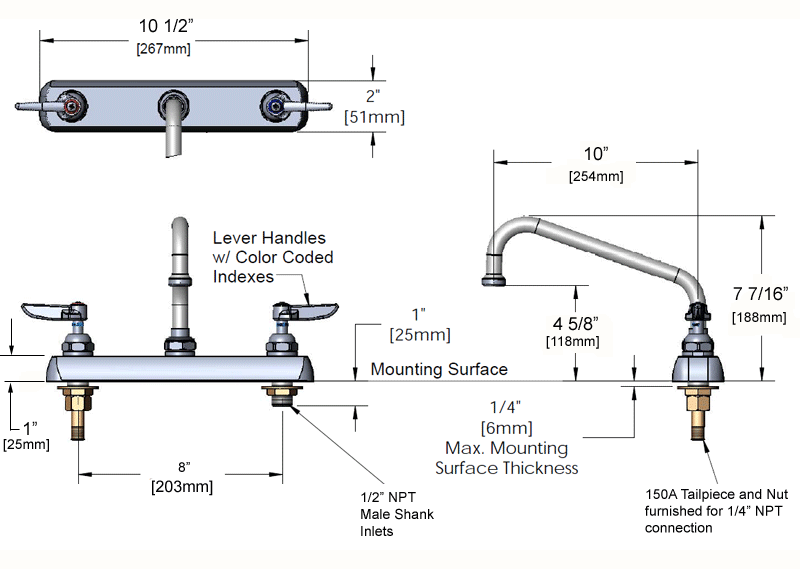

	T&S #B-1122 Deck mount faucet w /10" swing spout view faucet specifications	$127.63

Check out our large selection of faucets!

- Or -

Frequently Asked Questions

Q. "Please explain the best gauge of stainless and which is longer lasting?"
A. The lower the number, the thicker the material. In our opinion, 22 gauge is bare minimum - builder quality. During the manufacturing process, stainless steel sinks are "stamped" into shape. That means that the material stretches and therefore the corners can be very thin. We suggest at least 20 gauge and preferably 18 gauge.

Q. "What is True-Gauge?"
A. Unlike a stamped sink where metal gets stretched thin in certain places, True-Gauge sinks are folded meaning that every part of the sink is the same gauge. Whether it be the welds, corners, or bowl; True-Gauge assures that every part of your sink will have the same gauge.

Q. "What do the different types of stainless steel (304, 316, etc) mean?"
A. The term "stainless steel" refers to specific grades of steel that contain more than 10% chromium. Stainless steel may also include a variety of other elements (such as nickel, titanium, molybdenum, etc); it resists corrosion and is generally a stronger, more reliable steel. The most common grades of stainless steel are:

Type 304: Aside from having a higher content of chromium than most other types of stainless steel, type 304 also contains nickel; this enables it to withstand most ordinary corrosion in architecture, is durable in typical food processing environments, and resists most chemicals.

Type 316: Similar to type 304, but also contains a small amount of molybdenum, which is an alloy element #304 does not contain (but one that provides even stronger resistance to some deterioration). Types 304 and 316 are grades of stainless steel that are most often used in plumbing, as well as in the manufacturing of kitchen utensils and sinks.

Type 409: Does not contain virtually any nickel at all, but also is the stainless steel that contains the least amount of chromium. Type 409 is more suitable for high temperature applications, which is why it's often used in automotive trim and exhaust systems, or hot water tanks.

Type 410: Also does not contain any significant nickel; its primary difference to type 409 stainless is characterized by the use of heat treatment for hardening and strengthening. Type 410 is not appropriate for severely corrosive applications, but used instead in environments that require high strength; this is why it's the type of stainless steel that's often used in surgical equipment.

Type 430: Another plain-chromium stainless steel, similar to type 409, but is usually used in decorative applications.
