Gerber Toilet Parts

Get your Gerber toilet running like new again -
conserve water and save money at the same time.

Replacing a toilet can be a hassle, and with proper maintenance and timely repair, often isn't really necessary. Keep your Gerber toilet functioning efficiently with our selection of replacement and repair parts. Whether you need flush valves, flappers, fill valves or trip levers, we've got one to fit your needs! PlumbingSupply.com® is your best source for Gerber toilet repair parts. Can't find what you're looking for? Simply send us a quote request.



click any link to jump directly to that product:
fill valves   |   flush valves   |   flappers   |   trip levers   |   gaskets & tank-to-bowl sets

OR find replacement parts for your toilet by tank number

How to find your Gerber toilet model number
How to find your Gerber toilet model number:
  1. Carefully remove the tank lid and place gently in a safe spot.
  2. Look inside the tank starting with the back wall - for non-pressure assist models, the model number will be painted just above the waterline (example above left). For pressure assist tanks, the number will be closer to the top of the tank (example above right).
Please note: Due to safety concerns with pressure assist toilets, we choose not to offer parts for these models.



Gerber toilet parts diagram for model 28-190 and 28-192 toilets
28-190/192
Gerber toilet model 28-193, 28-196, 28-197, 28-198 parts diagram
28-193/196/197/198
Toilet parts diagram for 28-590 and 28-796 Gerber tanks
28-590/796
Gerber toilet parts diagram for toilet models 28-790, 28-792, 28-794 and 28-795
28-790/792/794/795

Replacement Gerber Toilet Fill Valves

Model # Description Price & Quantity
Gerber 99-300 fill valve
99-300
Adjustable (9" - 14") Fill Valve
replaces 99-356 and 99-363 for tanks with Fluidmaster

Fits tanks: 21-010, 21-011, 21-014, 21-015, 28-170, 28-174, 28-175, 28-180, 28-183, 28-186, 28-193, 28-290, 28-292, 28-494-95, 28-495-95, 28-530, 28-535, 28-570, 28-580, 28-584, 28-585, 28-590, 28-594, 28-595, 28-790-09-95, 28-790-15-95, 28-790-25-95, 28-790-95, 28-792, 28-794-09-95, 28-794-15-95, 28-794-25-95, 28-794-95, 28-795-95, 28-796, 28-890, 28-894, 28-895, 28-990, EH-28-790, EH-28-790-09, EH-28-790-15, EH-28-790-25, EH-28-794, EH-28-795, HE-28-183, HE-28-530, HE-28-535, HE-28-580, HE-28-585, HE-28-590, HE-28-594, HE-28-595
$9.89
Gerber 99-651 fill valve
99-651
10" Fill Valve - includes refill tube, float rod, and float ball
Fits tanks: 28-490, 28-492, 28-494
$9.95
Gerber 99-654 fill valve
99-654
10-1/2" Aqua Saver Fill Valve - includes float rod, refill tube, and float ball
Fits tanks: 28-795
$17.99

- Or -
View Button


Gerber Replacement Toilet Flush Valves

Model # Description Price & Quantity
Gerber replacement toilet flush valve with flapper and locknut
99-648
Flush Valve - replaces 99-541 - for "Aquasaver", and "Viper" tanks - 8" tall from toilet to top of overflow, includes locknut and 99-647 flapper
Fits tanks: 21-518, 28-170, 28-174, 28-175, 28-193, 28-494-95, 28-495, 28-495-95, 28-580, 28-584, 28-585, 28-590, 28-594, 28-595, 28-790-09-95, 28-790-15-95, 28-790-25-95, 28-790-95, 28-792, 28-794-09-95, 28-794-15-95, 28-794-25-95, 28-794-95, 28-795-95, 28-796
$8.95
Gerber replacement toilet flush valve
99-652
Flush Valve - 8-1/8" tall from toilet to top of overflow, includes lock nut and 99-647 clear flapper
Fits tanks: 28-490, 28-492, 28-494, 28-790, 28-790-09, 28-790-15, 28-790-25, 28-794, 28-795
$9.95
Gerber toilet OEM flush valve
99-655
Flush Valve - replaces 99-548 - for 3.5 gpf tanks - 8-1/2" tall from toilet to top of overflow, includes 99-644 rigid flapper
Fits tanks: 28-290, 28-292, 28-295
$8.81

- Or -
View Button


Replacement Flappers for Gerber Toilets

Model # Description Price & Quantity
Gerber toilet replacement flapper cone style
99-644
Small Cone Flapper - rigid body with patented silicone seal to stop leaks, highly resistant to chlorinated water, 2-way mounting for brass or plastic flush valves - replaces 99-522
Fits tanks: 21-015, 28-290, 28-292, 28-295, 28-690, EH-28-790, EH-28-790-09, EH-28-790-15, EH-28-790-25, EH-28-794, EH-28-795
$6.54
Gerber toilet replacement flapper clear cone
99-647
Flapper - clear silicone body - replaces 99-524
Fits tanks: 21-010, 28-170, 28-174, 28-175, 28-193, 28-196, 28-197, 28-198, 28-490, 28-490-95, 28-492, 28-494, 28-494-95, 28-495, 28-495-95, 28-580, 28-584, 28-585, 28-590, 28-594, 28-595, 28-790, 28-790-09, 28-790-15, 28-790-25, 28-790-95, 28-790-09-95, 28-790-15-95, 28-790-25-95, 28-792, 28-794, 28-794-09-95, 28-794-15-95, 28-794-25-95, 28-794-95, 28-795, 28-795-95, 28-796
$6.39
Gerber toilet soft 3-inch replacement flapper
99-770
3" Soft Flapper
Fits tanks: 21-011, 28-180, 28-183, 28-186, 28-530, 28-535, 28-890, 28-894, 28-895
$7.19
Gerber toilet clear insert replacement flapper
99-779
Clear Insert Flapper
Fits tanks: 28-190, 28-195
Please Note: This flapper will not replace the counter balance flush valve flapper. Counter balance flush valve replacement parts have been discontinued.
$7.64
Counter Balance Flapper Alternate Solution:
- Fluidmaster Flusher Fixer Kit - Simple top mount installation.
Remove counter balance arm and easily attach directly to existing flush valve with included water tight adhesive sealant
$6.95
Gerber toilet blue rubber flapper
99-788
3" Flapper
Fits tanks: 21-014, 28-183, 28-530, 28-535, 28-570, 28-580, 28-585, 28-890, 28-894, 28-970, 28-980, 28-990, 28-994, 28-995, HE-28-590, HE-28-594, HE-28-595, HE-28-890, HE-28-894, LS-28-894
$7.92

- Or -
View Button


Gerber Toilet Tank Trip Levers

Model # Description Finish Price & Quantity
Gerber toilet trip lever 99-564
99-564
Trip Lever - mini, left side front mount - sturdy metal handle with brass arm
Fits tanks: 28-390, 28-395
View Gerber 'mini' toilet tank lever dimensions
Chrome $19.99

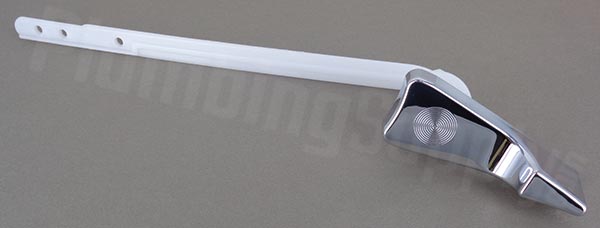

Gerber right side toilet tank lever in chrome
99-585-RH
Trip Lever - RIGHT side front mount
Fits tanks: 28-490, 28-490-95, 28-494
View Gerber toilet tank lever dimensions
Chrome $9.79
Gerber toilet tank lever in chrome
99-585
Trip Lever - left side front mount
Fits tanks: 28-190, 28-192, 28-193, 28-196, 28-197, 28-198, 28-290, 28-292, 28-295, 28-490, 28-490-95, 28-494, 28-494-95, 28-495, 28-495-95, 28-790, 28-790-09, 28-790-15, 28-790-25, 28-790-09-95, 28-790-15-95, 28-790-25-95, 28-792, 28-794, 28-794-09-95, 28-794-15-95, 28-794-25-95, 28-794-95, 28-795, 28-795-95, 28-796, EH-28-790, EH-28-790-09, EH-28-790-15, EH-28-790-25, EH-28-794, EH-28-795
View Gerber toilet tank lever dimensions
Chrome $7.99
Gerber toilet tank lever in white
99-586
White $8.19
Gerber toilet tank lever in chrome
99-656
Trip Lever - left side front mount for "Viper" tanks - sturdy metal handle with brass arm
Fits tanks: 28-570, 28-590, 28-594, 28-595, HE-28-590, HE-28-594, HE-28-595
View Gerber "Viper" tank lever dimensions
Chrome $18.52
Gerber side mount toilet tank lever in chrome
99-685
Trip Lever - SIDE mount
Fits tanks: 21-010, 21-011, 21-014, 21-015, 21-017, 28-183, 28-530, 28-580, 28-584, 28-890, 28-894
View Gerber side mount tank lever dimensions
Chrome $19.97

- Or -
View Button


Tank-to-Bowl Kits & Gaskets for Gerber Toilets


Model # Description Price & Quantity
Gerber toilet tank to bowl kit
99-537
Tank to Bowl Kit - includes #99-582 beveled gasket, 2" brass tank bolts (2), rubber washers (2), plastic wing nuts (4), rubber channel pads (2), and B/C coupling nut
View Gerber #99-582 gasket dimensions
Fits tanks: 28-170, 28-174, 28-175, 28-192, 28-193, 28-196, 28-197, 28-198, 28-290, 28-292, 28-492, 28-494, 28-494-95, 28-495, 28-495-95, 28-580, 28-584, 28-585, 28-590, 28-594, 28-595, 28-790, 28-790-09, 28-790-15, 28-790-25, 28-790-09-95, 28-790-15-95, 28-790-25-95, 28-792, 28-794, 28-794-09-95, 28-794-15-95, 28-794-25-95, 28-794-95, 28-795, 28-795-95, 28-796, EH-28-790, EH-28-790-09, EH-28-790-15, EH-28-790-25, EH-28-794, EH-28-795
$9.05
Gerber toilet tank to bowl kit
99-538
Tank to Bowl Kit - includes #99-591 blue beveled washer, plastic wing nuts (2), rubber channel pads (2), and coupling nut $7.59
Gerber toilet tank to bowl beveled gasket
99-582
Tank-to-Bowl Beveled Gasket - Black
Fits tanks using tank-to-bowl kit #99-537 - replacement gasket only
View Gerber toilet tank to bowl gasket dimensions
$4.45
Gerber toilet tank to bowl beveled gasket
99-591
Tank-to-Bowl Beveled Gasket - Green
Fits tanks using tank-to-bowl kit #99-537 - replacement gasket only
$5.15
Tank to bowl kit for Gerber toilets
99-660
Tank-to-Bowl Kit - includes beveled rubber gasket, brass tank bolts (2), rubber washers (2), plastic wing nuts (4), rubber channel pads (2), and B/C coupling nut
View Gerber toilet tank to bowl gasket dimensions
Fits tanks: 28-180, 28-183, 28-186, 28-530, 28-535, 28-570, 28-890, 28-894, 28-895, HE-28-183, HE-28530, HE-28-535, HE-28-580, HE-28-585, HE-28-590, HE-28-594, HE-28-595
$9.59
Image of Tank-To-Bowl Bolt Set Tank-to-Bowl Bolt Set - Solid Brass - Fits many Gerber toilet tank models
Includes 2 brass bolts (5/16" x 3"), 4 rubber washers, 2 hex-nuts, 2 wing-nuts and 4 flat steel washers
$3.95
Tank to bowl bolt set Tank-to-Bowl Bolt Set - Stainless Steel - Fits many Gerber toilet tank models
Includes 2 stainless steel bolts (5/16" x 3"), 2 rubber washers, 4 nuts and 2 flat steel washers
$4.99

- Or -
View Button


Miscellaneous Replacement Parts for Gerber Toilets

Description Price & Quantity
Round toilet seat
Round
Round toilet seat - White
Proudly made in the USA
Features slow close lid that won't slam shut, easy clean hinges that allow you to quickly clean or change hinges to match décor, and built-in antimicrobial agent
View additional colors
$48.23
Elongated toilet seat
Elongated
Elongated toilet seat - White
Proudly made in the USA
Features slow close lid that won't slam shut, easy clean hinges that allow you to quickly clean or change hinges to match décor, and built-in antimicrobial agent
View additional colors
$51.84
Toilet bolt caps in white
Bolt Caps
Toilet Bolt Cap Set - White
Includes 2 caps and 2 easy-to-install retainer washers
Each cap is 3/4" tall and 1-1/4" diameter at base
View additional colors
$2.00

- Or -
View Button



Not sure what toilet model you have? Try looking under the tank lid or on the inside wall of your toilet tank.



Find Gerber Toilet Replacement Parts by Tank Number

Simply find your toilet tank number in the tables below to find out which flush valve, fill valve, flapper, tank lever, or tank to bowl mounting kit you need!

Please note: Certain flush assemblies, including Flushmate and canister style valves do not use flappers. Additionally, due to manufacturers discontinuing certain toilets and parts not all parts are available for all models of Gerber toilets. Please browse our wide selection of toilet repair parts for an appropriate substitute or contact us for assistance.

Tank # Flush Valve Fill Valve Flapper Trip Lever Tank-to-Bowl Kit
21-010 -- 99-300 99-647 99-685 --
21-011 -- 99-300 99-770 99-685 --
21-014 -- 99-300 99-788 99-685 --
21-015 -- 99-300 99-644 99-685 --
21-017 -- -- -- 99-685 --
28-170 99-648 99-300 99-647 -- 99-537
28-174 99-648 99-300 99-647 -- 99-537
28-175 99-648 99-300 99-647 -- 99-537
28-180 -- 99-300 99-770 -- 99-660
28-183 -- 99-300 99-788 99-685 99-660
HE-28-183 99-648 99-300 99-647 -- 99-537
28-186 -- 99-300 99-770 -- 99-660
28-190 -- -- 99-779
99-647
99-585 --
28-192 -- -- 99-647 99-585 99-537
28-193 99-648 99-300 99-647 99-585 99-537
28-196 -- -- 99-647 99-585 99-537
28-197 -- -- 99-647 99-585 99-537
28-198 -- -- 99-647 99-585 99-537
28-290 99-655 99-300 99-644 99-585 99-537
28-292 99-655 99-300 99-644 99-585 99-537
28-295 99-655 -- 99-644 99-585 99-537

Tank # Flush Valve Fill Valve Flapper Trip Lever Tank-to-Bowl Kit
28-390 -- -- N/A 99-564 99-538
28-395 -- -- N/A -- 99-538
28-490 99-652 -- 99-647 99-585
99-585-RH
99-292
28-490-95 99-648 99-300 99-647 99-585
99-585-RH
99-292
28-492 99-652 -- 99-647 -- 99-537
28-494 99-652 -- 99-647 99-585 99-537
28-494-95 99-648 99-300 99-647 99-585 99-537
28-495 99-648 -- 99-647 99-585 99-537
28-495-95 99-648 99-300 99-647 99-585 99-537
28-530 -- 99-300 99-770
99-788
99-685 99-660
HE-28-530 -- 99-300 -- -- 99-660
28-535 -- 99-300 99-788 -- 99-660
28-570 -- 99-300 99-788 99-656 99-660
28-580 99-648 99-300 99-788 99-685 99-537
HE-28-580 -- 99-300 -- -- 99-660
28-584 99-648 99-300 99-647 99-685 99-537
28-585 99-648 99-300 99-647 -- 99-537
HE-28-585 -- 99-300 -- -- 99-660
28-590 99-648 99-300 99-647 -- 99-537
HE-28-590 -- 99-300 99-788 99-656 99-660
28-594 99-648 99-300 99-647 99-656 99-537
HE-28-594 -- 99-300 99-788 99-656 99-660
28-595 99-648 99-300 99-647 99-656 99-537
HE-28-595 -- 99-300 99-788 99-656 99-660

Tank # Flush Valve Fill Valve Flapper Trip Lever Tank-to-Bowl Kit
28-601 -- -- -- -- --
28-690 -- -- 99-644 -- --
28-790 99-652 -- 99-647 99-585 99-537
28-790-09 99-652 -- 99-647 99-585 99-537
28-790-15 99-652 -- 99-647 99-585 99-537
28-790-25 99-652 -- 99-647 99-585 99-537
28-790-95 99-648 99-300 99-647 99-585 99-537
28-790-09-95 99-648 99-300 99-647 99-585 99-537
28-790-15-95 99-648 99-300 99-647 99-585 99-537
28-790-28-95 99-648 99-300 99-647 99-585 99-537
EH-28-790 -- 99-300 99-644 99-585 99-537
EH-28-790-09 -- 99-300 99-644 99-585 99-537
EH-28-790-15 -- 99-300 99-644 99-585 99-537
EH-28-790-25 -- 99-300 99-644 99-585 99-537
28-792 99-648 99-300 99-647 99-585 99-537
28-794 99-652 -- 99-647 99-585 99-537
EH-28-794 -- 99-300 99-644 99-585 99-537
28-794-95 99-648 99-300 99-647 99-585 99-537
28-794-09-95 99-648 99-300 99-647 99-585 99-537
28-794-15-95 99-648 99-300 99-647 99-585 99-537
28-794-25-95 99-648 99-300 99-647 99-585 99-537
28-795 99-652 99-654 99-647 99-585 99-537
EH-28-795 -- 99-300 99-644 99-585 99-537
28-795-95 99-648 99-300 99-647 99-585 99-537
28-796 99-648 99-300 99-647 99-585 99-537
28-890 -- 99-300 99-788 99-685 99-660
HE-28-890 -- -- 99-788 -- --
LS-28-890 -- -- -- -- --
28-894 -- 99-300 99-788 99-685 99-660
HE-28-894 -- -- -- -- --
LS-28-894 -- -- 99-788 -- --
28-895 -- 99-300 99-788 -- 99-660
HE-28-895 -- -- -- -- --
LS-28-895 -- -- -- -- --
28-970 -- -- 99-788 -- --
28-980 -- -- 99-788 -- --
28-990 -- -- 99-788 -- --
28-994 -- -- 99-788 -- --
28-995 -- -- 99-788 -- --

Frequently Asked Questions

Q. "What are the most commonly replaced toilet parts?"
A.This depends on several factors; each time you use your toilet the trip lever, flapper, and fill valve are operated. You will find, however, that the flapper and fill valve are the parts most exposed to water and will be the first ones to wear out in most cases.

Q. "How long 'should' the parts inside of my toilet last?"
A. That depends on a number of variables and which parts. Water quality is one of the major factors. If your water source is heavily chlorinated then many parts won't last long. Or if you have a lot of sand or grit or have a low pH or "aggressive" water source then parts simply won't last as long as the 'average' length of time. Also the quality of the parts matters. The replaceable parts such as flappers and washers/seals generally will last at least 4 to 5 years on "average." If you use a bowl cleaner some flappers won't even last one year. If your flapper has black "goo" on it then it is either due to age or quality of your water and if it feels soft then it's best to change it.



return to top ↑

We hope that we have helped you on this page with Gerber toilet parts,
and thank you for helping to make PlumbingSupply.com® the most famous Internet plumbing supplier.


Fun, inspirational quote of the day:
"Despise not any man, and do not spurn anything; for there is no man who has not his hour, nor is there anything that has not its place."
- Mishna Ben Azai



Is there something else that you are looking for?

Enter search terms:

OR - find plumbing supplies starting with: A B C D E F G H I J K L M N O P Q R S T U V W X Y Z



Easy payment methods


Home | About Us | Contact Us | How to Order | View Cart | Shipping Info | Q and A | Feedback/Suggestions | Disclaimer | Return Policy
