DuraMAC Sump Pumps


Prevent basement flooding with a Submersible Sump Pump, and rest easy knowing your home and family are protected from the damage and safety risks involved with the structural damage, mold, and mildew that can arise from excess standing water. Great for removing excess water up and away from your home's lowest level, these sturdy DuraMAC sump pumps offer a range of power and discharge rates, so you're sure to find the perfect pump for protecting one of the largest investments you'll ever make - your home.

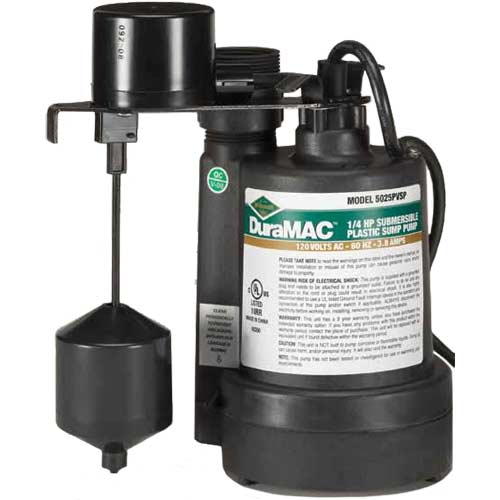

Thermoplastic Submersible Sump Pump - Series 5025


These submersible sump pumps feature:

With an energy efficient split capacitor motor and sturdy thermoplastic design, these DuraMAC pumps by A.Y. McDonald offer power and performance at an affordable price. Pumping up to 30 gallons per minute, these sump pumps are perfect for removing water from patios, hot tubs, pools, construction sites, basements, crawl spaces, and more. The water to be pumped should be mostly free of debris as these pumps are designed for passing solids up to 1/8" spherical, which is about the size of the inside diameter of a shoelace eyelet on your shoe. The built-in float switch helps prevent flooding by automatically engaging the pump when water levels reach a certain height, and is available in a tethered or vertical style that allows you to choose the option that best fits your space and water removal needs. Since these pumps are between 9" and 11" tall they can fit where others can't and come with 10' power cords.

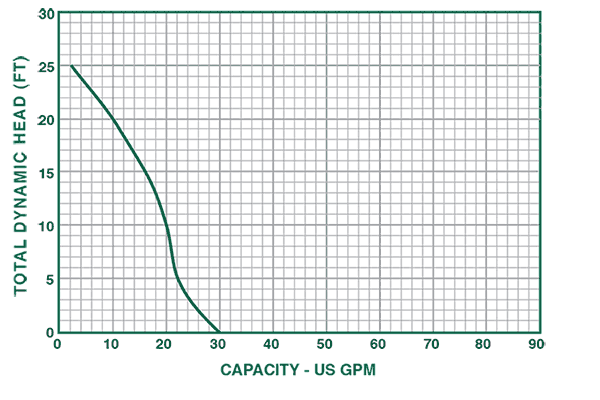

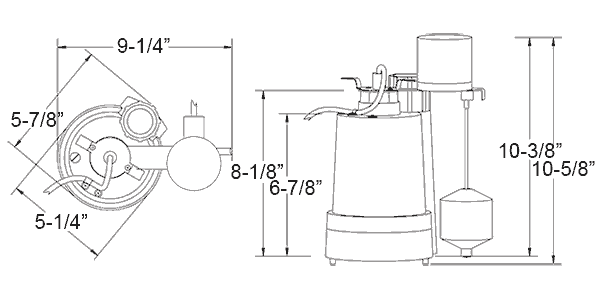

DuraMAC Series 5025 Submersible Pumps
Model HP Volts Hz Amps Discharge
Size
Solids
Handling
RPM Phase Cord
Length
Price & Quantity
5025PTSP
(tethered switch)
1/4 120 60 3.8 1-1/2" 1/8" 3450 1 10' $93.98
5025PVSP
(vertical switch)
1/4 120 60 3.8 1-1/2" 1/8" 3450 1 10' $97.28

- Or -
View Button



Cast Iron Submersible Sump Pumps - Series 5030

This pump series features:
  • Rugged cast iron construction for durability
  • Split Capacitor Motor -
    3/10 HP continuous duty, thermal protected, automatic reset
  • Pumps up to 46 gallons per minute
  • Lifts water up to 25' of vertical height
  • Solids handling up to 3/8" spherical which is the approximate size
    of a green pea
  • Includes 10' power cord
    - 25' cord available (Model CUSP only)
  • Large 1-1/2" discharge for high capacity pumping
  • Comes with vertical or tethered float switch
  • Also available without switch

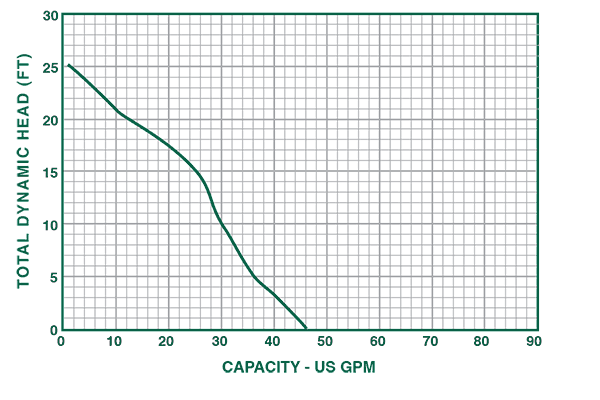

  • Examine pump performance curve

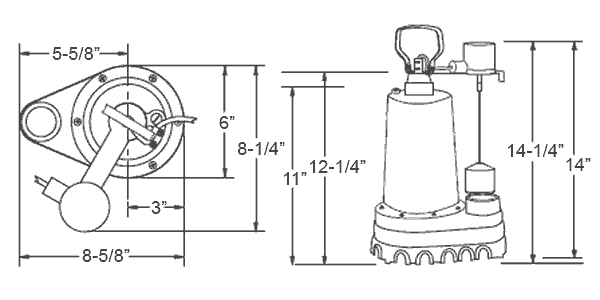

  • View CVSP dimensions
  • View CTSP dimensions

DuraMAC Series 5030 Cast Iron Sump Pump Specifications
HP Volts Hz Amps Discharge
Size
Solids
Handling
RPM Phase
5030CVSP 3/10 120 60 4.1 1-1/2" 3/8" 3450 1

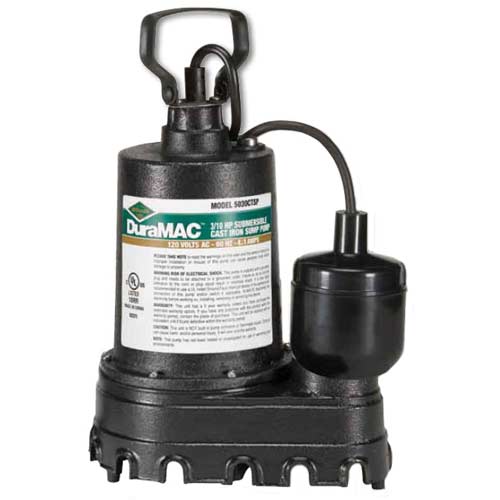

5030CTSP 3/10 120 60 4.1 1-1/2" 3/8" 3450 1
5030CUSP
(no switch)
3/10 120 60 4.1 1-1/2" 3/8" 3450 1
5030CUSP25
(no switch)
3/10 120 60 4.1 1-1/2" 3/8" 3450 1

These cast iron sump pumps are definitely built to last. With a 3/10 horsepower split capacitor motor, you don't have to sacrifice pumping power for energy efficiency. Pumping up to 46 gallons per minute, these sump pumps are a reliable yet inexpensive way to help protect you and your home from water damage. All of the pumps in this series are equipped with 10' cords, with a 25' cord available on the CUSP model. Offering you the choice of a vertical float switch, a tethered float switch, or no switch, you can choose the style that best fits your pumping needs.

Model Description Cord
Length
Price & Quantity
5030CVSP Cast Iron Submersible Sump Pump with Vertical Float Switch 10' $115.83
5030CTSP Cast Iron Submersible Sump Pump with Tethered Float Switch 10' $108.14

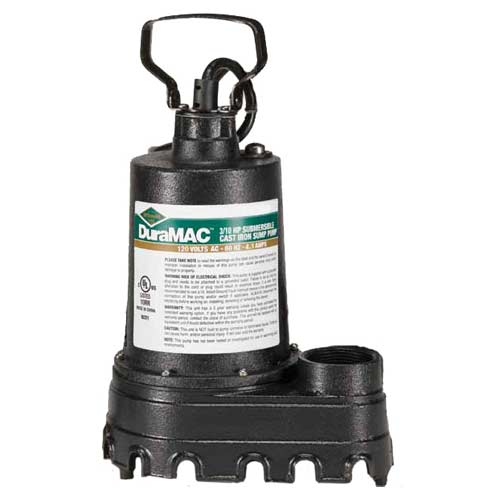

5030CUSP Cast Iron Submersible Sump Pump with NO Float Switch 10' $110.05
5030CUSP25 Cast Iron Submersible Sump Pump with NO Float Switch 25' $128.75

- Or -
View Button

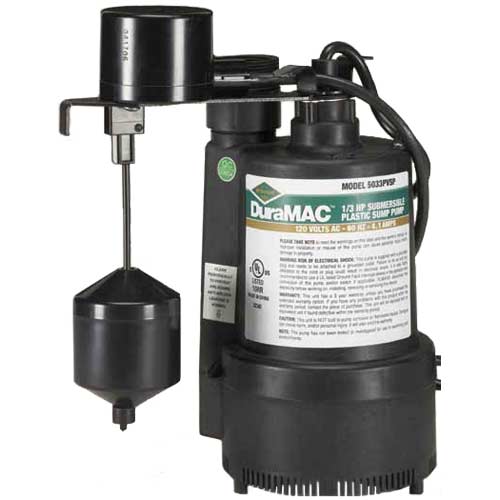

Thermoplastic Submersible Sump Pump - Model 5033PVSP


5033 PVSP Plastic Sump Pump
This sump pump has the following features:
  • Durable thermoplastic construction
  • Split Capacitor Motor -
    1/3 HP continuous duty, thermal protected with automatic reset
  • Pumps up to 40 gallons per minute
  • Lifts water up to 25' vertical height
  • Solids handling up to 1/8" which is the approximate size of the inside diameter of shoelace eyelets on most shoes
  • Includes 10' power cord
  • Large 1-1/2" discharge for high capacity pumping
  • View detailed dimensions

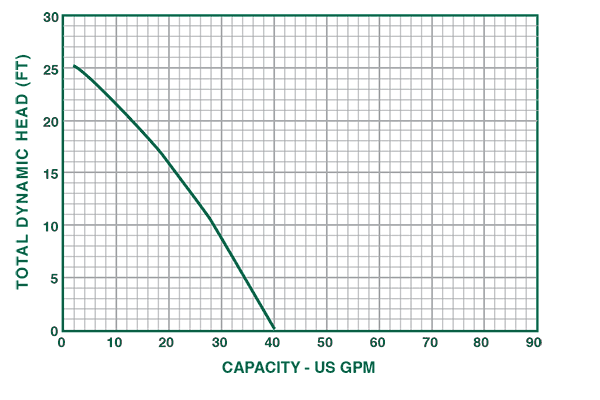

  • View pump curve specifications

With an energy efficient split capacitor motor and sturdy thermoplastic design, this DuraMAC submersible sump pump by A.Y. McDonald offer power and performance at an affordable price. An excellent option for smaller applications, this model pumps up to 40 gallons per minute and comes with a vertical float switch and a 10' power cord.

DuraMAC 5033PVSP Submersible Pump Specifications
HP Volts Hz Amps Discharge
Size
Solids
Handling
RPM Phase Cord
Length
1/3 120 60 4.1 1-1/2" 1/8" 3450 1 10'

DuraMAC Thermoplastic Sump Pump - 5033PVSP = $118.11

- Or -
View Button

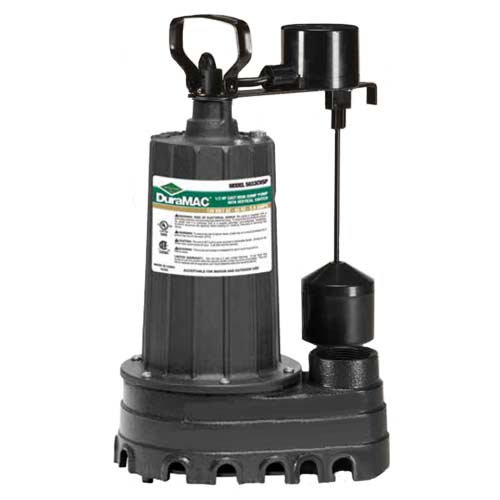

Cast Iron Submersible Sump Pumps - Series 5033

DuraMAC Cast Iron Pump
This sump pump series features:
  • Rugged cast iron construction for lasting durability
  • Split Capacitor Motor -
    1/3 HP continuous duty, thermal protected, automatic reset
  • Pumps up to 60 gallons per minute
  • Lifts water up to 25' of vertical height
  • Solids handling up to 1/2" spherical - the size of a standard staple width
  • Base has multiple archways to help prevent larger debris from entering and clogging the pump impeller
  • Includes 10' power cord
    - 25' power cord available (Model CUSP only)
  • Large 1-1/2" discharge for high capacity pumping
  • Available with vertical float switch or without switch
  • View detailed dimensions

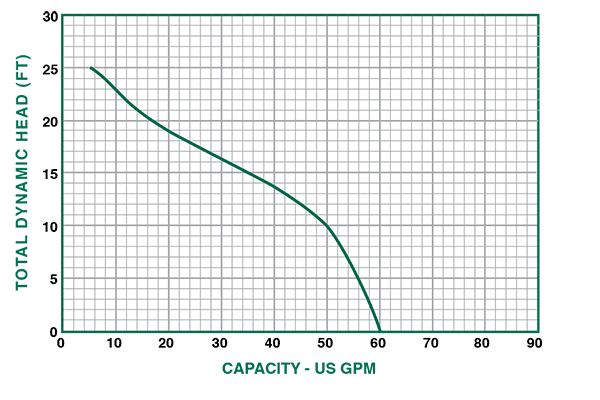

  • View detailed pump curve

DuraMAC Series 5033 Cast Iron Sump Pump Specifications
HP Volts Hz Amps Discharge
Size
Solids
Handling
Phase
5033CVSP 1/3 120 60 5.9 1-1/2" 1/2" 1
5033CUSP
(no switch)
1/3 120 60 5.9 1-1/2" 1/2" 1
5033CUSP25
(no switch)
1/3 120 60 5.9 1-1/2" 1/2" 1

With a durable cast iron construction and 1/3 horsepower split capacitor motor, any of the 5033 series sump pumps will provide you with long-lasting efficiency. Equipped with a 1-1/2" discharge, these pumps can handle up to 60 gallons per minute and deal with solid waste up to 1/2" spherical. You can choose a vertical float switch or no switch. These pumps are built to last and ready to tackle flooded basements, patios, flat roofs, or other water transfer needs with ease.

Model Description Cord
Length
Price & Quantity
5033CVSP Cast Iron Submersible Sump Pump with Vertical Float Switch 10' $132.01
5033CUSP Cast Iron Submersible Sump Pump with NO Float Switch 10' $130.60
5033CUSP25 Cast Iron Submersible Sump Pump with NO Float Switch 25' $158.74

- Or -
View Button

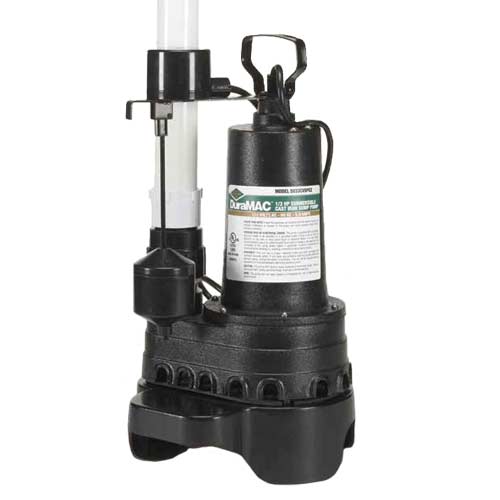

Pre-plumbed Cast Iron Submersible Sump Pump

This sump pump package has everything you need in one box:
  • Easy to install
  • Pump already mounted to base
  • Pre-plumbed with check valve and discharge pipe
  • Rugged cast iron pump construction attached to plastic lift base
  • Normal pump base has multiple archways for added prevention of larger debris entering and clogging the pump impeller
  • Split Capacitor Motor -
    1/3 HP continuous duty, thermal protected, automatic reset
  • Pumps up to 56 gallons per minute @ 5' head pressure
  • Lifts water up to 25' of vertical height
  • Solid handling up to 1/2" sphere shape - the size of a standard staple width
  • Comes with 10' power cord
  • Large 1-1/2" discharge for high capacity pumping

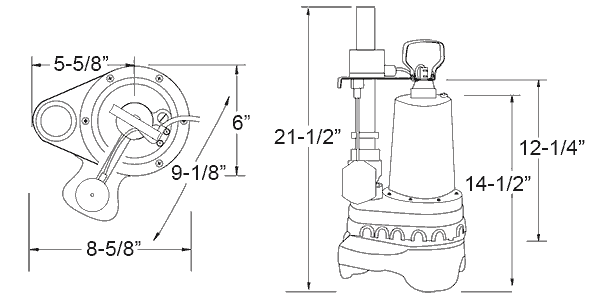

  • View detailed dimensions
  • Examine performance curve specifics
DuraMAC Sump Pump Package

Providing everything you need in a single package! This durable cast iron sump pump is already mounted to a solid plastic base to keep the pump off the bottom of the basin and to help prevent pump clogging and switch malfunction. This unit comes pre-plumbed with a check valve and discharge pipe for easy installation and is rated for continuous duty. The 1/3 horsepower split capacitor motor can pump up to 56 gallons per minute at 5 ft. of total dynamic head pressure without sacrificing energy efficiency.

DuraMAC Series 5033CVSPEZ Submersible Cast Iron Pump Specifications
HP Volts Hz Amps Discharge
Size
Solids
Handling
RPM Phase Cord
Length
5050CVSP 1/3 120 60 5.9 1-1/2" 1/2" 3450 1 10'

Cast Iron Submersible Sump Pump Package - 5033CVSPEZ = $147.20

- Or -
View Button

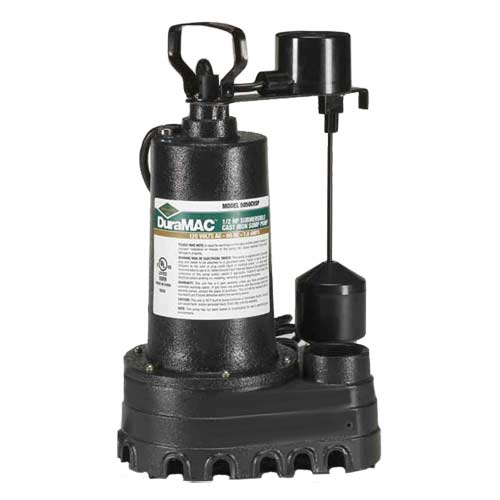

Cast Iron Submersible Sump Pump - Series 5050


DuraMAC sump pump
These submersible cast iron sump pumps feature:
  • Rugged cast iron construction
  • Split Capacitor Motor (more energy efficient) -
    1/2 HP continuous duty, thermal protected, automatic reset
  • Pumps up to 66 gallons per minute @ 5' total dynamic head pressure
  • Lifts water up to 25' of vertical height
  • Handles spherical solids up to 1/2" in diameter
    - the size of a standard staple width
  • Base has multiple archways to help prevent larger debris from entering and clogging the pump impeller
  • Available with 10' or 25' power cord
  • Large 1-1/2" discharge for high capacity pumping
  • Available with or without vertical float switch

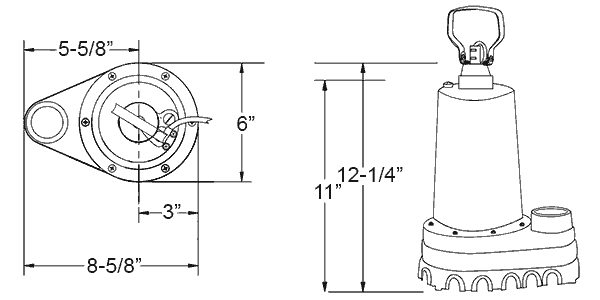

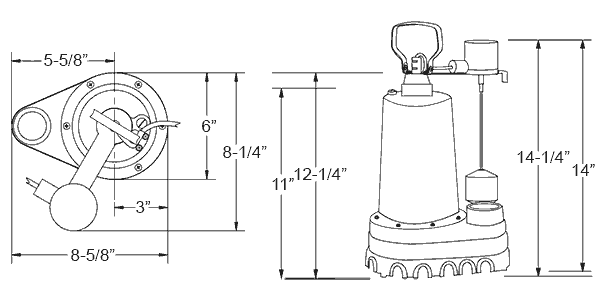

  • View detailed dimensions

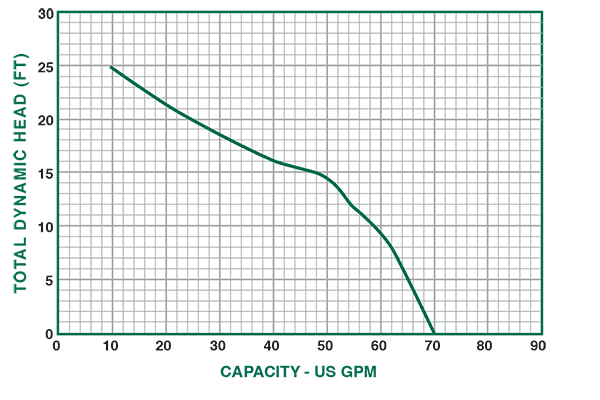

  • Examine pump performance curve information

With an energy efficient split capacitor motor and rugged cast iron construction, you can be sure this pump will do the job. Pumping up to 66 gallons per minute at 5 ft. head , these sump pumps are workhorses that can handle your larger pumping jobs. You can choose a vertical float switch or no switch, as well as either a 10' cord or 25' cord. Able to handle spherically shaped solids up to 1/2" in diameter (standard staple width) and equipped with a large 1-1/2" discharge, these DuraMAC pumps offer power and performance at an affordable price.

DuraMAC Series 5050 Submersible Cast Iron Pump Specifications
HP Volts Hz Amps Discharge
Size
Solids
Handling
RPM Phase Cord
Length
5050CVSP 1/2 120 60 3.8 1-1/2" 1/2" 3450 1 10'
5050CUSP25 1/2 120 60 3.8 1-1/2" 1/2" 3450 1 25'

Cast Iron Sump Pump with Vertical Float Switch - Series 5050CVSP = $149.17

Cast Iron Sump Pump with NO Switch & 25' Cord - Series 5050CUSP25 = $189.52

- Or -
View Button



You may also be interested in:



Frequently Asked Questions

Q. "What's the difference between a vertical and tethered float switch?"
A.Using a float switch with your sump pump ensures that the pump activates when water levels reach a certain height, thus protecting your home from flooding of groundwater. The tethered switches offered with DuraMAC pumps are attached to the top of the pump with small brackets, allowing you to adjust the length of the switch as needed. Alternatively, you may attach it to your discharge pipe, as shown here. Tethered float switches generally take up more space, and so are more appropriate for larger diameter, deeper sump pits. Because they aren't locked in place the way a vertical float switch is, they allow the pump to be off longer between cycles. The pump has more time to cool completely, which can sometimes reduce your overall power usage and lengthen the life of your pump. In contrast, a vertical float switch is somewhat locked into place on the side of the pump. This makes these types of switches very useful for a narrow or shallow sump pit. Using a vertical switch means your pump will run more often, but water levels will remain lower. Ultimately, the type of switch you choose will depend upon the space available to you and style of pump you choose. Don't forget there are electronic switch options available too!

Q. "What is a check valve and do I need one?"
"Do any of the DuraMAC models come with check valves?"
A.A check valve is a one-way valve that prevents water from running back down the discharge pipe and back into the sump pump. Thus, the pump does not have to re-pump water that it has already handled, saving on electricity costs and extending the life of your pump. The DuraMAC Submersible Sump Pump Pre-plumbed Package offered above does come with a check valve and discharge pipe already assembled for easy installation.

Q."What is a split capacitor motor?"
A. Split capacitor motors are becoming standard in most pumps now because they offer greater energy efficiency without sacrificing pumping power. It takes more energy to start the pump than it does to keep it operating. Essentially, this type of motor starts your pump with one capacitor and runs it on another, turning the starting current off once the pump begins running. This means you aren't continuously using the high volume of electricity required to start the pump for the entire time the pump is running. Once the starting current has been turned off, the motor uses only the lower volume of energy to keep the pump running.

Q. "Which is better? A thermoplastic or cast iron sump pump?"
A.There is no right or wrong answer to this question. Both thermoplastic and cast iron pumps are designed to last you a long time and the materials are comparable in function. Cast iron sump pumps are naturally somewhat stronger, which may be important depending on the your specific pump needs and the location of the pump.

Q. "What does it mean when you say the pump is thermal protected?"
A. Pumps can overheat when their motor is overloaded and the motor windings overheat which can cause the pump to stop and fail to start up again. Pumps can get overloaded when they are kept running but there is no longer any water to pump or the water level gets below the point where it no longer helps to cool the motor. Heat sensing devices are placed inside the motor to detect when excessive heat is generated and signal the pump to turn off to keep the motor from burning up. This overheating protection is referred to as thermal protection. Once the motor has cooled down the sensor system will reset automatically to allow the pump to start up again. If this happens you should check to see what caused the pump to overheat because there could be some obstruction to the water intake of the pump or there is no water flow.

Q. "What is total dynamic head?"
A. Total dynamic head is the combination of static head and friction loss. Static head is calculated by measuring from the minimum water level the pump can operate (where the water enters the pump) to the highest point of the discharge piping. Friction loss is the resistance to the flow of water caused by the discharge piping material, type of valves and number of directional fittings used like 90° or 45° elbows. The more 90° or 45° elbows used the greater the friction loss which could increase your total dynamic head calculation. The static head and friction loss must be added together to determine the total dynamic head.
