Simple, straightforward and low shipping rates for these drip fittings.

Quality Drip Irrigation Products

easy to use indoor/outdoor garden products

Drip irrigation can turn a desert into an oasis. Enhance your outdoor spaces and keep your own little slice of heaven lush and well irrigated with the drip irrigation products you need from PlumbingSupply.com^®! We have the best selection, best prices and the best customer service on the Internet for all of your drip irrigation or hydroponic needs. Now you can start off your water-saving garden by putting in an easy-to-use timer. Looking for a great garden hose to complete your watering arsenal? Click here.

All of our drip products are professional size .700"od or 1/4"od.
We sell in bulk, no need to buy packaging or kits.
Buy only as many as you need.

Drip Emitters - 1/4" Barb with 1/4" Outlet Nipple

Drip Emitters are used at the point where you want the water to exit the tubing and drip onto your plant, shrub, or tree. Emitters determine the amount of water flow you want to use for each specific plant, tree, or shrub. With the use of a punch tool, simply punch a hole into the 1/2" solid (.700 o.d.) drip tubing and insert the emitter directly or insert a 1/4" coupling and 1/4" tubing to extend your emitter. Multiple emitters may be needed for large trees or ground cover.

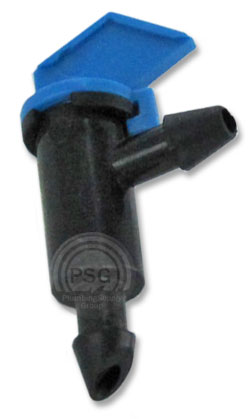

The Flag emitters are not pressure compensating but they are easy to take apart to clean with just a twist and a pull.

Both the Plus series and the Pro series drip emitters are pressure compensating with an operating range of 10 psi to 40 psi. These pressure compensating emitters maintain a constant discharge flow rate even on hillsides or long circuits, or if the pressure changes from 10 psi to 40 psi or vice versa.

The Plus drippers are designed with a turbulent water flow path to help minimize plugging and have a self-piercing barb inlet to allow the user to push the emitter directly into tubing without first punching a hole.

The Flag, Pro, and Plus type emitters can be extended by adding 1/4" solid tubing to the inlet or, with the use of a bug plug, to the outlet as well.

For water pressure exceeding 25 psi we strongly suggest a pressure regulator be used to reduce the pressure to 20 or 25 psi to prevent emitters from blowing out of the drip tubing because of too much pressure and for optimum water distribution on long pipe runs.

Image	Description	Part#	Cap Color	GPH	Price & Quantity (Each)	Price & Quantity (Per 100)

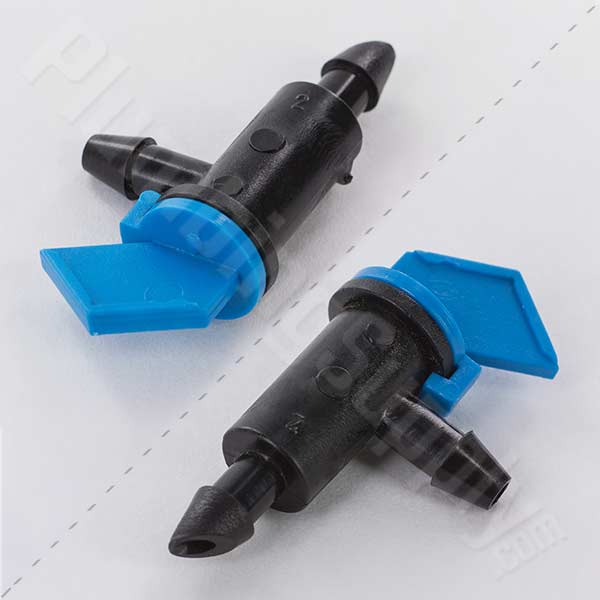

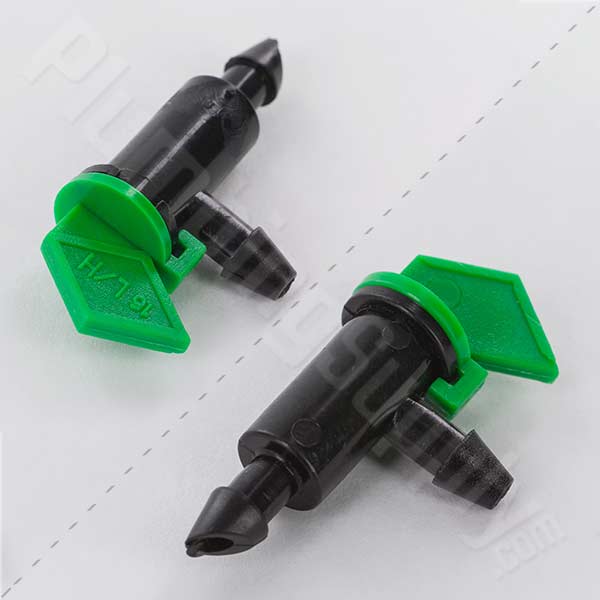

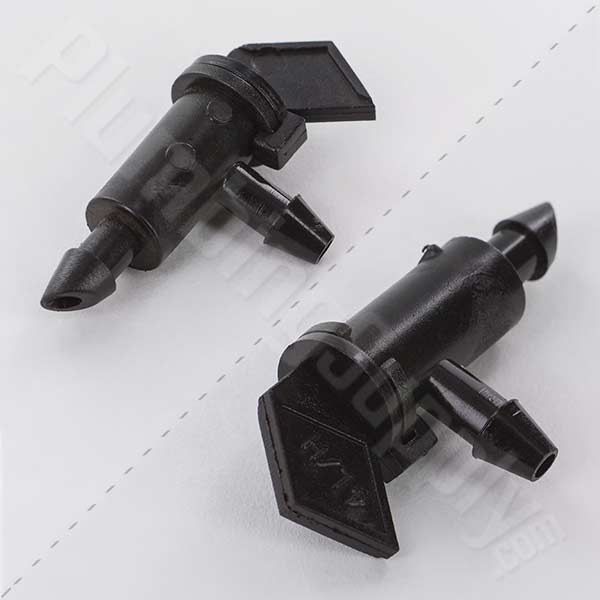

	*"Flag"* Not pressure compensating.	TAE-10	Black	1	$0.19	$15.97
		TAE-20	Blue	2	$0.19	$15.97
		TAE-40	Green	4	$0.19	$15.98

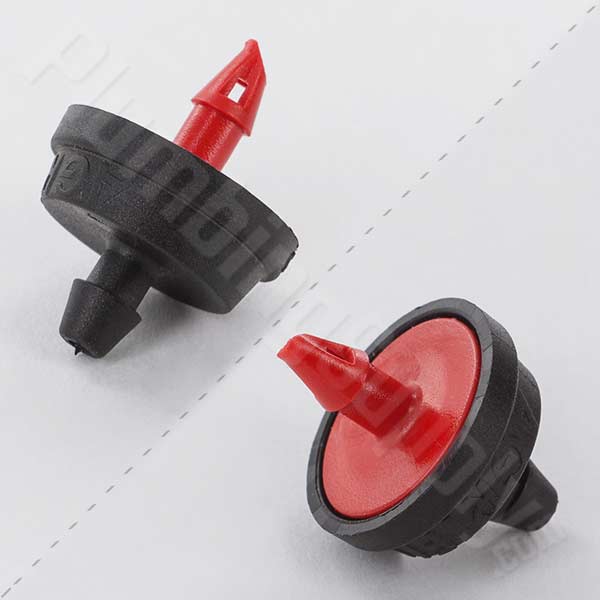

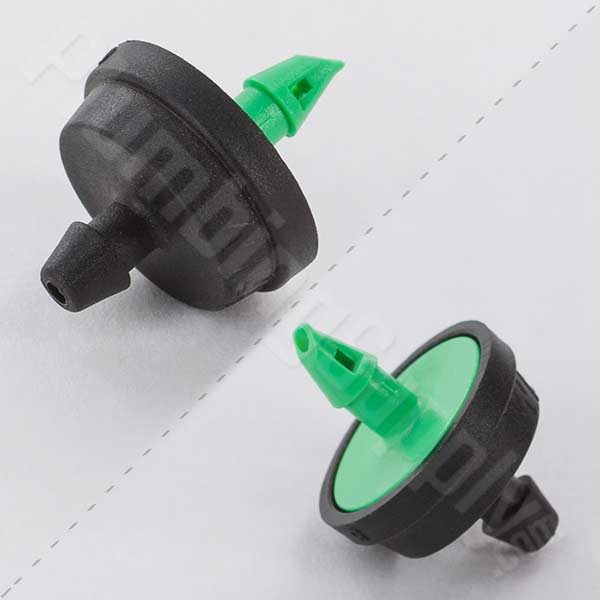

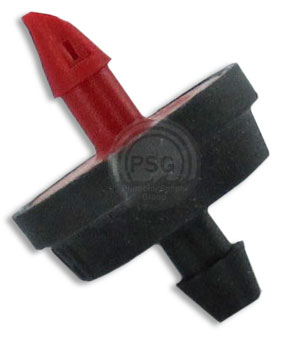

	*"Plus"* Directional Pressure Compensating Turbulent Flow	PCP5	Red	1/2	$0.32	$28.48

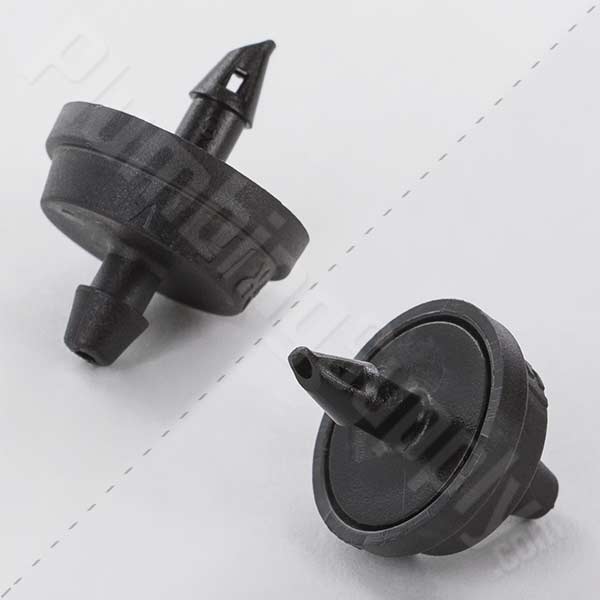

		PCP10	Black	1	$0.33	$28.22
		PCP20	Green	2	$0.32	$28.51

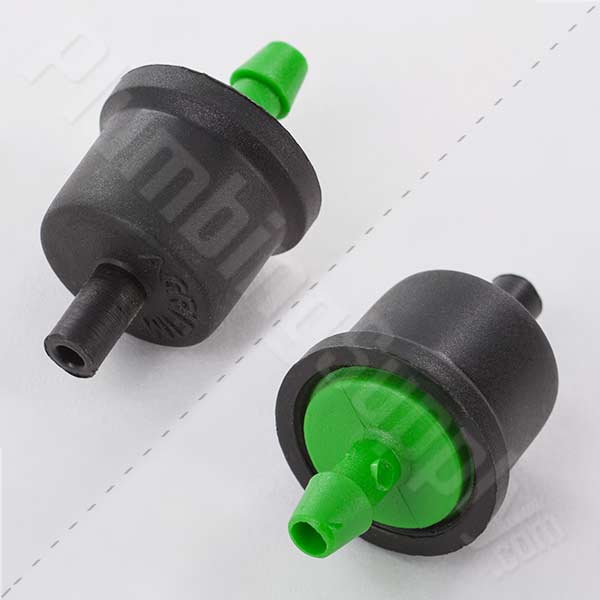

	*"Pro"* Pressure Compensating	IF20	Green	2	$0.45	$37.84
Click here for more information about drip emitters

- Or -

In-Line Emitters - 1/4" Barb x 1/4" Barb

In-Line emitters allow you to place an emitter or multiple emitters at one plant and then continue with multiple emitters after it. Just punch a hole into 1/2" solid (.700 o.d.) drip tubing and push the in-line emitter directly into it or use a 1/4" coupling and 1/4" solid (.25od x .17id) tubing and insert the inline emitter into the end of the 1/4" tubing. You can then put additional 1/4" tubing onto the other end of the emitter. This will allow you to space and place your emitters exactly where you want to put them. You can surround a plant and then continue on with your 1/4" tubing to the next plant. Use a short piece of 1/4" drip tubing and a #GP2 drip plug after the last in-line emitter to terminate the run.

Image	Description	Part #	GPH	Price & Quantity (Each)	Price & Quantity (Per 100)
	1/4" barb x 1/4" barb Mini in-line emitter	MIL 5	1/2	$0.35	$29.75

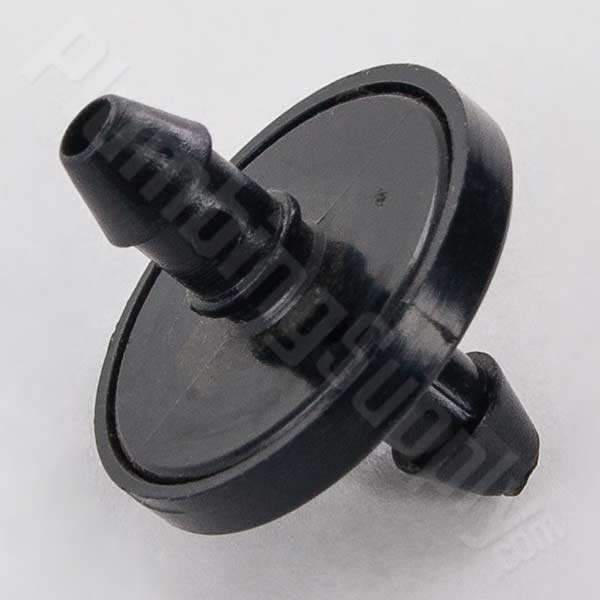

	1/4" barb x 1/4" barb Mini in-line emitter	MIL 10	1	$0.36	$29.95

- Or -

Dial-A-Flo™ Emitters - Adjustable Flow

Dial-A-Flo™ Emitters are adjustable from full shut-off up to their maximum rated flow, and can be taken apart for cleaning if needed. By rotating the cap these emitters transform from a drip emitter into a bubbler. The cap is calibrated so you can dial to the specific discharge rate you desire. The #DAFB and #DAFT emitters can be used either in an upright or upside down position. The #DAFS are permanently attached to a stake and must be used in an upright position. Normal operating pressure range is between 20 psi and 40 psi.

The #DAFB have a barbed inlet to attach directly into the side of 1/2" drip tubing or the end of 1/4" drip tubing and the #DAFT have 10-32 NFT threads so you can screw directly into an outlet of a riser.

Image	Description	Part #	GPH	Price & Quantity (Each)	Price & Quantity (Per 100)

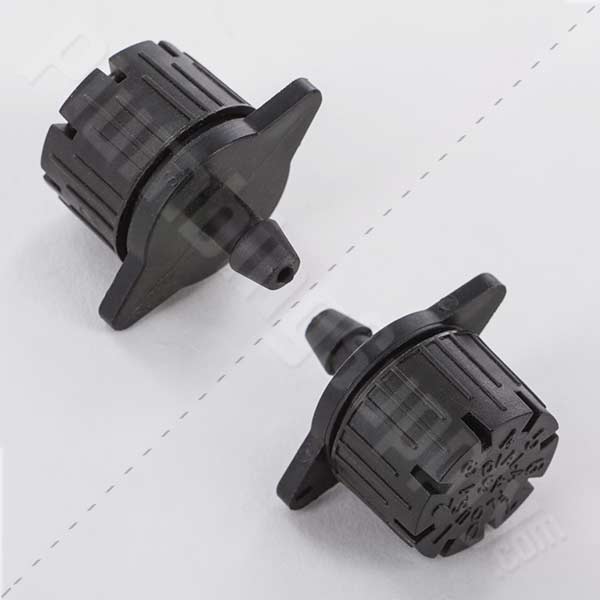

	Barbed Inlet 360°, 8 Stream	DAFB360	0 - 10	$0.41	$35.44

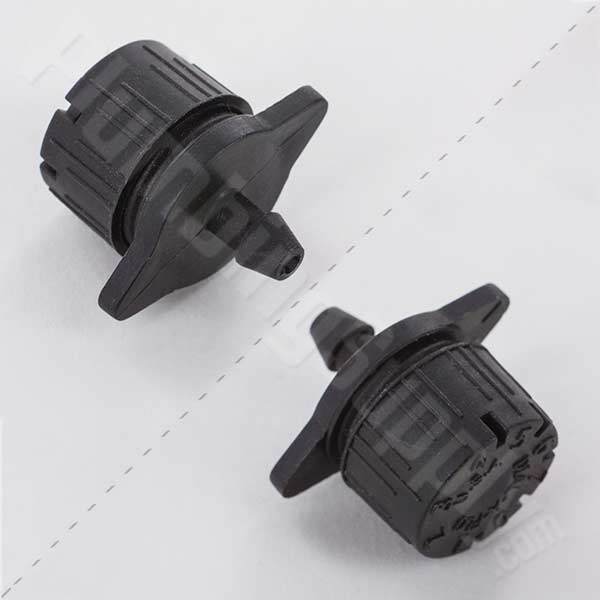

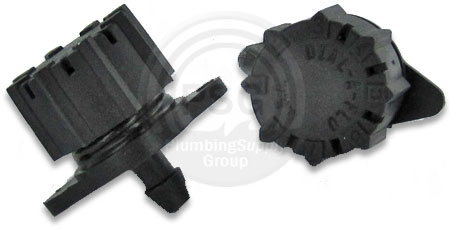

	Barbed Inlet 180°, 5 Stream	DAFB180	0 - 10	$0.42	$34.93

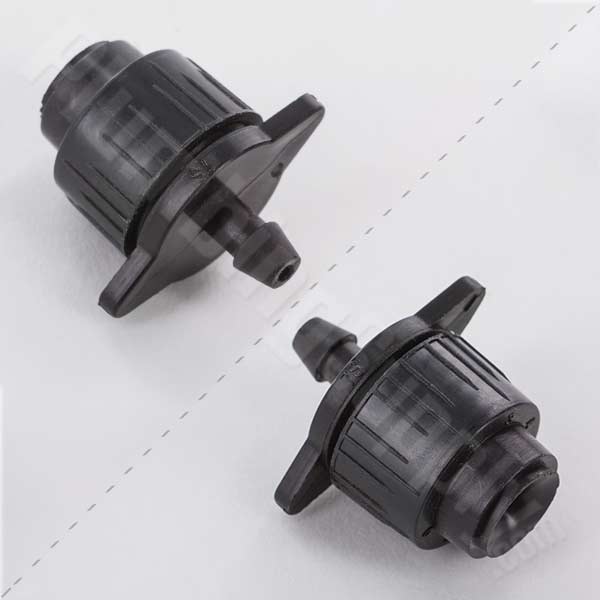

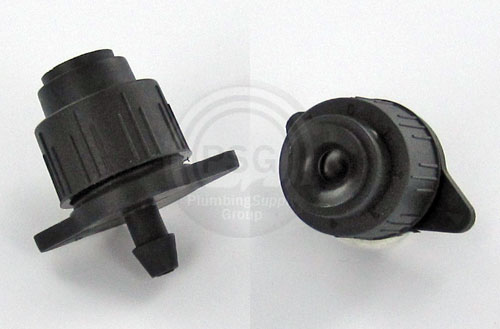

	Barbed Inlet 360°, Fan Outlet	DAFBFAN	0 - 20	$0.42	$35.30

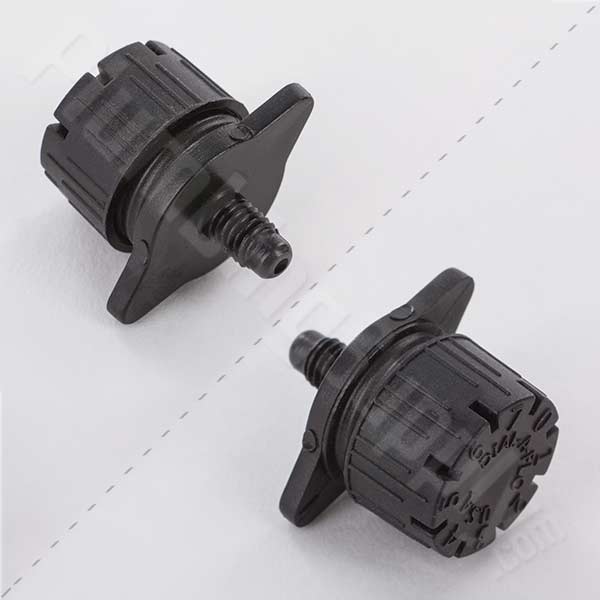

	10-32 Thread Inlet 360°, 8 Stream	DAFT360	0 - 10	$0.42	$35.43

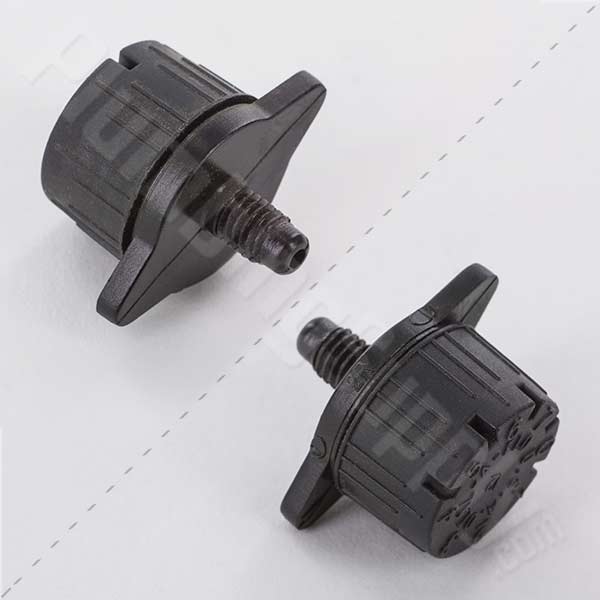

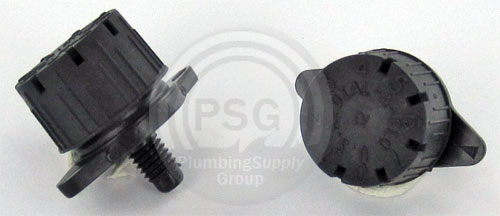

	10-32 Thread Inlet 180°, 5 Stream	DAFT180	0 - 10	$0.42	$37.67

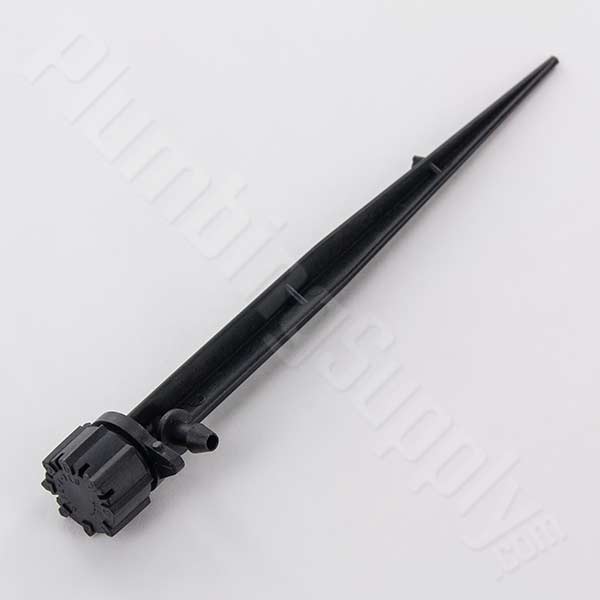

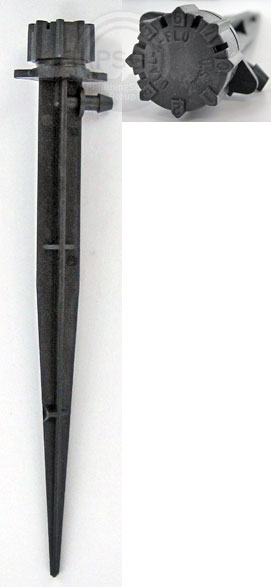

	Barbed Inlet 180° - 5 Stream w/ 6" Stake	DAFS180	0 - 10	$0.60	$55.40

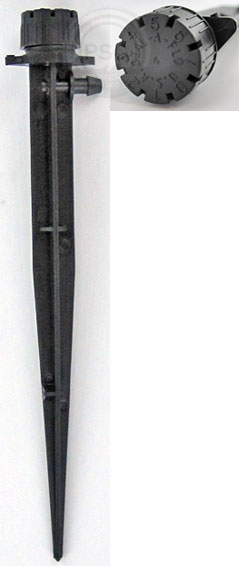

	Barbed Inlet 360° - 8 Stream w/ 6" Stake	DAFS360	0 - 10	$0.59	$55.13

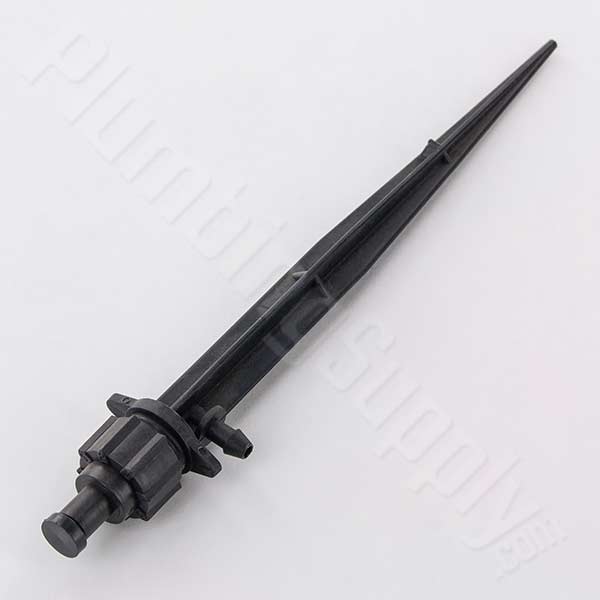

	Barbed Inlet 360° - Umbrella Bubbler w/ 6" Stake	DAFSBUB	0 - 10	$0.61	$55.49

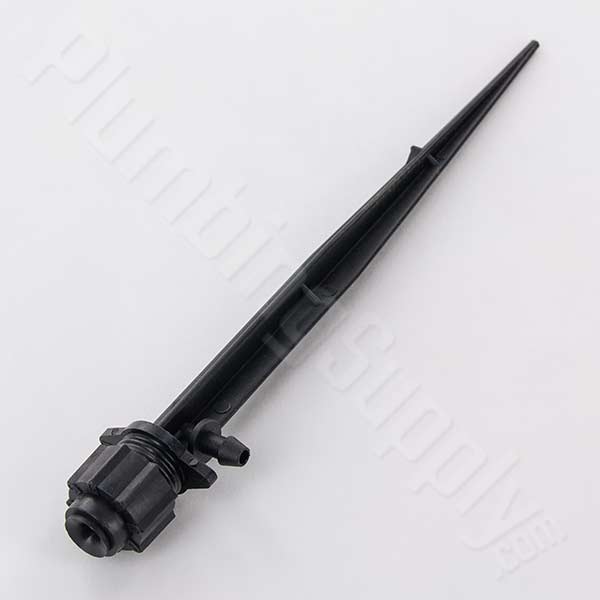

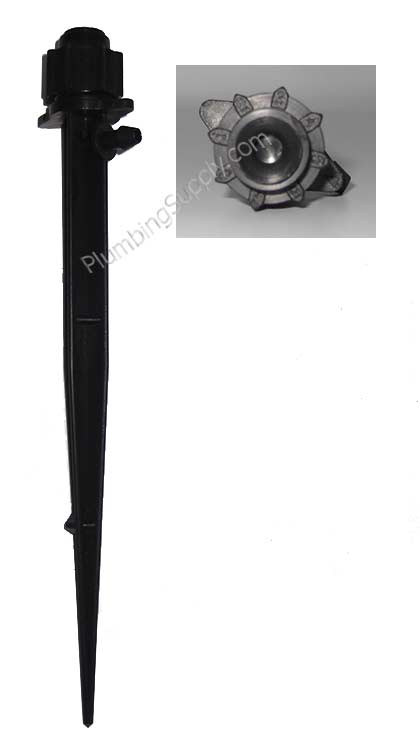

	Barbed Inlet 360° - Fan Spray w/ 6" Stake	DAFSFAN	0 - 10	$0.62	$55.57
Click here for information about emitters

- Or -

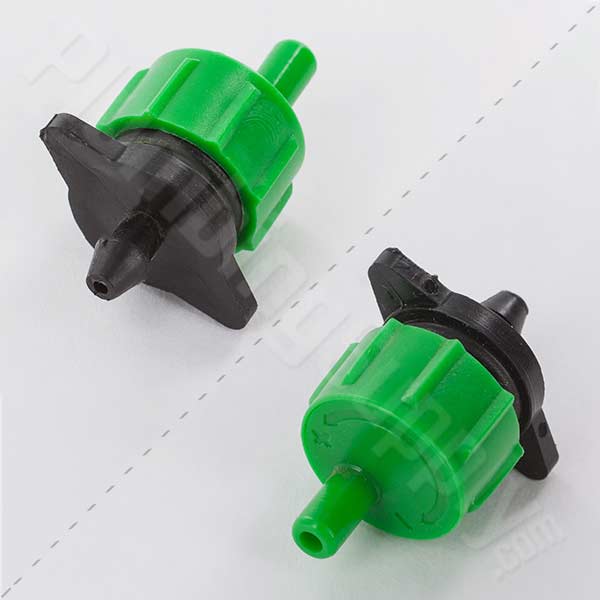

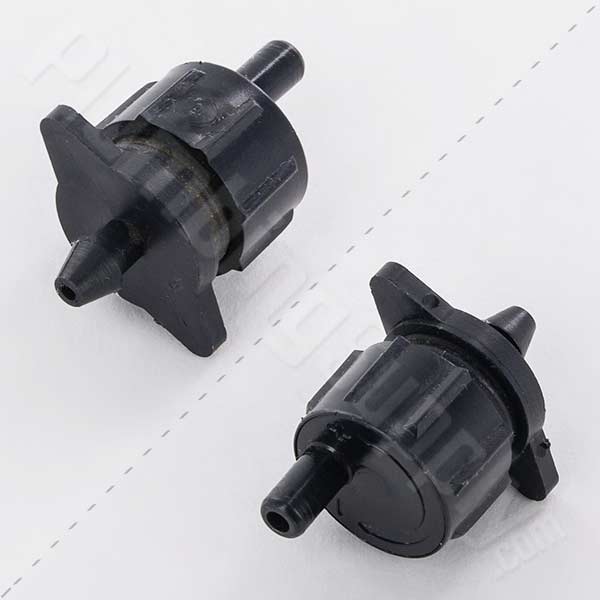

Adjustable "P" Drippers

Ideal for container gardening or flowers where water flow needs vary seasonally, these ajustable drippers let you regulate the amount of water your plants get. Shut off completely in the rainy season, or let flow all out when needed. Even better, you can just twist the top off to clean, so you'll never have to toss an emitter because a piece of grit stopped the flow.

Image	Description	GPH	Part #	Price & Quantity
	Green "P" Dripper	0-1 GPH	ASE-4	$0.91
	Green "P" Dripper	0-2.5 GPH	ASE-10	$0.90
	Adjustment Wrench for "P" Drippers	--	AS-W	$0.88

- Or -

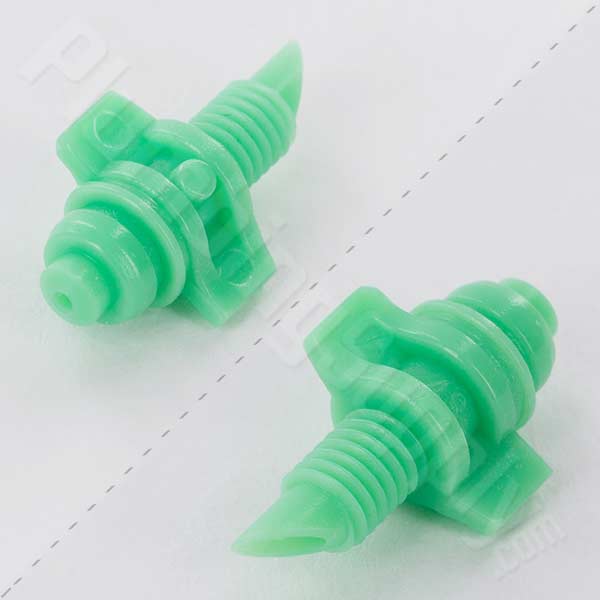

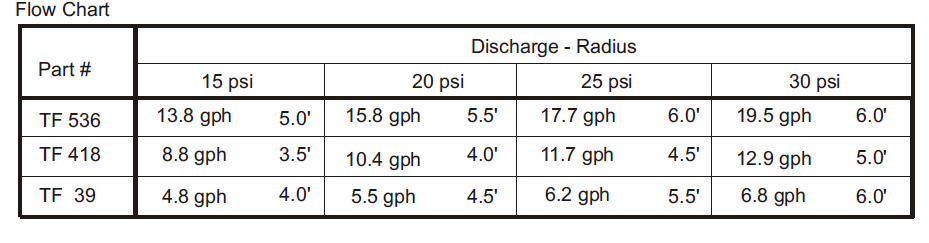

Hydro-Flo™ Jet Fan Spray - 10-32 NFT Threaded

Hydro-Flo™ Jet Fan Sprays are a one-piece non-adjusting jet that produce a micro-spray. Available in 90 degree (0.030 nozzle) 180 degree (0.040 nozzle) and 360 degree (0.050 nozzle) spray patterns. The normal operating pressure range is 15 to 30 psi. The output spray radius and the gallons per hour (gph) can be increased as the pressure is increased. Click here to view the non-adjustable Hydro-Flo Jet Fan flow chart showing how water pressure effects the discharge rate and the spray radius covered.

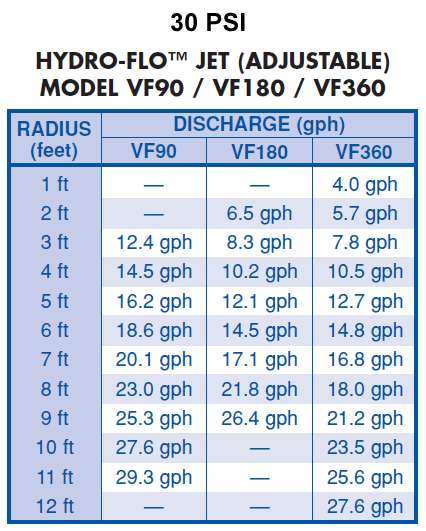

The Hydro-Flo™ Adjustable Fan Sprays are also available in 90, 180, and 360 degree spray patterns and can be adjusted to different radii which will effect the gph discharge rate. Click here to view the Hydro-Flo™ adjustable spray flow chart.

Both styles of Hydro-Flo™ Fan Sprays have 10-32 NFT inlet threads so you can screw them directly into an outlet of a drip riser. If needed, a BT250 barbed riser adapter can be used to push into the end of 1/4" solid drip tubing or the side of 1/2" solid drip tubing to allow the use of a drip riser. The Budget #PPT and the Deluxe #HP125 punch tools incorporate a female hex opening that can be used to help tighten these Hydro-Flo™ fan sprays into drip risers.

Image	Description	Part #	Price & Quantity (Each)	Price & Quantity (Per 100)

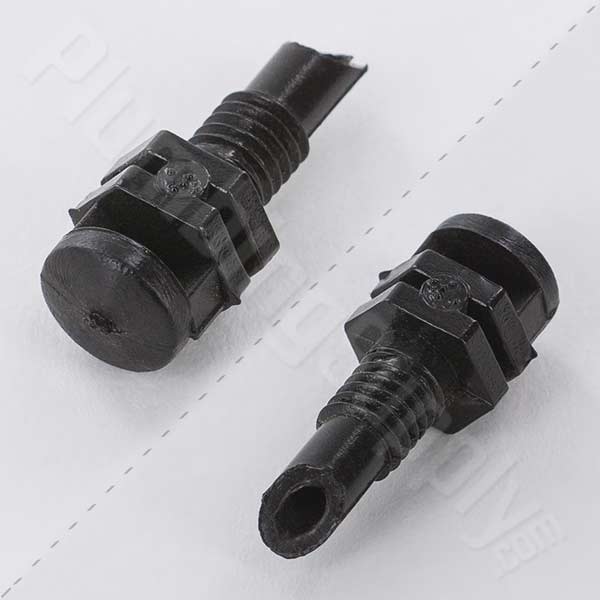

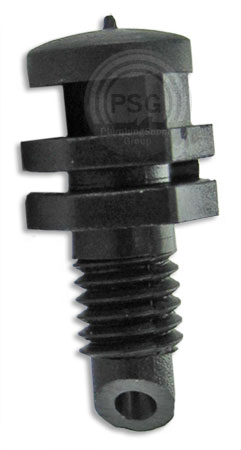

	90° fan spray (Black)	TF39	$0.17	$16.43

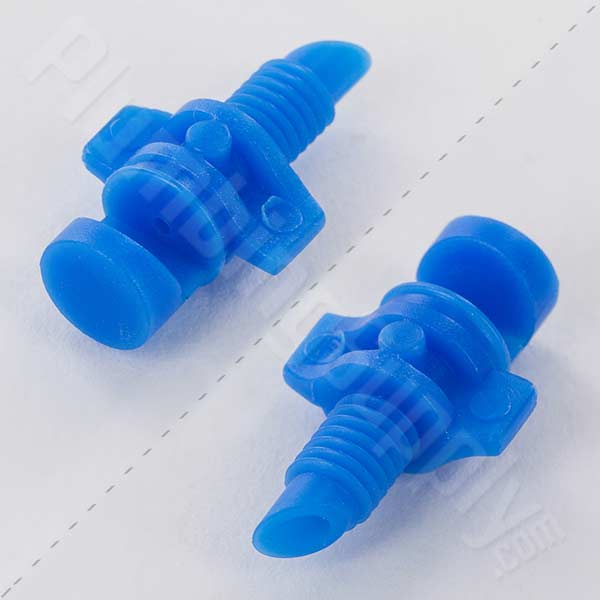

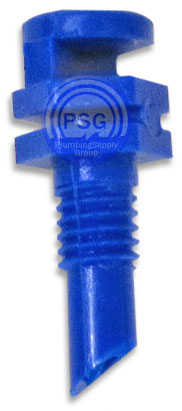

	180° fan spray (Blue)	TF418	$0.17	$16.48

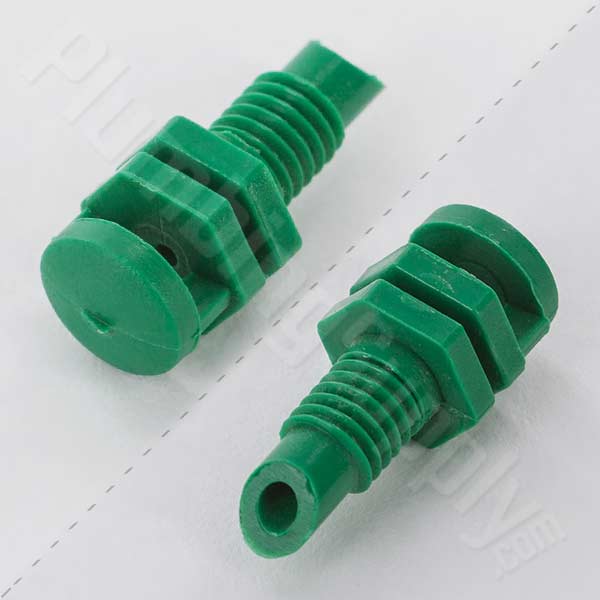

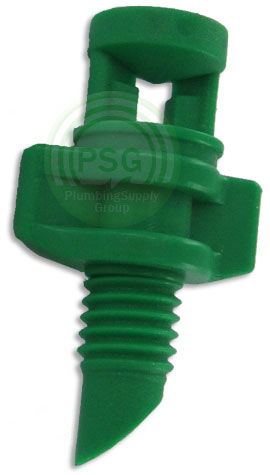

	360° fan spray (Green)	TF536	$0.17	$16.50

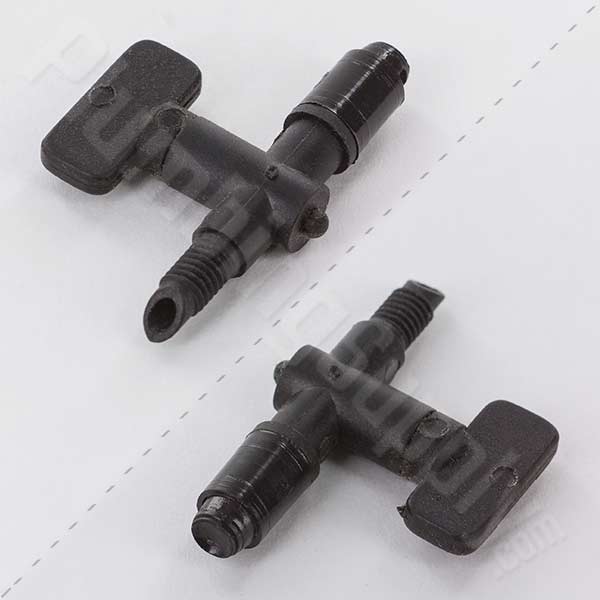

	Adjustable - 90° fan spray	VF90	$1.08	$94.94

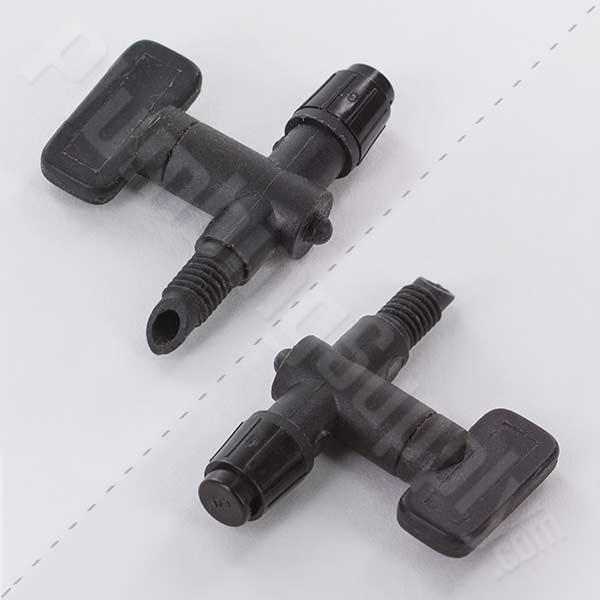

	Adjustable - 180° fan spray	VF180	$1.09	$93.17

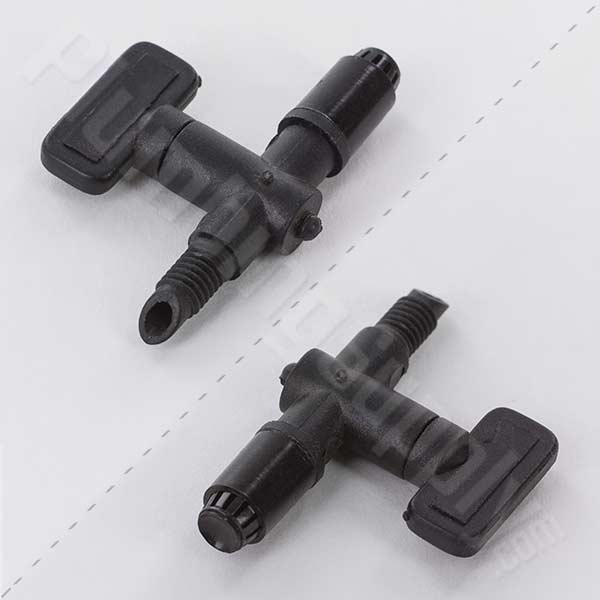

	Adjustable - 360° fan spray	VF360	$1.06	$94.41

- Or -

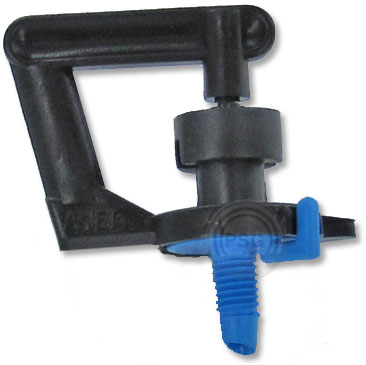

Micro-Sprinkler - 10-32 NFT Threaded

Micro-Sprinklers are designed for use where the normal routing of drippers to the base of each plant would be impractical; such as for ground cover, seed germination, small lawn areas, or hillside applications. The MF-40 is a full circle micro-sprinkler with a .040" orifice. At 15 psi pressure the MF-40 will emit 8.6 gph (gallons per hour) of water in a 7 foot radius (14 ft diameter).

The MF-40 micro-sprinkler inlet has 10-32 NFT threads to screw directly into the outlet of a riser. 10-32 NFT threads will not adequately tighten into the end of normal 1/4" solid (.25 od x .17 id) drip tubing because the tubing wall is too thin and will cause the connection to blow apart under any pressure. But the BT250 Barbed Riser Adapter will tighten into the end of 1/4" solid drip tubing allowing the use of a drip riser. Micro-Sprinklers work at a normal operating pressure of between 10 and 30 psi.

Image	Description	Part #	GPH	Price & Quantity (Each)	Price & Quantity (Per 100)
	Micro sprinkler	MF40	10	$0.95	$85.91

- Or -

1/4" Barb Drip Irrigation Fittings

These 1/4" barb fittings can be inserted into the end of 1/4" (.25od x .17id) drip tubing to extend emitters with the use of a coupling, change linear direction with the use of a 90° elbow fitting, or to add more drip outlets to your existing drip system with the use of a Tee fitting. They can also be inserted directly into 1/2" solid (.700 o.d.) drip tubing with the use of a punch tool to create additional 1/4" drip tubing branches. Should a hole need to be sealed, then a Goof plug can be inserted for a leak proof seal. Bug plug fittings keep bugs from entering the drip system but allow water to still drip out your 1/4" drip tube.

Image	Item Description	Part #	Price & Quantity 1/4" Barb

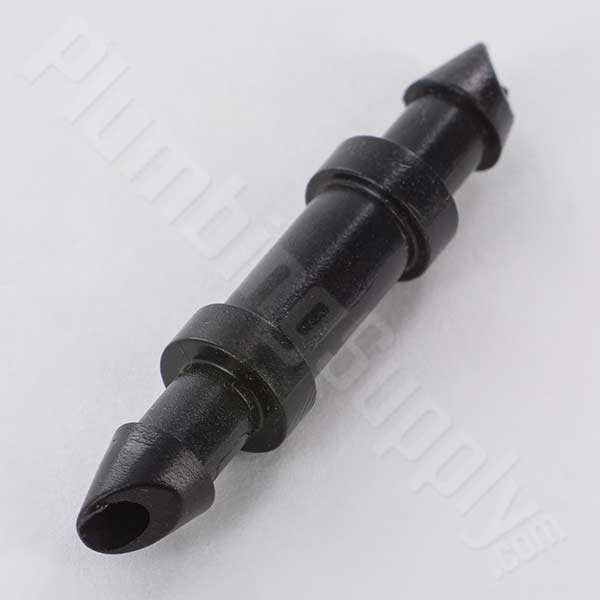

	1/4" barb Coupling	C250	$0.08

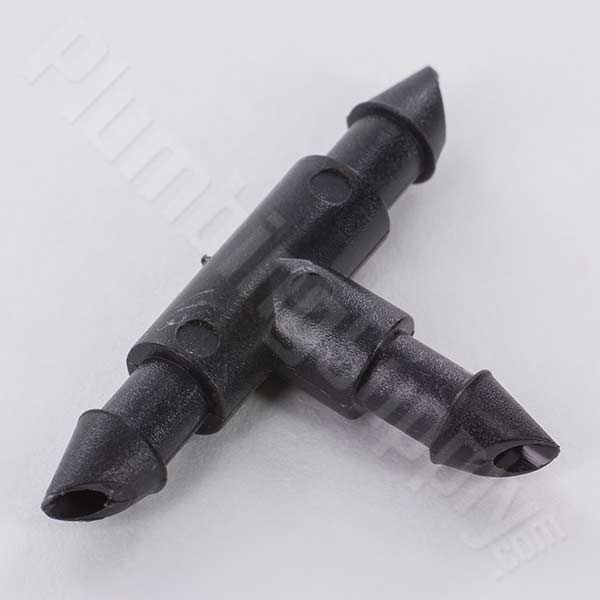

	1/4" barb Tee	T250	$0.16

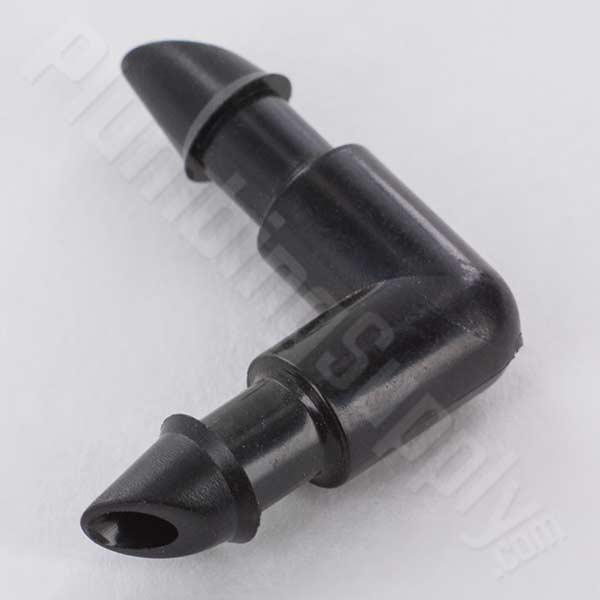

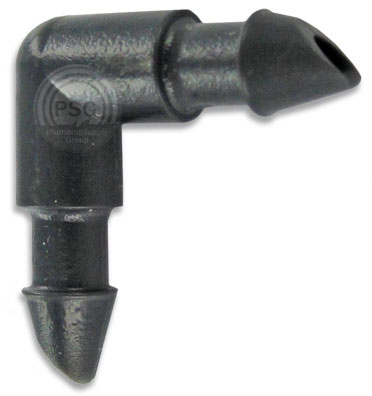

	1/4" barb 90° Elbow	EL250	$0.14

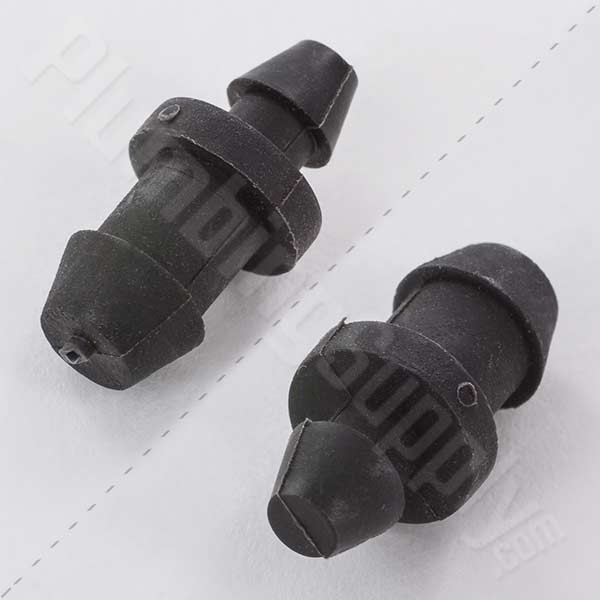

	1/4" barb "Goof" plug	GP2	$0.06

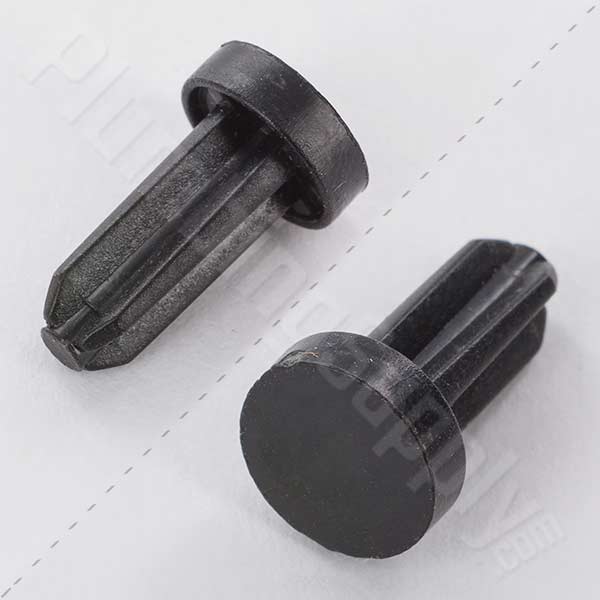

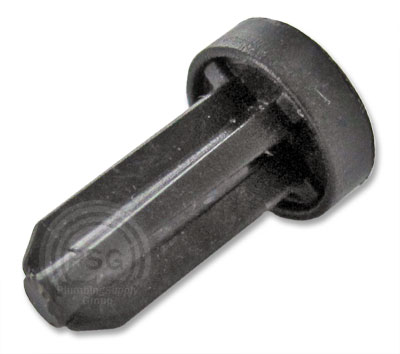

	1/4" Bug plug	BP250	$0.09

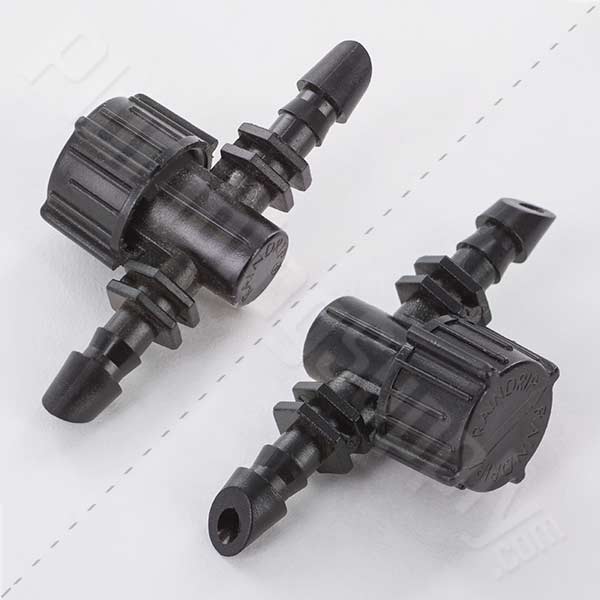

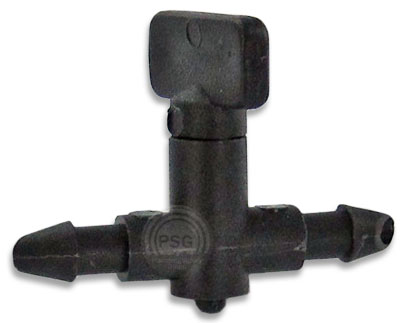

	1/4" barb In-Line valve	MV25	$0.98

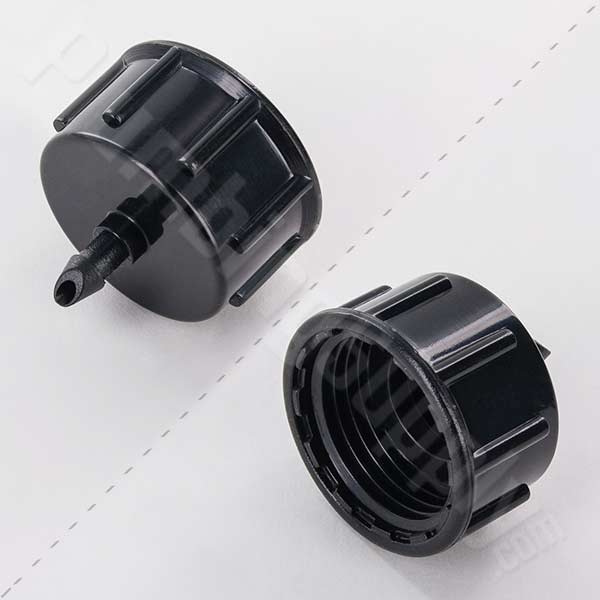

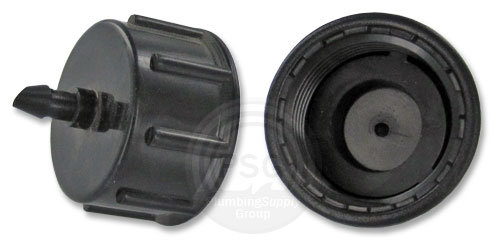

	3/4" FHT adapter to 1/4" barb - includes rubber washer	SAH	$0.87

- Or -

Click here for compression fittings

Riser Fittings - 1/2" Fips Inlet

1/2" Fips Inlet Riser fittings will screw directly onto 1/2" male iron pipe thread. Most sprinkler systems use sprinkler heads to water shrubs and plants and the sprinkler heads are normally screwed onto 1/2" riser nipples. These riser fittings can quickly change a water wasting sprinkling system into a water efficient drip system by removing the sprinkler head and attaching one of these riser fittings. Not only will you conserve water but this can help you prevent weed growth since water will only be applied to the roots of the plants or shrubs.

Image	Item Description	Part #	Price & Quantity

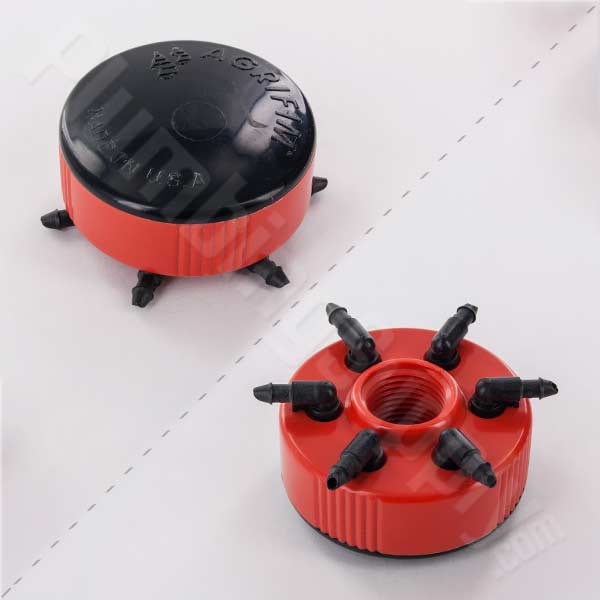

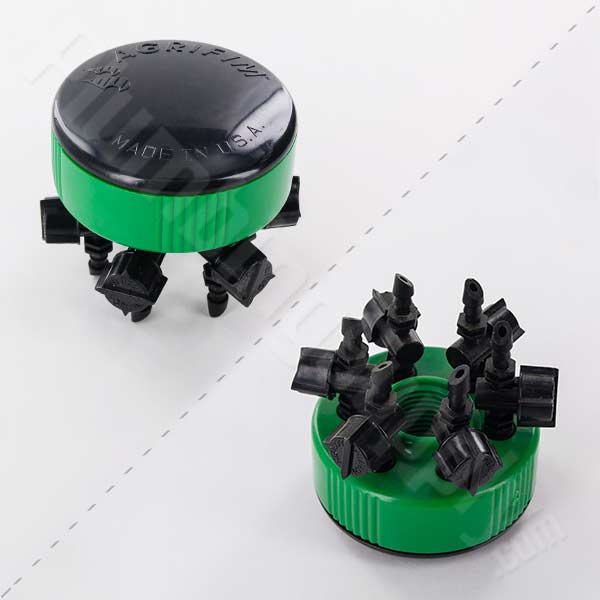

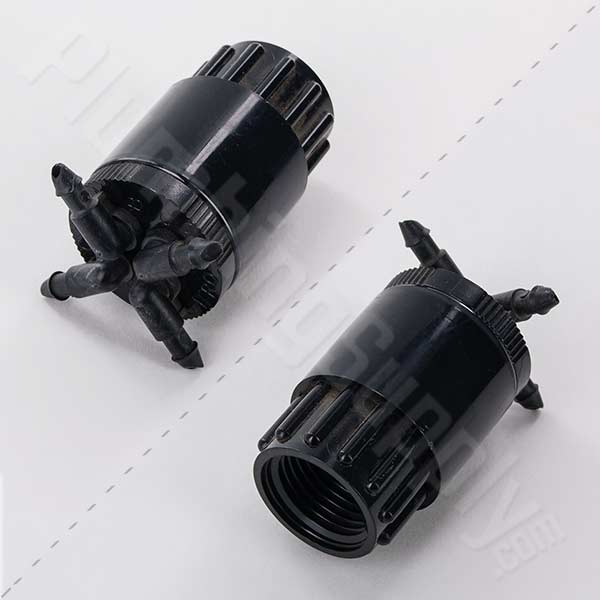

	1/2" Fips inlet 0-20 gph Adjustable bubbler 6 individually adjustable 1/4" barb outlets pressure compensating	MFBA	$6.32

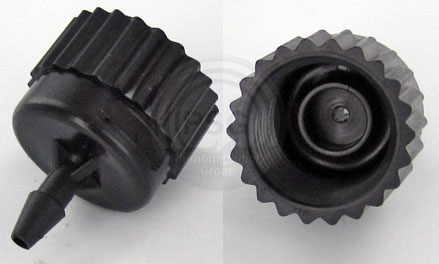

	1/2" Fips inlet 1/4" barb outlet - straight adapter	SAT	$0.85

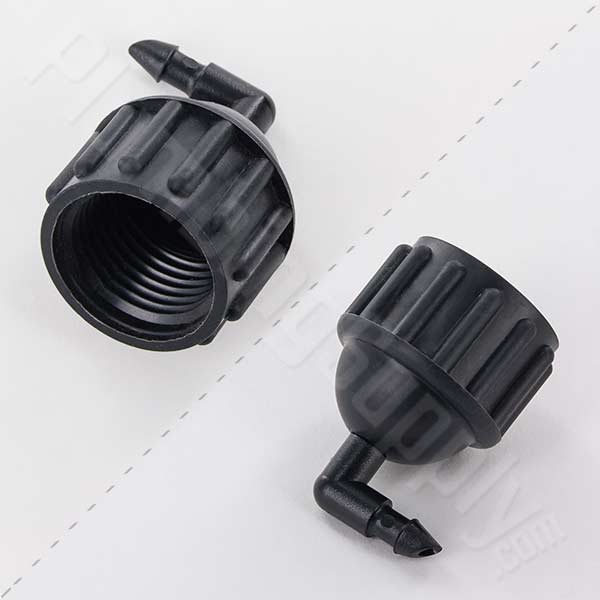

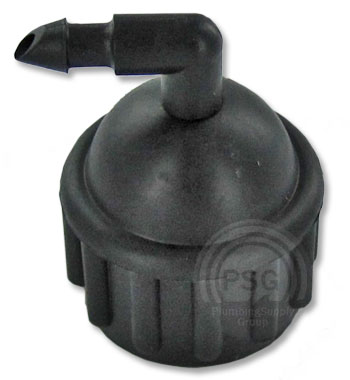

	1/2" Fips inlet 1/4" barb outlet - 90° adapter	SEL250	$1.11
	1/2" Fips inlet 1/4" barb outlet - tee adapter	ST250	$1.10

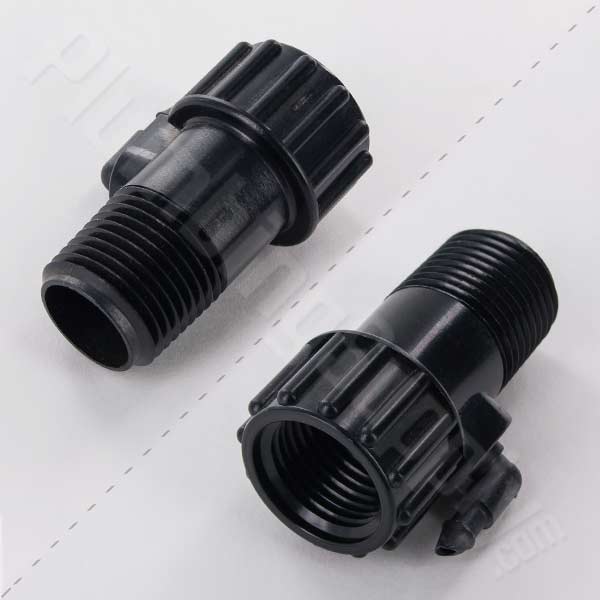

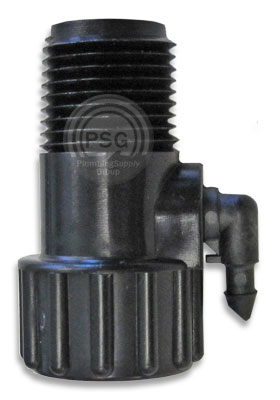

	1/2" Fips inlet x 1/2" Mips outlet Riser Extension w/ 1/4" barb side outlet	RA250	$1.24

- Or -

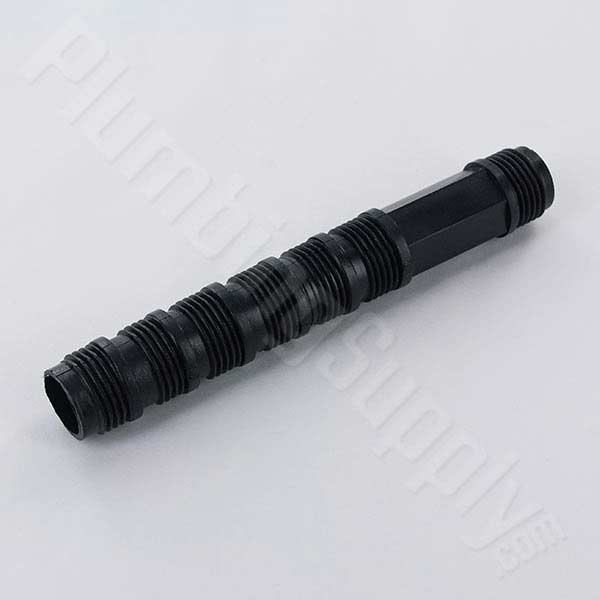

Polypropylene Riser Cut-Off Nipple
Riser cut-off nipples are normally used in sprinkler systems to raise and adjust the sprinkler height. The riser cut-off nipple is screwed into the PVC supply piping underground and the sprinkler head is screwed on top. You can easily cut the multiple ended nipple side to the length needed.
click to enlarge
Polypropylene Riser Nipple - 1/2"(Standard IPS) x 5-1/2" = $0.40

- Or -

.700 Compression Style Drip Irrigation Fittings

No gluing required! These .700"od (1/2" drip tubing) Compression Style Drip Fittings are very easy to install and will work with most 1/2" drip tubing having an outside diameter of .680" up to .704" od. Simply push the 1/2" drip tubing into the fitting for a tight connection and provide unobstructed water flow. Compression style drip fittings (.700) have a maximum operating pressure of 45 psi. Made of high quality ABS (Acrylonitrile Butadiene Styrene), a very durable plastic, heat and chemical resistant. Under normal conditions ABS will not crack, chip or peel, but please keep in mind that most plastics should not be exposed to constant direct sunlight, and even just a small amount of dirt or mulch covering will help protect your drip system from the sun's ultraviolet rays.

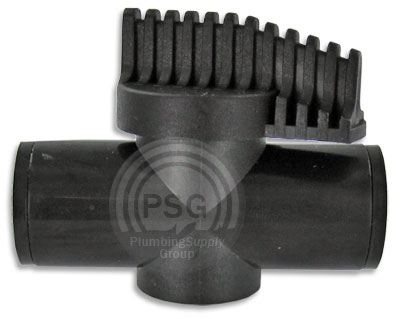

The FC700 flow control valve can be used to isolate or control water flow to specific sections of drip tubing or be used at the end of a line to flush out dirt or debris. These flow control valves have a maximum recommended 5 gpm flow rate and a maximum recommended pressure of 45 psi. The FC700 is a flow controlling valve only and will not completely shut-off water flow. It does not have a positive shut-off feature and some water will drip through, but hey, it is a "drip" system. If you would like a more positive end cap then we suggest you use the #D70HMC which has a 3/4" hose thread cap that can be easily unscrewed for that periodical flushing of the line.

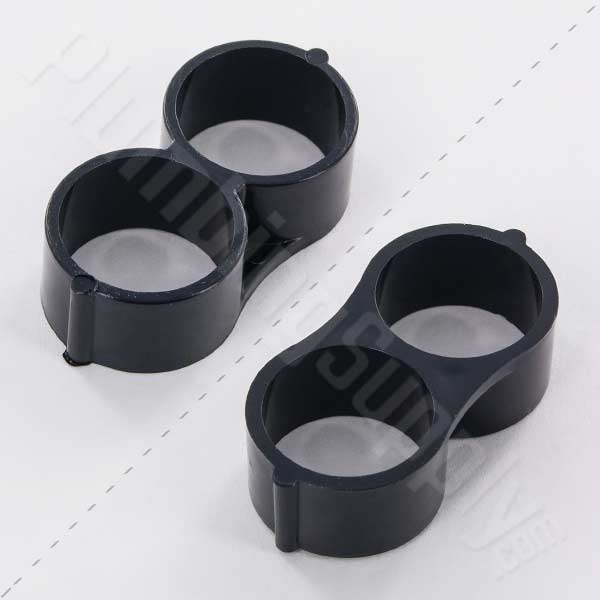

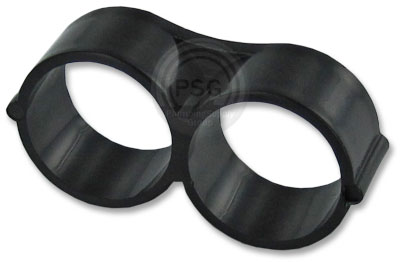

Figure 8 end caps do not look like caps but that's what they are. They are the alternative to the #D70HMC end cap. You simply insert 1/2" tubing into one hole, bend (kink) the hose and pass back it through the other hole. The kink positively keeps the water from passing through.

Image	Item Description	Part #	Price & Quantity

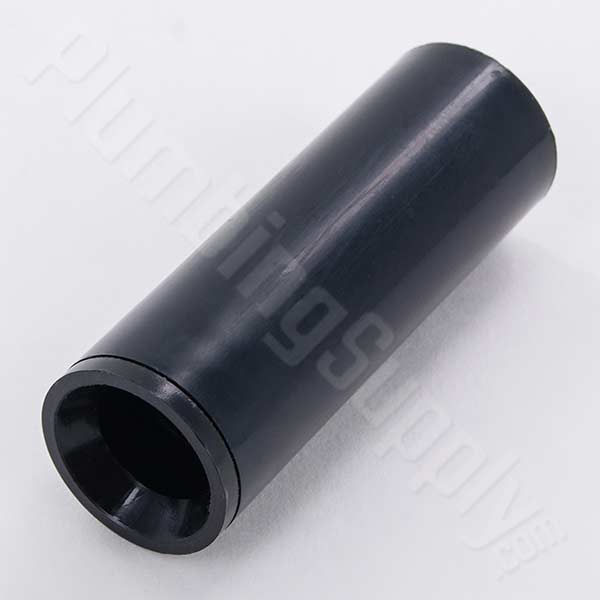

	.700 Coupling	CC700	$0.49

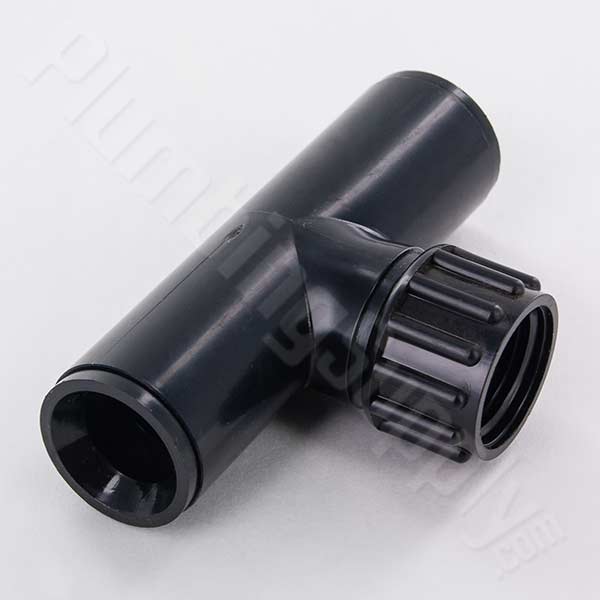

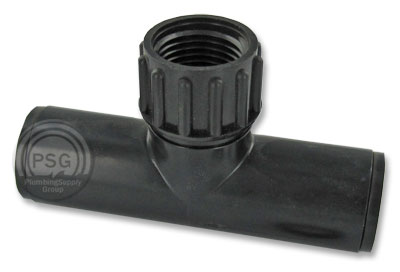

	.700 x 1/2" Fips Tee	RSTW700	$2.36

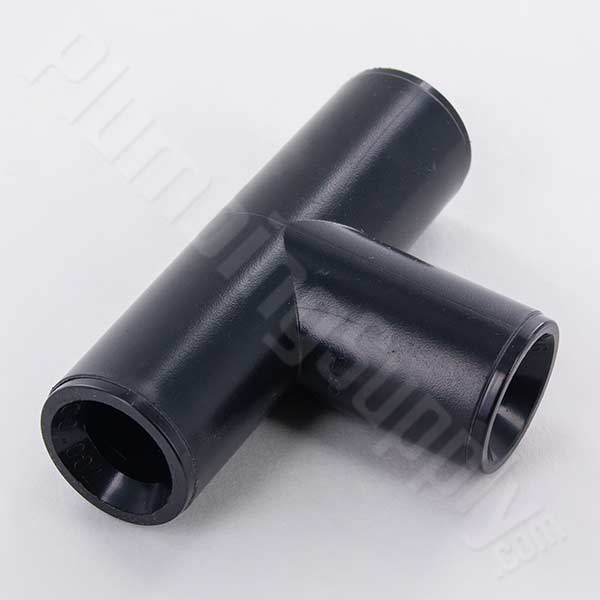

	.700 Tee	CT700	$0.83

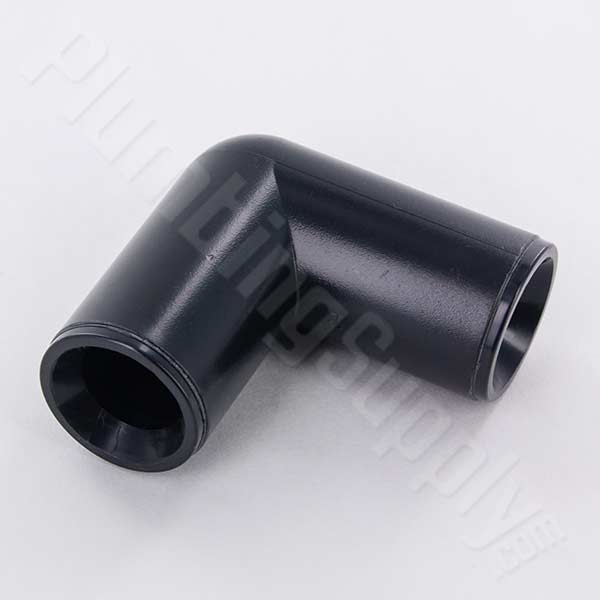

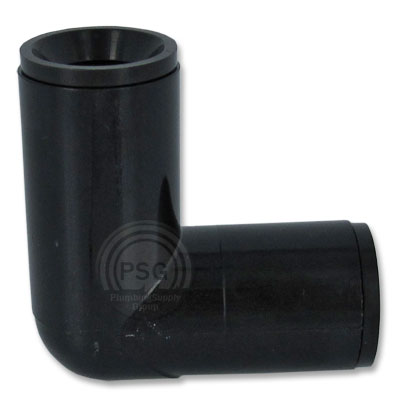

	.700 90° Elbow	CEL700	$0.75

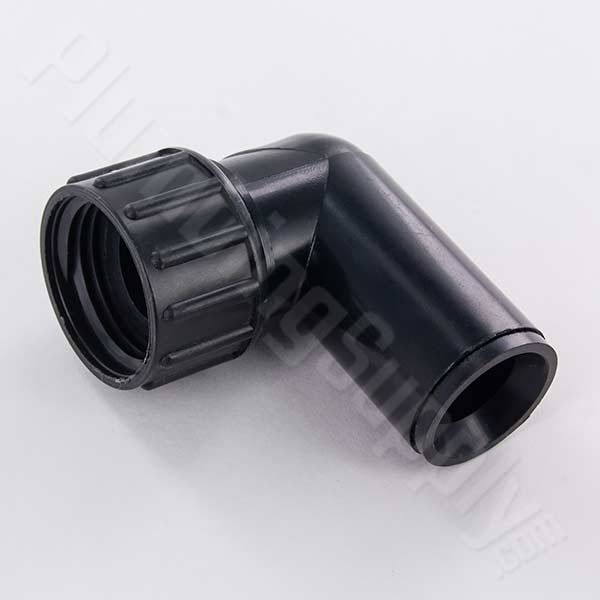

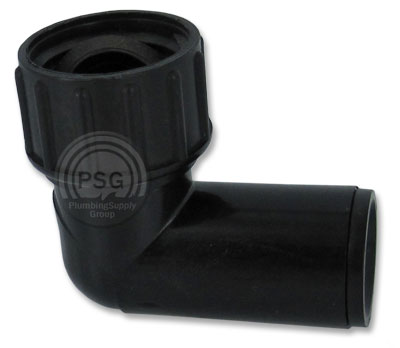

	.700 x FHT 90° Drip adapter elbow	CSELW700	$0.99

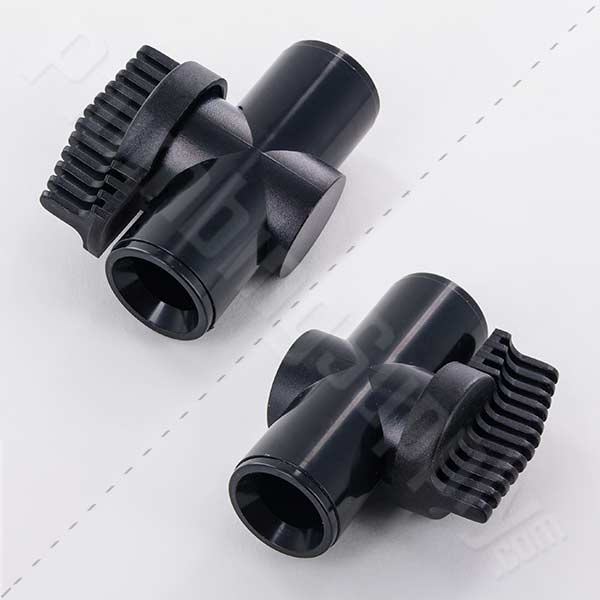

	.700 In-Line valve	FC700	$2.16
	.700 Figure '8' end	F870	$0.16

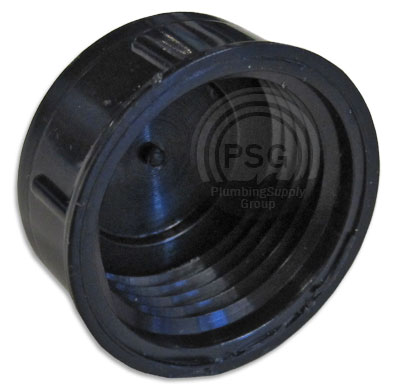

	3/4" Female hose thread cap - includes rubber washer - an extra/second hose washer may be necessary to seal some male hose threaded fittings or hoses	CAP75	$0.37
	Extra vinyl hose washer	PVCHW1	$0.10

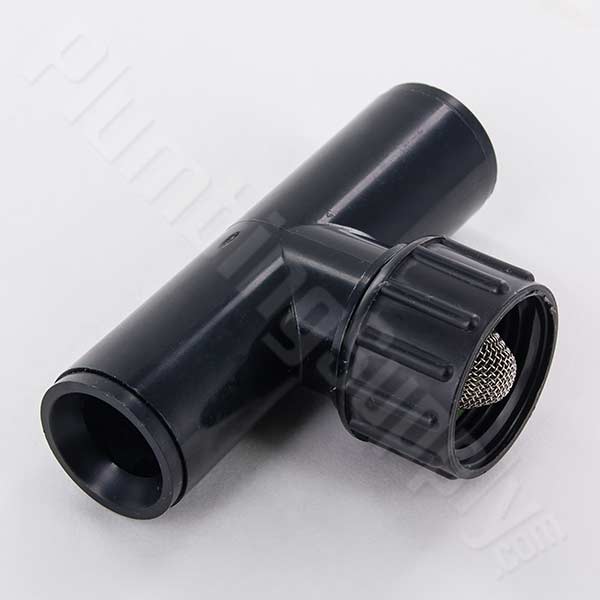

	.700 x 3/4" FHT Tee	CST700	$1.61

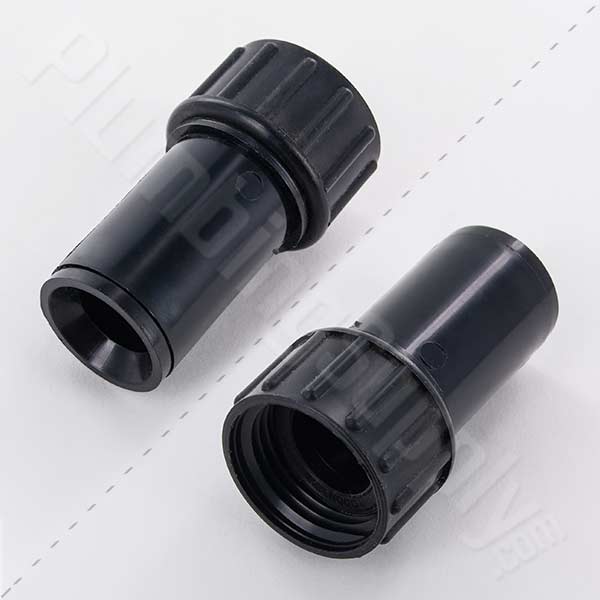

	.700 x 3/4" FHT female hose thread adapter - includes rubber washer	CSAW700	$0.87

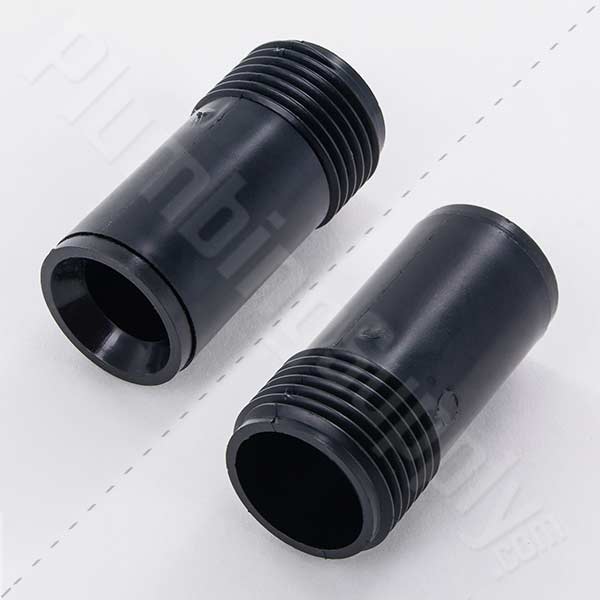

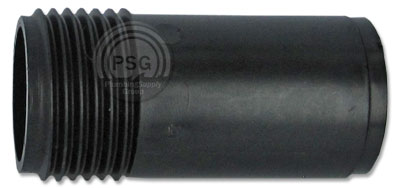

	.700 x 3/4" MHT male hose thread adapter	CMAH700	$0.75

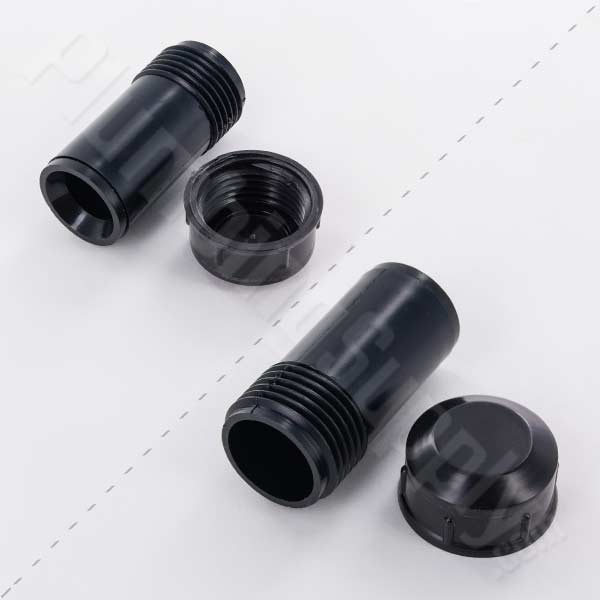

	.700 x 3/4" MHT male hose thread adapter w/ cap - includes rubber washer	D70HMC	$1.02

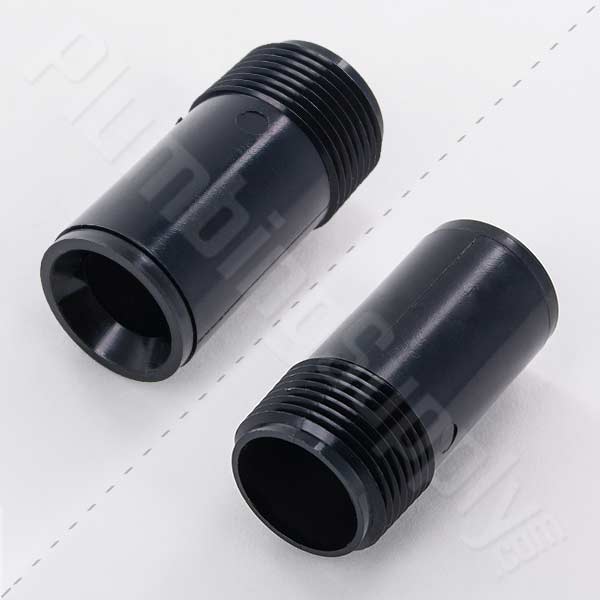

	.700 x 3/4" Male thread (Standard IPS) adapter	CMAP700	$0.75

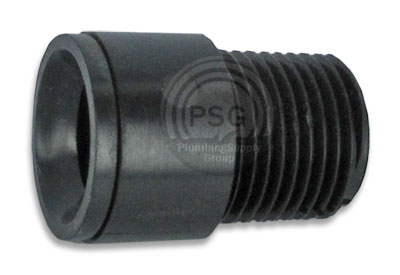

	.700 x 1/2" Male thread (Standard IPS) adapter	CMAP5-700	$0.74

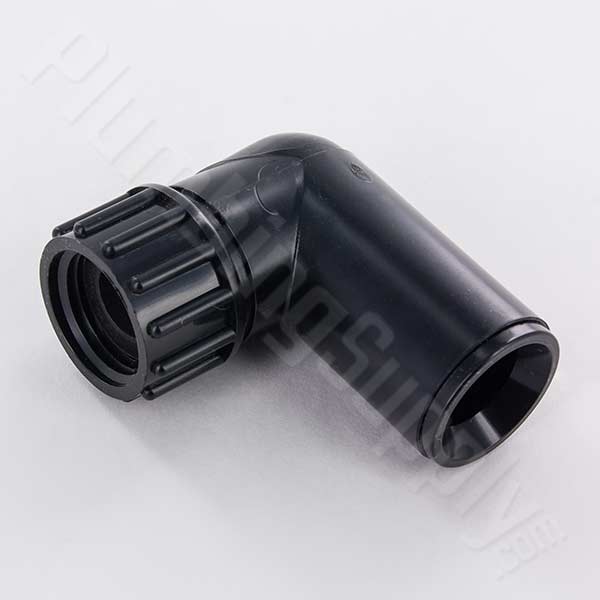

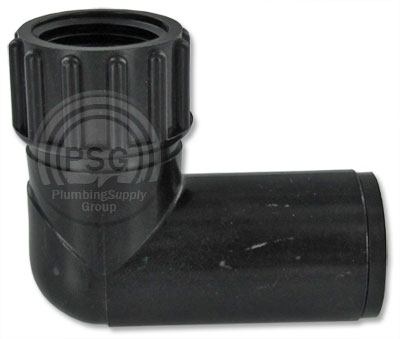

	.700 x 1/2" Female thread (Standard Fips) 90° adapter	RSELW700	$1.64

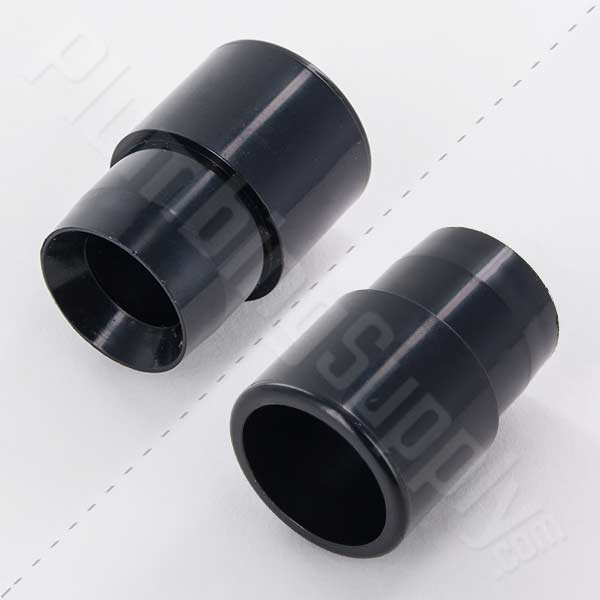

	.700 x 1/2" glue-in slip / 3/4" spigot PVC adapter Note: This adapter fits over 1/2" PVC pipe or into 3/4" PVC fitting. They will not fit over 3/4" PVC pipe.	SA700	$0.58

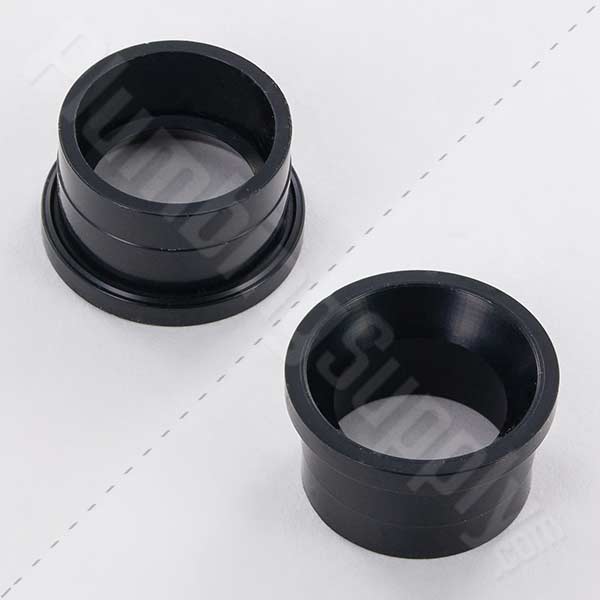

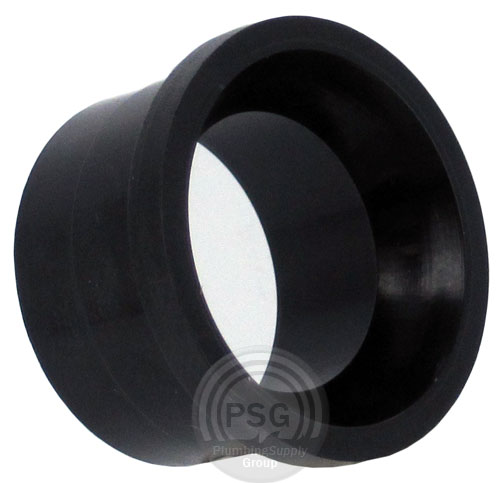

	.700 OD tubing x 1/2" glue-in slip PVC adapter/bushing	CA700	$0.27

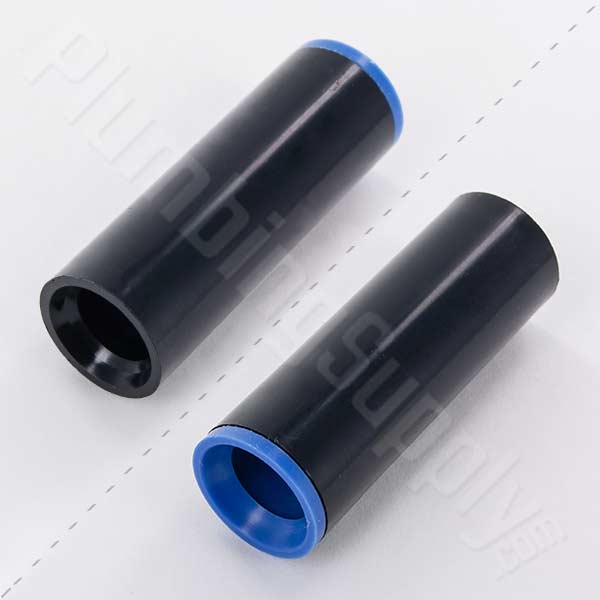

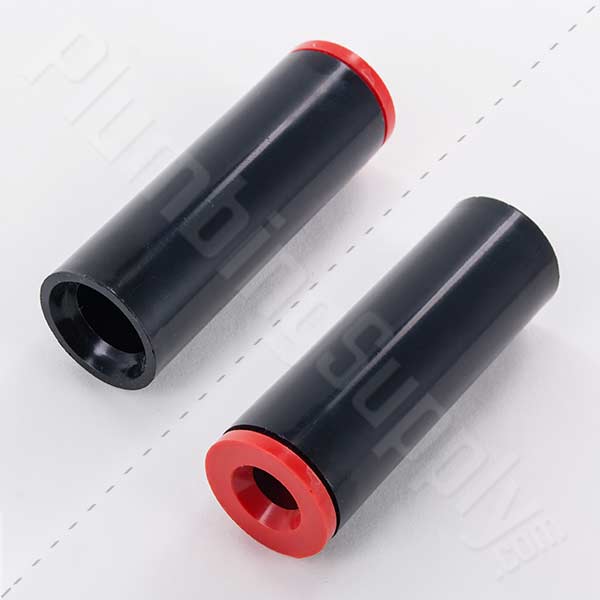

	.700 x .455 tubing connector Note: This connector adapts to .455 - .480 O.D. tubing	RCC5070	$0.63

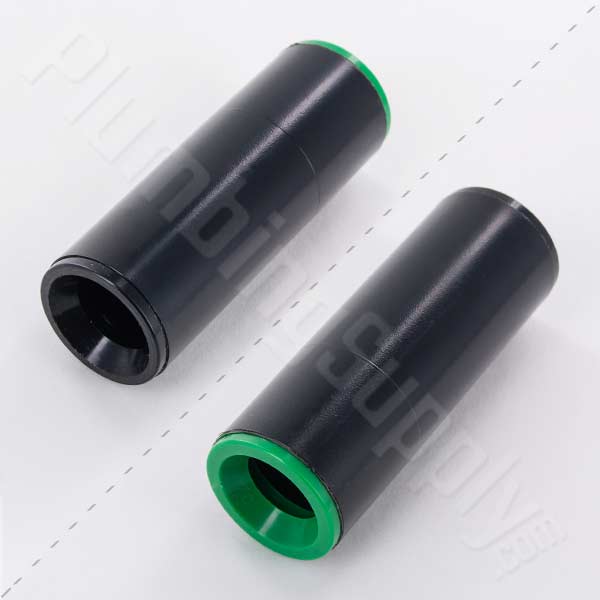

	.700 x .620 tubing connector Note: This connector adapts to .610 - .630 O.D. tubing	RCC6070	$0.55

- Or -

Pressure Regulators - Use when your pressure exceeds 25 psi

These Pressure Regulators are specifically designed for drip systems to lower water pressure when the incoming water pressure is higher than the recommended pressure for the operation and performance of your drip system. Most drip emitters perform best at 20-25 psi water pressure and the tubing and fittings are not designed for more than 45 psi water pressure. Pressure regulators will help keep high pressure from adversely affecting your drip system and provide constant and consistent pressure to your tubing and emitters.

We, at PlumbingSupply.com^®, offer inexpensive yet effective in-line preset plastic pressure regulators and we also offer a brass adjustable pressure regulator with a large plastic adjustment knob for those who wish to precisely adjust their desired drip system pressure. These pressure regulators are not intended to be under constant pressure and therefore should be installed after a shut-off valve or water timer, to reduce the risk of possible damage.

When selecting a pressure regulator remember to keep in mind the flow rate requirements of your drip system. The preset plastic regulators have a flow rate from .2 gpm up to 10 gpm (600 gph), and the brass adjustable pressure regulator has a recommended flow rate of between 5 and 120 gph.

Image	Item Description	Part #	Price & Quantity

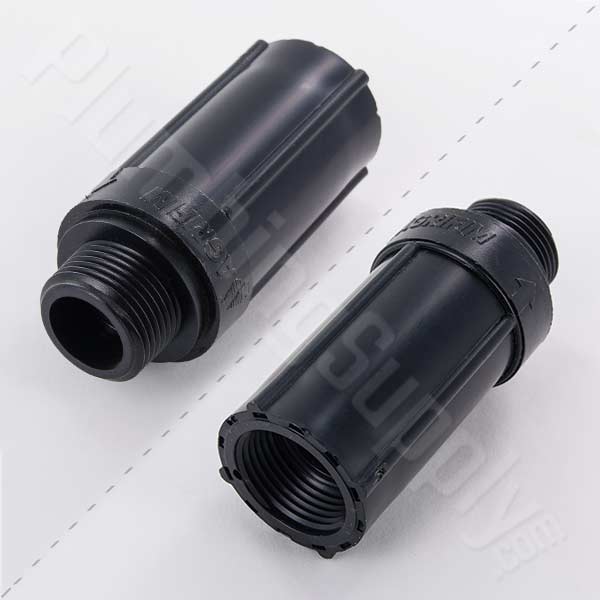

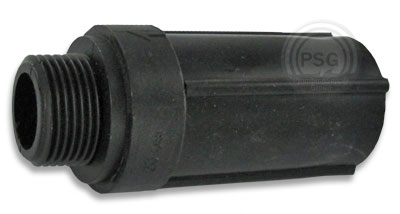

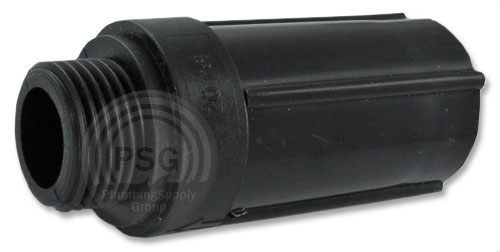

	Pressure regulator 3/4" Fips inlet x 3/4" Mips outlet - 20 psi Max. inlet pressure: 100 psi	PRP20	$6.35

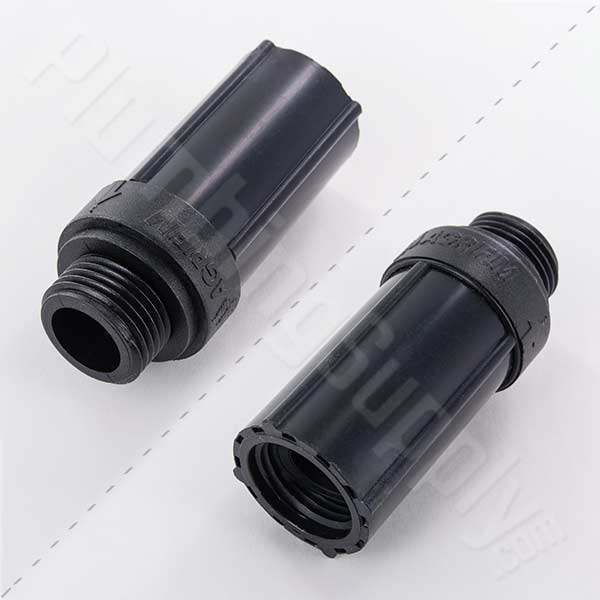

	Pressure regulator 3/4" FHT inlet x 3/4" MHT outlet - 20 psi Max. inlet pressure: 100 psi	PRH-20	$7.02

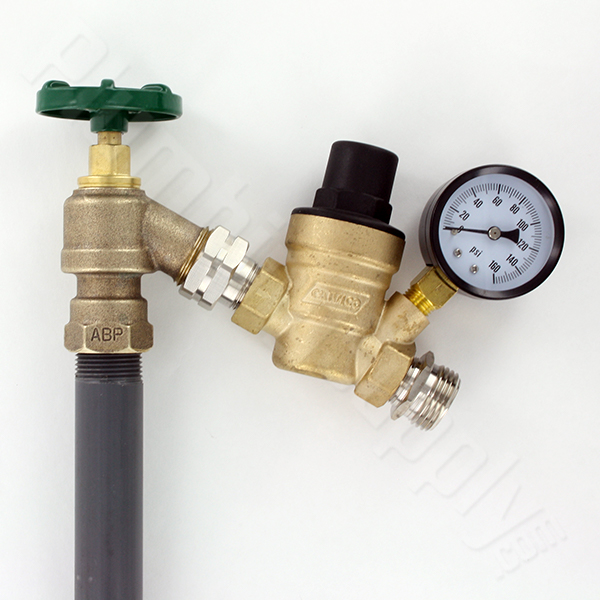

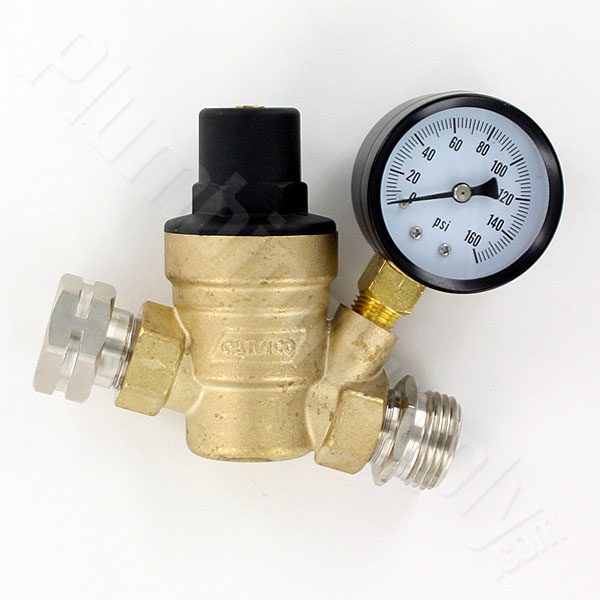

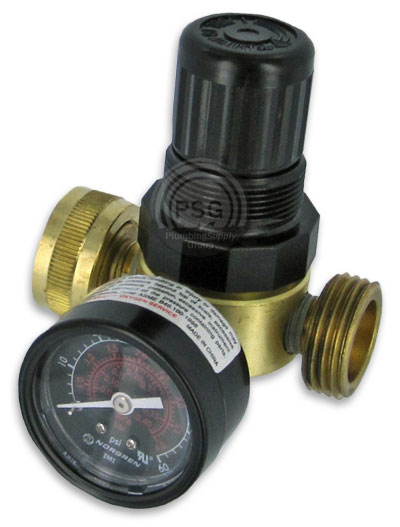

	Adjustable pressure regulator w/ gauge - 3/4" FHT inlet x 3/4" MHT outlet Adjustment Range: 5-50 psi Flow: 5 - 120GPH Max. inlet pressure: 150 psi	R450C	$42.85
Click here for more information about drip systems

- Or -

to Quick Connect Hose Fittings

Filters - Screen Style ("strainers")

Filters can play a very important role in any drip system. Small sediment, or dirt particles can easily and quickly clog drip emitters. Wye-Style in-line and straight in-line filters are a very simple solution to quickly and easily remove these substances from your water and protect your drip system.

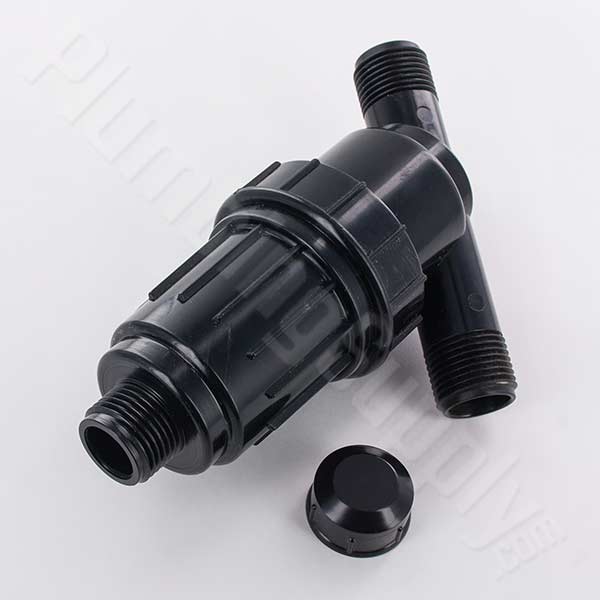

Wye-Style Filters

Wye-style filters include a 150 mesh screen and are designed for cleaning convenience by simply turning off the water, removing the cap at the bottom of the filter and then turning the water back on to flush out any debris that has been trapped in the screen. Or to make it even more simple, these are available with a ball valve included at the bottom of the filter so you won't even have to turn the water off, just open the ball valve to flush the screen and close the ball valve once it has been purged.

Water enters the filter through the inside of the screen and is forced through to the outside of the screen while the debris or sediment is kept on the inside of the screen. As long as the cap or ball valve at the bottom of the filter is closed, water is forced to go through the screen to get to the outlet side and into your drip system. This is why when the cap or optional ball valve is opened at the bottom of the filter, water will flush the inside of the screen and clean it out.

Wye-style filters are available with 3/4" male hose thread (MHT) inlet and outlet or with male iron pipe thread (Mipt) inlet and outlet in both 3/4" and 1" sizes and can be purchased with or without the ball valve.

Imgage	Description	Part #	Price & Quantity With Cap	Description	Part #	Price & Quantity With Valve

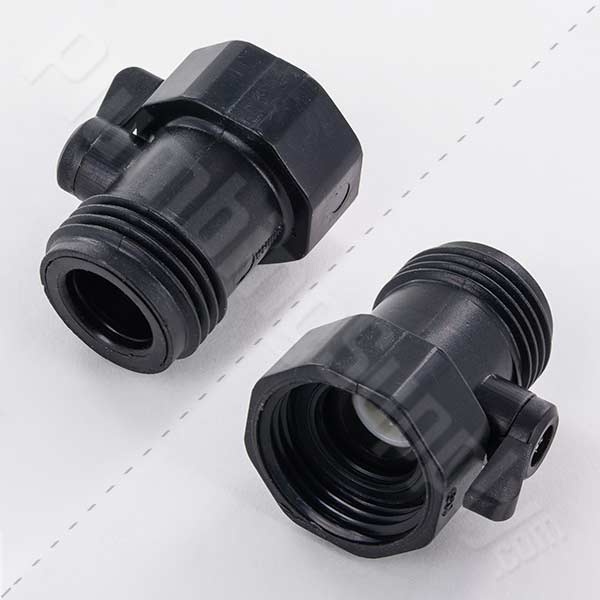

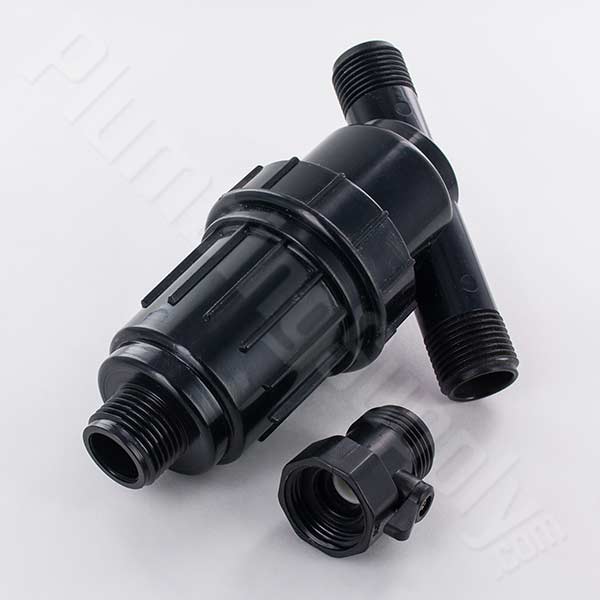

	Wye style 3/4" MHT x 3/4" MHT	DFILHC	$11.31	w/ BV75 Valve	DFILHV	$12.83

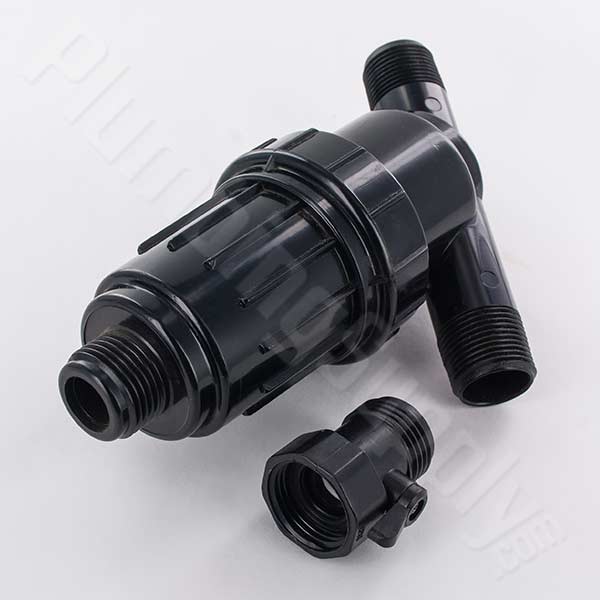

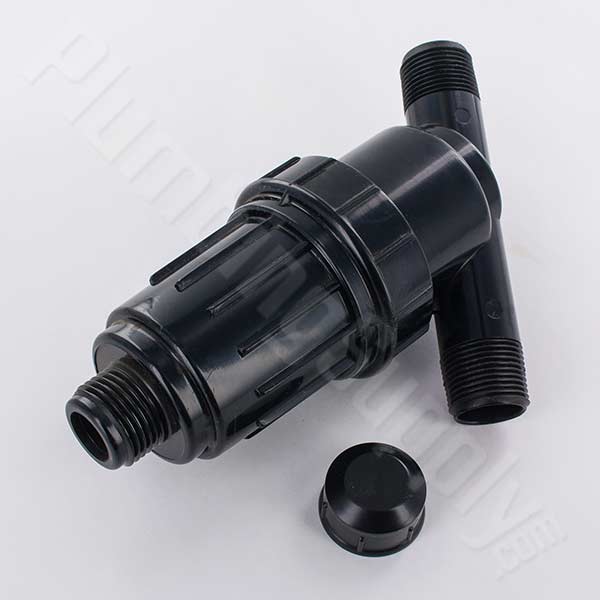

	Wye style 3/4" Mips x 3/4" Mips	YS75	$10.09	w/ BV75 Valve	YSV75	$11.86

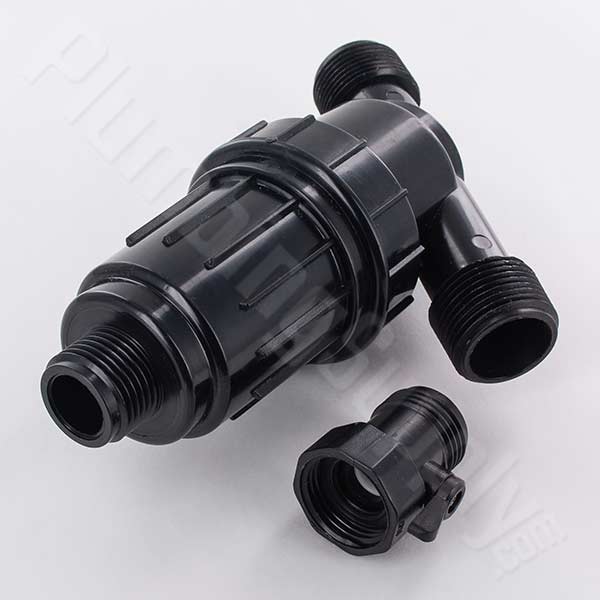

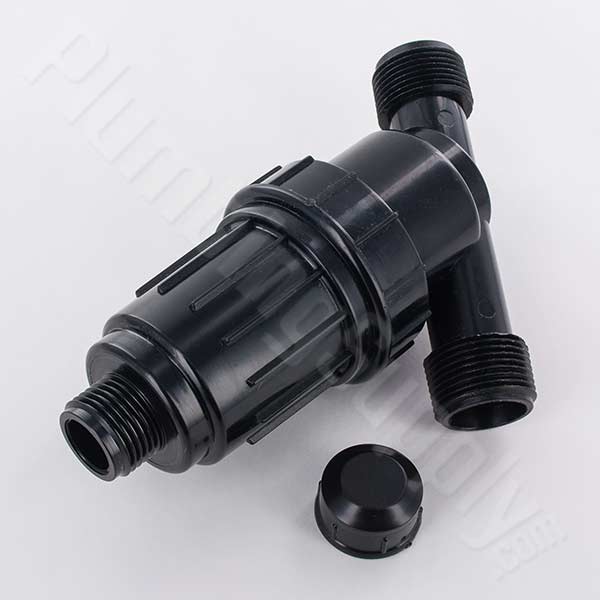

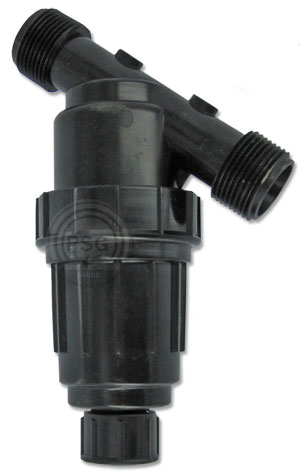

	Wye style 1" Mips x 1" Mips	YS100	$10.47	w/ BV75 Valve	YSV100	$12.38

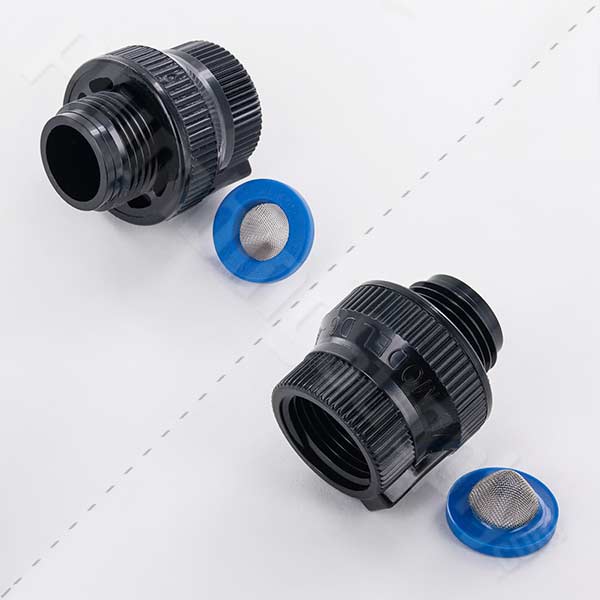

In-Line Filters & Screens

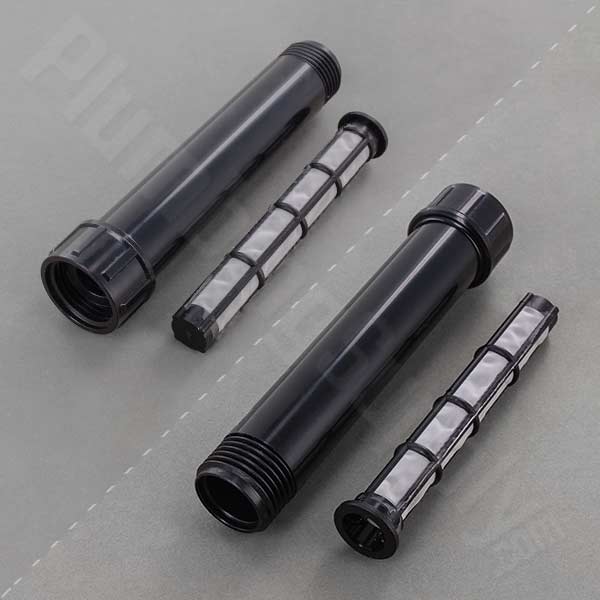

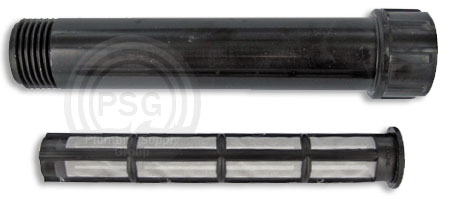

FIL75 In-line Filters are designed so the 3/4" FHT is the inlet side and the 3/4" MHT is the outlet side of the housing. The 120 mesh filter screen is inserted into the housing through the 3/4" MHT side and is flanged so it will seat into the center of the tube. The flanged end also keeps the filter screen from bottoming out at the FHT side. The screen will internally stop 1/2" from the FHT side so water will have room to flow into the housing through the FHT side as it is forced to surround the outside of the filter screen. Any debris or sediment will be kept to the outside of the screen as the clear water enters into the inside of the screen and then out through the MHT side and into your drip system. This makes cleaning very easy by simply removing the screen, washing or hosing off the sediment trapped on the outside of the screen, and then reinserting the screen back into the housing.

Image	Description	Part #	Price & Quantity
	In-Line Style strainer - 3/4" MHT x 3/4" FHT Includes (1) 120 mesh filter screen	FIL75	$4.44

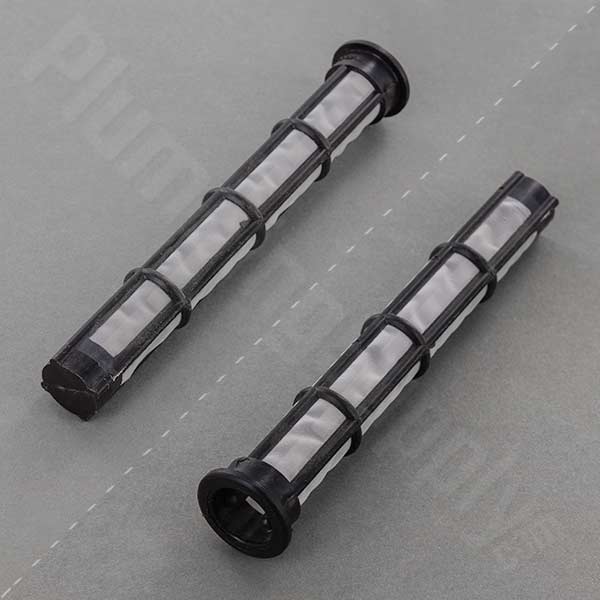

	Replacement 120 Mesh Filter Screen	SP120	$3.17

- Or -

Drip System Stakes

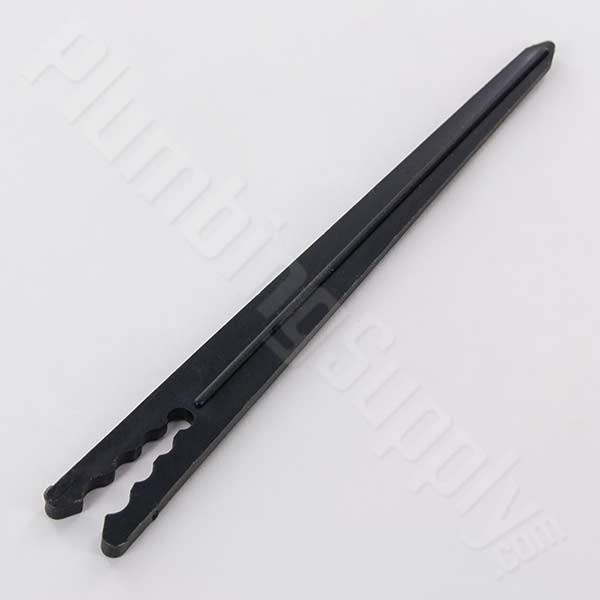

S6 Stakes are 6" long and can be used to keep horizontal 1/4" drip tubing in place next to the plant or in-line as needed to manage 1/4" tubing along the way to the plant. Since the tubing comes in a roll, the tubing will naturally want to recoil and not always stay in the position you wish it would without a little help from the stake.

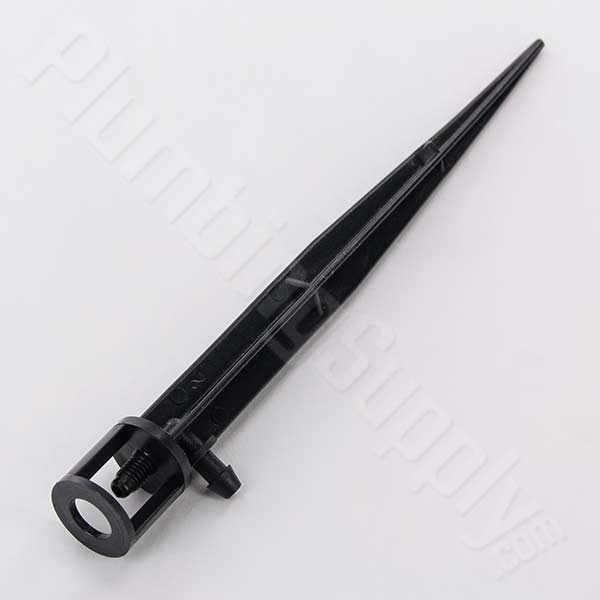

S5 Stakes are 6" long and allow you to add a drip riser to the top outlet for use with Micro-Sprinklers, Jet Sprays, or 10-32 NFT threaded Dial-A-Flo™ emitters. 1/4" drip tubing can be connected to the side barbed inlet or the side barbed inlet can be inserted directly into the side of 1/2" drip supply tubing.

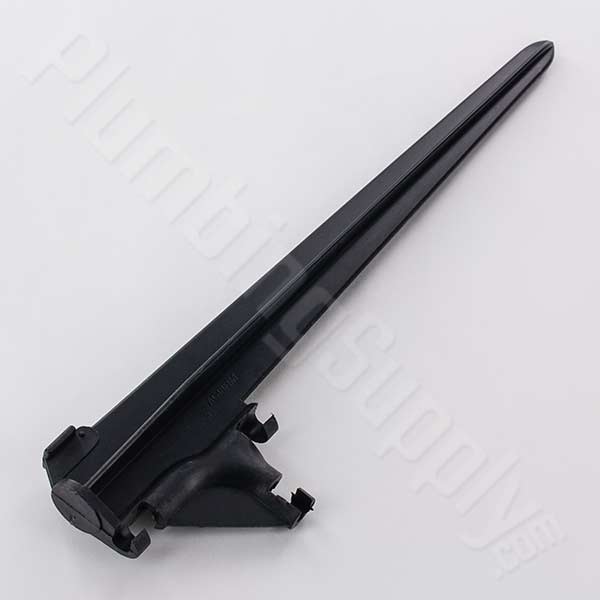

S12 Stakes provide great support for 1/4" drip tubing but are not made to fit or work with drip risers. The drip risers have a slightly larger diameter than regular 1/4" drip tubing and will not snap-in and attach in the support track. These 12" long stakes are tough enough to be hammered into the ground if needed. The 1/4" tubing is snapped vertically into the stake support track from the bottom up through the top of the stake or snapped into the preformed 90° support track from the side up through the top of the stake. Once it is in place the 1/4" drip tubing can be pulled back and forth for any further adjustment.

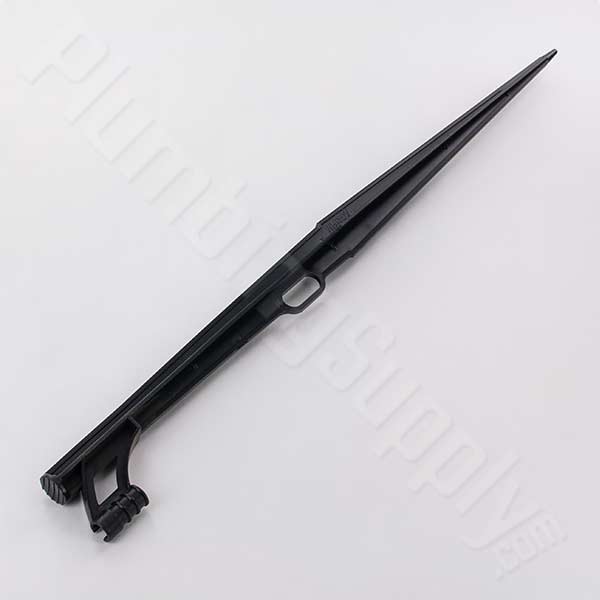

S17 Stakes are 17" long and made strong enough to be hammered into the ground to support drip risers. Ideal for elevating Hydro-Flo™ fan spray jets, Dial-A-Flo™ emitters or micro-sprinklers attached to drip risers. Although these S17 stakes are specifically designed for drip risers they can also hold and support 1/4" drip tubing.


S6	S5	S12	S17
6" Stake	6" Stake w/ elbow	12" Stake	17" Stake
$0.14	$0.51	$0.38	$0.49

- Or -

Drip System Wire Supports & Hold Downs

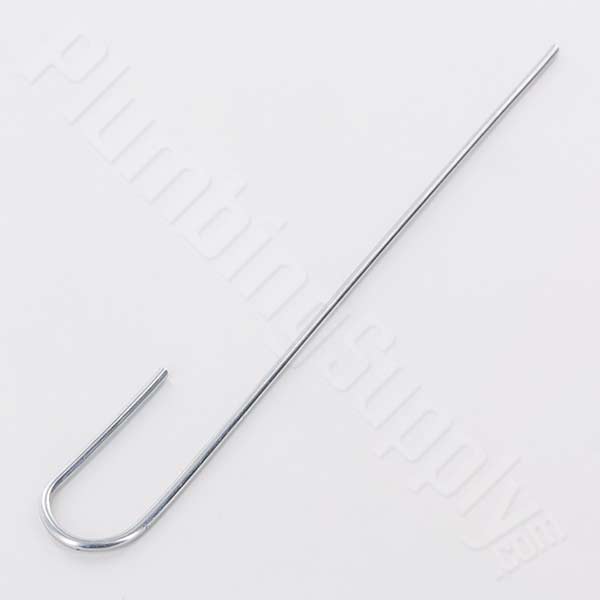

S8 Stakes are an 8" long 12 gauge galvanized wire used to hold 1/2"(.700od x .600id) drip tubing in place on the ground.

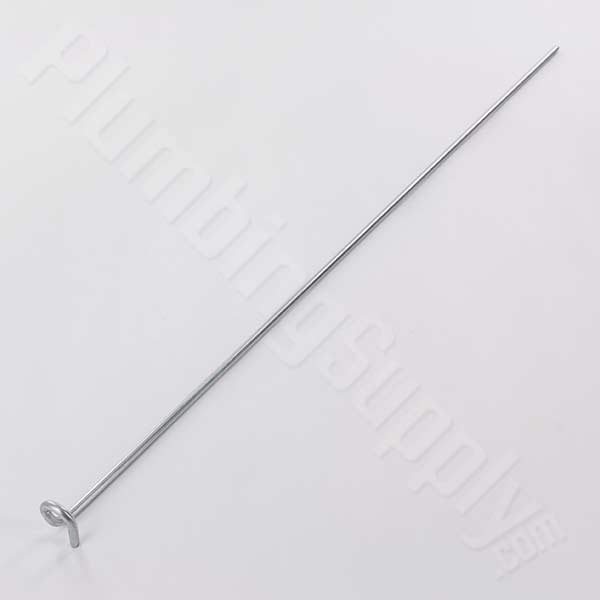

S14 Stakes are 14" long 11 Gauge, galvanized wire used as a stabilizer stake for drip risers with Hydro-Flo™ fan spray jets, micro-sprinklers, or Dial-A-Flo™ emitters attached.

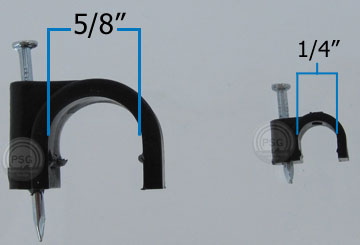

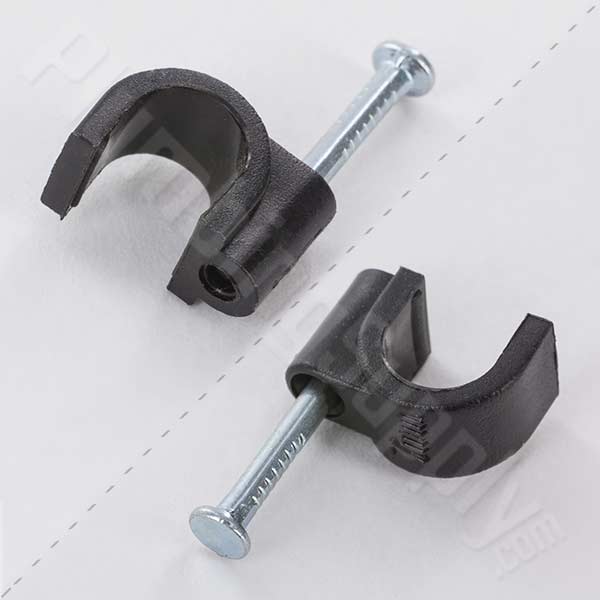

MC250 are a plastic mounting clip, with a 3/4" long nail, used to attach 1/4" drip tubing to wood planter boxes, patio covers, pergolas, decks, or other wood substances where your drip tubing may need to be fastened.

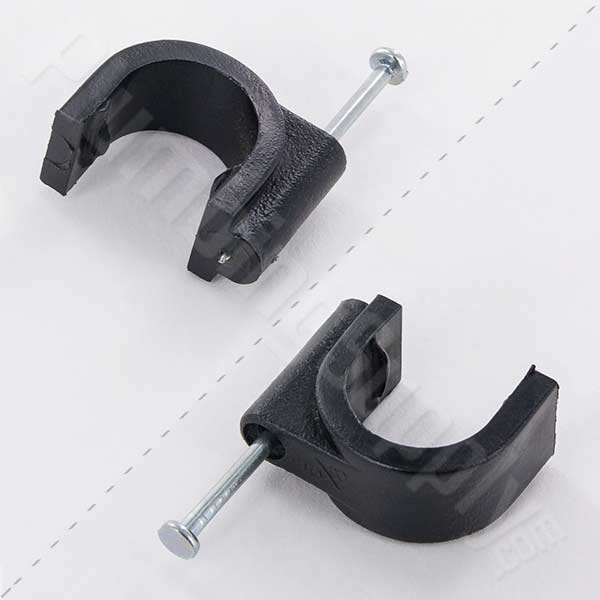

MC710 plastic mounting clips have a 1-3/8" long nail to enable the attaching of 1/2" (.700od x .600id) drip tubing to wood surfaces such as patio covers, trellises and arbors, or other wood structures that can be used to support drip tubing near your plants or shrubs..

- Click on any image for larger view -


S8	S14	MC250	MC710	S7

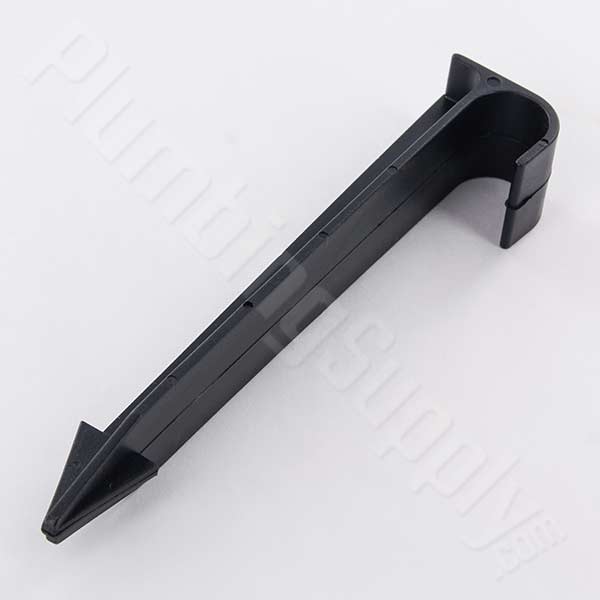

8" Wire stake	14" Wire support	1/4" Hold down	.700" Hold down	.700" Hold down
$0.44	$0.61	$0.07	$0.22	$0.38

- Or -

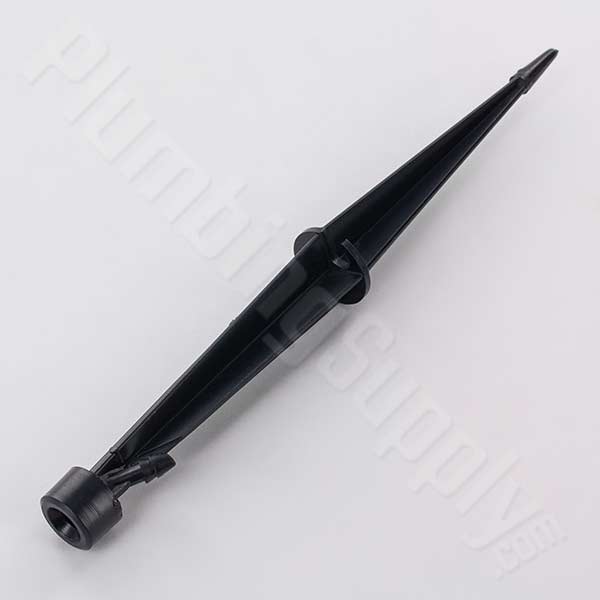

Risers - 10-32 NFT Threads

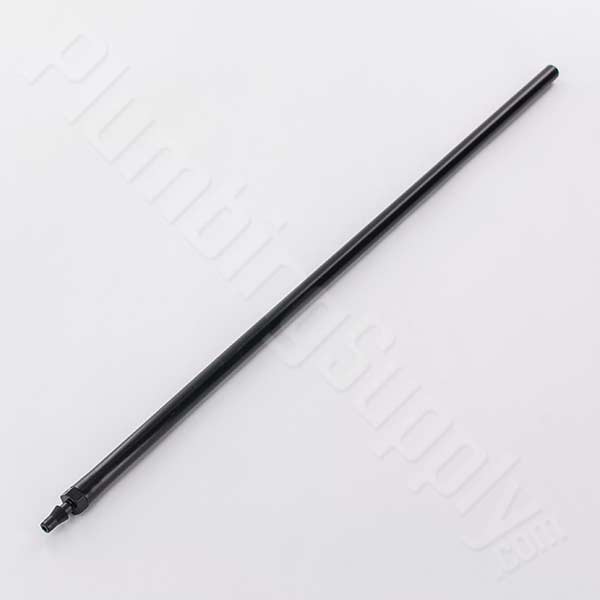

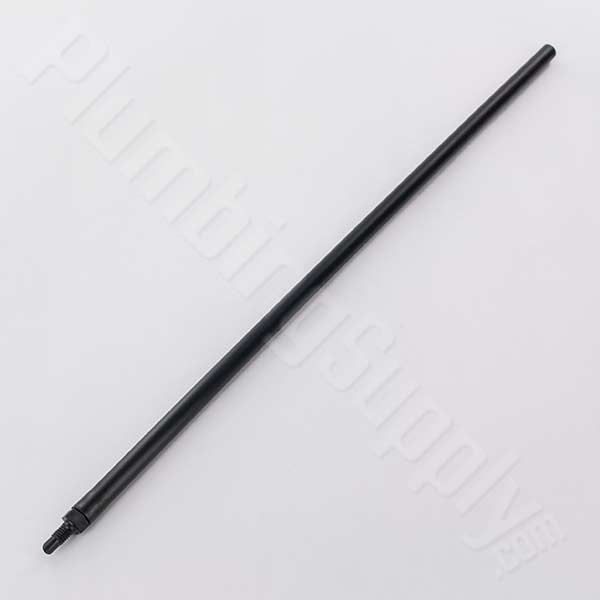

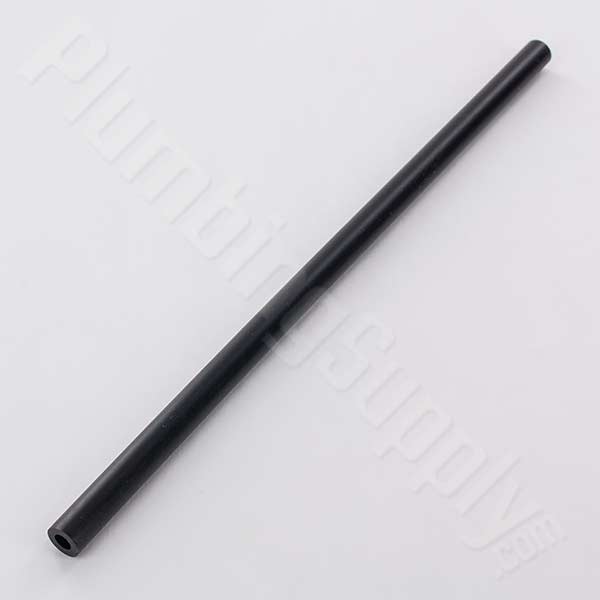

Drip Risers (.30od x .16id) are more rigid than normal 1/4" drip tubing because they are slightly larger in diameter on the outside and smaller in diameter on the inside than normal 1/4" drip tubing (.25od x .17id). This rigidity, and the fact they are made in straight lengths and not coils, is advantageous for use with fan sprays, micro-sprinklers, and dial-a-flow emitters to assure they stay in exactly the place you want them. Extra added support is possible with the use of drip stakes S17 and the S14 wire supports when needed. Drip risers are not pre-threaded and male 10-32 NFT threads will self-tap into the riser. Drip risers can be cut shorter, but make sure they are cut square so emitters or other fittings with 10-32 NFT threads will be able to screw into them correctly. The BT250 Barbed Riser Adapter is used to elevate or extend fan spray jets, micro-sprinklers, and other emitters with 10-32 NFT threads. The barbed side of the BT250 fitting can be inserted directly into 1/2" (.700 od) drip tubing or into the end of 1/4" drip tubing. R8 or R12 risers can then be screwed onto the 10-32 NFT threads to extend Hydro-Flo™ fan spray jets, micro-sprinklers, or Dial-A-Flo™ emitters that can be screwed into the other side of the riser. The TT250 Threaded Riser Adapters can be used to couple two drip risers together to achieve the correct length of extension you may need.

- Click on any image for larger view -

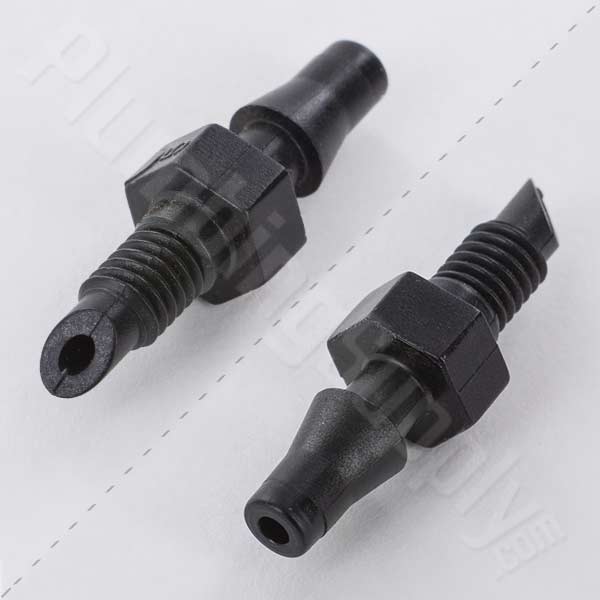

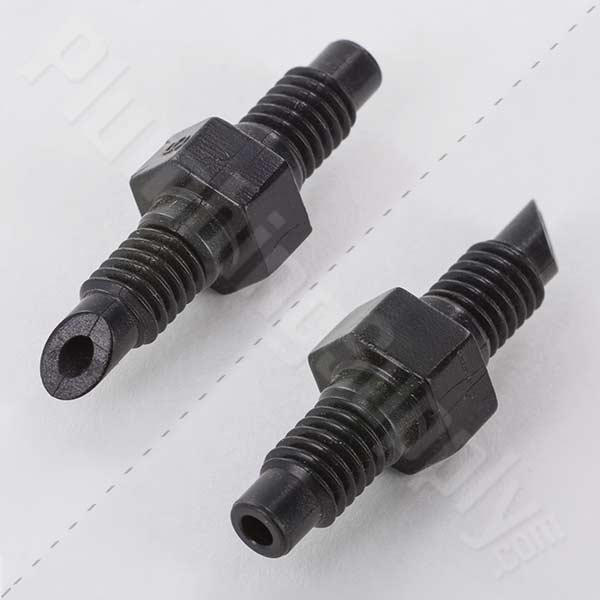

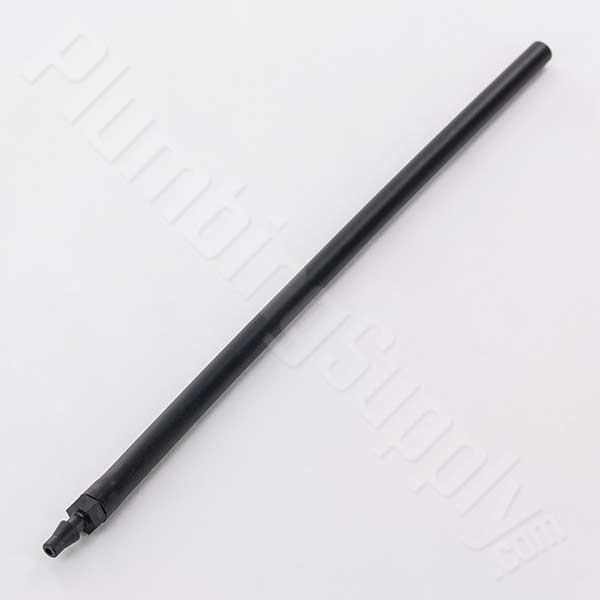

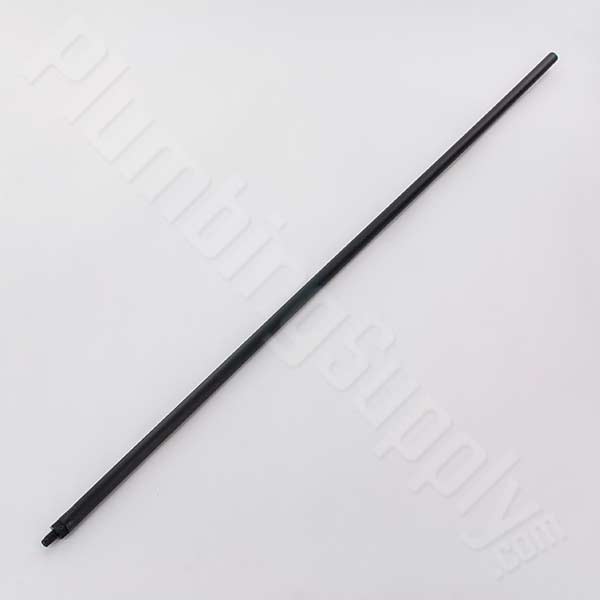

R8	R12	RABT8	RABT12	BT250	RABTT12	RABTT18	TT25

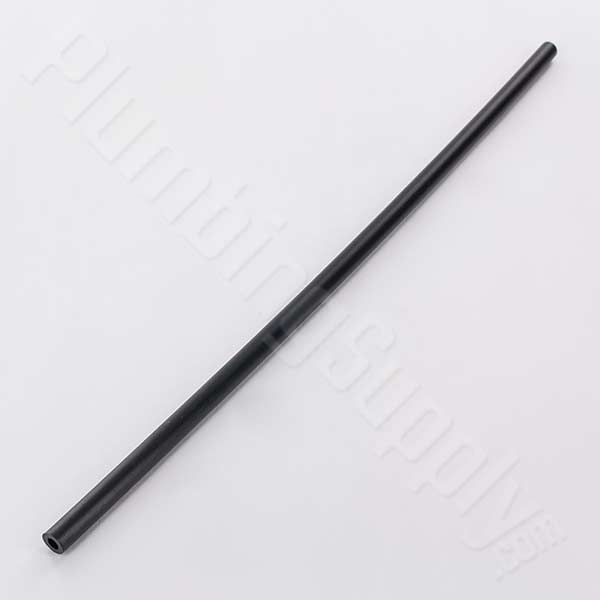

8" Riser	12" Riser	8" Barbed riser	12" Barbed riser	Barbed riser adapter	12" Threaded riser	18" Threaded riser	Threaded riser adapter
$0.16	$0.23	$0.32	$0.40	$0.16	$0.39	$0.45	$0.16

- Or -

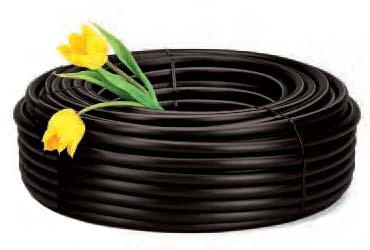

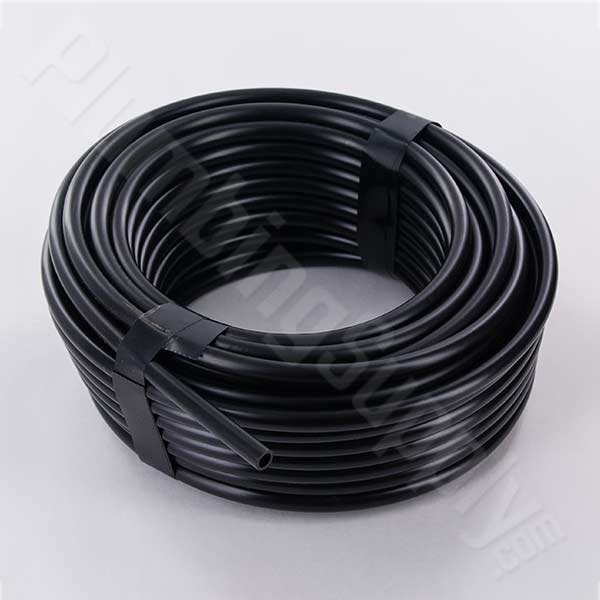

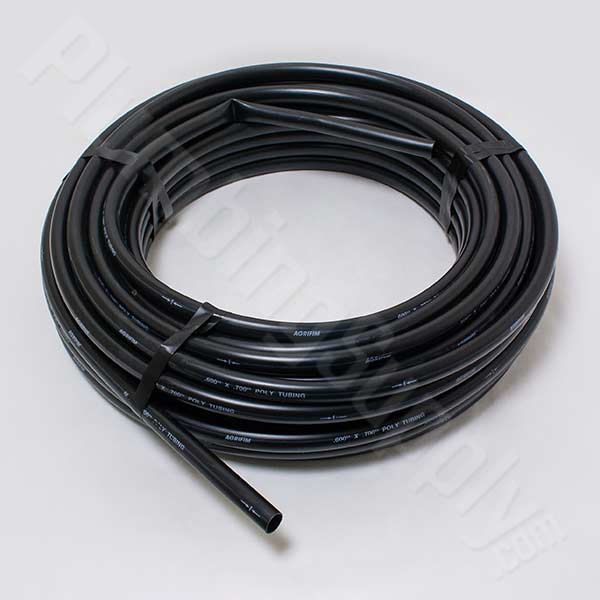

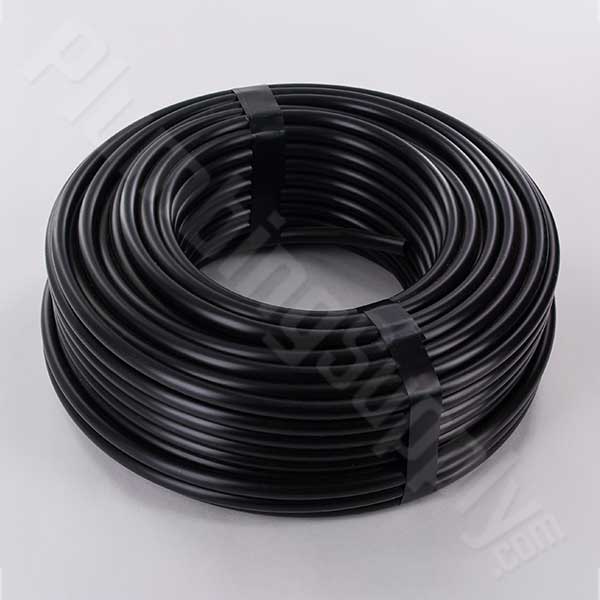

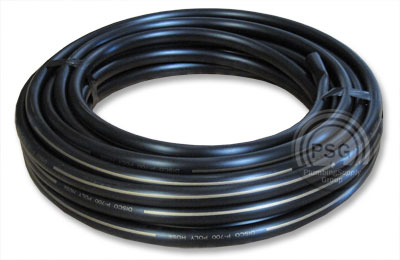

Polyethylene Distribution Tubing (pipe)

The 1/2" drip tubing we sell measures .700"od (.600"id). We refer to it as .700"od because 1/2" drip tubing can actually vary in size from .455"od all the way up to .900"od. Different sizes of 1/2" tubing sold elsewhere are not always interchangeable with other 1/2" drip tubing (although, we have adapters for just about any size). This is in contrast to the 1/4" drip tubing, which is almost universally 1/4" outside diameter (.170"id).

Our drip tubing, both .700"od and 1/4"od, is manufactured from high quality, UV resistant, Union Carbide polyethylene #7510 or virgin LLDPE (Dow 7510) resin (or equal). Both sizes of tubing are a professional contractor grade, low density, linear, flexible polyethylene tubing, specifically designed to help eliminate pipe failures due to ultraviolet rays and environmental stress cracking. This tubing is ideal for all gardening and landscaping applications.

You normally use .700" tubing for main supply lines and 1/4" tubing for individual feeder lines. If you find your main 1/2" solid (.700 o.d.) tubing drip line ends up being some distance from one of your plants, and you really do not want to run more 1/2" drip line for just one plant, then punch a hole into your 1/2" drip tubing, insert a 1/4" coupling into your punched hole and attach 1/4" solid (.25od x .17id) tubing to extend the emitter closer to that isolated shrub, plant or tree.

Roll Length	Price & Quantity 1/4" solid (.25od x .17id)	Price & Quantity 1/2" solid (.700od x .600id)

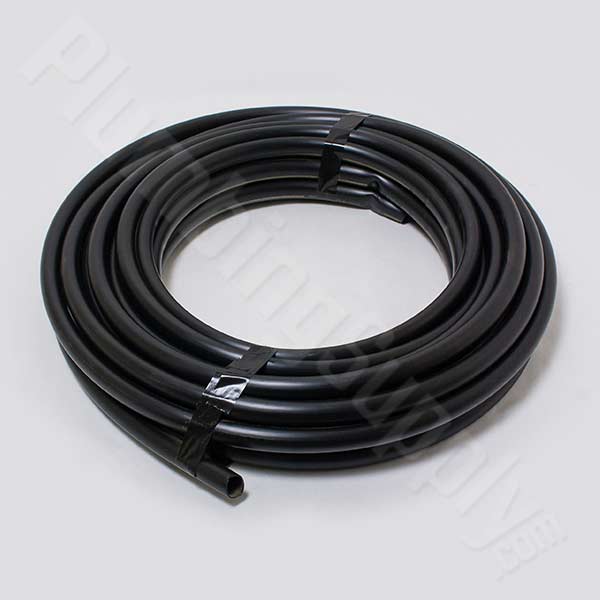

50ft	RXO250-50 = $5.45	P700-50 = $8.95
100ft	RXO250 = $9.86	P700-100 = $17.92
500ft	--	P700-500 = $63.15

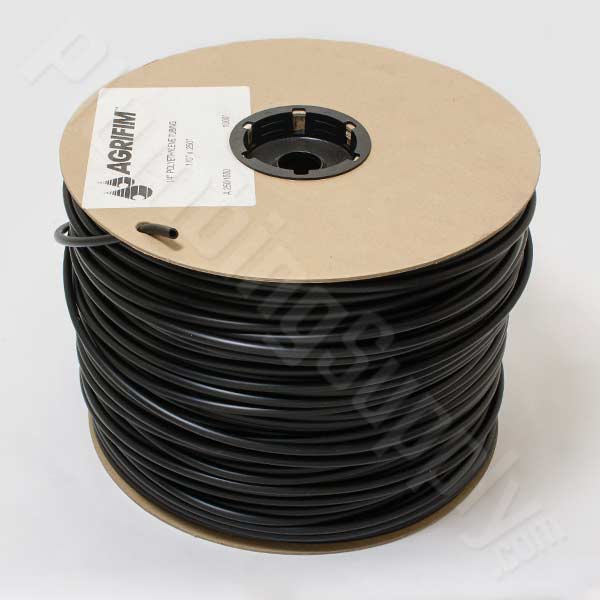

1000ft	RXO250-1000 = $48.98	--

- Or -

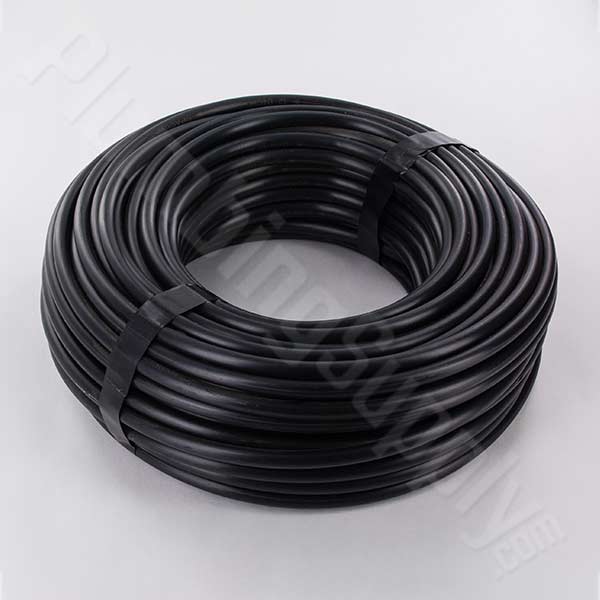

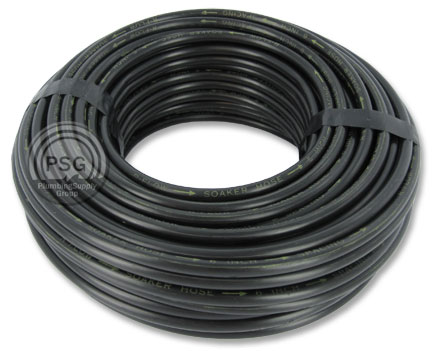

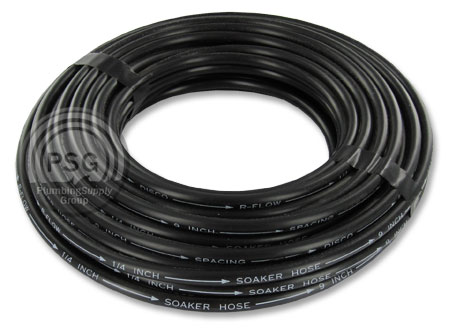

1/4" Polyethylene Drip Tubing w/ Drilled Holes

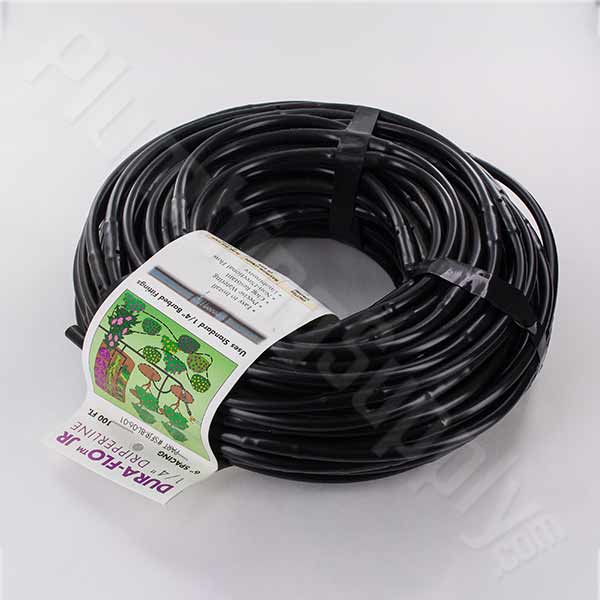

This 1/4"od drip tubing is laser drilled precisely every 6" or 9" apart from center to center to provide a quick and easy watering solution for closely spaced plants, ground cover, or hedges, and is perfect for vegetable gardens.

Laser tubing is also a simple way of making loops around trees and inside planter boxes, or making rings for large pots and containers. This laser tubing is made of the same low density, high quality, flexible polyethylene tubing as the solid tubing. The ultraviolet inhibitors help eliminate pipe failures due to adverse environmental weather conditions.

1/4" tubing

1/4 Polyethylene Drip Tubing w/ Drilled Holes with 9 inch spacing

1/4" tubing

Roll Length	Price & Quantity laser drilled (6" CxC)	Price & Quantity laser drilled (9" CxC)	Price & Quantity laser drilled (12" CxC)
50ft	--	$13.69 Super Sale	--
100ft	$24.59 Super Sale	$22.67 Super Sale	$23.68 Super Sale
Super Sale items are for a limited time only, while supplies last

- Or -

Miscellaneous Fittings
Image	Item Description	Price & Quantity

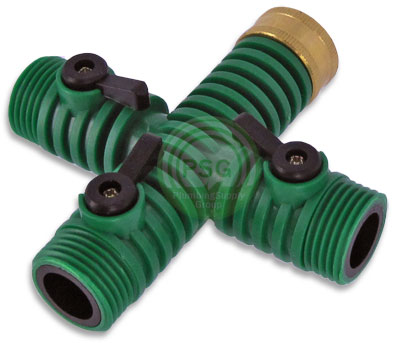

	3-Outlet manifold Converts one faucet to three separate controllable outlets 3/4" FHT inlet - Three (3) 3/4" MHT outlets Solid plastic sphere internal ball valves. No leak shut-off.	$2.99
	Zinc metal hose wye (siamese) 3/4" FHT inlet - Two (2) 3/4" MHT outlets Internal solid plastic sphere ball valves. No leak, positive, shut-off.	$4.85
	Vacuum breaker 3/4" FHT inlet - 3/4" MHT outlet We recommend using this vacuum breaker to protect your drinking water system. Helps keep any unclean water from backing up into your fresh water supply.	$3.75
	Hose threaded in-line valve - 1/4-turn 3/4" FHT inlet - 3/4" MHT outlet. Solid plastic sphere internal ball valve provides smooth, positive, no leak, shut off.	$1.87
	Brass garden hose shut-off valve 3/4" FHT inlet - 3/4" MHT outlet Solid brass construction with solid sphere internal ball valve provides smooth, positive, no leak shut off. Controls and allows throttling of water flow.	$9.99

- Or -

Drip Poly Tubing Cutter
	This Drip Poly Tubing Cutter is designed for cutting soft vinyl tubing and drip hose up to 1-3/8" od. Slim structured PVC handles provide the user light and easy maneuverability for quick cutting performance. Blade is heat treated for hardness and durability.

Item Description	Price & Quantity
Soft pipe & hose scissor cutter	$8.99
Blade for soft pipe & hose scissor cutter Keep an extra blade on hand just in case!	$7.79

- Or -

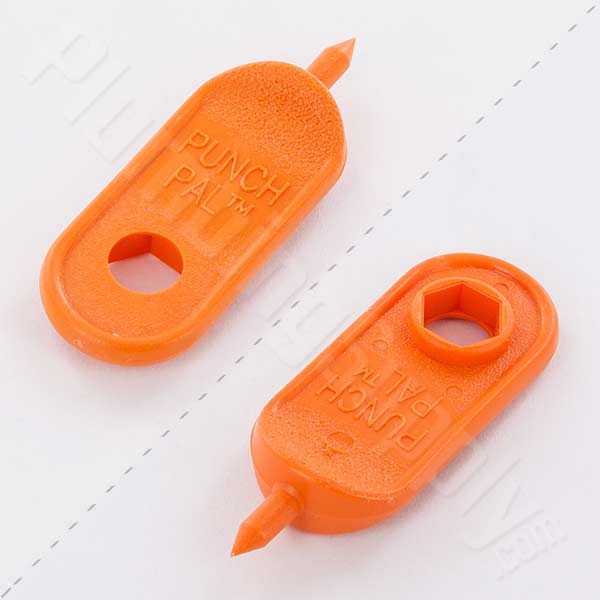

Hole Punches & Combination Hole Punches

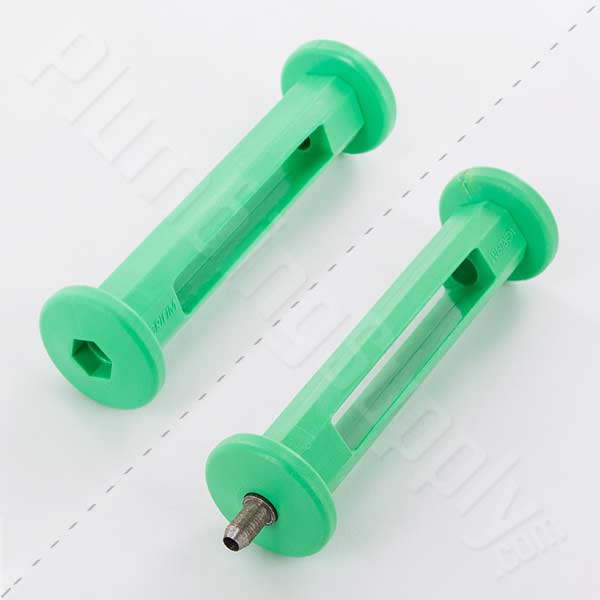

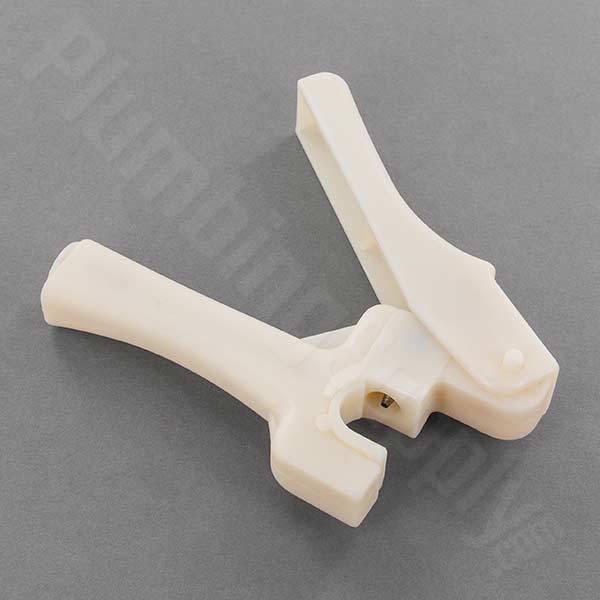

The Deluxe and the Budget punch tools include an integral female hex opening that can be used to help tighten Hydro-Flo™ fan sprays and riser adapters into drip risers. The Professional Punch tool has a user friendly comfortable handle grip for easier operation when multiple holes must be punched in 1/2", 5/8", or .710" drip hoses, but unfortunately does not contain a hex opening. The Pocket Punch is an excellent tool for punching holes in 1/2", 5/8", or .710" drip hoses and includes a gripper for inserting and removing 1/4" barbed emitters. The Punch N Cut is a combination drip tube cutter, a hole punch and includes two strategically located grippers for inserting and removing 1/4" barbed emitters.

Item Description		Price & Quantity
	Budget 'key style' punch Free with $50.00 drip products order Note: You must mention "free punch" in the "Comments" section of your order when checking out to receive the free punch	$0.61
	Pocket punch Combination hole punch and 1/4" dripper installation tool	$6.95
	Deluxe punch Free with $200.00 drip products order Note: You must mention "free punch" in the "Comments" section of your order when checking out to receive the free punch	$2.51
	Professional punch Punches holes in 1/2", 5/8", or .710" hose Comfortable & ergonomic handle	$10.45
	Punch N Cut Combination hole punch, drip irritation tube cutter, and 1/4" dripper installation tool	$12.89

Note: If you qualify for a free punch, simply type "free punch" in the comments section of your order

- Or -

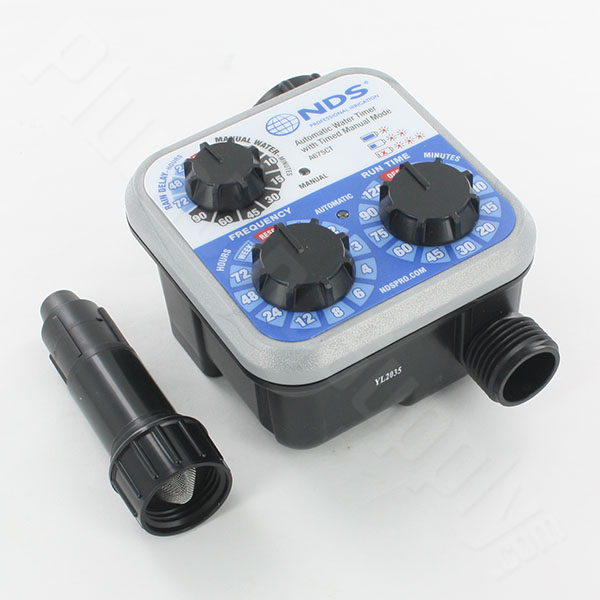

Analog & Digital Water Timers

These water timers have 3/4" female hose thread inlets & 3/4" male hose thread outlets for easy hook-up to any hose bibb. Easily adjusted timer settings allow you to customize your specific watering needs. Manual override on & off feature for those extra sunny or rainy days. A built-in indicator shows when batteries are running low.

Model #	Description	Price & Quantity
R672CT	Easy to use analog water timer Large control knobs for easy set-up Watering frequency every 1, 2, 3, 4, 6, 8, 12, 24, 48, 72, or 168 hours Run times of 1, 3, 5, 10, 15, 20, 30, 60, or 120 minutes 3/4" female hose thread inlet x 3/4" male hose thread outlet Requires two AAA batteries (not included)	$32.95

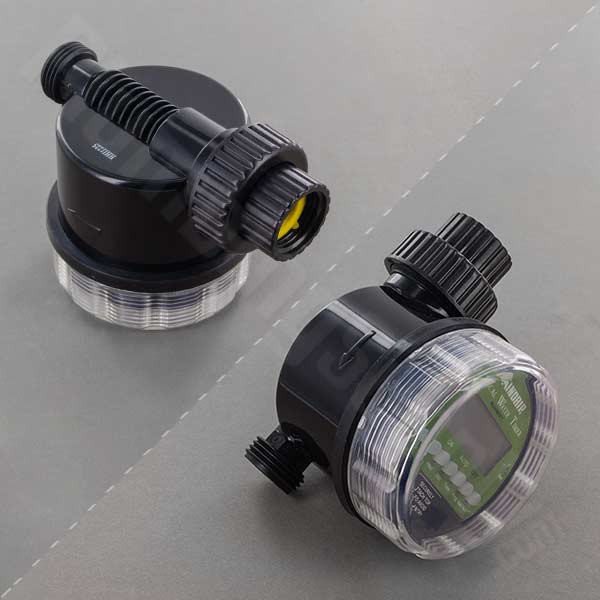

R673CT	Digital display water timer with custom watering settings Set to run on specific days & time with adjustable watering times 3/4" female hose thread inlet x 3/4" male hose thread outlet Requires two AAA batteries (not included)	$39.99
R682CP	Two zone analog water timer controls two separate zones with one faucet Large control knobs for quick & easy set-up Each zones can run on individual watering settings Watering frequency every 1, 2, 3, 4, 6, 8, 12, 24, 48, 72, or 168 hours Run times of 1, 3, 5, 10, 15, 20, 30, 60, or 120 minutes 3/4" female hose thread inlet x (2) 3/4" male hose thread outlet Requires two AA batteries (not included)	$59.99

- Or -

50 Foot Sprinkler / Soaker Hose
As a soaker hose for your garden or a sprinkler hose for your lawn and children, these great hoses make wonderful additions to your home. These hoses have small holes in them to allow water out in a fine spray. When using the hose as a soaker hose, it is best to cover the hose with soil or mulch (for aesthetic reasons), however, this item can be placed on the surface of the soil if you like. Another nice thing about these hoses is that once you set it out and bury it, you leave it there. You will not have to constantly roll and unroll your hose every time you want to water your plants. It is a quick, cheap, and easy way to create a good sized garden... and it's super easy to remove should you have a change of heart regarding your garden. "Easy" just got easier - use this soaker hose with one of our timers to automate your watering schedule.
Click image to enlarge	Features: 3-tube sprinkler design makes it a great watering device Dual purpose watering - white stripes up for sprinkling, white stripes down for soaking 50' long - great fit for even the largest gardens Three tube construction provides a 40' wide spray pattern Removable cap on end to add additional lengths Great for kids to play in when it's extra hot

50ft Super Sprinkler / Soaker Hose - $16.95

- Or -

Common Plumbing Terms/Abbreviations

GPH: Gallons Per hour
GPM: Gallons Per Minute
Barb: A barbed fitting uses an angled barb that grips and holds down against the inside of the tube, so that hose is easily mounted onto the barb, but is more difficult to remove.
FHT: Female Hose Threads; Threads on inside of fitting will accept male garden hose fittings
MHT: Male Hose Threads; Threads on outside of fitting will fit into female garden hose fittings
FIP: Female Iron Pipe Size -Threads on the inside of fitting
MIP: Male Iron Pipe Size - Threads on the outside of fitting
PSI: Pounds Per square inch or, more accurately, pound-force per square inch

We also carry brass hose fittings and great self coiling garden hoses.

General Drip Education - Questions about drip?

Customer Testimonial:

"This is my second order to you. I was very pleased with my first order from you four years ago. Your service, price and quality was excellent."
- Clark Vernon, Eldon, Missouri, 65026

"Thanks always for your great products!....Keep up the good work!"
- David W. Andrick, Ellsworth, Nebraska 69340

Please note that every customer testimonial shown on our pages has given us written permission to quote them. Our customer's privacy is very important to us so we will never give, share or sell contact information or e-mail addresses to anyone!

Frequently Asked Questions

Q. "At my local home center I noticed that they sell the same sized 1/4" tubing but for their larger main pipe size they sell a .600od (or .613 or .620 or .455). Why don't you offer those smaller sizes instead?"
A.We believe in the .700 size. It is the most used size by professionals and that size is the most "uniform" of all of the sizes. Also, consider the difference in volume that the piping can carry. If you take the .600od (.500id) and compare it to our .700od (.600id) our pipe can carry additional 44% more water! We can't understand why anyone would buy smaller pipe for a main line. Down the road, if you need additional fittings, or need to add to an odd-sized pipe, you might have a problem getting that oddball size. We say, stick to what most professionals buy. You'll be happier in the end.

Q. "I want to connect the .700 tubing to my hose bib (outside faucet). What fitting do I need?"
A.For a standard connection you need the female hose adapter #CSAW700 (if you also want to install a filter, etc. then see below).

Q. "What is a figure 8 fitting?"
A.It is for the .700 O.D. pipe and is to cap the end of the tubing. You simply put one end of the tubing through one hole and then back through the other hole and it will stop water at the end of a line. You can also use an adapter, the #D70HMC 3/4" MHT Adapter (includes a cap) but the figure 8 is the lowest price way to act like a cap.

Q. "I just installed the 'Plus' emitter drippers and no water is coming out of them?"
A.The Plus drippers are directional. Simply reverse the inlet/outlet. As we state on our dripper directions page you do need to install the colored barbed side towards the inlet side.

Q. "Ok, I'm sold on your better pipe and professional sizes, now how can I adapt my current smaller pipe to your professional size pipe?"
A.Simply purchase an adapter from your sized pipe to our .700od.

Q. "What pressure range do you recommend for a drip system?"
A.We recommend that you supply your drip system with between 20 and 25psi. If your water system has higher pressure (most do) we recommend using a pressure regulator (install it before any of our drip products.

Q. "Your .700 OD pipe price seems so low because I'm paying about the same for smaller tubing, is the quality as good?"
A.The .700 OD pipe that we sell is made in the U.S. using the finest top-quality resins from Union Carbide (DFDA 7510 base resin and Union Carbide approved carbon black concentrate resin) - the industry's recognized best drip tubing materials. These products are specifically designed for use in drip irrigation tubing and are manufactured to provide outstanding resistance to both environmental and thermal stress cracking. The manufacturer also conforms to ASAE S435 standards for inner diameter and wall thickness tolerances, which mean the pipe will fit very well with standard .700 fittings. We do not sell the .700 pipe in longer than 100' due to size of packaging.

Q. "To my outside faucet I wish to connect a filter, pressure regulator, vacuum breaker and then go to .700 drip pipe. In other words, how do I connect these from the hose faucet to the tubing (in what order)?"
A.The first thing to connect after your (garden faucet - hose bibb) is a pressure regulator (#PRH). Then either install an inline strainer (#FIL75) or install both a brass Female-to-Female hose adapter and wye strainer (#DFILHC) (if you install the inline strainer you will not need the female-to-female adapter). Then the vacuum breaker (#DVB) and finally the adapter CSAW700 that goes from female hose threads to the pipe. Once you have done the "hard part" (ordered and then installed these parts in this order) the rest of the drip installation usually is very easy.

Q. "I'm installing my drip system indoors and can't have any leaks between emitters and tubing. Are your emitters guaranteed to not leak at all where they connect to the pipe?"
A.Irrigation drip systems, such as what we offer, tend to leak less when a pressure regulator is used. Drip systems will and can leak slightly and if you can not have any leak in your system at all then we recommend not installing drip systems at all. We are not aware of any brand of drip products that won't leak slightly. Drip products are meant (designed) to be installed outdoors.

Q. "What is the color of your 1/4" and .700 tubing?"
A.Black.

Q. "How do I plug off the end of my .700 drip line?"
A.Use the figure 8 (#D70800) or use a 3/4" male with cap - order #D70HMC.

Q. "What is a hydroponics garden system?"
A.Hydroponics is a method of growing plants in water without soil. Plants are seeded in a mineral nutrient solution in water. When mineral nutrients are artificially introduced into a plant's water supply, they are absorbed through the roots and soil is not required for the plant to grow and thrive..

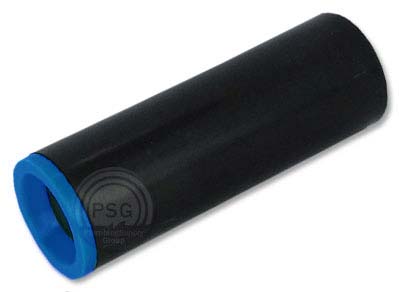

Q. "How do I adapt .700 to 1/4" tube?"
A.Just use a 1/4" connector/coupling.

return to top ↑

We hope that we have helped you on this page with drip irrigation products,
and thank you for helping to make PlumbingSupply.com^® the most famous Internet plumbing supplier.

Fun, inspirational quote of the day:
I think we ought always to entertain our opinions with some measure of doubt. I shouldn't wish people dogmatically to believe any philosophy, not even mine.
- Bertrand Russell

Is there something else that you are looking for?

OR - find plumbing supplies starting with: A B C D E F G H I J K L M N O P Q R S T U V W X Y Z
