Simple, straightforward and low shipping rates for these water removal systems.


Water Removal Systems


These economical water removal systems from Little Giant and Zoeller are an inexpensive, simple way to remove gray water (not sewage) from laundry trays and sinks that are below your main sewer/septic lines.

These under sink pump systems remove water from laundry trays, sinks, etc. (not toilets) where gravity drainage is impractical.
Great for basements or areas where the main drain is higher. Designed for above ground.
Systems are UL listed, CSA approved, and the basins are IAPMO approved.

WRS-6 Drainosaur
WRS-6
Max head
5' 10' 15' 18'
2,750gph 1,740gph 720gph Shut-off
Features:
  • Includes 5-gallon polypropylene tank
  • 1-1/2" Fips side intake port tank lid
  • 1-1/2" Fips top discharge port
  • 2" Fips top vent port
  • Easy to remove filter trap
  • Outside basin dimensions: 15.7" high x 15.5" wide
  • Includes 3/10HP automatic submersible sump pump
    #6-CIA pump
    • 8ft, 3-prong, grounded power cord
    • 1-1/2" diameter pipe from pump to lid
  • View dimensions
  • Please see below for the related FAQ about this system's RS-5LL remote switch.
  • 1-1/2" check valve (sold separately below)
Special Sale Price: #DR-WRS-6 Drainosaur = $238.60
Water removal systems are not for use with toilets.
Click here for sewage ejection systems

- Or -
View Button



WRS-5 Drainosaur Jr.
WRS-5
Max head
5' 10' 15' 18'
900gph 660gph 480gph Shut-off
Features:
  • Includes 5-gallon polypropylene tank
  • 1-1/2" Fips side intake port tank lid
  • 1-1/2" Fips top discharge port
  • 2" Fips top vent port
  • Easy to remove filter trap
  • Outside basin dimensions: 15.7" high x 14.5" wide
  • Includes 1/6HP automatic submersible sump pump
    #5-ASP pump
    • 10ft, 3-prong, grounded power cord
    • 1" diameter pipe from pump to lid
  • Click here to view dimensions
  • Please see below for the related FAQ about this system's RS-5LL remote switch.
  • 1-1/2" check valve (sold separately below)
#DR-WRS-5 Drainosaur Jr. = $299.43
Water removal systems are not for use with toilets.
Click here for sewage ejection systems

- Or -
View Button



WRSC-6 Compact Drainosaur
WRSC-6
Max head
5' 10' 15' 19'
2,750gph 1,750gph 750gph Shut-off
Features:
  • Includes 3.5-gallon polypropylene tank
    (only 10-1/2" high)
  • 1-1/2" Fips side intake port tank lid
  • 1-1/2" Fips top discharge port
  • 2" Fips top vent port
  • Easy to remove filter trap
  • Outside basin dimensions: 10.6" high x 14.5" wide
  • Includes 3/10HP automatic submersible sump pump
    #6-CIA-ML pump
    • 8ft, 3-prong, grounded power cord
    • 1-1/2" diameter pipe from pump to lid

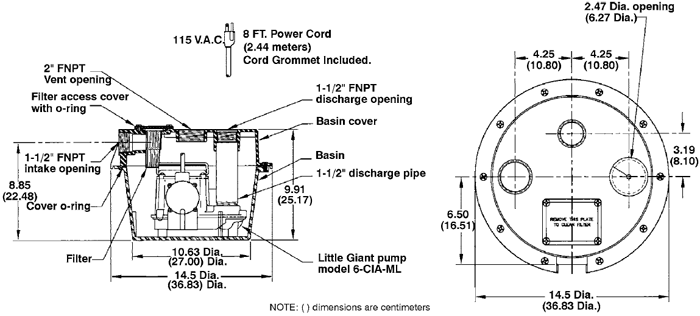

  • Click here to view dimensions
  • Please see below for the related FAQ about this system's RS-5LL remote switch.
  • 1-1/2" check valve (sold separately below)
#DR-WRSC-6 Compact Drainosaur = $240.75
Water removal systems are not for use with toilets.
Click here for sewage ejection systems

- Or -
View Button



WRS-9EN Drainosaur®
WRS-9EN
Max head
5' 10' 20' 32'
4,800 gph 4,200 gph 2,700 gph Shut-off
Features:
  • Pre-assembled, ready to be installed
  • 5-gallon polypropylene IAPMO listed basin with water tight o-ring seals
  • Easy to remove filter trap
  • 1-1/2" Fips side intake port tank lid
  • 1-1/2" Fips top discharge port
  • 2" Fips top vent port
  • Includes 4/10 HP cast iron automatic submersible sump pump
    - 3/4" solid waste handling capability
    - protective epoxy coating
    - 10ft, 3-prong, grounded power cord
    - 1-1/2" diameter pipe from pump to lid
    - on level 7" - 10"
    - off level 2" - 5"
    - 115 volt - 9.0 amps - 920 watts

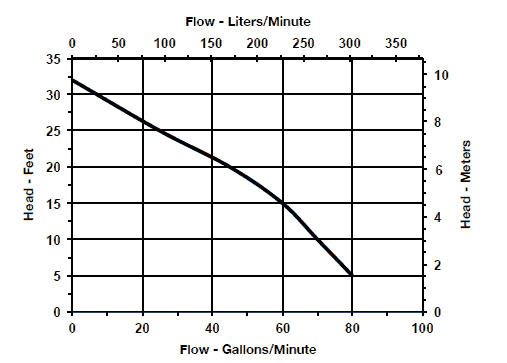

  • View pump performance curve

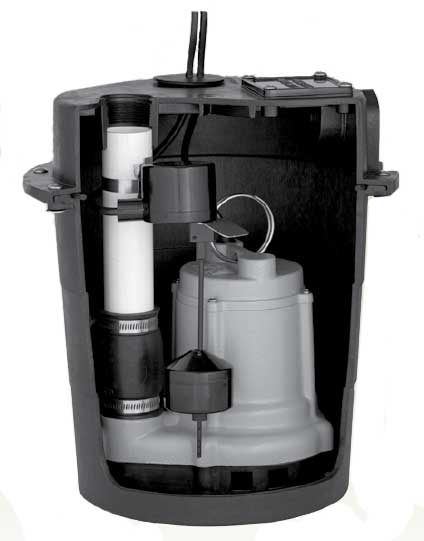

  • Pre-assembled internal view

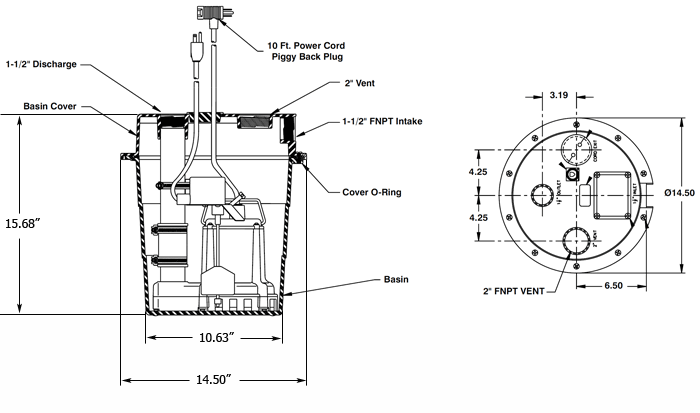

  • View dimensions
  • 1-1/2" check valve (sold separately below)
#DR-WRS-9EN Drainosaur = $453.05
Water removal systems are not for use with toilets.
Click here for sewage ejection systems

- Or -
View Button


to installation and troubleshooting this model
to sump backup alarms



Sump Pump Drain Kits - Select The Pump For Your Application
These Zoeller sump pump systems remove water from areas where normal gravity flow is not available. Designed to be installed above ground these sump pump drain kits make installation quick and easy. No need to dig a sump. Typical applications include: laundry trays, drinking fountains, wet bar sinks, lavatories, air conditioning condensate or dehumidifier water removal. They can also be used in conjunction with dishwashers and garbage disposal applications.
Zoeller drain pump
kit includes: basin, check valve, & pump

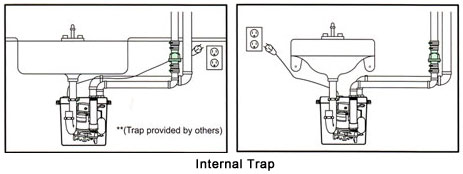

view installation: standard and internal trap
Basin Features:
  • Polypropylene construction
  • Corrosion resistant
  • High Capacity
  • No inlet filters or screens to clean
  • Gasket Sealed polypropylene lid
  • 2" NPT vent
  • 1 1/2" NPT discharge
  • 1 1/2" Inlet - compression slip fit for top & side
  • Threaded connections for easy installation
  • 1-1/2" check valve included
  • May be installed with internal trap for space savings
  • Gas tight cover
  • Temperature rated 130°F
  • Fits under most sinks
  • Basin passes 10 ft. stack test
  • Models 104 and 132 will not pass 10 ft. stack test
  • 12 1/2" x 14 1/2" Polypropylene basin and lid
Pump Features:
(Models 53, 55, 57, 59, 98)
  • Passes laundry lint
  • Automatic, float operated mechanical switch
  • 115 Volt single phase, all drain pump series
  • 9ft UL listed 3-wire cord & plug
    (15ft cord std. on model 98)
  • Stainless steel screws, guard, handle & switch arm
  • Passes 1/2" spherical solids
  • 1 1/2" NPT discharge
  • Non-clogging vortex impeller
  • Internal discharge pipe to lid

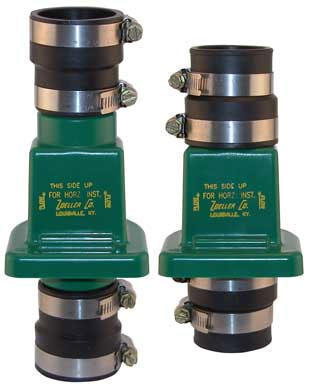

  • #30-0181 1-1/2" or 1-1/4" pvc full flow check valve
  • Temperature rated 130° F
  • UL Listed
Pump Features:
(Model 72)
  • Passes laundry lint
  • 115 Volt single phase
  • 9ft. UL listed 3-wire cord and plug
  • Stainless steel screws, switch arm and lower motor housing
  • Oil free
  • Passes 3/8" spherical solids
  • 1 1/2" NPT discharge
  • 3400RPM
  • Non-clogging vortex impeller
  • Temperature rated 110°F
  • cCSAus certified pump

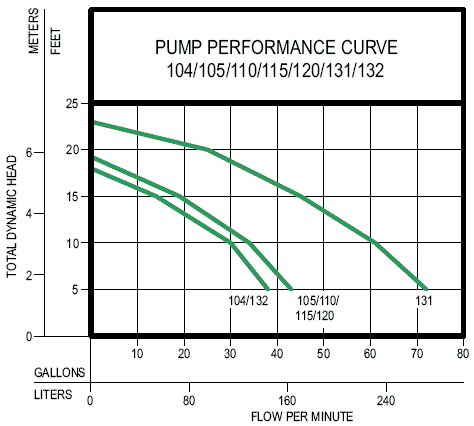

Performance curve for drain pumps (listed by Basin Model numbers)

Sump Pump Drain Kits

Basin
Model#
Pump Description Pump Model
Number
Amps HP RPM Shut-off Size of
Solids Passed
Price & Quantity
105-0001 Cast iron pump (1 1/2" inlet)
Glass filled polypropylene base with built in strainer
M53 9.7 .3 1550 19.25' 1/2" $254.24
110-0001 Bronze pump
Glass filled polypropylene base with built in strainer
M55 9.7 .3 1550 19.25' 1/2" $1033.50
115-0001 Cast iron pump M57 9.7 .3 1550 19.25' 1/2" $287.80
120-0001 Bronze pump M59 9.7 .3 1550 19.25' 1/2" $1285.09
131-0001 Cast iron pump
SUPER SALE! While supplies last
M98 9.4 .5 1725 23' 1/2" $247.38
132-0001 Thermoplastic pump (pre-assembled for side inlet only)
-Not IAPMO Approved-
M72 3.1 .3 3400 18' 3/8" $263.58
104-0005 Thermoplastic pump (check valve sold separately)
-Not IAPMO Approved-
SUPER SALE! While supplies last
M72 3.1 .3 3400 18' 3/8" $89.98

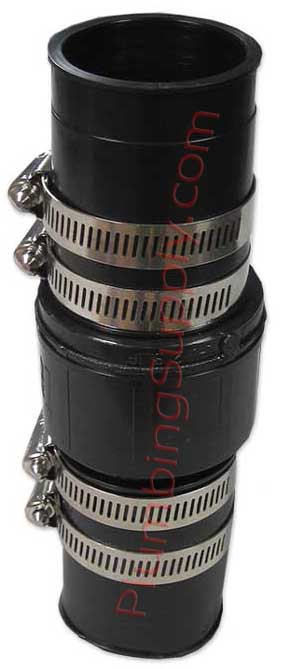

Check Valve Sump pump check valve for 1 1/2" pipe - (2) rubber sleeves (4) clamps $14.88
For more information about these pumps, please see our main submersible pumps page

- Or -
View Button


We offer a variety of 1-1/2" check valves for sump pumps



2" INLET - Sump Pump Drain Kits - Select The Pump For Your Application
These Zoeller sump pump systems remove water from areas where normal gravity flow is not available. These basins are made of polyethylene and have a 2" NPT side inlet allowing for a higher flow of drain water to enter the basin. These sump pump drain kits are designed to be used for one fixture application. Typical applications include: laundry tray pumps, wet bar sinks, lavatories, drinking fountains, air conditioning condensate or dehumidifier water removal. They can also be used in conjunction with dishwashers and garbage disposal applications. The Model #135-0005 is designed for situations requiring pumping waste water to higher elevations and is capable of pumping 23 gallons of water per minute 30 feet high.
Zoeller drain pump
Basin Features:
  • Polyethylene construction
  • Corrosion resistant
  • 2" NPT female inlet, no screen
  • High Capacity
  • No inlet filters or screens to clean
  • Gasketed polyethylene lid
  • 2" NPT vent
  • 1 1/2" NPT discharge
  • Threaded connections for easy installation
  • 1-1/2" check valve included
  • Gas tight cover
  • Temperature rated 130°F
  • Fits under most sinks
Pump Features:
(Model #105-0010 Pump #53)
  • Passes laundry lint
  • Automatic, float operated mechanical switch
  • 115 Volt - single phase
  • 9 ft UL listed 3-wire cord & plug
  • Stainless steel screws, guard, handle & switch arm
  • Passes 1/2" spherical solids
  • 1 1/2" NPT discharge
  • 1550 RPM
  • Non-clogging vortex impeller
  • Internal discharge pipe to lid
  • #30-0181 pvc full flow check valve
  • Temperature rated 130° F
  • UL Listed

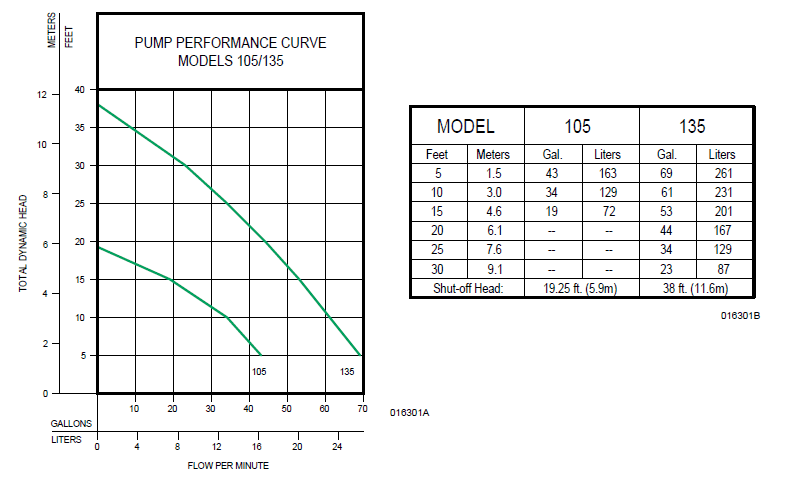

  • Click here for performance curve
Pump Features:

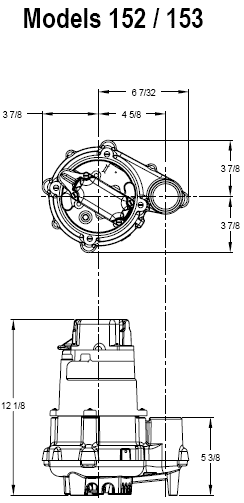

(Model #135-0005 Pump #WM152)
  • High head
  • Passes laundry lint
  • Wired-in vertical float switch
  • 115 Volt - single phase
  • 15 ft. UL listed 3-wire cord and plug
  • Stainless steel screws, switch arm and lower motor housing
  • Oil free
  • Passes 3/4" spherical solids
  • 1 1/2" NPT discharge
  • 3400RPM
  • Non-clogging vortex impeller
  • Internal discharge pipe to lid
  • #30-0102 1-1/2" pvc (slip x slip) full flow check valve w/union
  • Temperature rated 130°F
  • cCSAus certified pump
  • Click here for performance curve

Sump Pump Drain Kits

Basin
Model#
Pump Description Pump Model
Number
Amps HP RPM Shut-off Size of
Solids Passed
Price & Quantity
105-0010 Cast iron pump (2" inlet) with 3-wire cord and plug

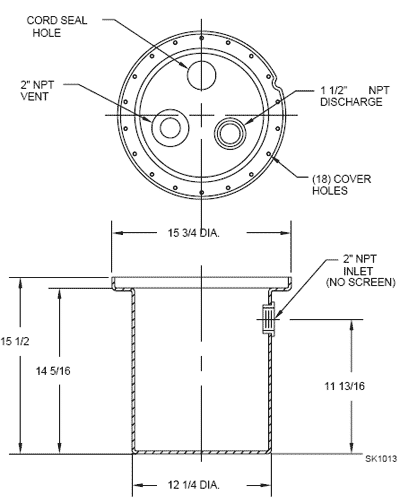

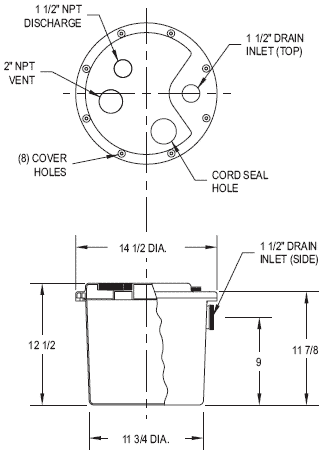

- Click here for basin specs
M53 9.7 .3 1550 19.25' 1/2" $350.54
135-0005 Cast iron pump with vertical float switch - high head
- Click here for basin specs
WM152 8.5 .4 3450 38' 3/4" $387.96
Check Valve Sump pump check valve for 1 1/2" pipe - (2) rubber sleeves (4) clamps $14.88
For more information about these pumps, please see our main submersible pumps page

- Or -
View Button


We offer a variety of 1-1/2" check valves for sump pumps



Replacement Drain Pumps
These are replacement pumps for the systems shown above.

Pump Model# HP Amps RPM Shut-off Size of
Solids Passed
Price & Quantity
M72 .3 3.1 3400 18' 3/8" $144.67
M53 .3 9.7 1550 19.25' 1/2" $167.27
M55 .3 9.7 1550 19.25' 1/2" $728.79
M57 .3 9.7 1550 19.25' 1/2" $179.68
M59 .3 9.7 1550 19.25' 1/2" $928.02
M98 .5 9.4 1725 23' 1/2" $258.79
WM152 .4 8.5 3450 38' 3/4" $349.97

Note: the WM152 is designed only to be used as a replacement pump for the drain pump system model#135-000

- Or -
View Button

to many more submersible pumps



Check Valves For Sump Pumps

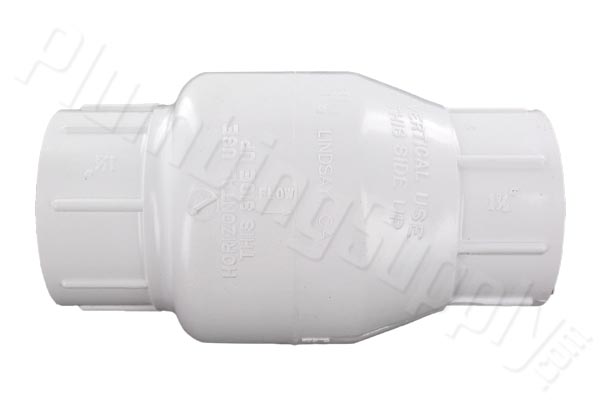

Image of PVC swing check valveCheck valves are needed in most sump pump or sewage ejector systems. When installed correctly they will keep the discharge from draining back into the sump after the pump turns off and causing the pump to cycle repeatedly on and off helping to prevent premature pump failure or burn-out.
For your convenience we offer different styles of check valves giving you the freedom to choose the one that will work best for your application. The combination ball and check valves provide a positive manual shut-off allowing you to stop back flow from flowing back to the sump basin while servicing the basin or pump, and inspect and clean the check valve if needed.


Size Description Price & Quantity

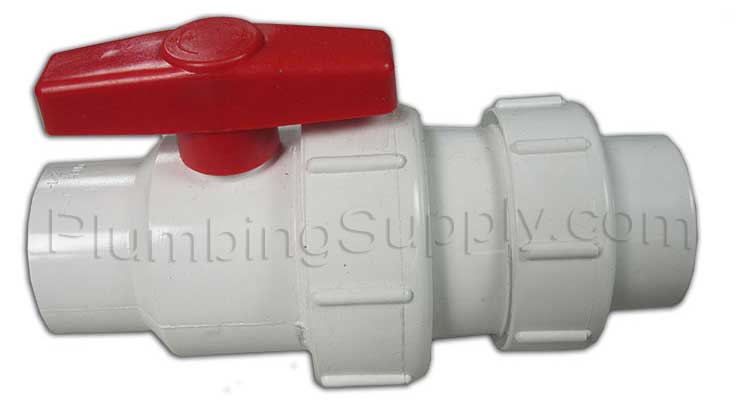

1 1/2" PVC Combination Ball and Spring Check Valve - Union x Slip $26.95
1 1/2" PVC Combination Ball and Spring Check Valve - Compression (Comp x Comp) $32.95
1 1/2" PVC Combination Ball and Spring Check Valve - Union x Union $35.51
1 1/2" PVC Swing Check Valve - Slip x Slip - Glue Type $18.44
1 1/2" PVC Swing Check Valve - Compression (Comp x Comp) $27.26
1 1/2" Sump pump check valve w/ (2) rubber sleeves and (4) clamps $14.88
1 1/2" Silencer spring check valve w/ (2) rubber couplings and (4) s.s. hose clamps $19.99

- Or -
View Button

We offer a variety of sump pump check valves

Need a smaller or larger sized PVC check valve?


Water removal systems are not for use with toilets.
click here for sewage ejection systems



Frequently Asked Questions

Q. "Can I safely use an air admittance valve ("auto vent") on any of the above systems?"
A. Although some people have installed an air admittance valve on the above systems, we will never suggest or recommend that you do so. We always recommend installing a vent all the way through the roof (and as per your local codes). We have had people write us stating that when they installed an air admittance valve the flapper in the valve can chatter and create vibration. The right way to go is to install a non-mechanical vent, all the way to the roof, and as per your local codes.

Q. "Can I cut off the plug from the end of the Little Giant RS-5LL remote switch that's used on the smaller Drainosaurs so that I can hardwire it into my system?"
A. In a word, no. Not only would that void the manufacturer's warranty, removal of the plug from the RS-5LL switch (which is used on the WRS-5, WRS-6 and WRS-C6 systems) will not allow the switch to function properly (if at all). Pressure from rising water pushes against a diaphragm inside the RS-5LL switch, turning off the switch. For the diaphragm to move, the air above the membrane must be expelled; to allow this air to escape, a small vent tube runs from the top of the switch and along the cord, exiting at the plug. If the plug is removed and the switch is hardwired, the air tube would essentially be "plugged off"; the air from the area above the diaphragm membrane could not vent, which means water pressure would be unable to move the membrane to close the switch.

Q. "Do I need to install a vent pipe to the tank?"
A. It really depends on how you plumb the piping to the tank and each situation is different. In many cases with any brand of sealed tank the simple answer is yes as you need air to displace the volume of discharge. An AAV may be used in many areas of the country but local codes always prevail and so best to check with your local code authorities before purchasing the enclosed tank system/s such as these shown on this page.

Q. "What does it mean when it states the basin passes 10 ft. stack test?"
A. This means that the basin can withstand water pressure from a 10 ft. vertical pipe without leaking.



return to top ↑

We hope that we have helped you on this page with drain systems,
and thank you for helping to make PlumbingSupply.com® the most famous Internet plumbing supplier.


Fun, inspirational quote of the day:
"The happy man is not he who seems thus to others, but who seems thus to himself."
- Publilius Syrus



Is there something else that you are looking for?

Enter search terms:

OR - find plumbing supplies starting with: A B C D E F G H I J K L M N O P Q R S T U V W X Y Z



Easy payment methods
