Simple, straightforward and low shipping rates for these Zoeller crawl space pump systems.

Crawl Space Pumping Systems
by Zoeller Pump Co.

Help eliminate damaging water that can collect in the low areas of crawl spaces, thus saving on costly repair work. This crawl space pumping system helps keep your family safe from mold and fungus growth that can cause allergies, while also helping to eliminate many of the by-products of excess moisture, such as pooling water, structural damage, and pests.

Super Crawl Space Pumping Systems

These Crawl Space Pumping Systems Feature:

Slotted basin keeps rocks and debris out of the pump, but allows the water to come into the pump area so it can be pumped out.

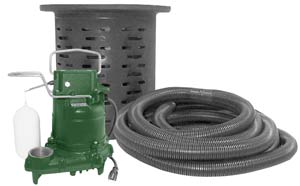

Modern crawl space pumping system includes: automatic pump, 24' hose and hose adapter (allows you to connect the hose to the pump), & slotted basin assembly
Works great to help eliminate: mold and fungus which cause allergies, moisture damage to wood floors, rugs, metal ducts, insulation, rodents, slugs, insects, pests, insecticide dilution, property inspection problems, odor, structural damage due to freezing water buckling concrete, water pooling in yard, on driveway, patio, and around house.

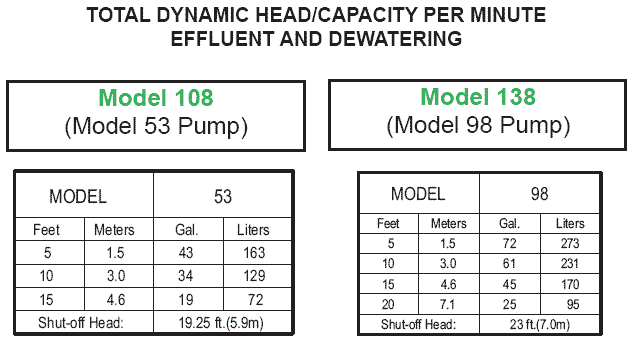

Click here for performance tables

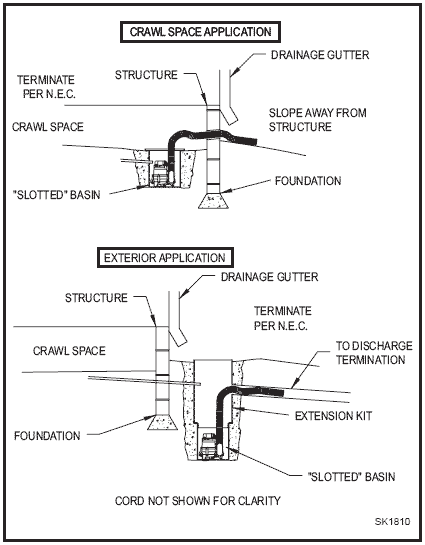

Click here for illustration of how this pumping system is used

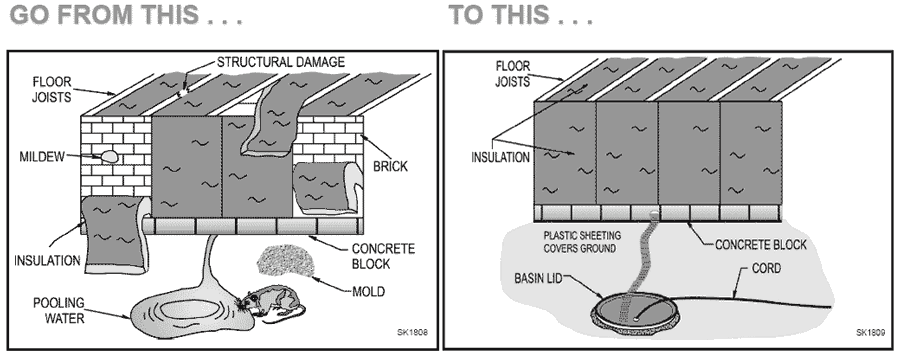

Click for illustration of problems solved by this pumping system

M53 Model Pump - Included with system #108

Pump Included With Model 108 System:

Automatic - turns on at a 7-1/4" water level
and pumps until the water level is at 3"
115 volt, 1 phase, 9.7 Amps, 3/10 HP
Passes 1/2" solids (sphere)
1-1/2" NPT discharge
9' cord
Click for picture of pump

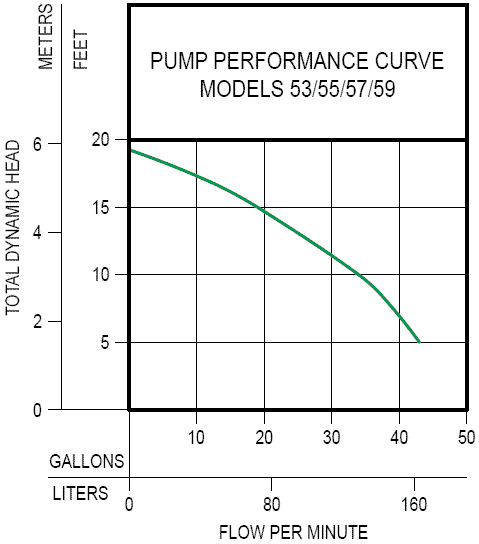

Click for model 53 performance curve

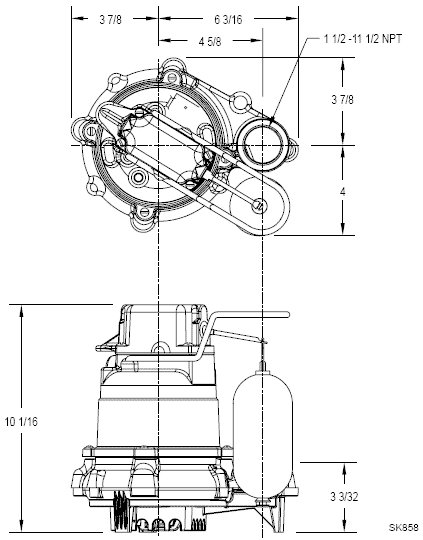

Click for model 53 single seal diagram
Click for detailed pump information for #108 crawl space water removal system

M98 Model Pump - Included with system #138

Pump Included With Model 138 System:

Automatic - turns on at a 9-1/2" water level
and pumps until the water level is at 3"
115 volt, 1 phase, 9.4 Amps, 1/2 HP
Passes 1/2" solids (sphere)
1-1/2" NPT discharge
15' cord
Click for picture of pump

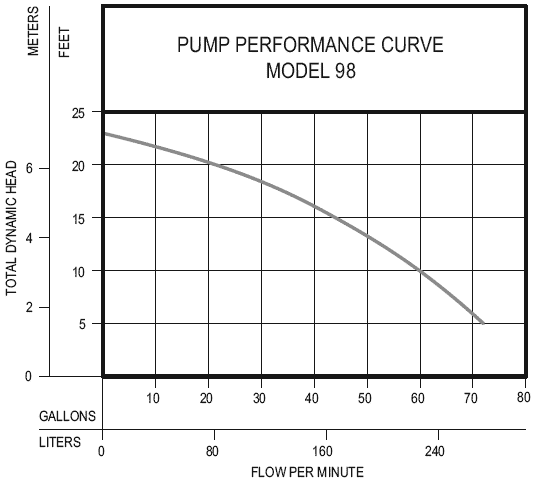

Click for model 98 performance curve

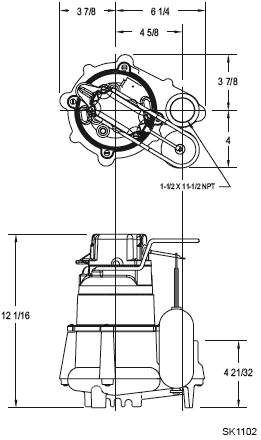

Click for model 98 series single seal diagram
Click for detailed pump information for #138 crawl space water removal system

Pumps Crawl Space Pump Systems
Basin Dimensions: overall height 14-7/8", upper flange width 15-5/8", body width 12-1/4"

Model#	Description	Price & Quantity
108	Crawl space system with automatic pump (M53), hose kit, and slotted basin	$302.51
138	High flow crawl space system with automatic pump (M98), hose kit, and slotted basin	$329.05

- Or -

Replacement Pumps For Crawl Space Systems

Model#	Description	Cord Length	Amps	Volts	Price & Quantity
53-0001 M53	Replacement Pump for Crawl Space System - For Model 108	9'	9.7	115V	$135.37
98-0001 M98	Replacement Pump for Crawl Space System - For Model 138	15'	9.4	115V	$219.85

- Or -

to a huge selection of submersible pumps by Zoeller

Frequently Asked Questions

Q. "The 108 pump system says it comes with the M53 pump. If I need to replace my pump, will any 53 series pump work?"
A. Yes, all 53 series pumps are designed to work with that crawl space pump system. The same holds true for the 138 system that comes with the M98 pump. You can replace the pump with any 98 series pump.

Q. "Do I need to install a vent pipe to the tank?"
A. It really depends on how you plumb the piping to the tank and each situation is different. In many cases with any brand of sealed tank the simple answer is yes as you need air to displace the volume of discharge. An AAV may be used in many areas of the country but local codes always prevail and so best to check with your local code authorities before purchasing the enclosed tank system/s such as these shown on this page.

Q. "I would like to install the Zoeller #108 pump system, but my crawl space is 12 feet below where I need to pump the waste water?"
A. The Zoeller #108 pump system has the capability of pumping the waste water up to 15 feet high at 19 gallons per minute. If you need to pump higher than 15 feet, then the Zoeller Model #138 can pump up to 20 feet high at 20 gallons per minute.
