Simple, straightforward and low shipping rates for these constant water pressure systems.


Inline Constant Water Pressure Systems
by Little Giant / Franklin Electric


Tired of waiting for that load of clothes in the washer to finish or the sprinklers to turn off before you can take a shower? These constant water pressure systems are the solution to your low water pressure problem! Increasing the flow when demand requires it can make completing everyday projects less taxing, and ease the stresses associated with lack of water pressure.

Inline Constant Water Pressure System

Traditional municipal systems use city water lines to deliver water to your home. Water pressure may vary for homes due to a number of factors. Some of the more common causes of low water pressure are: old infrastructure, being located a long distance from the main water line or even being at the top of a hill. Fluctuating water pressure and flow can disrupt your daily life and make simple chores around the house difficult. These inline constant water pressure systems are installed on your main water line and connect to a pressure tank that feeds your whole house. As water demand picks up, the pump in the inline unit will pump faster keeping the pressure from dropping due to the increased water demand. These systems are a must have for anyone with inconsistent or low water pressure.

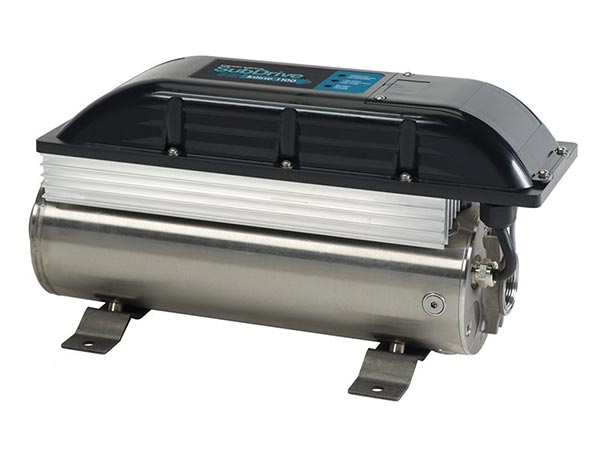

Franklin Electric inline 1100 constant water pressure system
constant water pressure system - Inline #1100
    Features:
  • Great for water storage/cistern systems, homes in private and municipal applications, general pressure boosting, sprinkler systems, farms, and commercial wash down systems
  • Stainless steel construction - made for years of operation - lead free design is compliant with new low lead laws
  • Small and compact design of the pump fits into small areas, even between floor joists
  • Can be mounted in any orientation for greater flexibility of installation
  • Quiet and cool operation - integrated motor design allows water to flow around it
  • Increases incoming pressure by up to 60 PSI
  • Wide range of settings 10-80 PSI
  • Operates on a wide range of flows from flooded suction to 35 GPM
  • NEMA 4 electronics enclosure (liquid tight conduit and fittings must be used to maintain NEMA 4 rating)
  • 1.2 hp power rating, single phase, 230V
  • 1 1/4" female NPT outlet and inlets
  • Built-in sensor helps protect these systems from many common failures including:
    • Low water shut off
    • Surge protection
    • Voltage underload
    • Locked pump
    • Open circuit
    • Short circuit
    • Overheated controller

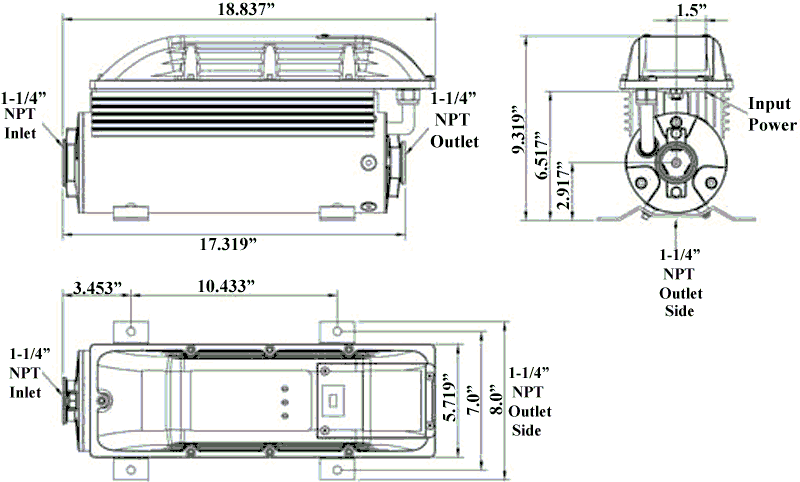

  • Click here for dimensions

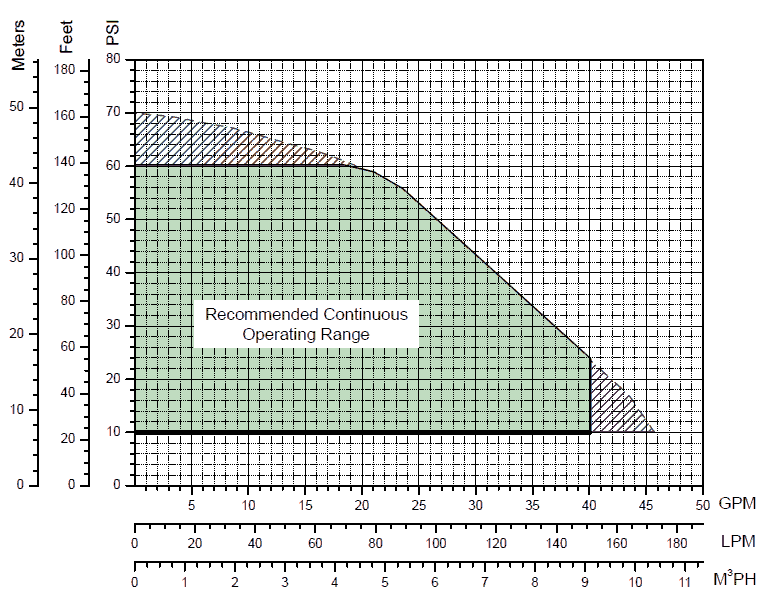

  • Click here for pump performance curve
  • Click here for a typical installation diagram
Description Price & Quantity
Inline 1100 Constant Water Pressure System (pressure tank sold separately) $1482.59
Pressure Tank 2-Gallon - more information $64.95
Pressure Tank 5-Gallon - more information $74.85
Optional Pressure Shut-off Sensor - safety device to prevent over-pressurized system - more information $85.21

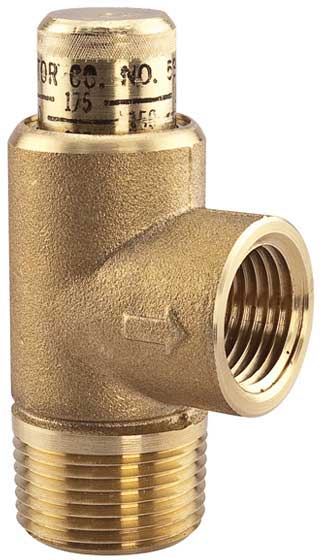

Adjustable Pressure Relief Valve - brass construction (50-175 PSI) $42.81

- Or -
View Button

Definitions For Terms Used

PSI Pounds Per Square Inch
NPT National Pipe Thread
GPM Gallons Per Minute

Click on the links below to view related items & accessories:
Sand SeparatorsSand Separators
Brass NipplesBrass Nipples
Brass UnionsBrass Unions
Tankless Water HeatersAccess Door / Panels
Whole House Filter SystemsWhole House Filter Systems
Brass ValvesBrass Ball Valves
Brass ValvesBrass Check Valves
Pipe FittingsPipe Fittings

Frequently Asked Questions

Q. "How how much can I expect my water pressure to fluctuate after I install this constant water pressure system?"
A. The Inline System's constant output pressure should not fluctuate more than 1-2 PSI, even though the overall system's water flow requirement may change dramatically.

Q. "What is the incoming pressure requirement for the unit?"
A. It requires a minimum incoming pressure of 3 PSI.

Q. "What is the water flow requirement for the unit?"
A. The system operates on a wide range of flows from flooded suction to 35 GPM. The Inline System is not designed to draw/lift water from a source below the pumping unit. There is not an incoming flow requirement, other than the system needs to be supplied with a constant supply of water to keep the unit completely full of water at all times. It is recommended that the system be supplied with inlet line that is 3/4" in diameter or larger. Please note although the unit has no water flow requirement other than being kept full at all times, you still must meet the minimum water pressure requirement of 3 PSI.

Q. "What is the difference between water flow and water pressure?"
A. Water flow refers to the amount of water coming out of a hose, faucet or other pipe fixture in a certain amount of time. Water pressure refers to the amount of force that is put on the water to make it move from one place to another, or to the amount of force the water exerts when coming out of the pipe. Water flow is the result of pressure on volume. Volume is the amount of water available for delivery, and pressure is the force exerted on it. For example if you have a pressure of 3 PSI forcing water through a 1/2" i.d. pipe it will have a lower flow rate than that same 3 PSI forcing water through a larger pipe.

Q. "What does flooded suction mean?"
A. A "flooded suction" refers to a situation in where water flows to the pump inlet from an elevated source by means of gravity.

Q. "What is the maximum temperature of water that can be used in the constant pressure system?"
A. The maximum incoming water temperature should not exceed 104°F.

Q. "My water is sandy and somewhat abrasive. Can I still use the constant pressure system?"
A. Pumping abrasive or sandy water can damage the pumps' internal components. We suggest installing a sand separator before the constant pressure system if you have these water conditions. We have many sand separators for you to choose from. Please note: if you are considering adding a sand separator before the constant water system you must make sure that your water system meets the minimum flow rate for the sand separator to function correctly.

Q. "Will I experience water hammer while using the constant pressure system?"
A. The pressure tank helps reduce water hammer by acting as a system buffer. However you may still need a water hammer arrester as water hammer is caused by a rapid shut off of a valve on a long run at the end of your plumbing system and the constant pressure system is installed at the beginning of your plumbing system.

Q. "What other items and/or tools will be needed to install the constant pressure system?"
A. The manufacturer recommends but does not include: wrenches, screwdriver, pipe sealant, pipe fittings, nipples, check valves, ball valves, unions and a 100 PSI pressure relief valve.

Q. "What size of a pressure tank will I need?"
A. For 12 gpm or greater flow, the minimum pressure tank size is 4 gallons; for 12 gpm or less, the minimum pressure tank size is 2 gallons. Oversizing the pressure tank is acceptable and will not adversely affect the system's performance or warranty.

Q. "What are the physical dimensions of the pressure tanks?"
A. The 2 gallon pressure tank has a diameter of 8" and a length of 12". The 5 gallon pressure tank has a diameter of 11" and a length of 14-1/2".

Q. "Can the pump run dry without any damage?"
A. No, never run the pump dry.

Q. "Will this system be able to handle other liquids besides water?"
A. Per the manufacturer, this pump has been evaluated for use with water only.

Q. "What does the optional 'Pressure Shut-off Sensor' do?"
A. The optional over pressure switch monitors the pressure levels within the constant pressure system. If the pressure level exceeds 100PSI, it will shut down the unit and allow your pressure relief valve to dissipate the excessive pressure.

Q. "What is NEMA 4 rating mean?"
A. The NEMA 4 rating means that the units enclosure provides a degree of protection from falling dirt, water, dust and sleet. The unit can be installed outdoors but the manufacturer recommends that the unit be shielded from direct sunlight to prevent overheating.

Q. "Will this system meet the low lead requirements for California, Maryland, and Vermont?"
A. No, the constant water pressure system is not certified to meet the low lead requirements for California, Maryland, and Vermont, therefore, cannot be shipped to those states.

Q. "I'm hearing a lot about lead-free these days. What does that have to do with plumbing products and how does the new lead-free legislation affect me?"
A. Basically, the laws implemented Jan. 1st, 2014 require plumbing products that come in contact with drinking water to be essentially lead free (less than 0.25% weighted average). For further information about how the law determines what is lead free, rules regarding which plumbing products must be lead free, and who these laws will affect, please visit our LEAD FREE Plumbing Information page.
