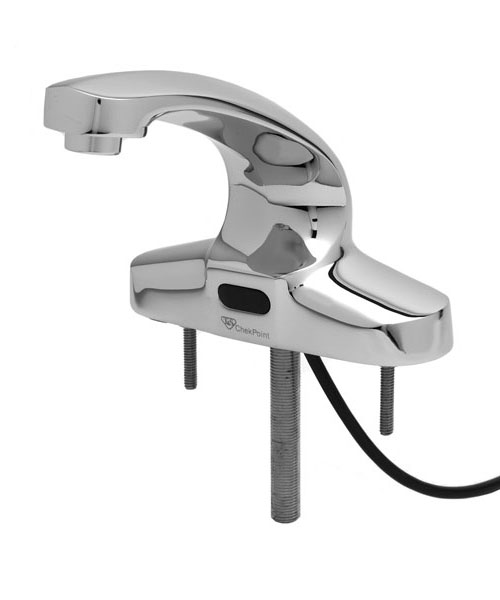

ChekPoint™ Electronic Faucets
by T&S Brass

Q. "Where are these faucets typically installed?"
A. These durable commercial restroom faucets are perfect for schools, parks, office buildings, hospitals or any public lavatories.

Q. "What tools will I need to install my new T&S Brass ChekPoint™ faucet?"
A. The manufacturer recommends but does not include, 8" adjustable wrench, 1/8" hex key wrench, basin wrench, 3/6" slotted screwdriver, #1 phillips head screwdriver and pliers.

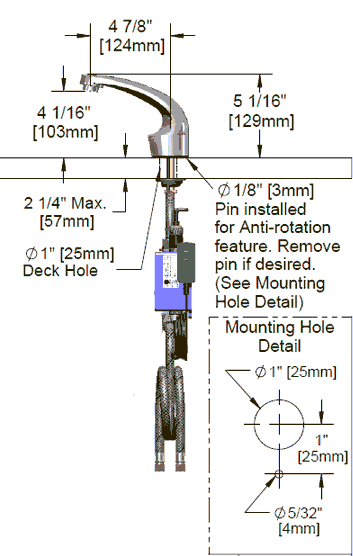

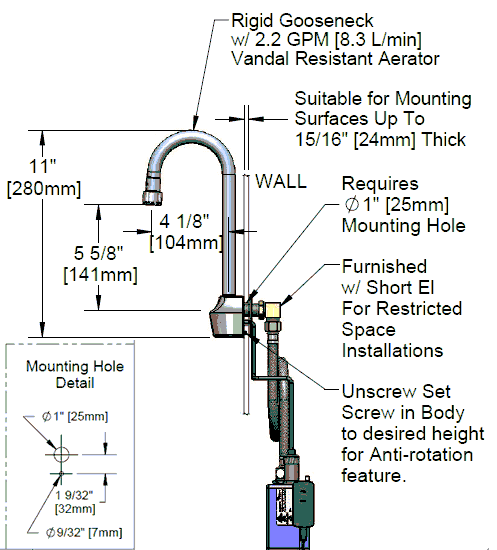

Q. "How thick of a surface can these faucets be mounted too?"
A. These faucets can mount on surfaces up to 1" thick.

Q. "The product says that it comes with an AC/DC adapter and then also mentions battery life. Do I need both the AC/DC adapter and batteries to run the unit?"
A. The unit can be ran on either the AC/DC adapter or 4 "AA" batteries and does not require both. Please note that batteries are not included with the faucet but the batteries are very common and can be purchased locally from most stores.

Q. "Where are the external batteries mounted?"
A. The 4 "AA" batteries are contained within the faucet control module.

Q. "What is the adjustment range for the sensor distance?"
A. The sensor can be adjusted to work at as little as 3/4" away or up to 5 1/2" away.

Q. "What does the 'water shut-off delay' do?"
A. The water shut-off delay is the time period that the faucet will continue to run water for once an object is removed from the sensor range.

Q. "What is the auto time-out adjustment?"
A. The auto time out adjustment controls the amount of time the faucet will run for when it is turned on. The factory preset for the auto time-out adjustment is 10 seconds, but adjustments of 25 seconds, 45 seconds, 60 seconds, 3 minutes and 20 minutes are available.

Q. "What is 'Laminar flow'?"
A. Laminar flow is a smooth stream of water with little turbulence and is not prone to spattering.

Q. "What is the 'Power Saving Mode'?"
A. If the faucet's sensor has not detected any movement within the last 30 minutes it will change from scanning for movement every 0.4 seconds to scanning for movement every 1.4 seconds thereby reducing the amount of power consumed.

Q. "Can I operate the faucet without the electronic eye?"
A. The faucet can be operated manually by using the on/off switch. If you forget to turn the faucet off it will turn itself off after 60 seconds.

Q. "What does 'UL listed' mean?"
A. When something is UL-listed it means that the Underwriters Laboratories has tested the device, and it meets their requirements for safety when properly installed.

Q. "What is the hydro-generator accessory?"
A. The EC-Hydrogen hydro-generator generates and stores its own power with the water that comes out of your faucet saving you energy and money. The self-contained power source, saves you time by not having to replace batteries. No more annoying adapters taking up your electrical outlets.

Q. "What does 'ADA Compliant' mean?"
A. Complies with the Americans with Disabilities Act (ADA) of 1990. The Americans with Disabilities Act of 1990 is a comprehensive civil rights act for people with disabilities. On July 26, 1990, the President signed the ADA into law as wide-ranging legislation intended to make American society more accessible to people with disabilities and to prohibit discrimination on the basis of disability. The ADA was built primarily due to the desire of individuals with disabilities to work toward their goal of full participation in American society, and effects the ADA may have on businesses include restructuring or altering the layout of a building, modifying equipment, and removing barriers.
