Simple, straightforward and low shipping rates for these PVC and ABS fittings.


PVC and ABS Bulkhead Fittings


Heavy-duty bulkhead fittings are designed for easy adaptation and installation, permitting a free flow of liquids for tank or drum drainage or filling. They can also be used as outlets for distribution into a piping system. Find all the fittings you need right here at PlumbingSupply.com®!

Deluxe Heavy-Duty Gray Bulkhead Fittings (Socket x Thread)

bulkhead

Pipe
Size
Dimensions Price for Fitting
(includes 1 gasket)
Price for Gasket**
(only)
A
± 1/16"
B
± 1/16"
C
± 1/16"
1/4" * 7/8" 1-7/16" 1-1/8" $11.18 $2.17
3/8" * 1" 1-7/16" 1-1/8" $11.87 $2.18
1/2" 1-1/4" 2-1/8" 2-3/8" $12.53 $2.39
3/4" 1-5/8" 2-5/16" 2-3/8" $13.74 $2.63
1" 1-7/8" 2-9/16" 2-3/8" $14.69 $2.89
1-1/4" 2-5/16" 3-5/16" 2-3/4" $17.82 $3.29
1-1/2" 2-9/16" 3-9/16" 2-3/4" $19.89 $3.79
2" 3-3/16" 4-1/16" 2-3/4" $23.62 $4.29
3" 4-1/2" 6-1/2" 4-5/8" $94.56 $6.92
4" 5-1/2" 7-1/2" 4-1/2" $181.55 $16.43
6" 7-7/8" 9-15/16" 5" $319.15 $19.97
* Do not have glue-style socket - click here for more information
** Gaskets are designed to work with our brand of PVC bulkhead fittings only.
Gaskets are included with these bulkhead fittings, but they may also be ordered separately.

click here to see assembled sample

- Or -
View Button

These heavy duty bulkhead fittings are proudly made in the USA. USA flag button

HEAVY-DUTY: Designed for easy adaptation and a free flow of liquids for tank or drum drainage or filling. Also used as outlets for distribution into a piping system, these molded tank adapters withstand many times the most extreme service requirements.
Assembly to a tank is simple: Cut a hole in the tank wall (using a hole saw) to the 'A' dimension shown above for your fitting size. Remove the locknut from the fitting, leaving the gasket on the body. Insert the body through the hole in the tank from the inside, trapping the washer between the tank wall and the shoulder of the tank adapter. Screw the locknut back onto the body for a tight, leak-free installation.



Economy - Light-Duty

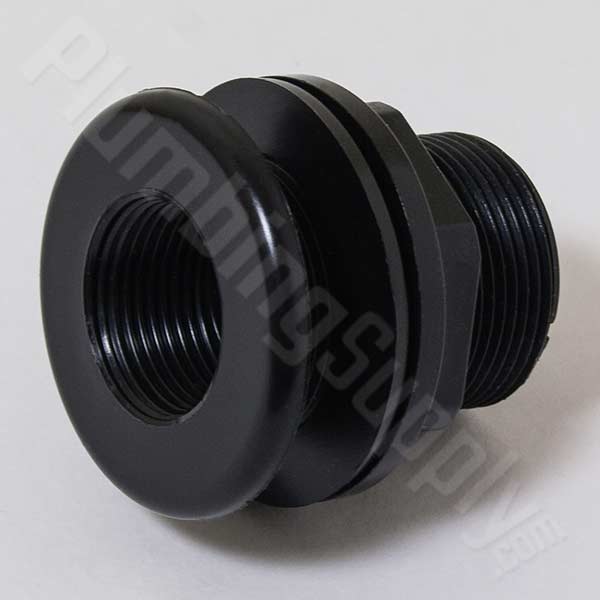

ABS Threaded Bulkhead fittings

Click here for a larger image

Please note: These light duty fittings are NOT made in the USA
Size Price for Fitting
(includes 1 gasket)
1/2" Fip x Fip $5.10
3/4" Fip x Fip $6.55
1" Fip x Fip $7.70

- Or -
View Button



Please note: While we strive to ensure every product we label as "Made in the USA" really is 100% made in the USA, it is also important to understand that sometimes manufacturers make changes to their products, or for various reasons may receive components or materials that they would normally purchase domestically from an overseas supplier - and they don't necessarily let distributors (like us!) know that they've changed something about the product or where it is manufactured.

If you receive a product that PlumbingSupply.com® says is "Made in the USA" and the product states it was manufactured elsewhere, please contact us. We will happily replace or refund your purchase to your satisfaction.

Frequently Asked Questions

Q. "Can I attach pipe to both sides of a bulkhead fitting?"
A.One side (the side with the nut) of our deluxe bulkhead fittings is female pipe thread, and the other (flat or flanged) side (with the exception of the smaller 1/4" and 3/8" bulkhead fittings) is a glue style socket for standard plastic pipe (sch40 PVC, ABS, etc.). This means that either a threaded male adapter or a nipple will be required to attach to the threaded side. The smaller 1/4" and 3/8" deluxe bulkhead fittings have a smooth walled end that is not designed to accept gluable pipe. Our economy bulkhead fittings are female pipe thread on both sides.

Q. "Why don't the smaller 1/4" and 3/8" bulkheads have the glue-style socket on the other end for standard plastic pipe?"
A.We believe it's because 1/4" and 3/8" Schedule 40 plastic pipe are very rare, if they still exist at all. The manufacturers have elected to include the pipe-sized, glue-style socket on the more common larger bulkheads only.

Q. "What are the gaskets made of?"
A.For sizes 1/4" to 2" deluxe are EPDM and 3" to 6" are neoprene.
